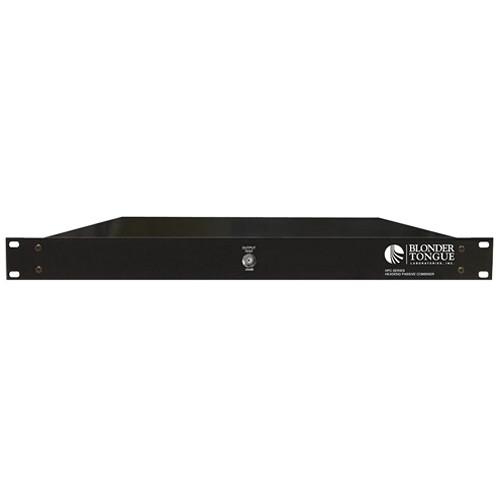

Product description The 12-port Headend Passive Combiner from Blonder Tongue is designed for use in a headend to combine the outputs from up to 12 single channel devices such as modulators and processors. It supports a frequency range of 5 to 1000 MHz. - Designed to provide high isolation, low net combing loss and featuring RFI shielding to minimize egress or ingress interference
- Front-panel, 20 dB test port on 75 ohm F type connector allows testing unit without service interruption
In the Box Blonder Tongue Headend Passive Combiner (12-Port) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue Headend Passive Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue HPC-12 Specs | | | Maximum Insertion Loss | 5 to 40 MHz: 14.3 dB
40 to 450 MHz: 14.3 dB
450 to 750 MHz: 15 dB
750 to 1000 MHz: 16.5 dB | | Minimum Isolation | 5 to 40 MHz: 30 dB
40 to 450 MHz: 32 dB
450 to 750 MHz: 30 dB
750 to 1000 MHz: 28 dB | | Test Port | 5 to 40 MHz: 20+ / -0.5 dB
40 to 450 MHz: 20+ / -0.5 dB
450 to 750 MHz: 20+ / -0.5 dB
750 to 1000 MHz: 20+ / -0.5 dB | | Input Return Loss | 5 to 40 MHz: 20 dB
40 to 450 MHz: 20 dB
450 to 750 MHz: 20 dB
750 to 1000 MHz: 18 dB | | Output Return Loss | 5 to 40 MHz: 20 dB
40 to 450 MHz: 20 dB
450 to 750 MHz: 18 dB
750 to 1000 MHz: 18 dB | | Impedance | 75 ohm | | | | Connectors | Inputs: 12 x F type female
Output: 1 x F type female
Test Port: 1 x F type female | | Rack Height | 1 RU | | Dimensions | 19 x 8 x 1.8" (483 x 203 x 44 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 23.622 x 12.047 x 4.095" |
