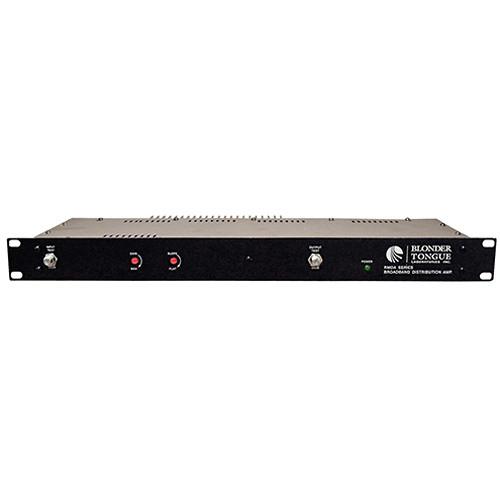

Product description The RMDA 1000-30 Rackmount RF Distribution Amplifier from Blonder Tongue is designed to serve as a distribution amplifier in MATV, SMATV, or CATV applications, or to use as a headend launch amplifier. It features 30 dB of gain and a frequency range of 47 to 1000 MHz. The unit provides gain and slope control as well as test ports alongside both the input and output. - 1RU rackmountable design with aluminum, heat-dissipating chassis
- RF input and output on F type female connectors -- test ports paired with input and output
- Front panel LEDs and gain and slope control
In the Box Blonder Tongue RMDA 1000-30 Rackmount RF Distribution Amplifier (47 to 1000 MHz, 30 dB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue RMDA 1000-30 Rackmount RF Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue RMDA 1000-30 Specs | | | Frequency Range | 47 to 1000 MHz | | Channel Loading | 152 | | Flatness | ±1 dB | | Hybrid Technology | Push-pull | | Gain | 30 dB | | Noise Figure | 8.0 dB | | Output Level | +30 / +38 dBmV | | Test Port Level | Input: -20, ±2
Output: -20, ±2 | | Gain Control Range | 15 dB | | Slope Control Range | 10 dB | | Composite Triple Beat | -CTB: -67 dB | | Composite Second Order | -CSO -67 dB | | Cross Modulation | -XMOD: -67 dB | | Hum Modulation | -70 dB | | Number of Hybrids | 2 | | Impedance | All Ports: 75 ohm | | Return Loss | Input: 14
Output: 14 | | | | Connectors | RF Input: 1 x F type female -- rear panel
RF Output: 1 x F type female -- rear panel
Input Test Port: 1 x F type female -- front panel
Output Test Port: 1 x F type female -- front panel | | Controls | Gain: Variable control
Slope: Variable control | | Indicators | Power On: LED, red | | Power Requirements | Voltage: 100 to 240 VAC
Frequency: 50 or 60 Hz
Current: 0.4 A | | Operating Temperature | -4 to 140 / -20 to 60°C | | Rack Height | 1 RU | | Dimensions | 19 x 1.8 x 5.1 / 483 x 44 x 130 mm | | Weight | 8 lb / 3.6 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 21.3 x 8.2 x 2.8" |
