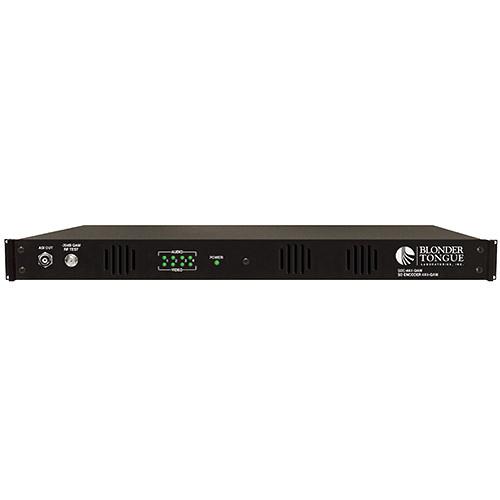

User Manual for Blonder Tongue SDE-4AV-QAM MPEG-2 SD Encoder Click to enlarge the picture
Contents of the user manual for the Blonder Tongue SDE-4AV-QAM MPEG-2 SD Encoder
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue SDE-4AV-QAM MPEG-2 SD Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description The SDE-4AV-QAM MPEG-2 SD Encoder from Blonder Tongue accepts up to four standard-definition analog sources (NTSC only) and encodes them in MPEG-2. Once encoded, the four sources are then multiplexed into a single Multi-Program Transport Stream (MPTS). The output stream is available in one QAM channel, one ASI channel, and one Gigabit Ethernet channel simultaneously.
An optional high definition software upgrade makes it possible for the encoder to convert HD programs as well as SD programs. There is an HDMI, a component, and a VGA input that can be used for sourcing HD programs. Note the HDMI input does not support HDCP-encrypted video.
In addition to video, the encoder supports Dolby Digital audio encoding, and Closed Captioning (EIA-608). It is also equipped with an Emergency Alert System (EAS) interface. A front-panel RF test point allows for monitoring or testing of the QAM output without service interruption. Comprehensive remote monitoring and control is accomplished using any standard Web browser when the unit is connected to a network via the rear panel Ethernet port. - Provides a front-panel RF test point (at 20 dB below primary QAM output)
- Compatible with ITU Annex A and B digital QAM formats
- Supports user-defined PSIP configuration
In the Box Blonder Tongue SDE-4AV-QAM MPEG-2 SD Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue SDE-4AV-QAM MPEG-2 SD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue SDE-4AV-QAM Specs | | | Standard | NTSC | | Connectors | 4 x Composite video on RCA
2 x Analog Audio on RCA
1 x HDMI -- requires HD software upgrade to use
1 x Component -- requires HD software upgrade to use
1 x VGA -- requires HD software upgrade to use | | Emergency Alert System (EAS) | Connectors: 3 x RCA (1 x video, 2 x analog audio)
Trigger Mechanism: 5 to 12 VDC and dry contact closure | | Supported Resolution | 480i | | Frame Rate | 29.97 | | Aspect Ratio | 4:3 | | GOP Structure | I and P frames (user selectable) | | Transport Rate | Variable (user selectable) | | Video Rate | Variable (user selectable) | | Video Pre-Filter | Variable (user selectable) | | Intra DC Precision | Variable; up to 10-bit (user selectable) | | Color Space | YCbCr and RGB | | Audio | Output Format: Dolby Digital
Sample Rate: 48 kHz
Bit Rate: Variable; 128 to 320 Kbps (user selectable) | | | | Standard | QAM: ITU-T J.83; annex A and B | | Connector | 1 x F type female (rear panel) | | Modulation | QAM 16, 32, 64, 128, and 256 | | DVB Symbol Rate | Variable; up to 7 MSymbol/sec (MBaud) | | Frequency Range | 54 to 1002 MHz | | Tuning | CATV Channel Selectable: Channels 2 to 158 | | Channel Bandwidth | 6 MHz | | RF Level | +40 dBmV | | RF Level Adjustment | +32 to +42 dBmV, 1 dB increment | | Frequency Tolerance | ±0.5 kHz at 77°F (25°C) | | Frequency Stability | ±5 kHz over 32 to 122°F (0 to 50°C) | | Amplitude Flatness | ±0.25 dB (over 6 MHz channel) | | Phase Noise | -98 dBc (at 10 kHz) | | Spurious | -98 dBc | | Broadband Noise | -70 dBc (at +40 dBmV output level, 5.5 MHz bandwidth) | | Impedance | 75 ohm | | Spectral Inversion | Auto recognition | | Carrier Suppression | 45 dB | | Return Loss | 14 dB typical | | Signal to Noise Ratio | 40 dB typical | | MER | 40 dB typical | | I/Q Phase Error | < 1° | | I/Q Amplitude Imbalance | < 1% | | ASI | Connector: 1 x BNC (front-panel)
Format: DVB-ASI
Standard: ETSI EN 50083-9 | | Ethernet | Connector: 1 x RJ-45 (rear-panel) Bandwidth: Gigabit
Standard: 1000Base-T | | | | Power Requirements | 110 to 230 VAC at 50 or 60 Hz | | Power Consumption | 40 W maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Humidity | 0 to 95% RH at 95°F (35°C) max, non-condensing | | Rack Height | 1 RU | | Dimensions (W x D x H) | 19 x 18.1 x 1.8" (483 x 460 x 44 mm) | | Weight | 10 lb (4.5 kg) |
