Product description - Classic Vocal Presence with Baby Bottle SL, Featuring Sara Niemietz

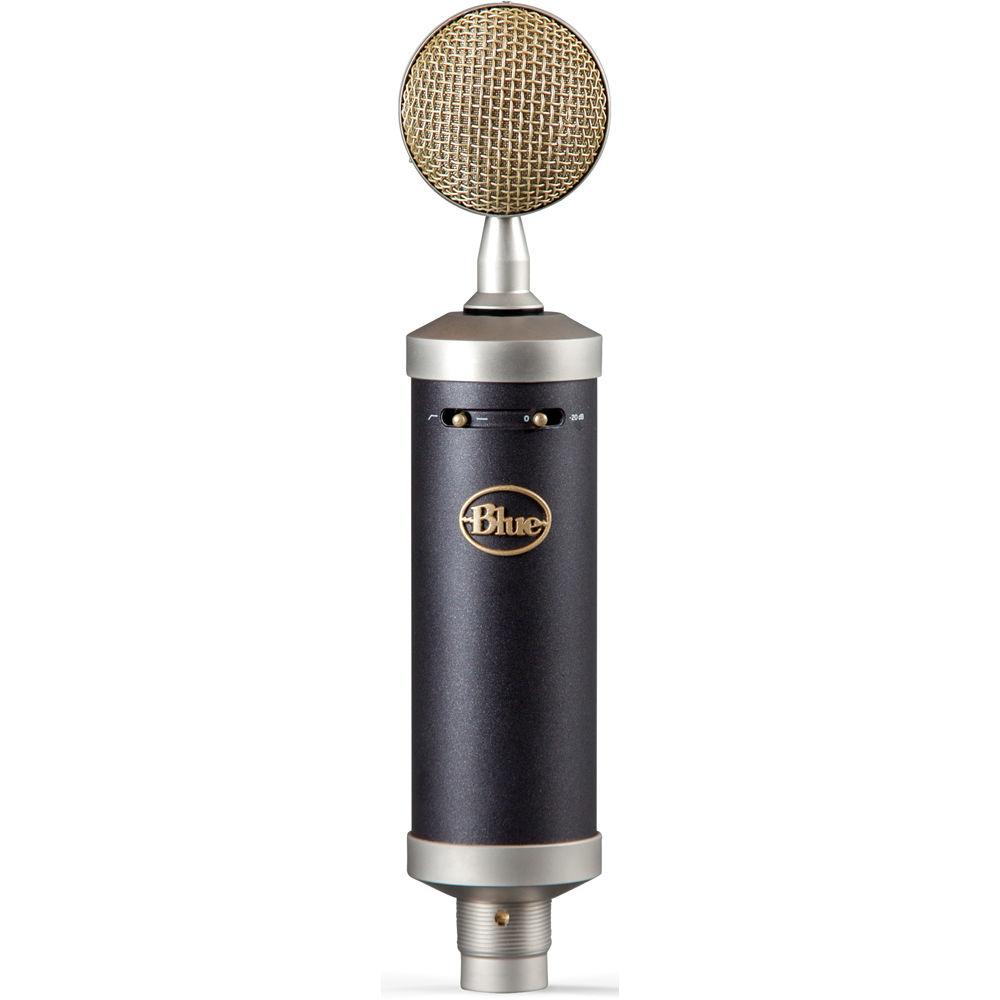

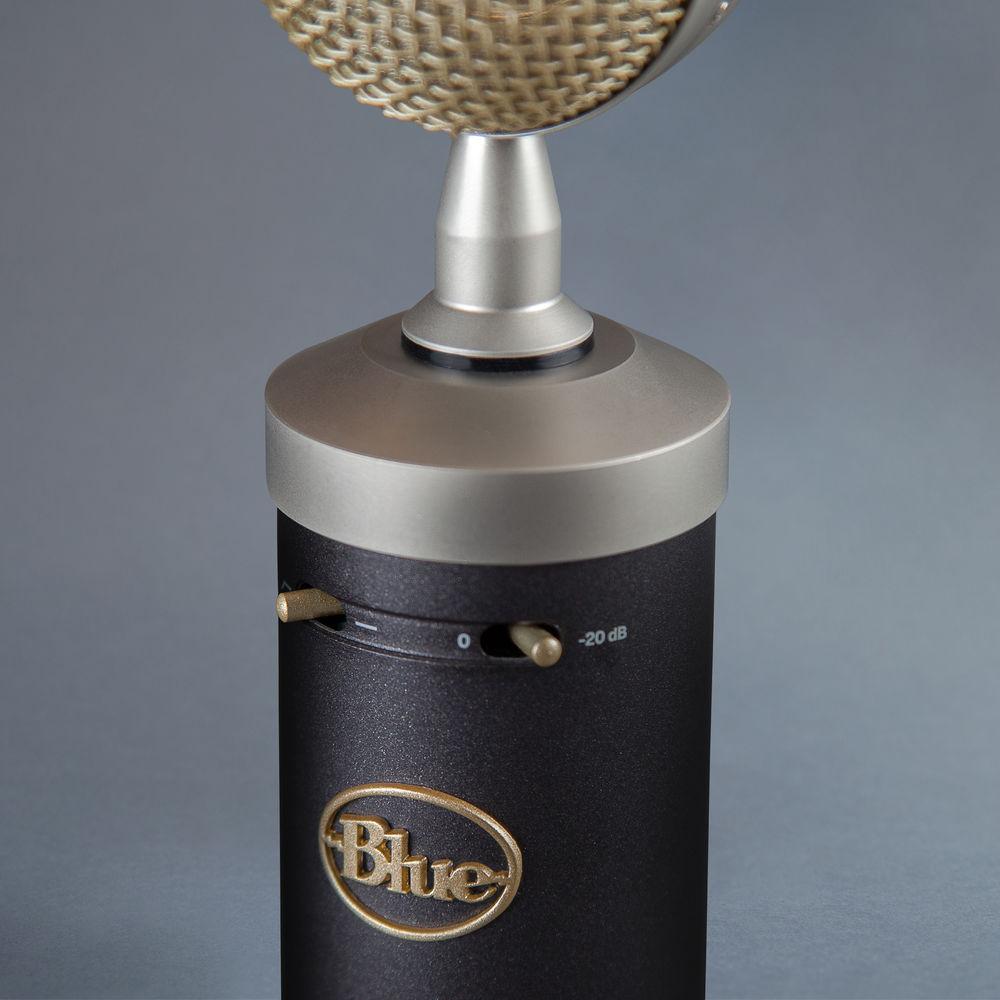

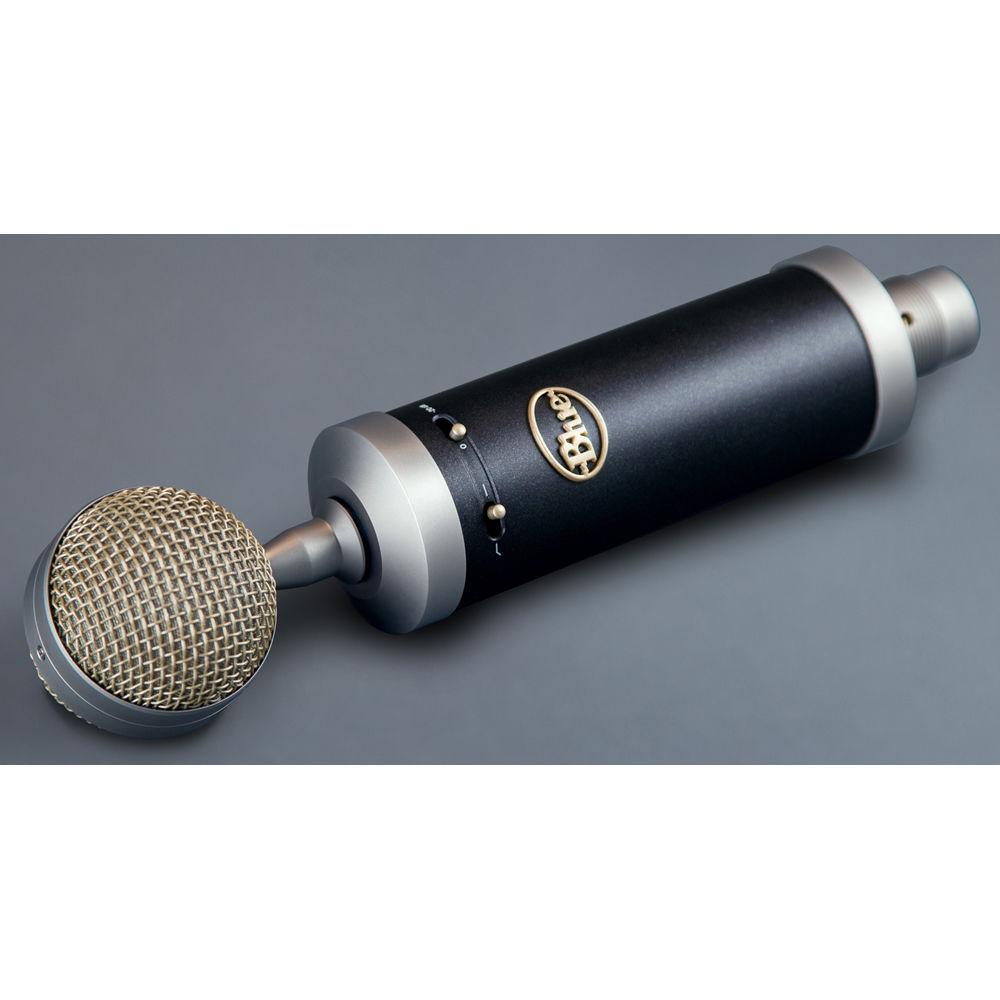

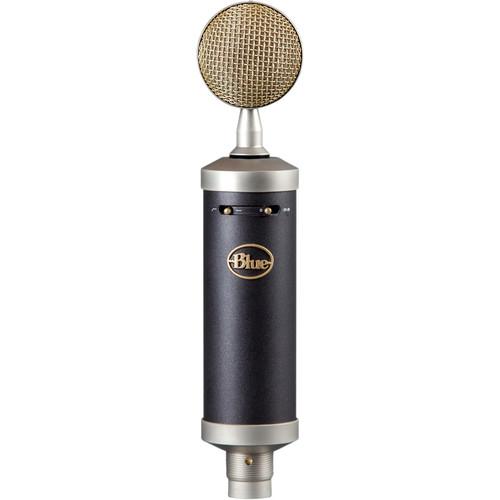

Featuring a proprietary, hand-tuned capsule, the Blue Baby Bottle SL is a studio condenser microphone which builds upon its predecessor to offer a switchable 100 Hz high-pass filter and a -20 dB pad to ensure a pristine captured sound, regardless of the source. It utilizes a large, gold-sputtered Mylar diaphragm, replete with a machined brass backplate to shape its frequency response; this creates the warmth and presence characteristic of Baby-Bottle-series microphones.

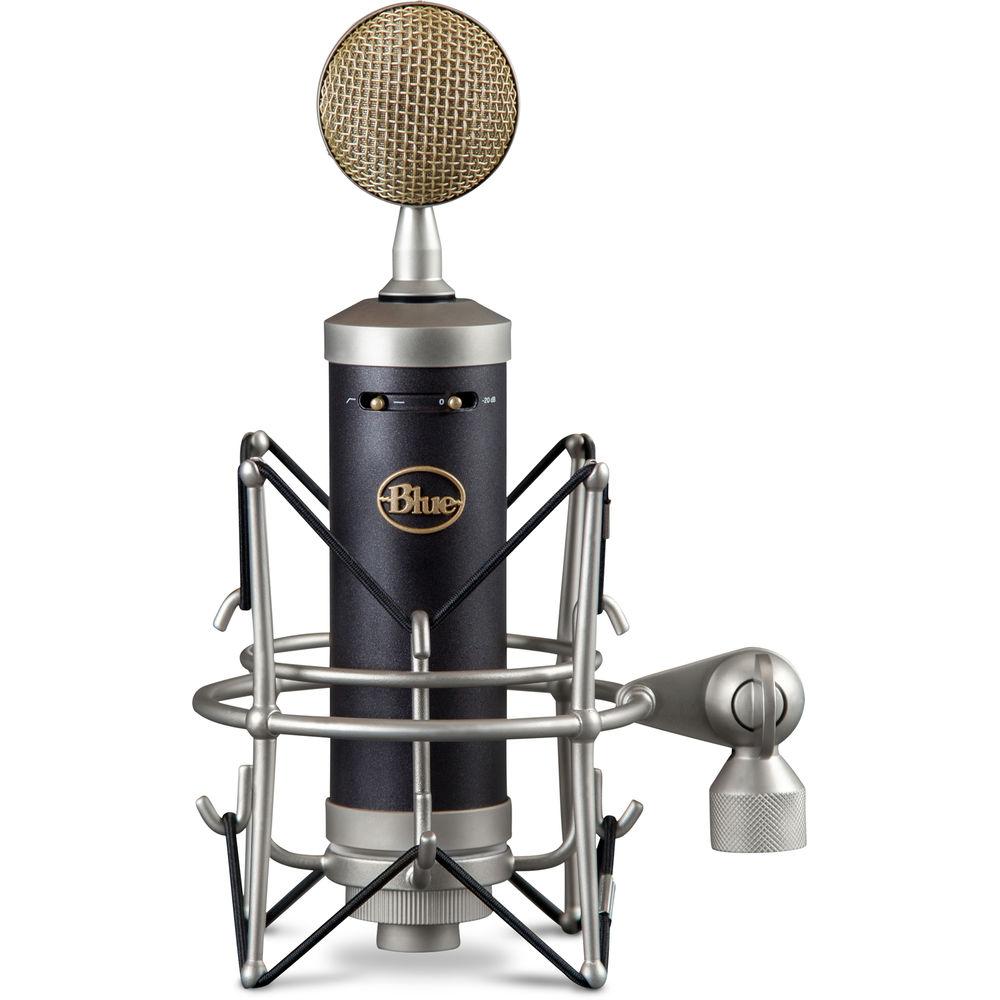

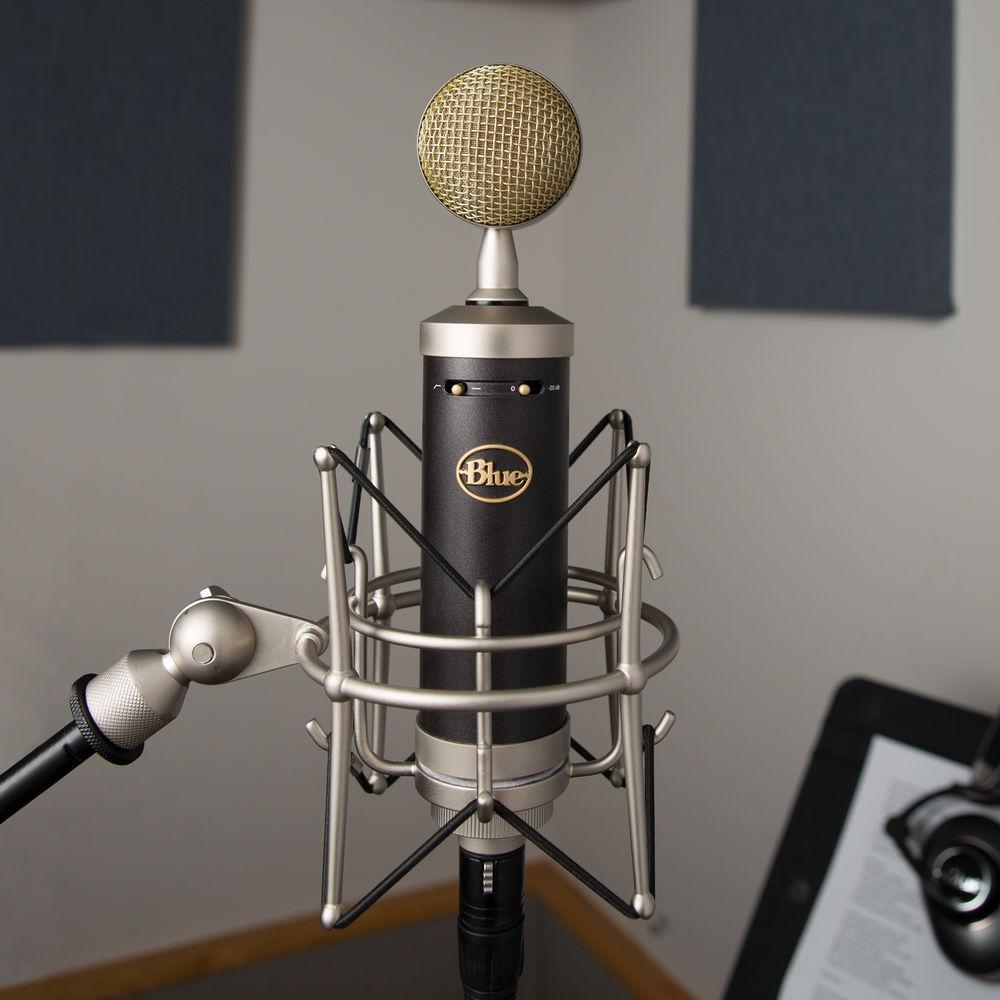

The Baby Bottle SL offers a cardioid polar pattern, giving you a frequency range between 20 Hz to 20 kHz—more than enough to record vocals, pianos, stringed instruments, and more. This frequency response has been tailored to offer a present midrange, a smooth top end, and a low end which will not overpower the recording. Furthermore, an SPL of 134 dB allows the microphone to capture a wide swath of dynamic material without damaging elements of the microphone. The microphone requires 48V phantom power to run, provides a dynamic range of 123.2 dB, and includes both a custom shockmount and a wooden storage box. - Key Features at a Glance
-
- Warm, classic sonic signature for an array of voices and instruments
- Wide, richly detailed frequency response and SPL of 134 dB
- High-pass filter and -20 dB pad to promote versatility
- Suitable for use with home-studio interfaces (USB, Thunderbolt, or otherwise).
UPC: 836213001134 In the Box Blue Baby Bottle SL Studio Condenser Microphone Wooden Storage Box Custom Shockmount Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Baby Bottle SL Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue BABY BOTTLE SL Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 83.2 dB A-Weighted | | Maximum SPL | Cardioid: 134 dB SPL Peak | | Pad | -20 dB | | THD | 0.5% | | Impedance | Cardioid: 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: 39.8 mV/Pa at 1 kHz | | Low-Cut Filter | 12 dB/Octave @ 100 Hz | | Dynamic Range | Cardioid: 123.2 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 8.76" / 222.5 mm | | Diameter | 2.03" / 51.5 mm | | Weight | 14.46 oz / 410 g | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.4 x 8.7 x 5.3" |
