User Manual for Blue Blueberry - Cardioid Studio Condenser Large Diaphragm Microphone Click to enlarge the picture
Contents of the user manual for the Blue Blueberry - Cardioid Studio Condenser
- Product category: Large Diaphragm Condenser Blue
- Brand: Blue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Large Diaphragm Condenser
|
User manual for the Blue Blueberry - Cardioid Studio Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue product will considerably shorten its lifespan!
|

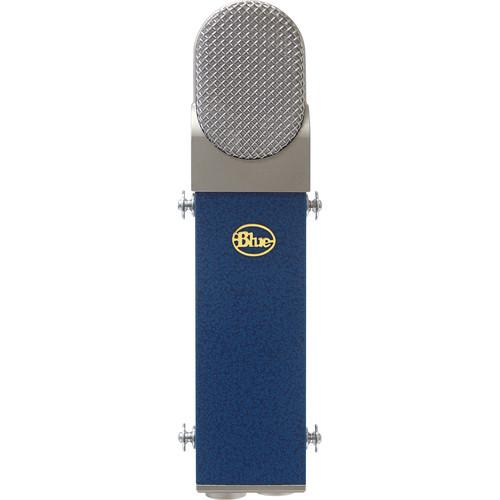

Product description The Blueberry Microphone from Blue features a precision-engineered, large-diaphragm cardioid condenser design with an open, natural response tailored especially for vocals. It can also be used for recordings with acoustic guitars, hand percussion, drums, and similar instruments. There is a pressure-gradient, large diaphragm element sputtered with a combination of gold and aluminum and a 6-micron mylar film tensioned to hand-built brass backplates for a high transient (peak) response and minimized distortion. A hand-built capsule and discrete low-noise circuitry provide detailed highs, smooth mids, and an articulated low-end. The microphone includes a wooden storage box and a shockmount. - Pressure-Gradient Diaphragm
- Pressure-gradient, large diaphragm element sputtered with a combination of gold and aluminum
- Peak Response
- 6-micron mylar film is tensioned to hand-built brass back plates resulting in high transient (peak) response and minimized distortion
- Performance
- Well-balanced response characteristics for recordings with vocal, voice-over, and acoustic instruments
- Cardioid Polar Pattern
- Cardioid polar-pattern effectively isolates the source signal
- MZ02 Electronics
- MZ02 solid-state electronics are based on Class-A circuitry for pristine, quiet output without noise or signal coloration
- Wide Custom Frequency Response
- Wide 20 Hz to 20 kHz frequency response, enabling use of the microphone for most recording applications
UPC: 836213000212 In the Box Blue Blueberry - Cardioid Studio Condenser Large Diaphragm Microphone Series II Shock Mount for BlueBerry Microphone strefqveywbewzaufswa Wooden Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Blueberry - Cardioid Studio Condenser Large Diaphragm Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Blueberry Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 86 dB A-Weighted | | Equivalent Noise Level | 9.0 dB A-Weighted | | Maximum SPL | 140 dB SPL | | THD | 0.5% | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20.0 mV/Pa at 1 kHz | | Dynamic Range | 131 dB | | | | Operating Voltage | 48 V | | Length | 9.25" / 235.0 mm | | Diameter | 1.97" / 50.0 mm | | Weight | 18.34 oz / 520 g | | | | Package Weight | 3.585 lb | | Box Dimensions (LxWxH) | 12.8 x 11.3 x 5.3" |
