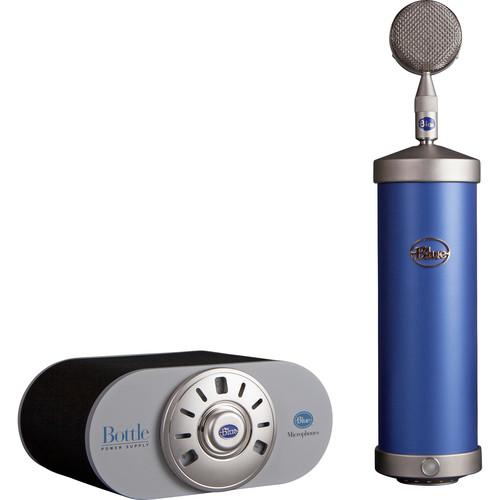

Product description A condenser microphone favored by producers like KC Porter and bands like Imagine Dragons, the Blue Bottle utilizes discrete Class-A circuitry, an EF86 vacuum tube, a hand-wound transformer, and an interchangeable capsule system to give you a tone suitable for studio recordings. This system makes use of a bayonet-mounted design to easily swap out different diaphragms (called Bottle Caps); with all the separately available Bottle Caps at your disposal, this one microphone can take on a panoply of polar patterns and sonic characteristics, lending itself to versatile applications throughout your studio.Included with this Blue Bottle is their cardioid B6 Cap, which sports a large-diaphragm, gold-sputtered film capsule. Though it can be used on plenty of instruments—acoustic guitar and piano come to mind—it is particularly geared toward vocals, with a tone Blue describes as smooth and robust, emphasizing the low- and high-frequency ranges.A Power Stream tube mic power supply is also included, which sports a variable capsule sensitivity dial to further influence the sound. Increase the sensitivity and you can drive a harder, more edgy sound. Conversely, decreasing the sensitivity can help round out a thin-sounding sound before it hits your recording medium. An ATA flight case, fashioned for Blue by SKB, is also provided with the microphone. - Key Features at a Glance
-
- Discrete Class-A tube circuit with EF86 vacuum tube
- Interchangeable Capsule
- Included B6 Bottle Cap provides cardioid polar pattern
- Quick-change bayonet capsule mount

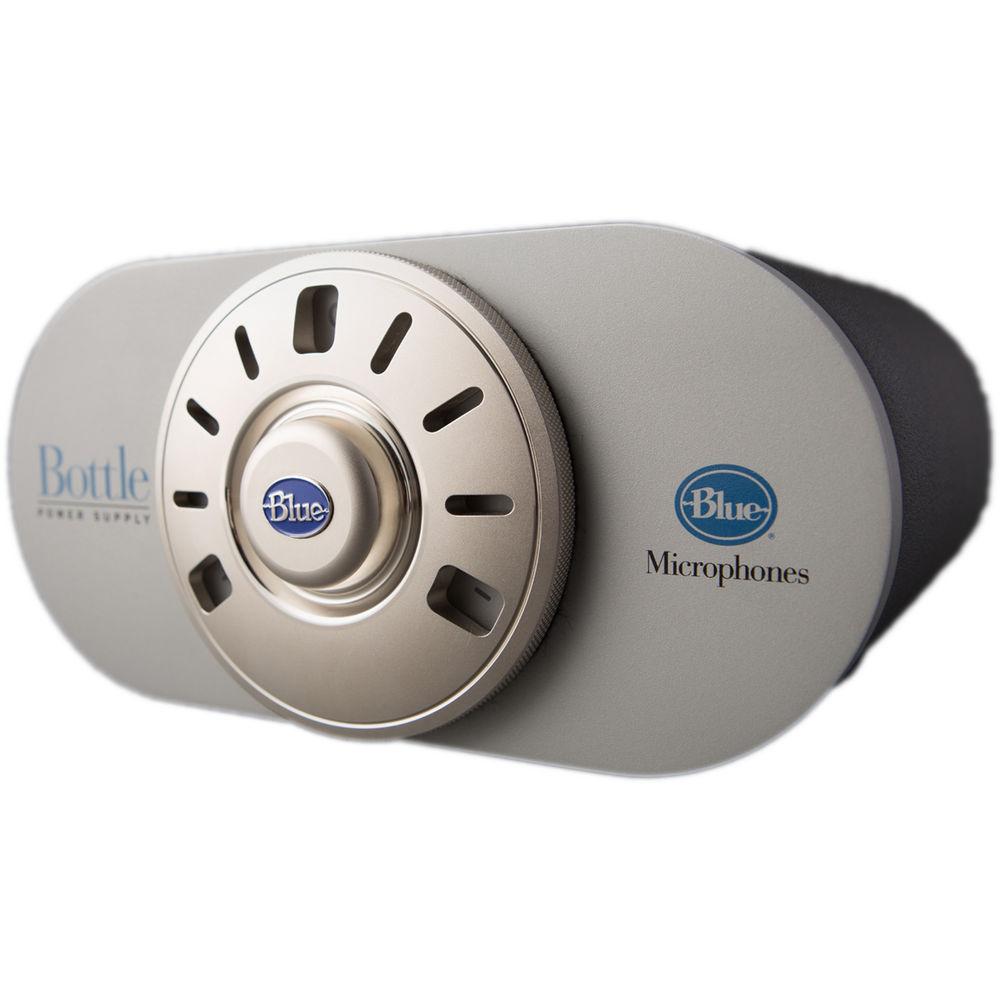

- Power Stream tube mic power supply with variable capsule-sensitivity dial
- ATA flight case by SKB for portability and security

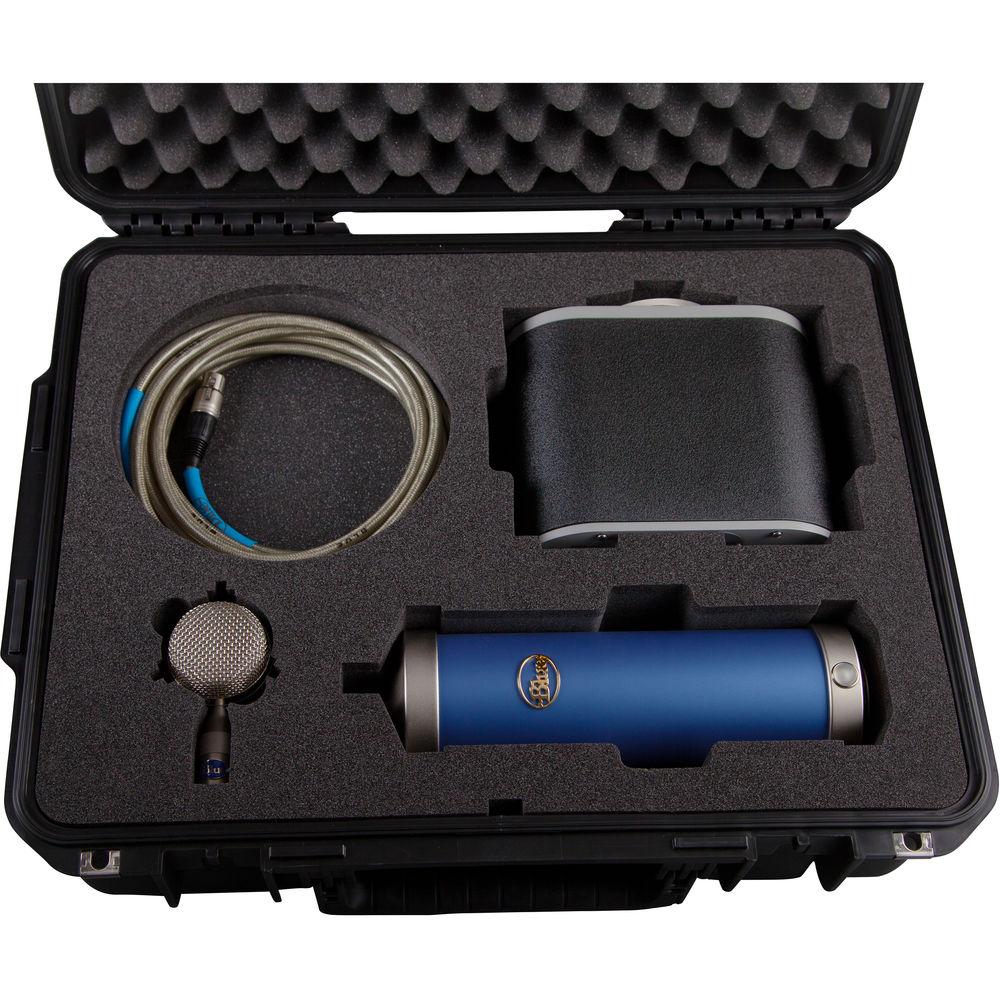

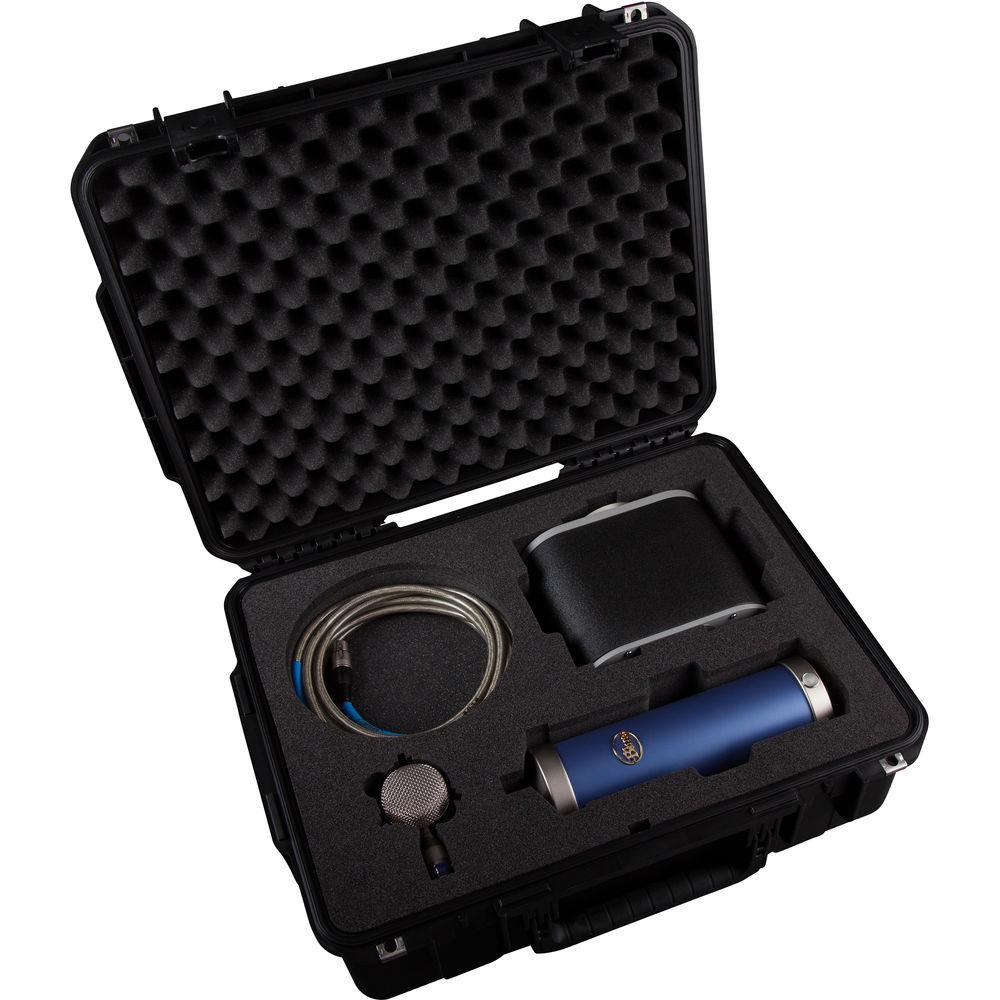

UPC: 836213002599 In the Box Blue Bottle Microphone with SKB Case B6 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones vtcsrzvcdfavsvbvcwzyasqfxredvufcvduv Power Stream Tube-Mic Power Supply SKB Carry Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Bottle Microphone with SKB Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Bottle Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Pattern Selection | Switched Pattern selectable with purchase of additional, compatible mic capsules | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 56.5 dB A-Weighted | | Maximum SPL | Cardioid: 134 dB SPL Peak | | Pad | None | | Impedance | Cardioid: 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | Cardioid: 20.0 mV/Pa at 1 kHz | | Low-Cut Filter | None | | Dynamic Range | Cardioid: 126.5 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 15.35" / 390 mm | | Diameter | 3.54" / 90 mm | | Weight | 3.74 lb / 1700 g | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 24.5 x 20.25 x 10.0" |
