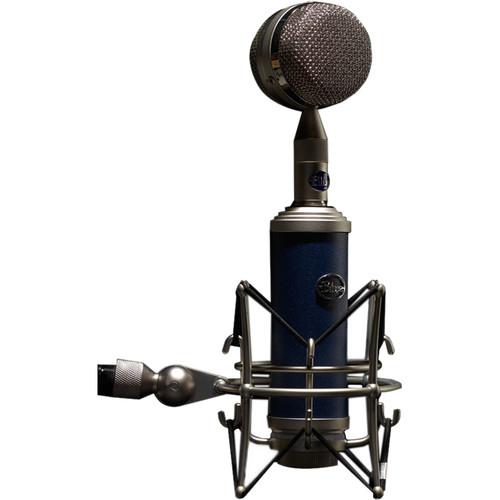

User Manual for Blue Bottle Rocket Stage One Mic Locker Multi-Capsule Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Blue Bottle Rocket Stage One Mic
- Product category: Large Diaphragm Condenser Blue
- Brand: Blue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Large Diaphragm Condenser
|
User manual for the Blue Bottle Rocket Stage One Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue product will considerably shorten its lifespan!
|
Product description The Blue Bottle Rocket Stage One Mic Locker is a solid-state condenser microphone with four large-diaphragm cardioid capsules designed to provide tonal versatility for vocals and instruments in commercial and project recording studios. The included B0, B6, B7, and B8 Bottle Cap capsules can be interchanged quickly and without tools.
The mic system delivers a maximum SPL of 138 dB and a 20 Hz to 20 kHz frequency response. Each capsule provides a different "color" or frequency balance, which enables you to easily find the right sonic match for your source without having to tear down and setup other microphones. The Bottle Rocket Stage One Mic Locker ships with a shockmount and custom SKB hardshell case. - Bottle Rocket Stage 1 Microphone with B8 Capsule The Bottle Rocket Stage 1 Microphone from Blue is designed to capture vocals and instruments with professional grade detail and flexibility. It offers a transformerless, solid-state output stage that ensures minimal noise, crisp detail, and clarity. This solid-state condenser microphone also features the Blue Bottle's bayonet-mounted, interchangeable Bottle-Cap system for maximum versatility and control. The included B8 Bottle-Cap is designed as an all-purpose capsule for accurately capturing both vocals and instruments. The Bottle Rocket Stage 1 is compatible with additional Bottle-Cap capsules for various polar patterns, frequencies, and sensitivity characteristics. The package includes a wooden storage box and a shockmount.
- Interchangeable Bottle Caps
- Compatible with additional Bottle-Caps for various polar patterns, frequencies, and sensitivity characteristics
- Solid State Design
- Transformerless, solid-state output stage that minimizes noise, crisp detail, and clarity
- Includes B8 Capsule
- The included B8 Bottle-Cap is designed as an all-purpose capsule for capturing both vocals and instruments
- Additional Accessories
- The package also includes a wooden storage box and a shockmount
UPC: 836213002537 - B0 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones The Blue B0 Large Diaphragm Bottle Cap is an interchangeable capsule for Blue Bottle and Bottle Rocket studio microphones. A variety of interchangeable capsules are available; each with its own frequency, tonal and pickup pattern characteristic. The B0 is a large-diaphragm condenser capsule with a cardioid polar pattern and bright, silky tonal quality. Suggested applications for this capsule include vocals, guitar, mandolin, percussion and any source where extended top end is featured. UPC: 836213004302
- B6 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones The Blue B6 Bottle Cap is an interchangeable capsule for Blue Bottle and Bottle Rocket studio microphones. It has a large-diaphragm, gold-sputtered film capsule with a dual-backplate design. It features a frequency response suitable for vocal and general instrument capturing. Blue describes its sound characteristics as smooth, robust, and "larger than life" with enhanced lows and highs. Its cardioid polar pattern effectively reduces off-axis ambient noise and feedback. The B6 is easy to install and rugged enough for life in the studio. UPC: 836213004364
- B7 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones The Blue B7 Large Diaphragm Bottle Cap is an interchangeable capsule for Blue Bottle and Bottle Rocket studio microphones. A variety of interchangeable capsules are available; each with its own frequency, tonal, and pickup pattern characteristics. The B7 is a single-backplate, large-diaphragm condenser capsule with a cardioid polar pattern and classic vocal quality. Suggested applications for this capsule include vocals, background vocals, saxophone, flugelhorn, clean or distorted electric guitar, pedal steel and slide guitar, organ, conventional jazz recording.
In the Box Bundle Items Bottle Rocket Stage 1 Microphone with B8 Capsule - B8 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones
B0 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones B6 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones B7 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones
Also Includes - Custom SKB Hardshell Carry Case
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Bottle Rocket Stage One Mic Locker Multi-Capsule Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bottle Rocket Stage 1 Microphone with B8 Capsule
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 138 dB SPL | | THD | 1% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 27 mV/Pa at 1 kHz | | Dynamic Range | 130 dB | | Operating Current Consumption | 1.8 µA | | Operating Voltage | 48 V | | | | Box Dimensions (LxWxH) | 12.5 x 11.0 x 6.0" | - B0 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones
| Dimensions (L x W x H) | 4.8 x 2.5 x 2.0" / 121.9 x 63.5 x 50.8 mm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.5 x 5.3 x 4.1" | - B6 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones
| Dimensions (L x W x H) | 4.8 x 2.5 x 2.0" / 121.9 x 63.5 x 50.8 mm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.6 x 5.75 x 4.2" | - B7 Bottle Cap - Cardioid Interchangeable Capsule for Blue Bottle and Bottle Rocket Microphones
| Dimensions (L x W x H) | 4.8 x 2.5 x 2.0" / 121.9 x 63.5 x 50.8 mm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.6 x 5.7 x 4.1" |
