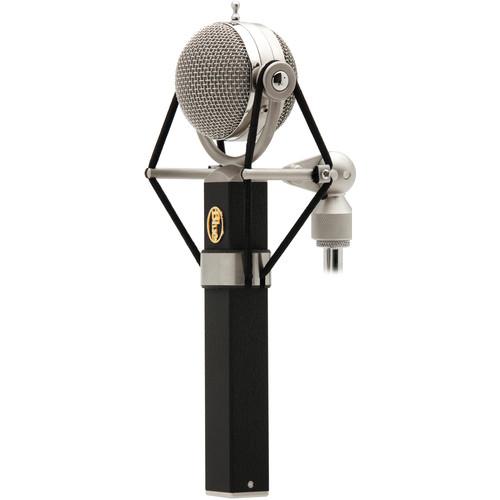

User Manual for Blue Dragonfly Large-Diaphragm Cardioid Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Blue Dragonfly Large-Diaphragm Cardioid Studio Condenser
- Product category: Large Diaphragm Condenser Blue
- Brand: Blue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Large Diaphragm Condenser
|
User manual for the Blue Dragonfly Large-Diaphragm Cardioid Studio Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue product will considerably shorten its lifespan!
|
Product description The Dragonfly Microphone from Blue features a cardioid condenser design and can be used with vocal and general instrument studio recording. It contains a pressure-gradient, single-membrane, large-diaphragm capsule and uses a 6-micron thick mylar film. The film is sputtered in a mixture of pure gold and aluminum and is enclosed in a rotating spherical grill. The rotating grill allows for optimum mic placement in small spaces and for maximum sonic quality.
The microphone offers Class A discrete circuitry and a transformerless output, resulting in a clean, quiet audio signal path with minimum coloration or noise. The Dragonfly's neutral signal and wide frequency response allow the microphone to record vocals, drums, percussion, electric guitar, and bass, as well as saxophones and stringed instruments. The cardioid polar pattern is effective on rejecting off-axis noise due to room ambiance, monitors, instruments, etc. - Pressure-gradient large-diaphragm with single-membrane design
- 6-micron thick mylar film sputtered with a gold and aluminum mixture
- Rotating capsule allows for optimum mic placement
- Designed with discrete Class A electronics
- Transformerless output for pristine, noise-free signal on output
- Cardioid polar pattern is effective in minimizing off-axis noise
UPC: 836213000519 In the Box Blue Dragonfly Large-Diaphragm Cardioid Studio Condenser Microphone Series II Shock Mount for BlueBerry Microphone rxstyfzbwsvavyvyfwdyrfcvu Wood Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Dragonfly Large-Diaphragm Cardioid Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Dragonfly Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 85 dB A-Weighted | | Equivalent Noise Level | 8.0 dB A-Weighted | | Maximum SPL | 138 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 21 mV/Pa at 1 kHz | | Dynamic Range | 132 dB | | | | Operating Voltage | 48 V | | Length | 6.50" / 165.0 mm | | Diameter | 2.36" / 60.0 mm | | Weight | 34.57 oz / 980 g | | | | Package Weight | 3.455 lb | | Box Dimensions (LxWxH) | 12.85 x 11.45 x 5.25" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
