User manual

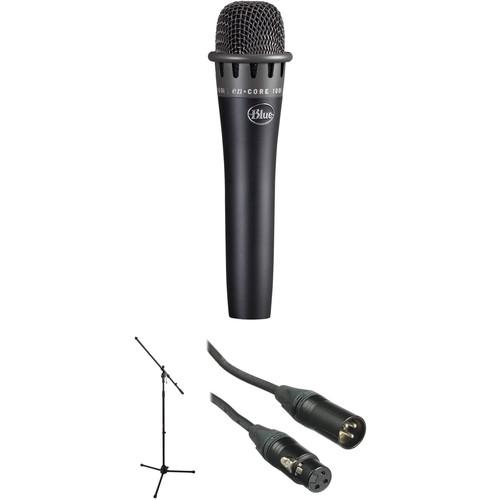

Blue enCORE 100i Dynamic Instrument Microphone

User Manual for Blue enCORE 100i Dynamic Instrument Microphone with Stand Kit

• Product category: Dynamic Microphones Blue
• Brand: Blue
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Blue Dynamic Microphones

Product description

• Blue enCORE 100i Dynamic Instrument Microphone (Black) The black Blue enCORE 100i is a dynamic moving-coil instrument microphone designed to deliver a smooth, versatile sound for vocals, melodic instruments, drums, and percussion in the studio, at practice, or on stage. It boasts a maximum SPL of 154 dB and a 50 Hz to 16 kHz frequency response, making it capable of handling a wide variety of sound sources. Its cardioid polar pattern yields enhanced rejection of off-axis noise such as stage bleed and room ambience.It features a custom-designed capsule with a custom-tuned acoustic circuit and an internal transformer. The low-profile grille utilizes built-in vents and a protective guard ring. A standard XLR 3-pin output ensures compatibility with most mixers, stage boxes, preamps, and audio interfaces. Whether it’s used on the road or kept in a climate-controlled studio, its rugged construction and durable finish allow it to withstand the burden of daily use. It ships with a soft-grip mic clip and storage pouch.
  • Tight cardioid polar pattern with exceptional off-axis noise rejection
  • Premium, custom-designed dynamic capsule
  • Optimized frequency response with a custom-tuned acoustic circuit and transformer
  • Durable finish, rugged construction, and specially-designed grille with integrated guard ring are ready for the rigorous use and abuse of touring
  • Tuned-volume, low-profile grille with vents
  UPC: 836213005125
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• enCORE 100i Dynamic Instrument Microphone (Black) rdsbbryrsbsfvezfaubuurrscfs
• Soft-Grip Microphone Clip
• Soft-Lined Storage Pouch
• Limited 3-Year Warranty

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Blue enCORE 100i Dynamic Instrument Microphone (Black)

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Dynamic
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 16 kHz
  Maximum SPL	154 dB SPL
  Pad	None
  Impedance	150 Ohms
  Sensitivity	1.1 mV/Pa
  Low-Cut Filter	None

  Output Connectors	1 x 3-Pin XLR
  Length	6.89" / 175 mm
  Diameter	1.85" / 46.9 mm
  Weight	0.71 lb / 0.32 kg

  Box Dimensions (LxWxH)	11.7 x 5.2 x 3.7"

• Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
