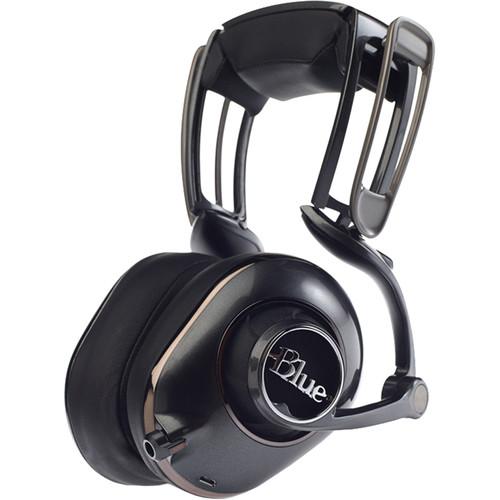

User Manual for Blue Mix-Fi Powered High-Fidelity Headphones with Built-In Amplifier Click to enlarge the picture
Contents of the user manual for the Blue Mix-Fi Powered High-Fidelity Headphones with
- Product category: Headphones Blue
- Brand: Blue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Headphones
 |
User manual for the Blue Mix-Fi Powered High-Fidelity Headphones with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue product will considerably shorten its lifespan!
|

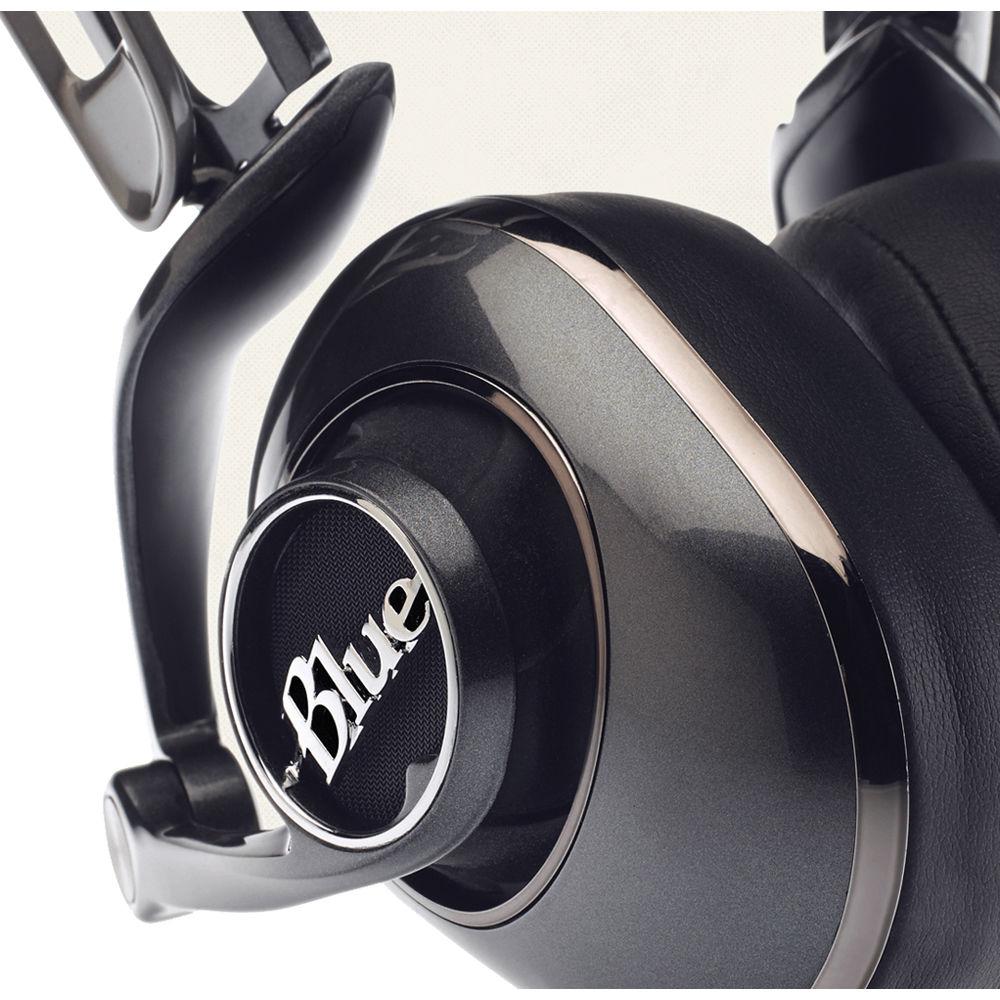

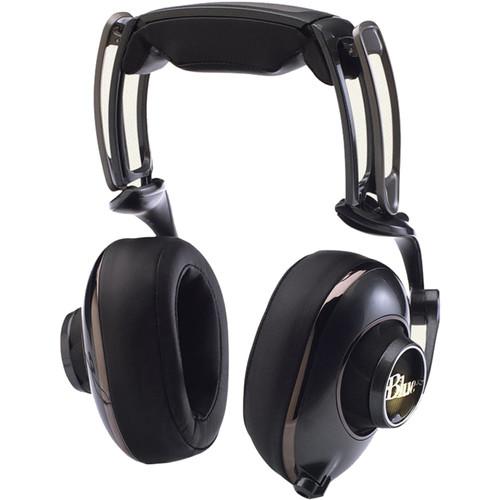

Product description - Blue Mix-Fi: Emmy-winning headphones behind some of TV's biggest shows

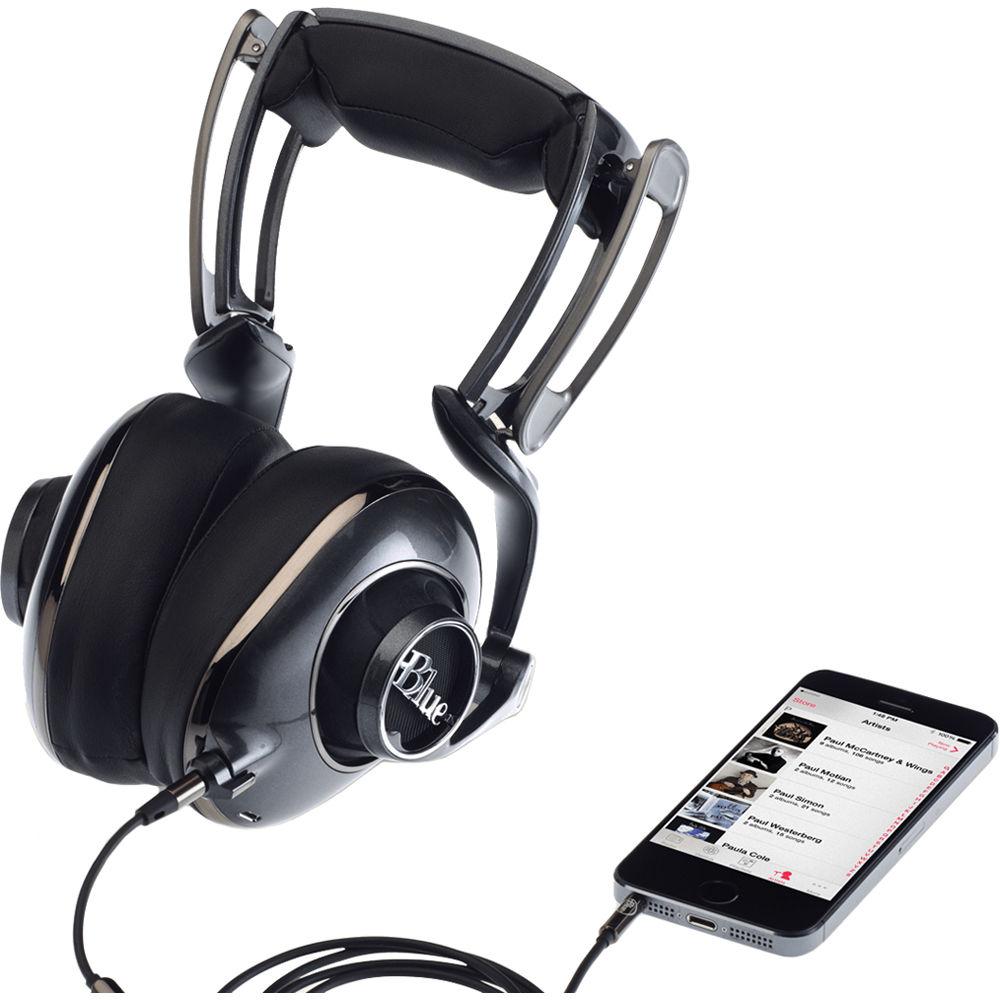

The Blue Mix-Fi are powered headphones that innovate on the traditional closed-back, over-ear headphone design with the incorporation of an internal all-analog audiophile amplifier. This allows the headphones to work well with low output sources such as smartphones, tablets, and other mobile devices.
The headphones can operate in passive mode without the headphone amplifier, in active mode with the amplifier, or in bass boost mode, which adds additional low-frequency energy to the signal. The addition of an integrated amplifier within the headphones allows for the use of 50mm fiber-reinforced dynamic drivers to deliver a frequency response of 15 Hz to 20 kHz, making them suitable for everything from professional music production to recreational listening.
Blue also re-worked the physical design of the headphones to solve some of the issues traditionally encountered with over-the-ear designs. Inspired by the suspensions found on Formula 1 racing cars, the headphones feature a multi-joint hinge system with height adjustment, camber angle adjustment, and an adjustable tension knob to accommodate heads of all shapes and sizes.
The size adjustments improve the quality of the acoustic seal and ultimately the audio performance of the headphones. They also feature ear-shaped ear cups intended to provide better comfort and keep the ear cups in parallel alignment to improve the imaging and maintain a consistent frequency response. The multi-hinge design also allows the headphones to fold into a more compact form factor for storage and travel.
The amplifier features a built-in rechargeable battery that can provide 12 hours of run time on a single charge. An intelligent power management system automatically detects and powers off the headphones when they are removed from your head and powers them back on when they are re-positioned on your ears. If the battery runs out, the headphones can still be used in passive mode. They come with a soft case with cable storage pocket, a 3.9' audio cable with iOS in-line remote control, a 9.8' audio cable, a 3.3' USB charging cable, an AC charging adapter, 3.5mm to 1/4" TRS adapter, and a two-prong airplane connector. - Multi-Joint Design
- Provides adjustments of ear height, camber angle, and tension to accommodate heads of different sizes and shapes
- Analog Amplifier
- Enables passive, active, and bass boost modes with the ability to drive larger more powerful dynamic drivers than would be possible without a dedicated amplifier
- Ear-Shaped Earcups
- Provides a more comfortable ergonomic fit and a better acoustic seal
UPC: 836213000359 In the Box Blue Mix-Fi Powered High-Fidelity Headphones with Built-In Amplifier Soft Case with Storage Pocket 3.9' Audio Cable with Apple iPhone/iPad controls 9.8' Audio Cable 3.3' USB Charging Cable AC Charging Adapter 3.5mm to 1/4" TRS Adapter Two-Prong Airplane Connector Limited 2-Year Warranty More info from Blue rewqfrxf Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Mix-Fi Powered High-Fidelity Headphones with Built-In Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Mix-Fi Specs | | | Driver Size | 2" / 50 mm | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Impedance | 42 Ohms | | Total Harmonic Distortion (THD) | 0.004% | | Output Power | 240 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) TRS | | | | Dimensions (W x H x D) | 7.1 x 11.4 x 4.7" / 18.0 x 29.0 x 12.0 cm
8.3 x 5.5 x 4.7" / 21.0 x 14.0 x 12.0 mm (Closed) | | Weight | 16.4 oz / 466.1 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 10.1 x 6.4 x 5.1" |
