User Manual for Blue Sky International eXo2 Active 2.1 Desktop Speaker Monitoring System Click to enlarge the picture
Contents of the user manual for the Blue Sky International eXo2 Active 2.1
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
 |
User manual for the Blue Sky International eXo2 Active 2.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|

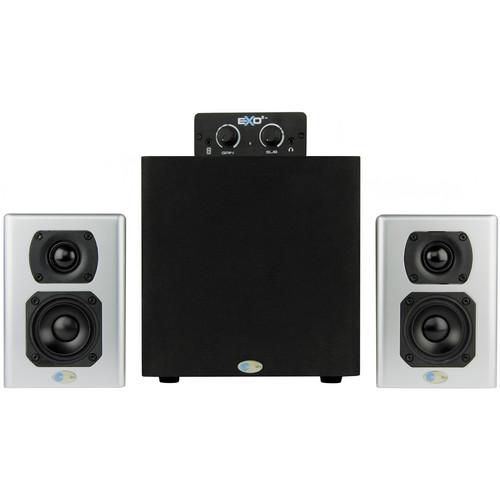

Product description The eXo2 from Blue Sky International is an active 2.1 desktop speaker system that offers reference-quality audio in a compact and affordable package. Ideal for small home and project studios, the eXo2 consists of a pair of 2-way satellite speakers, a subwoofer, and a desktop HUB remote.

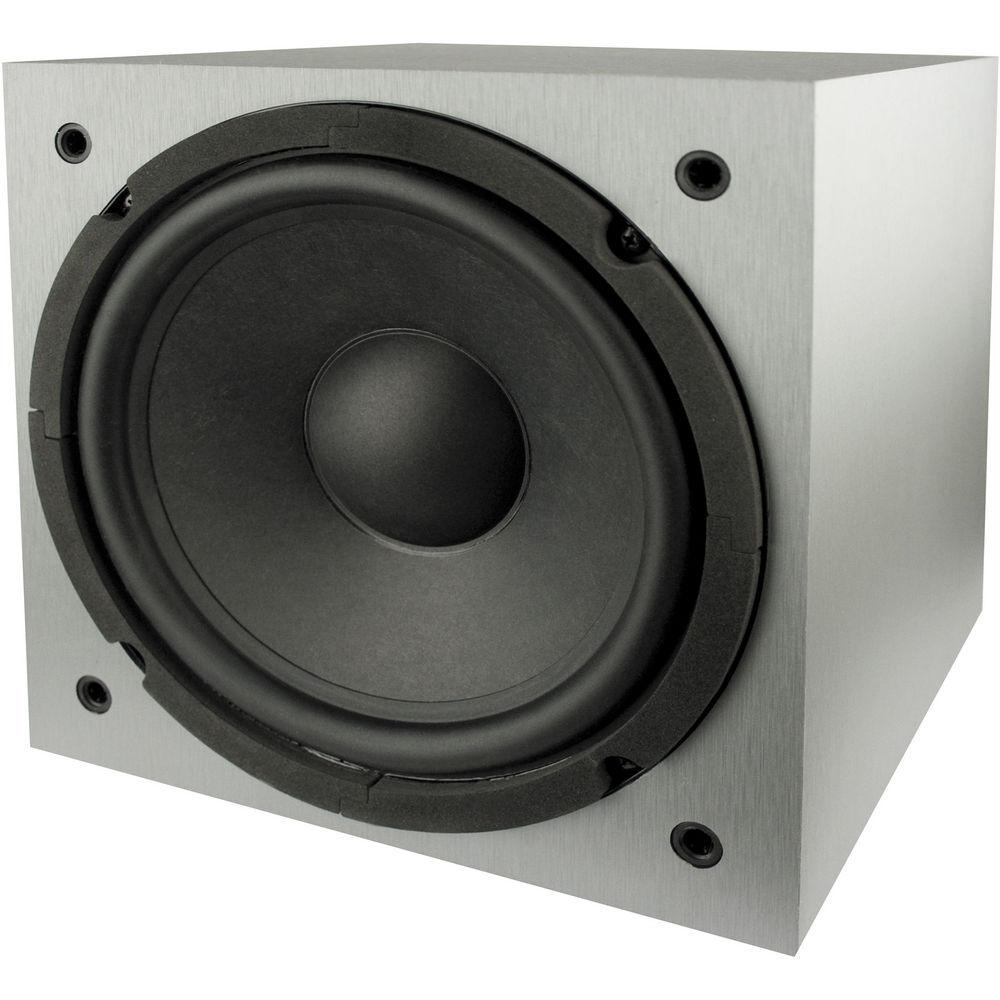

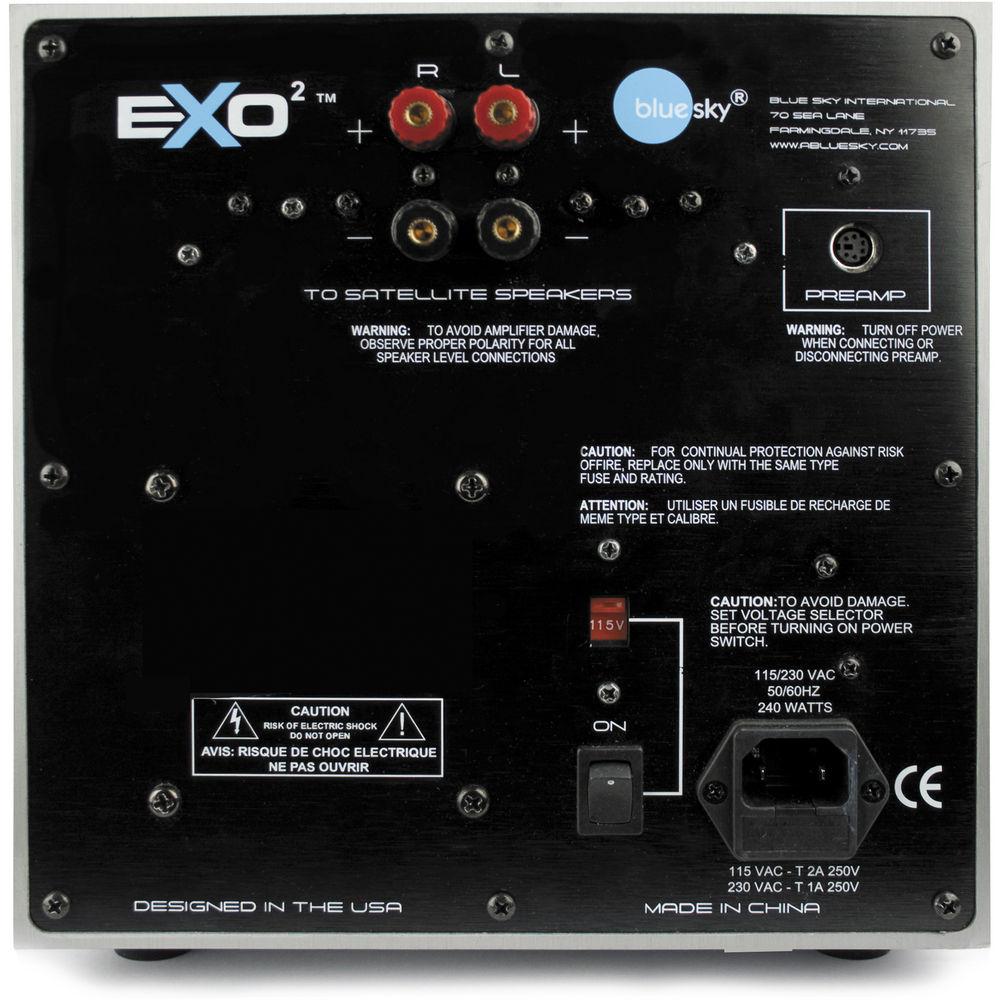

The subwoofer acts as the central brain of the system, housing the amplifier and connectors. It offers XLR/TRS combo inputs and a stereo RCA input, allowing you to connect a variety of audio devices. High-quality binding post outputs are used to connect the satellite speakers. The subwoofer has an 8" paper cone to produce frequencies as low as 20Hz. A set of isolation feet decouple the subwoofer from the floor to prevent vibrations and reflections. The sub is also shielded for safe use near video monitors and other electronic devices.

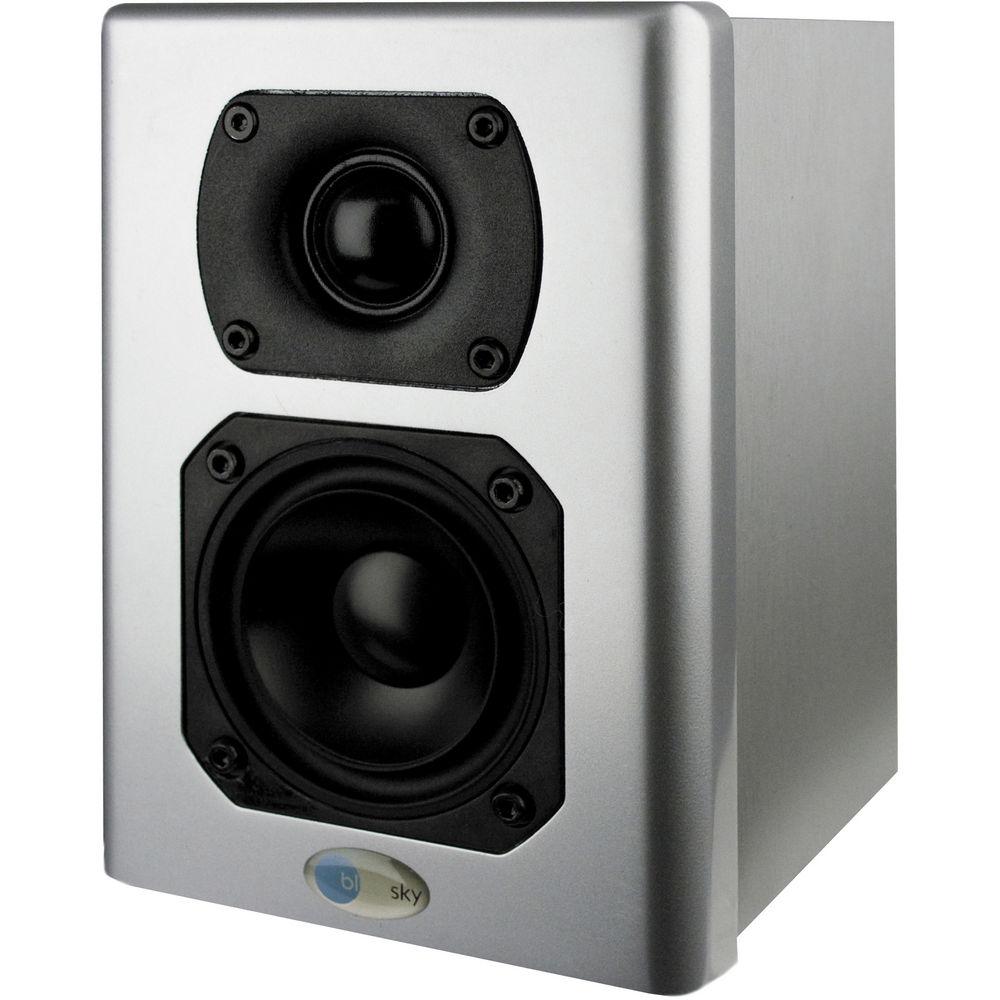

Each of the satellite speakers has a 3" cast-frame woofer with a neodymium motor structure and a 1" fabric neodymium tweeter. The compact design of the satellites allows you to place them practically anywhere, while 1/4" x 20 inserts on the back allow you to mount the speakers on a wall or ceiling. The remote HUB has 2 large knobs for controlling system gain and subwoofer level. It also has a 3.5mm input for connecting devices such as MP3 players and portable CD players, as well as a standard 3.5mm headphone jack for private listening. Note: Mounting brackets sold separately. - Reference-quality audio in a compact package, ideal for home and project studios
- Complete system includes a subwoofer, a pair of 2-way satellites, and a desktop HUB remote

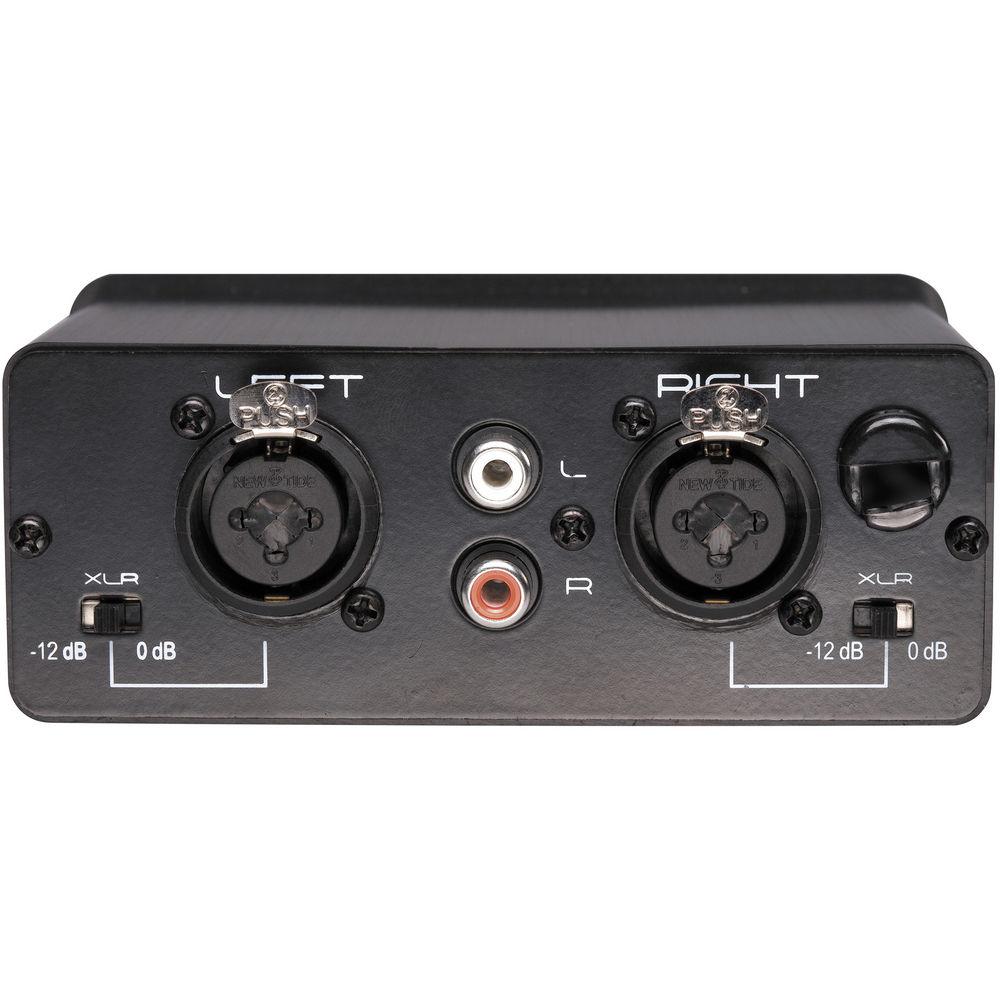

- Subwoofer acts as the central brain of the system, housing the amplifier and connectors. It offers XLR/TRS combo inputs and a stereo RCA input, allowing you to connect a variety of audio devices
- High-quality binding posts connect the satellites to the subwoofer
- Subwoofer has an 8" vented motor paper cone with a foam surround to produce frequencies as low as 20Hz
- Isolation feet decouple the subwoofer from the floor to prevent vibrations and audio reflections
- Subwoofer is also shielded for safe use near video monitors and other electronic devices
- Each of the satellite speakers has a 3" cast-frame woofer with a neodymium motor structure and a 1" fabric neodymium tweeter
- Compact satellite design allows versatile placement, while 1/4" x 20 inserts on the back allow you to mount the speakers on a wall or ceiling

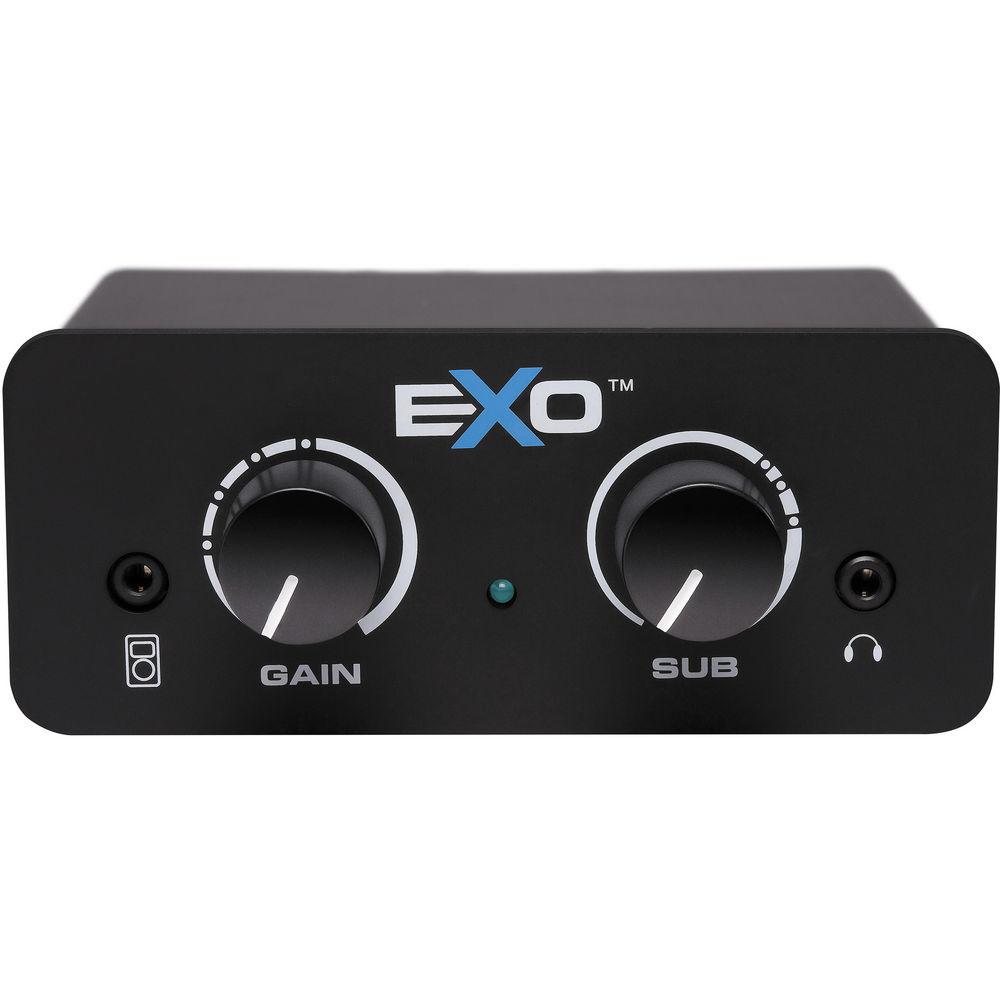

- Desktop HUB remote has 2 large knobs for controlling system gain and subwoofer level
- Remote offers a 3.5mm input for connecting MP3 players and other portable audio players, along with a 3.5mm headphone jack for private listening
UPC: 805990000623 In the Box Blue Sky International eXo2 Active 2.1 Desktop Speaker Monitoring System Subwoofer 2 x Satellite Speakers Remote HUB HUB Cable 2 x Sets of Speaker Wire Owner's Manual Limited 1-Year Warranty User Manual PDF 1.5mbzyxeyeeveuswcdvxasayuxza Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International eXo2 Active 2.1 Desktop Speaker Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Sky International eXo2 Specs | | | Amplifier | Short Term Power Output 1 Channel Driven:
42W x 1 @ < 0.1% THD into 4 Ohms @ 1kHz
Short Term Power Output 2 Channels Driven:
35W x 2 @ < 0.1% THD into 4 Ohms @ 1kHz
Subwoofer Power Output:
110W x 1 @ < 1% THD into 4 Ohms @ 50Hz
3.5mm Headphone Output:
4mW x 2 @ < 0.2% THD into 16 Ohms @ 1kHz | | Connectors | 2 x XLR/TRS Combo Inputs
1 x Stereo RCA Input (2 Jacks)
1 x 3.5mm Stereo Input
1 x 3.5mm Stereo Headphone Jack
Set of Binding Post Interconnects (Subwoofer and Satellites) | | Input Impedance | Combo: 60 kOhms, Balanced
RCA: 30 kOhms, Unbalanced
3.5mm: 15 kOhms, Unbalanced | | Input Level | Combo/RCA: +18dBu
3.5mm: +12dBu | | Common Mode Rejection Ratio | 40dB Typical @ 60 Hz (Balanced Inputs Only) | | Sensitivity | 200mV = 90dB SPL @ 1 m (All Inputs) | | Shielded | Full Video Shielding on Subwoofer and Satellites | | Power | 115V, 60Hz (North America)
230V, 50Hz (Export) Voltage is set at the factory | | Consumption | 240W, Maximum | | | | Driver | 8" (203mm) Vented Motor Paper Cone with Foam Surround | | Frequency Response | 35 to 140Hz ±6dB (Anechoic)
20 to 200Hz (Typical In-Room Response) | | Dimensions (HxWxD) | 9.4 x 9 x 10.2" (239 x 229 x 259mm) | | Weight | 20 lbs (9.1kg) | | | | Woofer | 3" (76mm) Cast-Frame Woofer, Neodymium Motor Structure | | Tweeter | 1" (25mm) Fabric Neodymium Tweeter | | Crossover | LF: 140Hz
Tweeter: 2.2kHz | | Impedance | 4 Ohms | | Dimensions (HxWxD) | 7.2 x 5 x 4.8" (183 x 127 x 122mm) | | Weight | 3 lbs (1.4kg) | | | | Package Weight | 32.85 lb | | Box Dimensions (LxWxH) | 23.6 x 14.5 x 13.2" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
