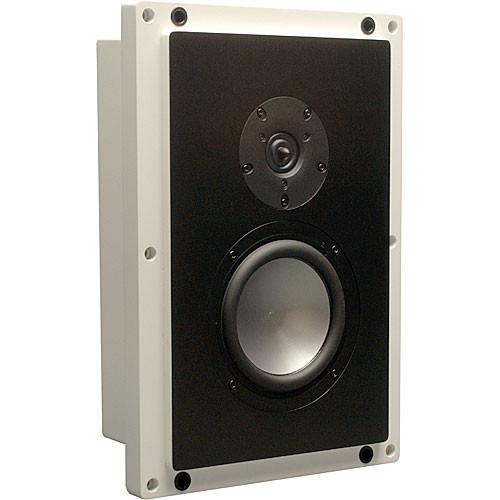

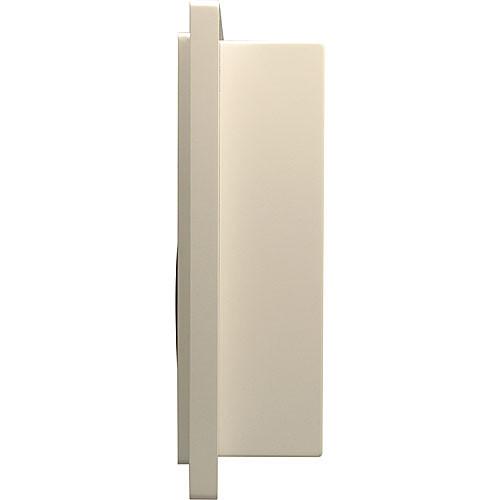

User Manual for Blue Sky International I ON - Wall Mount Passive Studio Monitor Click to enlarge the picture
Contents of the user manual for the Blue Sky International I ON -
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
 |
User manual for the Blue Sky International I ON - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|

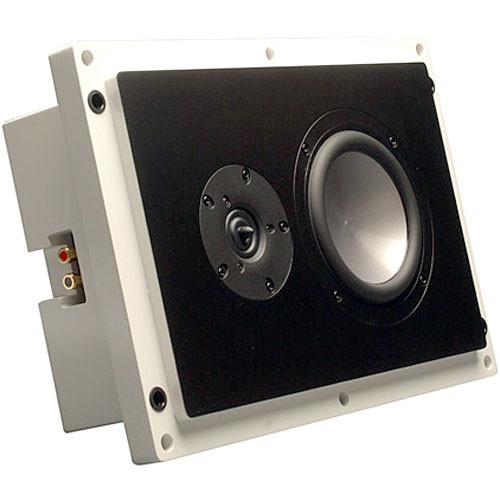

Product description The I/ON from Blue Sky International is a studio-grade, wall mountable passive monitor designed for use in a professional studio or high-end home theater. The I/ON offers fantastic versatility, as it can be mounted on or in your wall or ceiling, and can be mounted horizontally, vertically, or even upside-down. The monitor has a fully-sealed design to provide the proper acoustics every time you use it, and for easy in-wall installation with no accessory box needed.
The I/ON is designed to bring you the best audio experience possible and features a 6.5" woofer and a 1" tweeter for a full frequency response and very low distortion. An 80Hz roll-off allows proper integration with a bass management system, so you can position the monitor and subwoofer for ideal performance. The grille is made from a low-diffraction cloth material for minimal acoustic impact. The unit is also magnetically shielded so it can be safely used in close proximity with video monitors. Note: The I/ON is designed to perform at its best when matched with a subwoofer such as the SUB 12 or SUB 15 Universal. - Can be mounted on or in a wall, and can be mounted vertically, horizontally, or upside-down
- Sealed box design provides proper acoustics and eliminates the need for an accessory box for in-wall mounting

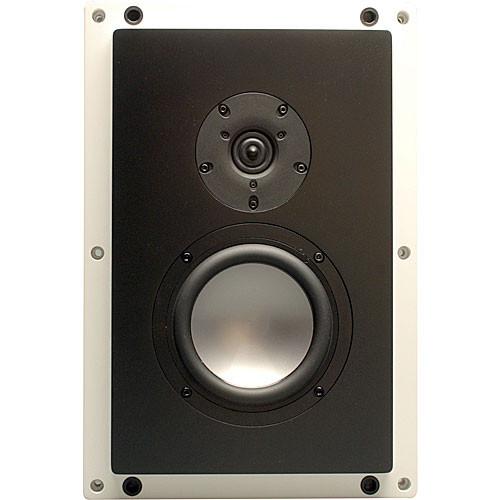

- Studio-grade performance from the 6.5" woofer and 1" tweeter
- Designed with an 80Hz roll-off for integration with a subwoofer or bass management system

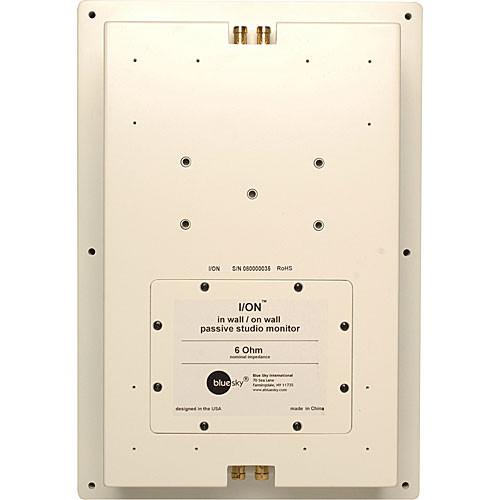

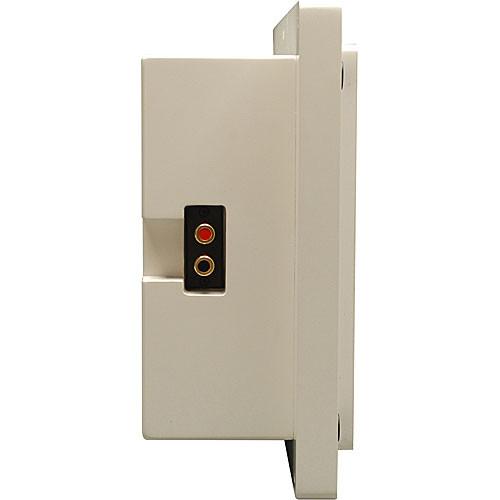

- High-quality binding post connectors

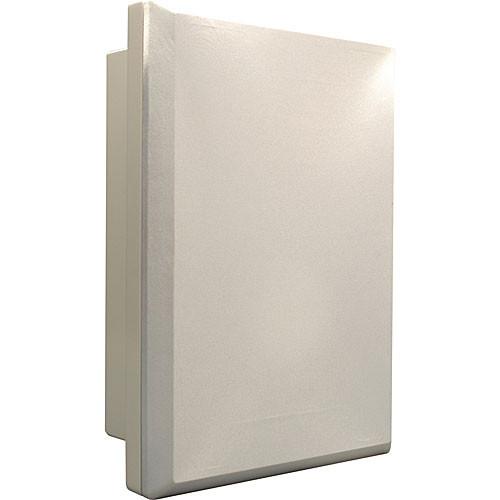

- Low-diffraction cloth grille minimizes acoustic impact
- All mounting hardware included
UPC: 805990000722 In the Box Blue Sky International I/ON - Wall Mount Passive Studio Monitor 2 x In-Wall Mounting Rails 2 x Sets of On-Wall Mounting Brackets 2 x On-Wall Mounting Templates In-Wall Mounting Template All Necessary Screws and Hardware Owner's Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International I ON - Wall Mount Passive Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Sky International I/ON Specs | | | Monitor Type | Passive 2-Way | | Enclosure | Sealed, Shielded | | Passive Power Handling | 200 W | | Impedance | 6 Ohms | | Drivers | HF Driver: 1 x 1" / 25 mm Dual Concentric Tweeter
LF Driver: 1 x 6.5" / 165 mm Polypropylene Cone with 1.5" / 38.1 mm Voice Coil | | | | Frequency Response | 80 Hz to 20 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 85 dB | | | | Crossover Frequency | 2 kHz | | | | I/O | 1 x Binding Post Analog Input | | | | Dimensions (W x H x D) | 12.0 x 17.5 x 5.8" / 305.0 x 445.0 x 146.0 mm | | Weight | 21.0 lb / 9.5 kg | | | | Package Weight | 29.52 lb | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 11.0" |
