User Manual for Blue Sky International SAT 12 - 500W Three-Way Active Midfield Monitor Click to enlarge the picture
Contents of the user manual for the Blue Sky International SAT 12 -
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
 |
User manual for the Blue Sky International SAT 12 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|

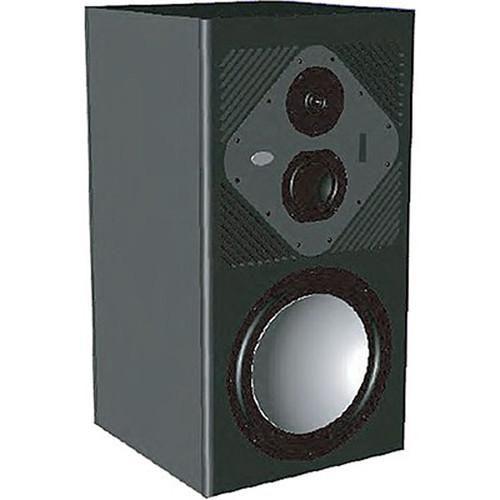

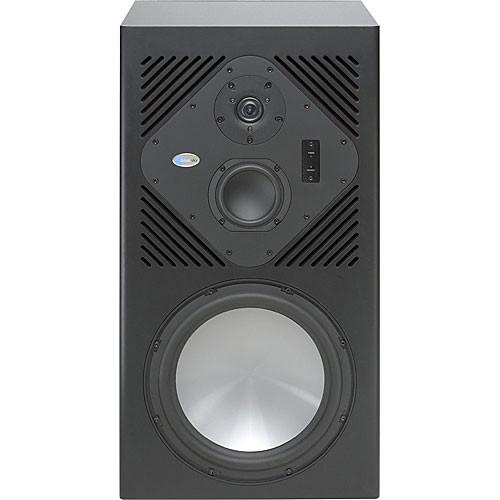

Product description The SAT 12 from Blue Sky International is a high-quality three-way active midfield monitor that offers clean, accurate sound reproduction with a wide frequency response. It has a 12-inch high excursion hemispherical woofer, a low-distortion 4-inch hemispherical midrange driver, and a 1-inch dual concentric diaphragm tweeter with an integral wave guide for excellent off-axis response. The proprietary "Multi-Aperture Acoustic Diffraction Absorber" incorporated into the baffle helps to maintain smooth on and off axis response without the need for a large wave guide or horn.
The SAT 12 hides three amplifiers under its hood, two 200W and one 100W. In order to meet today's increasing needs for surround monitoring, an 80Hz high-pass network with a phase correction filter is built-in for full compatibility with the SUB 15 and SUB 12 subwoofers and the Bass Management Controller (BMC) for system expansion. Two independent input stages allow a high degree of monitoring flexibility, letting you choose standard 80Hz bass-managed operation or traditional monitoring without the use of a sub.

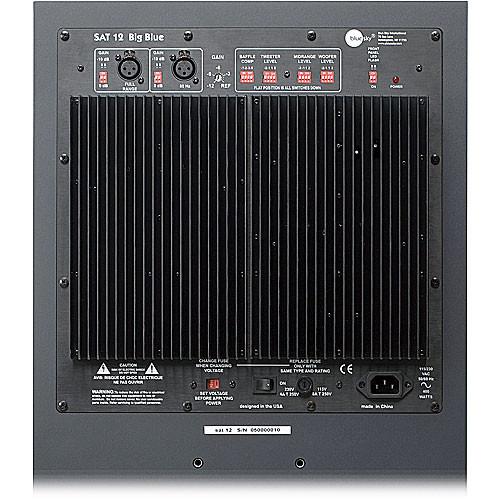

Controls for full space or half space operation, as well as individual high, mid, and low frequency level trims and variable gain settings are found on the back panel. The SAT 12 can also operate vertically or horizontally thanks to a rotatable mid/high plate. - Active three-way midfield monitor with clean and accurate sound reproduction
- Three separate amplifiers, two 200W and one 100W, for each of the drivers
- Proprietary "Multi-Aperture Acoustic Diffraction Absorber" reduces destructive cabinet diffraction effects and helps to maintain smooth on and off axis frequency response
- Built-in 80Hz high-pass network provides full compatibility with the SUB 12 and SUB 15 subwoofers and the BMC, allowing you to use the SAT 12 in a surround monitoring system
- Two independent input stages allow your choice of either standard 80Hz bass-managed operation or traditional monitoring without the use of a sub
- Rear-panel controls include full and half space selection, individual high, mid, and low level trims, and variable gain settings

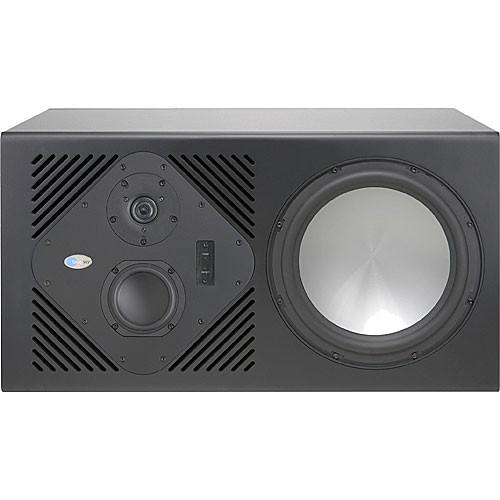

- Horizontal or vertical operation
- 1/4" x 20 inserts allow attachment of OmniMount or Powerdrive type 120 brackets
UPC: 805990000425 In the Box Blue Sky International SAT 12 - 500W Three-Way Active Midfield Monitor Power Cable Owner's Manual Warranty Card Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International SAT 12 - 500W Three-Way Active Midfield Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Sky International SAT 12 Specs | Low Frequency Driver | 12" (305mm) High-Excursion Woofer with Vented Motor, Cast Aluminum Frame, Mica-Filled Polypropylene Cone with Rubber Surround | | Mid Frequency Driver | 4" (102mm) Hemispherical Aluminum Alloy Cone with Neodymium Vented Motor Structure | | High Frequency Driver | 1" (25mm) Dual Concentric Diaphragm with Integral Wave-Guide, High-Power Ferrite Motor Structure | | LF Amplifier | 2 x 200W into 4 ohms (1 for Midrange) | | HF Amplifier | 1 x 100W into 4 ohms | | Crossover | 300Hz and 3kHz | | Frequency Range | 45Hz to 30kHz (+/- 3dB) | | Maximum Sound Pressure Level (SPL) | 90dB @ 1 meter | | Connectors | 2 x Balanced XLR | | Input Impedance | 10 k ohms | | Controls and Indicators | 2 x Full-Range Input Pad DIP Switches
2 x 80Hz Input Pad DIP Switches
1 x Variable Gain Control Trim Pot
4 x Baffle Compensation DIP Switches
12 x Driver Level Adjustment DIP Switches
2 x LED Indicator Control DIP Switches
1 x Voltage Selector Switch
1 x Power Switch 1 x Power LED | | Shielded | Yes | | Dimensions (HxWxD) | 28 x 15 x 17" (711 x 381 x 432 mm) | | Weight | 92 lbs (41.7 kg) | | | | Package Weight | 92.6 lb | | Box Dimensions (LxWxH) | 34.0 x 22.0 x 21.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
