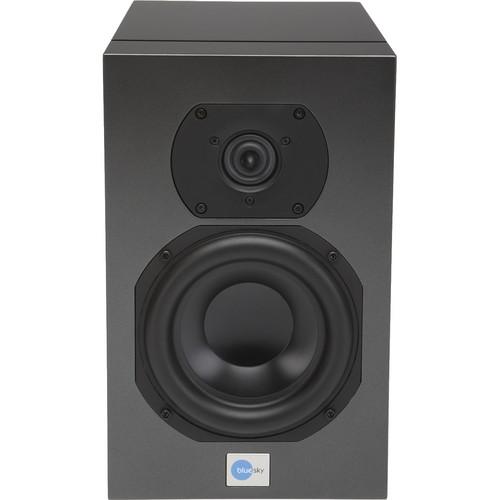

User Manual for Blue Sky International Sat 6D Digital Powered Studio Monitor - Star System One Click to enlarge the picture
Contents of the user manual for the Blue Sky International Sat 6D Digital
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
|
User manual for the Blue Sky International Sat 6D Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|
Product description The Sat 6D from Blue Sky is an individual powered monitor with digital inputs that is part of the Star System One Monitoring System, providing precision and accuracy for film, television, and gaming audio post production, as well as music recording and mixing. The Sat 6D utilizes a 6.5" high excursion radial magnet woofer and 1" ring radial tweeter. The digital circuitry features FR4 6-layer circuit boards, Burr-Brown 192 kHz/24-bit AD/DA converters, and a Cirrus Logic Digital receiver and sample rate converter. In addition, the Sat 6D has a "Pure-Digital" mode for 48 kHz and 96 kHz operation, where the native input from the AES/EBU receiver is sent straight to the DAC. The on-board USB data port provides speaker settings, updates and room correction inputs, which includes a 1/3 octave, 31-band digital graphic equalizer plus 8 bands of parametric EQ and filters. The system includes Blue Sky's Speaker Management Software that works in tandem with the included Speaker Room Optimization and Binary Organic Optimization software to calculate precise response curves to measure and optimally correct room problems. The Sat 6D ships with a removable "port" plate and IEC power cord. -
- Analog input (balanced XLR) -10 dBu / +4 dBu switchable
- Digital input (XLR - AES 110 Ohm)
- Cirrus Logic sample rate convertor (32, 44.1, 88.2, 192 kHz)
- National semiconductor LME op amps
- Analog / digital auto switching
- Digital pass thru
- Digital stereo L/R selector
- Adjustable gain control and time delay
- Pink noise generator
- Driver (woofer/tweeter) time alignment
- Switchable DSP filters for 80 Hz or extended range 40 Hz operation
- Switchable DSP filters and removable plates for sealed or ported operation
- 300 W woofer / 150 W tweeter / 600 W SMPS power supply
- Hypex UcD power amplifiers with trickle down N-core technology
UPC: 805990000241 In the Box Blue Sky International Sat 6D Digital Powered Studio Monitor - Star System One Port Plate with Captive Fasteners IEC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International Sat 6D Digital Powered Studio Monitor - Star System One in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlue Sky International SAT 6D Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 6.5" / 16.51 cm Woofer | | | | Frequency Response | 45 Hz to 20 kHz ± 1.5 dB | | Maximum Input Level | +24 dBu | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output/Thru (110 Ohms) | | Computer Interface | 1 x USB Type-B | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | Power Consumption | 375 W | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 8.0 x 13.0 x 11.8" / 20.3 x 33.0 x 29.8 cm | | Weight | 20.0 lb / 9.1 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 13.0" |
