User Manual for Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Blue Sky International Star System One
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
 |
User manual for the Blue Sky International Star System One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|

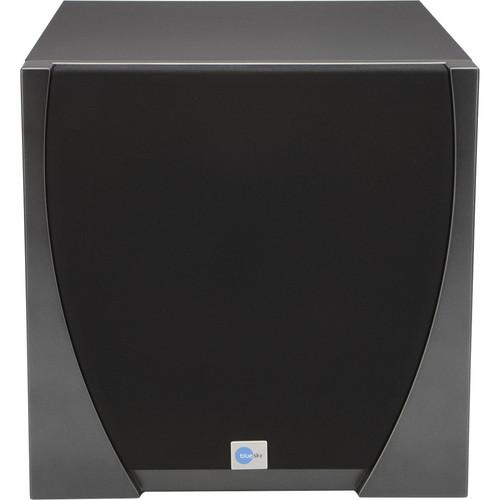

Product description The Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer is designed for professional monitoring and personal listening applications. The unit features both XLR analog inputs and AES/EBU digital inputs with a switch that will automatically select the digital signal when both sources are connected. It also features analog and digital outputs for connecting to additional subwoofers. A bank of DIP switch allows you to select +24 dBu/+12 dBu max analog output, +24 dBu/+12 dBu max analog input, sub direct digital in L/R, and sub crossover mode on / sub direct mode on.

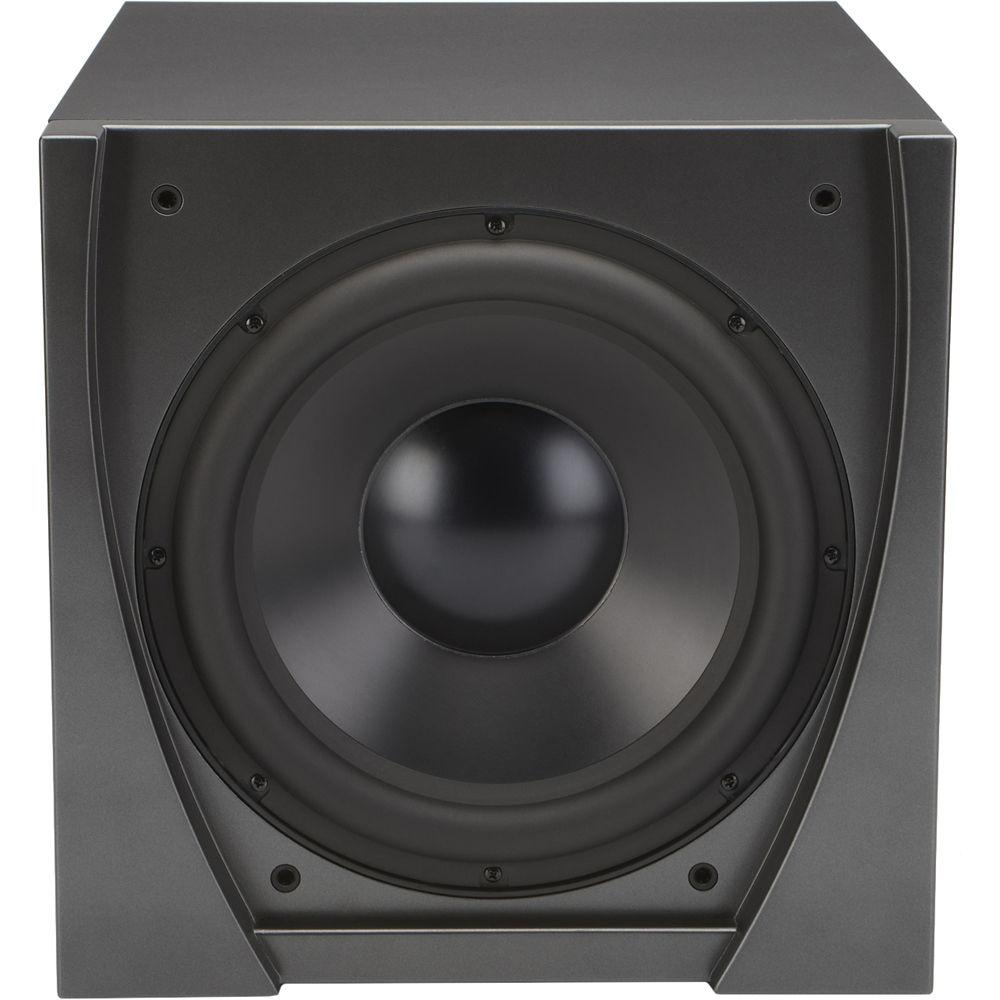

The subwoofer utilizes a 12" high excursion cast frame woofer with a ferrite motor powered by a 400W amplifier to deliver a frequency response of 25 to 200 Hz ±1.5 dB. For circuit design, it features FR4 6-layer circuit boards, Burr-Brown 24-bit 192 kHz A/D/A conversion, and a Cirrus Logic Digital receiver and sample rate converter. The subwoofer can also operate in "pure-digital" mode at either 48 or 96 kHz sample rate wherein the input from the AES/EBU digital receiver is routed directly to the subwoofer's DAC.
The devices includes a 2.1 Bass Mass Management system with variable crossover frequency adjustments, low pass filters, high pass filters, a 1/3 octave 31-band digital graphic equalizer, pink noise generator, selectable parametric equalizer, room correction, and an adjustable gain control. The DSP settings can be controlled using Blue Sky's BOO optimization software on a PC computer. The subwoofer is designed and assembled in the USA. - Digital Inputs
- Connects digital sources via AES/EBU connections
- DIP Switches
- Switches between +24 dBu/+12 dBu max analog output, +24 dBu/+12 dBu max analog input, sub direct digital in L/R, and sub crossover mode on / sub direct mode on
- Burr-Brown Conversion
- Provides 24-bit 192 kHZ analog to digital and digital to analog conversion
- Pure Digital Mode
- Operates at either 48 or 96 kHz and routes the input from the AES/EBU digital receiver is routed to the subwoofer's DAC
- BOO Optimization Software
- Provides variable crossover frequency adjustments, low pass filters, high pass filters, a 1/3 octave 31-band digital graphic equalizer, pink noise generator, selectable parametric equalizer, room correction, and an adjustable gain control from a PC over USB connection
UPC: 805990000258 In the Box Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

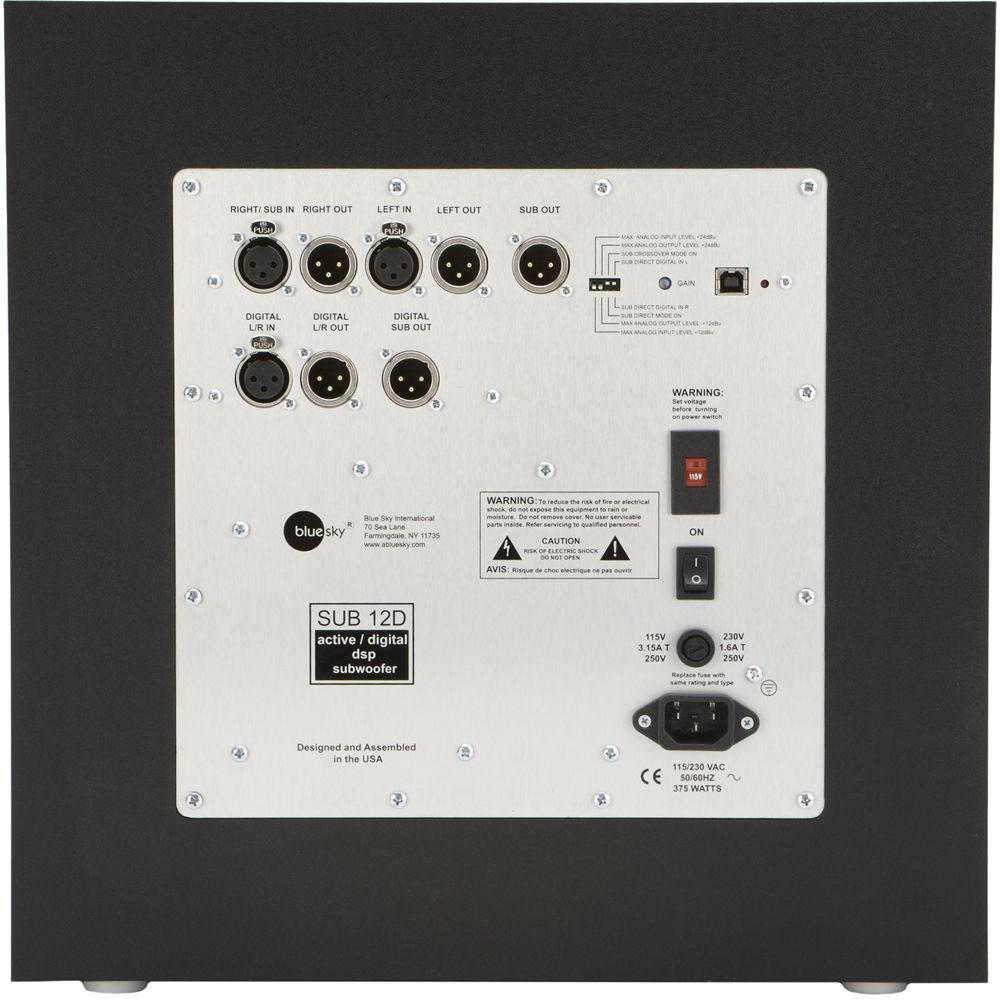

Technical parametersBlue Sky International SUB 12D Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Sealed, Shielded | | Power Rating | 400 W | | Drivers | LF Driver: 1 x 12" / 30.48 cm Woofer | | | | Frequency Response | 25 Hz to 200 Hz ± 1.5 dB | | Protections and Limiting | Fuse | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input
3 x 3-Pin XLR Balanced Male Analog Output
1 x 3-Pin XLR AES/EBU Female Digital Input
2 x 3-Pin XLR AES/EBU Male Digital Output | | Computer Interface | 1 x USB Type-B | | | | Digital EQ & Crossover | Graphic EQ
Variable Crossover Frequency
High-Pass Filter
Low-Pass Filter | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | Power Consumption | 375 W (Maximum) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 15.0 x 15.2 x 16.2" / 38.1 x 38.7 x 41.3 cm | | Weight | 50.0 lb / 22.7 kg | | | | Package Weight | 54.6 lb | | Box Dimensions (LxWxH) | 21.732 x 21.26 x 20.158" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
