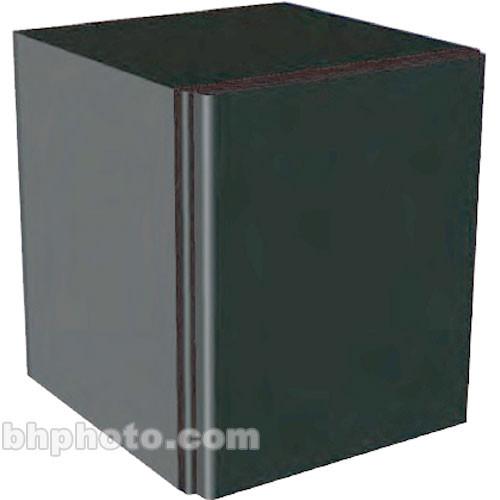

User Manual for Blue Sky International SUB 15 Universal - 1000W 15" Active Sealed Box Subwoofer Click to enlarge the picture
Contents of the user manual for the Blue Sky International SUB 15 Universal
- Product category: Studio Monitors Blue Sky International
- Brand: Blue Sky International
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blue Sky International Studio Monitors
 |
User manual for the Blue Sky International SUB 15 Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blue Sky International product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blue Sky International user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blue Sky International product will considerably shorten its lifespan!
|

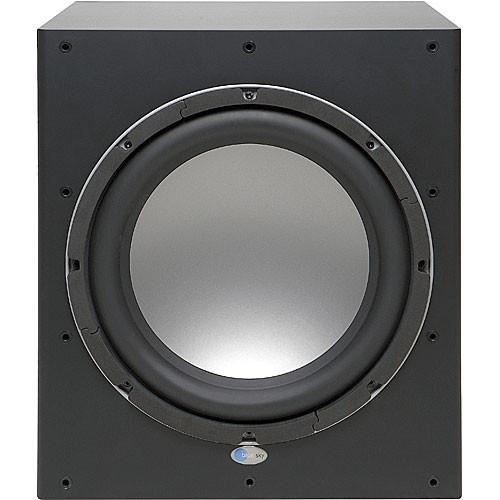

Product description The SUB 15 Universal from Blue Sky International is a 15-inch sealed box subwoofer with a forward-firing driver in a cast-aluminum frame with dual 2.5-inch voice coils. This 1000W subwoofer offers a switchable low frequency response, with the "extended" mode reaching all the way down to 20Hz. This mode is ideal for use in larger rooms that don't provide the same room gain of smaller spaces.
The SUB 15 Universal also has 2.1 bass management electronics built-in, including a 4th order 80Hz Linkwitz-Riley low-pass filter and a 2nd order 80Hz high-pass filter, compatible with the SAT 5, 6.5, and 12 monitor speakers. This allows you to add true low frequency extension to your current near and midfield monitors. - 1000W forward-firing 15" subwoofer
- Switchable low frequency response allows you to select either 30Hz - 200Hz or 20Hz - 200Hz
- Built-in 2.1 bass management electronics include a 4th order 80Hz Linkwitz-Riley low-pass filter and a 2nd order 80Hz high-pass filter
UPC: 805990000524 In the Box Blue Sky International SUB 15 Universal - 1000W 15" Active Sealed Box Subwoofer Power Cable Owner's Manual Warranty Card Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blue Sky International SUB 15 Universal - 1000W 15" Active Sealed Box Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

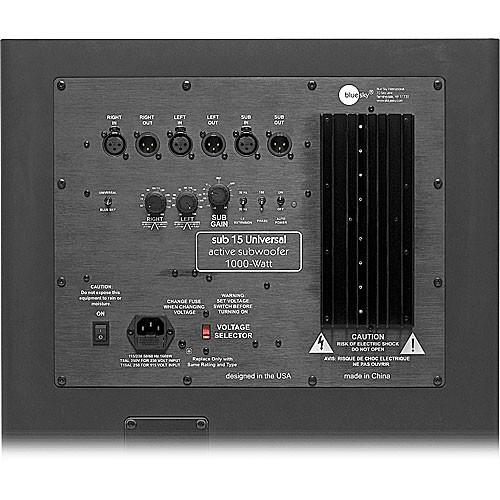

Technical parametersBlue Sky International SUB 15 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Sealed, Shielded | | Power Rating | 1000 W RMS | | Drivers | Full-Range Driver: 1 x 15" / 38.1 cm Polypropylene Cone | | | | Frequency Response | 20 Hz to 200 Hz | | Maximum Sound Pressure Level (SPL) | 90 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | I/O | 3 x 3-Pin XLR Balanced Analog Input (10 kOhms)
3 x 3-Pin XLR Balanced Analog Output XLR Inputs/Outputs are "Right," "Left," and "Sub." | | | | Dimensions (W x H x D) | 18.0 x 20.8 x 20.6" / 457.0 x 527.0 x 523.0 mm | | Weight | 1125.0 lb / 56.7 kg | | | | Package Weight | 115.6 lb | | Box Dimensions (LxWxH) | 26.0 x 26.0 x 26.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
