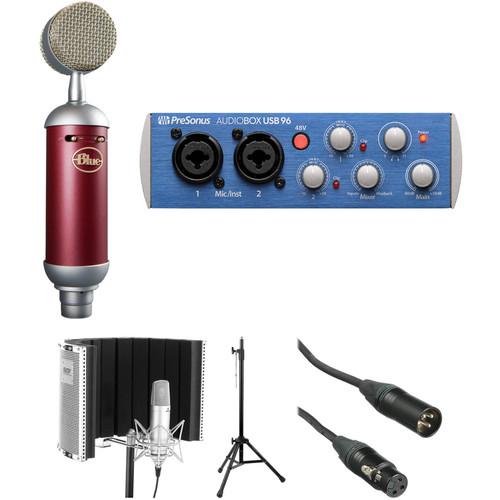

Blue Spark SL Microphone with USB

User Manual for Blue Spark SL Microphone with USB Recording Interface & Accessory Kit

• Product category: Large Diaphragm Condenser Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others Large Diaphragm Condenser

Product description

• Blue Spark SL Large-Diaphragm Studio Condenser Microphone
  • Detailed, Transparent Sound for Your Studio | Spark SL
  Featuring a class-A circuitry to ensure a pure signal, the Blue Spark SL is a studio large-diaphragm condenser microphone which builds upon its predecessor to offer a switchable 100 Hz high-pass filter and a -20 dB pad, allowing you to offset pesky factors like the bass-heavy sonic signature of a given room, or an intrinsically loud instrument. It utilizes a JFET design, which has been fashioned to keep the capsule's backplate evenly charged, thus delivering a consistently transparent and even signal across the frequency response.

  The Spark SL offers a cardioid polar pattern to minimize off-axis feedback and extraneous noise, giving you a frequency range between 20 Hz to 20 kHz, which is more than enough to record vocals, pianos, stringed instruments, and more. An SPL of 136 dB allows the microphone to capture a wide swath of dynamic material without damaging elements of the microphone. The microphone requires 48V phantom power to run, provides a dynamic range of 119.6 dB, and includes both a custom shockmount and a wooden storage box.
  Key Features at a Glance
  • • Capsule designed for transparent, neutral sound capture
    • Wide, richly detailed frequency response and SPL of 136 dB
    • High-pass filter and -20 dB pad to promote versatility
    • Suitable for use with home-studio interfaces (USB, Thunderbolt, or otherwise)
  UPC: 836213000922
• PreSonus AudioBox 96 USB 2.0 Audio Recording Interface
  • Detailed, Transparent Sound for Your Studio | Spark SL
  The AudioBox 96 from Presonus is a two-channel USB computer audio interface. Designed to be portable, the unit utilizes 24-bit converters that sample at 44.1, 48, 88.1, or 96 kHz. Two high-quality PreSonus microphone preamps with switchable 48V phantom power are also provided, as are combination jacks for 1/4" or XLR inputs, MIDI I/O, and solid drivers. Whilst recording, you can achieve zero-latency monitoring with a knob that allows you to blend signal from the preamp with signal in your DAW, giving you a tailored balance of both sources. The interface is bundled with the Studio One Artist 3 DAW software for Mac and Windows, and includes the Studio Magic plug-in suite, providing effects, virtual instruments, and third-party loops, software, and instrument sounds. This unit is sturdy enough to be taken on the road, though also finds its home in the studio.
  • 24-bit/44.1, 48, 88.1, 96 kHz USB audio recording interface bundled with PreSonus Studio One 3 Artist
  • Two microphone/instrument preamps
  • Switchable 48V phantom power
  • Balanced 1/4" TRS phone outputs
  • Headphone output (1/4" TRS) with dedicated volume control
  • MIDI input and output
  • All metal chassis ready to withstand the rigors of the road
  • Powered via the USB bus
  UPC: 673454005381
• Auray RF-CM-S Reflection Filter (Silver)
  • Detailed, Transparent Sound for Your Studio | Spark SL
  The silver RF-CM-S Reflection Filter from Auray is the perfect solution for recording vocalists or voice over artists in less than stellar acoustic spaces where room reflection would otherwise be recorded along with the vocal, making post processing and mixing more complicated. This might be in a home studio, an untreated rehearsal space, or a makeshift film dialogue replacement situation.

  Housed in a deep and sturdy, semicircular perforated aluminum shell, the high density acoustic foam provides a reflection free environment for the microphone, while simultaneously attenuating any room noise. The resulting dry and clearer recordings can then be treated during mixing or film post processing without extraneous noises or unwanted reflections getting in the way.

  The filter mounts onto a microphone stand, and front and rear sliding brackets easily allow you to adjust its height and depth for precise microphone placement. Standard 5/8"-27 threaded adapters fit most microphone stands, clips and shockmounts.
  • Compact solution for providing sound isolation for vocal or voice over recording in untreated spaces
  • High-density foam absorbs acoustic reflections and minimizes room ambience, isolating the microphone
  • Perforated aluminum shield diffuses and prevents sound that might reflect back to microphone, especially when recording loud vocalists
  • Sliding bracket makes it easy to mount the microphone in the ideal position inside the reflection filter
  • Rear adjustable bracket provides additional filter height adjustment to accommodate different vocalist heights
  • Adapters with industry-standard 5/8"-27 threaded studs and sockets are compatible with mic stands, shock mounts, and mic clips with a 5/8"-27 post.
  • Deep, semi-circular design ensures dry vocals while attenuating external noise
  UPC: 847628578630
• Auray RFMS-580 Reflection Filter Tripod Mic Stand
  • Detailed, Transparent Sound for Your Studio | Spark SL
  The RFMS-580 Reflection Filter Tripod Mic Stand from Auray features heavy duty steel construction and is capable of providing sturdy support to your reflection filter and studio microphone at the same time. The tripod stand design features collapsible legs for convenient storage and a telescoping center column that can be adjusted to reach a maximum working height of 76", including a standard reflection filter.

  The stand also features non-slip feet for added traction on hard surfaces as well as a 5/8" threaded adapter for attaching a shockmount or mic clip.
  • Provides sturdy support to a microphone and a reflection filter at the same time
  • May also be used as a speaker stand (may require 3/8" thread adapter)
  UPC: 847628576827
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
  • Detailed, Transparent Sound for Your Studio | Spark SL
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• Spark SL Large-Diaphragm Studio Condenser Microphone vsxzfabzrutdywytssywbvrweysut
• Wooden Storage Box
• Custom Shockmount

• PreSonus - AudioBox 96 USB 2.0 Audio Recording Interface

• Auray - RF-CM-S Reflection Filter (Silver)

• Auray - RFMS-580 Reflection Filter Tripod Mic Stand

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Blue Spark SL Large-Diaphragm Studio Condenser Microphone

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	Cardioid: 73 dB A-Weighted
  Maximum SPL	Cardioid: 136 dB SPL Peak
  Pad	-20 dB
  THD	0.5%
  Impedance	Cardioid: 50 Ohms
  Load Impedance	1000 Ohms
  Sensitivity	Cardioid: 34.9 mV/Pa at 1 kHz
  Low-Cut Filter	12 dB/Octave @ 100 Hz
  Dynamic Range	Cardioid: 119.6 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	48 V
  Length	8.68" / 220.5 mm
  Diameter	1.87" / 47.5 mm
  Weight	11.85 oz / 336 g

  Box Dimensions (LxWxH)	11.5 x 8.9 x 5.3"

• PreSonus AudioBox 96 USB 2.0 Audio Recording Interface

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	1 x USB Type-B
  Analog I/O	2 x Combo XLR / 1/4" Mic/Line Input 2 x 1/4" (6.3 mm) TRS Balanced Monitor Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out

  Frequency Response
