User manual
Blue Yeti USB Condenser Microphone Broadcast

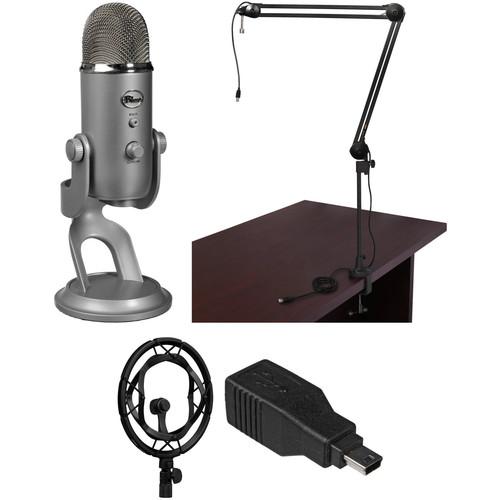

User Manual for Blue Yeti USB Condenser Microphone Broadcast Kit with Shockmount, Broadcast Arm, and USB Adapter

• Product category: USB Microphones Blue
• Brand: Blue
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Blue USB Microphones

Product description

• Blue Yeti USB Microphone (Silver) Employing a tri-capsule design that provides you with a variety of selectable polar patterns for flexibility in recording, the silver Yeti USB Microphone from Blue is capable of capturing your audio in up to 16-bit/48 kHz resolution. Depending on your sound source, you can select between stereo, cardioid, omnidirectional, or bi-directional polar patterns for optimal results.

  The mic has an integrated headphone amp with an independent gain control for latency-free monitoring. Microphone gain control as well as an instant mute function are available right on the device itself, while the included stand allows for pivoting in a variety of angles for ideal placement, with the added functionality of folding the mic down for storage and transport. The Yeti is Mac and Windows compatible, and includes a USB cable.
  Recording Control
  • Yeti features controls for headphone volume, pattern selection, instant mute and microphone gain—putting you in charge of every level of the recording process. If you're experiencing distortion or feedback while recording an especially loud source, simply adjust the microphone's sensitivity with the gain control. Or, if you want to take a break in the middle of a podcast, use the instant mute button.

    The microphone comes equipped with a 3.5mm headphone jack and allows you to listen to what you're recording in real-time, without latency delay. That means no more hearing a note 3 seconds after you played it. You can adjust the volume of your headphones using the control on the front of the microphone
  Designed for Simplified Recording
  • Yeti doesn't mind getting pushed around, it lets you adjust and pivot the microphone in relation to the sound source. Once you've achieved the desired angle, simply hand-tighten the set knobs to secure it in place. Yeti is a side-address microphone, so you can capture the best sound by going face-to-face with it. The microphone can also be folded down for portability, or removed completely from its base for mounting directly on a mic stand
  Streamlined Setup
  • Simply plug Yeti into your computer's USB port with the included USB cable, calibrate it with your operating system, and you're ready to record. Yeti offers driver-free operation
  • Tri-capsule array with 3 condenser elements
  • Multiple pattern selection: cardioid, bi-directional, omnidirectional & stereo
  • Gain control, mute button, zero-latency headphone output
  • Unique, positionable design
  UPC: 836213001950
• Blue Radius III Shockmount for Yeti and Yeti Pro USB Microphones The Radius III Shockmount from Blue is a vintage-style suspension mount designed to isolate the Yeti and Yeti Pro USB microphones from noise, shock, and vibrations. The Radius III is an update from the previous Radius II model and is more streamlined and lighter in weight. It can be used with any microphone that has a standard thread mount and is compatible with standard microphone stands.
  • Custom designed shockmount for Yeti and Yeti Pro USB microphones.
  • Isolates the microphone from noise, shock, and vibrations.
  • Updated design. Streamlined, lighter in weight, and suitable for on-camera streaming.
  UPC: 836213000243
• Auray BAI-2U Two-Section Broadcast Arm with Internal Springs and Integrated USB Cable The Auray BAI-2U is a two-section broadcast arm with internal springs and an integrated USB cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2U broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2U allows for precise microphone placement.

  The BAI-2U also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  USB Cable
  • The BAI-2U comes with an integrated 10-foot Type A to Type B USB cable
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578265
• Comprehensive USB Type-B Female to USB Mini-B 5-Pin Male Adapter The Comprehensive USB Type-B Female to USB Mini-B 5-Pin Male Adapter converts a USB Type-B connector into a USB Mini-B 5-pin plug. It comes with a female port on one end and male connector on the other. Furthermore, it supports USB 1.0, 1.1, and 2.0 devices. UPC: 808447055634

• Yeti USB Microphone (Silver) exyxbrbatetxeyuwzwyq
• USB Cable
• Stand
• Limited 2-Year Warranty

• Radius III Shockmount for Yeti and Yeti Pro USB Microphones

• Auray - BAI-2U Two-Section Broadcast Arm with Internal Springs and Integrated USB Cable

• Comprehensive - USB Type-B Female to USB Mini-B 5-Pin Male Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Blue Yeti USB Microphone (Silver)

  Diaphragm	0.55" / 14 mm
  Polar Pattern	Cardioid, Figure-8, Omnidirectional, Stereo Mode
  Pattern Selection	Switched
  Frequency Range	20 Hz to 20 kHz
  Maximum SPL	120 dB SPL
  THD	0.5%

  Bit Depth	16-Bit
  Sample Rate	48 kHz
  Operating System Support	Windows, macOS/OS X
  RAM	64 MB Minimum
  Available Port	USB (Interface Unspecified)

  Output Connectors	1 x USB (Type Unspecified)
  Headphone Connector	1 x 1/8" (3.5 mm)
  Length	11.61" / 29.49 cm
  Weight	2.2 lb / 1.00 kg

  Box Dimensions (LxWxH)	9.8 x 6.4 x 5.0"

• Blue Radius III Shockmount for Yeti and Yeti Pro USB Microphones

  Compatible with	Yeti and Yeti Pro USB microphones or any microphone with a standard thread mount
  Works with	Standard microphone stand
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.0 x 8.5 x 2.6"

• Auray BAI-2U Two-Section Broadcast Arm with Internal Springs and Integrated USB Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	USB 2.0 Type A Male to Type B Male: 10' (304.8 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.3"

• Comprehensive USB Type-B Female to USB Mini-B 5-Pin Male Adapter

  Host Connector	USB Mini-B (5-Pin) Male
  Output Connector	1 x USB Type-B Female
  Interface	USB 2.0 (480 Mb/s)

  Certifications	RoHS, as per Manufacturer

  Weight	0.6 oz / 18 g

  Box Dimensions (LxWxH)	1.9 x 0.9 x 0.7"
