Product description

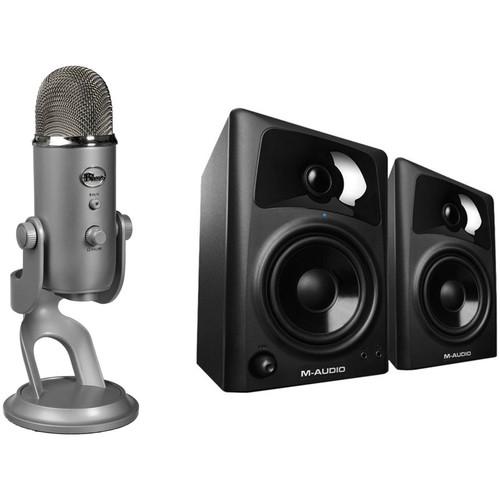

• Blue Yeti USB Microphone (Silver) Employing a tri-capsule design that provides you with a variety of selectable polar patterns for flexibility in recording, the silver Yeti USB Microphone from Blue is capable of capturing your audio in up to 16-bit/48 kHz resolution. Depending on your sound source, you can select between stereo, cardioid, omnidirectional, or bi-directional polar patterns for optimal results.

  The mic has an integrated headphone amp with an independent gain control for latency-free monitoring. Microphone gain control as well as an instant mute function are available right on the device itself, while the included stand allows for pivoting in a variety of angles for ideal placement, with the added functionality of folding the mic down for storage and transport. The Yeti is Mac and Windows compatible, and includes a USB cable.
  Recording Control
  • Yeti features controls for headphone volume, pattern selection, instant mute and microphone gain—putting you in charge of every level of the recording process. If you're experiencing distortion or feedback while recording an especially loud source, simply adjust the microphone's sensitivity with the gain control. Or, if you want to take a break in the middle of a podcast, use the instant mute button.

    The microphone comes equipped with a 3.5mm headphone jack and allows you to listen to what you're recording in real-time, without latency delay. That means no more hearing a note 3 seconds after you played it. You can adjust the volume of your headphones using the control on the front of the microphone
  Designed for Simplified Recording
  • Yeti doesn't mind getting pushed around, it lets you adjust and pivot the microphone in relation to the sound source. Once you've achieved the desired angle, simply hand-tighten the set knobs to secure it in place. Yeti is a side-address microphone, so you can capture the best sound by going face-to-face with it. The microphone can also be folded down for portability, or removed completely from its base for mounting directly on a mic stand
  Streamlined Setup
  • Simply plug Yeti into your computer's USB port with the included USB cable, calibrate it with your operating system, and you're ready to record. Yeti offers driver-free operation
  • Tri-capsule array with 3 condenser elements
  • Multiple pattern selection: cardioid, bi-directional, omnidirectional & stereo
  • Gain control, mute button, zero-latency headphone output
  • Unique, positionable design
  UPC: 836213001950
• M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair) The M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair) use acoustically-inert MDF cabinets to eliminate resonances, and 20W per Channel into 4 ohms per channel into a 4" polypropylene woofer in a bass reflex design. The woofer is complemented by a 1" wave-guided ferrofluid cooled silk dome tweeter to deliver a frequency response of 75 to 20,000 Hz and an RMS SPL level of 101.5 dB at 1 meter.

  The rear panel of the monitors feature RCA inputs for connecting gaming systems, DJ gear, mixers and more. A front panel 1/8" (3.5mm) stereo auxiliary input allows for the connection of a laptop, smartphone, or other mobile device. A front panel 1/8" headphone output allows you to monitor directly using headphones. The monitors are suitable for a wide range of professional and consumer applications. UPC: 694318017135

• Yeti USB Microphone (Silver) ufbubzyz
• USB Cable
• Stand
• Limited 2-Year Warranty

• M-Audio - AV42 Desktop Speakers for Professional Media Creation (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Blue Yeti USB Microphone (Silver)

  Diaphragm	0.55" / 14 mm
  Polar Pattern	Cardioid, Figure-8, Omnidirectional, Stereo Mode
  Pattern Selection	Switched
  Frequency Range	20 Hz to 20 kHz
  Maximum SPL	120 dB SPL
  THD	0.5%

  Bit Depth	16-Bit
  Sample Rate	48 kHz
  Operating System Support	Windows, macOS/OS X
  RAM	64 MB Minimum
  Available Port	USB (Interface Unspecified)

  Output Connectors	1 x USB (Type Unspecified)
  Headphone Connector	1 x 1/8" (3.5 mm)
  Length	11.61" / 29.49 cm
  Weight	2.2 lb / 1.00 kg

  Box Dimensions (LxWxH)	9.8 x 6.4 x 5.0"

• M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair)

  Type	Two-way desktop reference speaker
  Input Connectors	2x RCA (left and right line inputs) 1x 1/8" aux input
  Low Frequency Driver	4.0" (10.2 cm) polypropylene-coated woofer with high-temperature voice coil
  High Frequency Driver	1.0" (2.5 cm) silk cone tweeter
  Frequency Response	80 to 20,000 Hz
  Crossover Frequency	2.7 kHz
  RMS Level	101.5 dB at 1 m
  SNR	>90 dB (typical, A-weighted)
  Polarity	Positive signal at "+" input produces outward low-frequency cone displacement
  Dynamic Power	20 W per channel at 4 ohm
  Input Impedance	10 kilOhm unbalanced
  Input Sensitivity	100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
  Protection	RF interference Output current limiting Over temperature Turn on/off transient Subsonic filter
  Indicators	Blue power LED for aligning wave guide
  Power Requirements	100 to 120 V at 50/60 Hz 200 to 240 V at 50/60 Hz Powered via detachable 2-conductor line cord
  Cabinet	Vinyl-laminated MDF
  Dimensions (H x W x D)	8.75 x 6.0 x 7.25" ( 22.2 x 15.2 x 18.4 cm)
  Weight	14.0 lb (6.4 kg)

  Box Dimensions (LxWxH)	16.4 x 12.1 x 10.5"
