Product description - The Bluefish444 Advantage

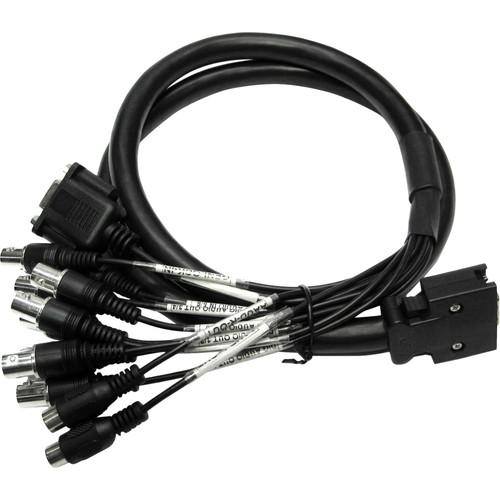

The AES/Analog Audio and RS422 Breakout Cable from BlueFish444 is designed to provide connectivity to the Epoch 4K Supernova video processing cards via an MDR20 connector. This breakout cable features 8 Channels of AES/EBU digital audio input and output on BNC coaxial cables, 2 channels of analog audio output on RCA shielded twisted pairs, and an RS422 serial control port on a 9-pin Sub-D interface. - Maximum OD of complete cable not to exceed 0.7"
In the Box BlueFish444 AES/Analog Audio and RS422 Breakout Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 AES Analog Audio and RS422 Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 CAB_OAES Specs | Connector 1 | 1 x 20-pin MDR20 female | | Connector 2 | 8 x BNC female, AES audio
2 x RCA female, analog audio output
1 x 9-pin Sub-D female, RS422 serial port control | | Cable Type | Analog Audio 100 Ω shielded twisted pair cables
Digital Audio 75 Ω coaxial cables | | OD | 0.7" (17 mm) maximum | | Cable Length | 42.5" (108.0 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
