Product description New Synapse Converters from BlueFish444 Read More atzwxasvztydrfafaycauzbequy - The Bluefish444 Advantage

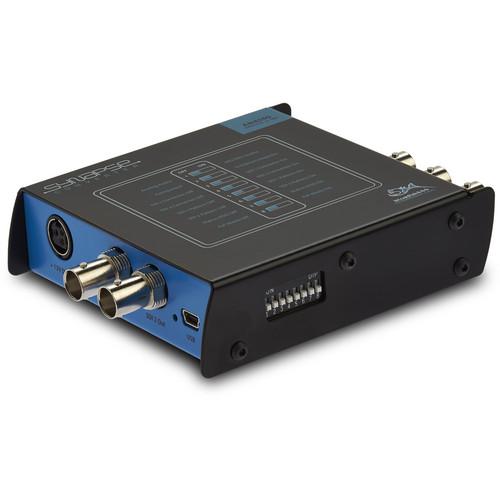

The Synapse ANA140 Analog to SDI Converter from BlueFish444 is designed to perform a number of conversions, including analog to HD/SD-SDI, video downscaling and progressive to PsF processing. All settings are configured via DIP switches on the side of the unit. The ANA140 offers YUV, S-video and Composite video inputs, and a redundant HD/SD-SDI output ensures against a workflow failure in the event of a lost signal. The HDMI120 features independent AES and Analog inputs, which can be muxed together with the video signal and output as embedded audio. - Converts Analog video signals to HD/SD-SDI
- YUV, S-video and Composite video inputs
- Redundant HD/SD-SDI output insures against a lost signal
- Downscaling and progressive to PsF processing
- AES and analog audio inputs can be output as two channels of embedded audio
- LED status indicator and OSD utility
- Available, embedded pattern generator
- Accepts future upgrades via USB
In the Box BlueFish444 Synapse ANA140 Analog to SDI Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 Synapse ANA140 Analog to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 ANA140 Specs | Video Modes | 1080p, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
576p, 486i, 480p, 576i, 480i at 25/29.97 fps | | Video Input | 1x YUV (SMPTE-274)
1x S-video
1x Composite | | Audio Input | 1x Stereo unbalanced audio at 48 KHz
1x Digital audio AES/ EBU pair | | Audio Output | 2x Embedded Audio Channels in SDI | | Video Output | 2 x HD-SDI 3Gb/s (2nd HD-SDI 3GB/s is a redundancy channel)
SDI Compliance: SMPTE-259M, SMPTE-292M & SMPTE-424M | | Downscaling | 1080p 60/50 to 720p 60/50
720p 50 to 576i 25
720p 59.94/6o to 486i 29.97/30
1080i 25 to 576i 25
1080i 29.97/30 to 486i 29.97/30 | | Progressive to PSF Processing | 1080p 60 to 1080i 30
1080p 50 to 1080i 25
1080p 24 to 1080i 24 | | Other Features | Upgradability through USB
Lockable Connector
Auto-Adaptation SD & HD
Status LED Indicator
12-bit A/D Conversion | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.1 x 5.5 x 2.5" |
