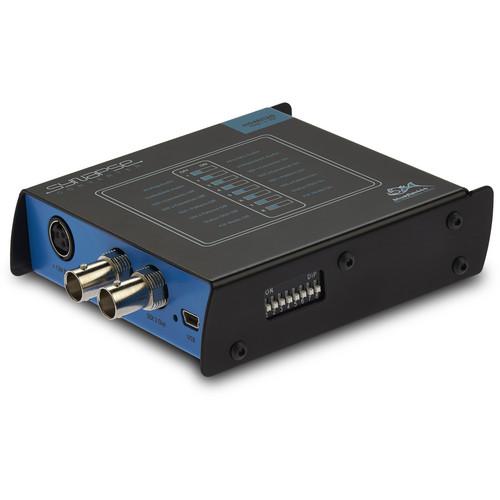

The Synapse HDMI120 HDMI to SDI Converter from BlueFish444 is designed to perform a number of conversions, including HDMI to HD/SD-SDI, video downscaling and progressive to PsF processing. All settings are configured via DIP switches on the side of the unit. The HDMI120 also offers a redundant HDMI input and HD/SD-SDI output, which ensures against a workflow failure in the event of a lost signal. Synapse converters support up to eight channels of embedded audio, and HDMI120 also features independent AES and Analog inputs, which can be muxed together with the video signal and output as embedded audio. - Converts HDMI video signals to HD/SD-SDI
- Redundant HDMI input and HD/SD-SDI output insure against a lost signal
- Downscaling and progressive to PsF processing
- Supports up to eight channels of embedded audio
- AES and analog audio inputs
- LED status indicator and OSD utility
- Available, embedded pattern generator
- Accepts future upgrades via USB
In the Box BlueFish444 Synapse HDMI120 HDMI to SDI Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 Synapse HDMI120 HDMI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 HDMI120 Specs | Video Modes | 1080p, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
576p, 486i, 480p, 576i, 480i at 25/29.97 fps | | Video Input | 2 x HDMI v1.3 (2nd HDMI v1.3 is a redundancy channel)
8-channels of embedded audio
30/36 bits per pixel
4:2:2 YCbCr
4:4:4 YCbCr/RGB 24 bit
1080p 50/60 | | Audio Input | 1 x Stereo unbalanced analog audio at 48 KHz
1 x Digital audio AES/EBU pair
8 x Digital Audio Embedded in HDMI | | Audio Output | 8 x Embedded audio via SDI
2 x Embedded audio in SDI via muxed audio input | | Video Output | 2 x BNC, SD/HD/3G-SDI (2nd BNC is a redundancy channel)
SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M (Level A) | | Downscaling | 1080p 60/50 to 720p 60/50
720p 50 to 576i 25
720p 59.94/6o to 486i 29.97/30
1080i 25 to 576i 25
1080i 29.97/30 to 486i 29.97/30 | | Progressive to PSF Processing | 1080p 60 to 1080i 30
1080p 50 to 1080i 25
1080p 24 to 1080i 24 | | Other Features | Upgradability through USB
Lockable Connector
Auto-Adaptation SD & HD
Status LED Indicator | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.2 x 5.6 x 2.5" |
