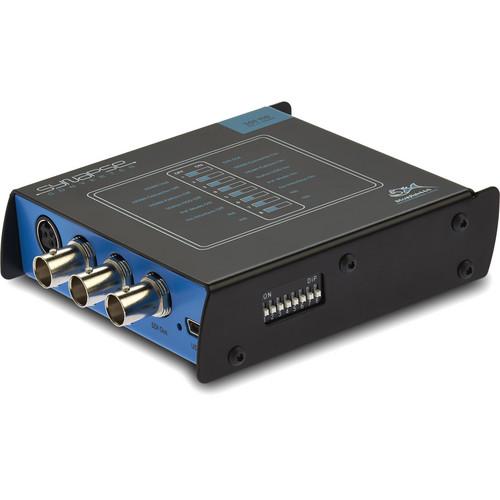

User Manual for BlueFish444 Synapse SDI110 SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the BlueFish444 Synapse SDI110 SDI to HDMI
- Product category: Signal Converters BlueFish444
- Brand: BlueFish444
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BlueFish444 Signal Converters
|
User manual for the BlueFish444 Synapse SDI110 SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BlueFish444 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BlueFish444 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BlueFish444 product will considerably shorten its lifespan!
|
Product description New Synapse Converters from BlueFish444 Read More butuwersqequzweezeayfqrydfewtuxczrdc - The Bluefish444 Advantage
The Synapse SDI110 SDI to HDMI Converter from BlueFish444 is designed to perform a number of conversions, including HD/SD-SDI to HDMI, video downscaling, progressive to PsF processing and de-interlacing. All settings are configured via DIP switches on the side of the unit. The SDI110 also offers a redundant HD/SD-SDI input, which insures against a workflow failure in the event of a lost input signal. Synapse converts support up to eight channels of embedded audio, and SDI110 features AES and Analog outputs for monitoring audio signals. - Converts HD/SD-SDI video signals to HDMI
- Redundant HD/SD-SDI input insures against a lost input signal
- Downscaling, progressive to PsF processing and de-interlacing
- Supports up to eight channels of embedded audio
- AES and analog audio outputs for monitoring
- HD/SD-SDI loop through output
- LED status indicator and OSD utility
- Available, embedded pattern generator
- Accepts future upgrades via USB
In the Box BlueFish444 Synapse SDI110 SDI to HDMI Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 Synapse SDI110 SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 SDI110 Specs | Video Modes | 1080p, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
576p, 486i, 480p, 576i, 480i at 25/29.97 fps | | Video Input | 2x HD-SDI 3 Gb/s (2nd HD-SDI 3GB/s is a redundancy channel) | | Audio Input | 8-Channels of embedded audio | | Audio Output | 1x Stereo Unbalanced Analog Audio
1x AES/EBU Digital Audio Pair
8x Embedded Audio in HDMI 1.3 Video | | Video Output | 1x HD/SD-SDI 3Gb/s (loop preview)
1x HDMI v1.3
30/36 bits per pixel
4:2:2 YCbCr
4:4:4 YCbCr/RGB 24 bit
1080p 50/60
SDI Compliance: SMPTE-259M, SMPTE-292M & SMPTE-424M | | Downscaling | 1080p 60/50 to 720p 60/50
720p 50 to 576i 25
720p 59.94/6o to 486i 29.97/30
1080i 25 to 576i 25
1080i 29.97/30 to 486i 29.97/30 | | Progressive to PSF Processing | 1080p 60 to 1080i 30
1080p 50 to 1080i 25
1080p 24 to 1080i 24 | | De-Interlace Processing | 1080i 30 to 1080p 60
1080i 25 to 1080p 50
1080i 24 to 1080p 24 | | Other Features | Upgradability through USB
Lockable Connector
Auto-Adaptation SD & HD
Status LED Indicator |
