User Manual for BLUESHAPE 2 Channel Sequential Portable Charger for V-Mount Click to enlarge the picture
Contents of the user manual for the BLUESHAPE 2 Channel Sequential Portable Charger
- Product category: Chargers BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Chargers
 |
User manual for the BLUESHAPE 2 Channel Sequential Portable Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

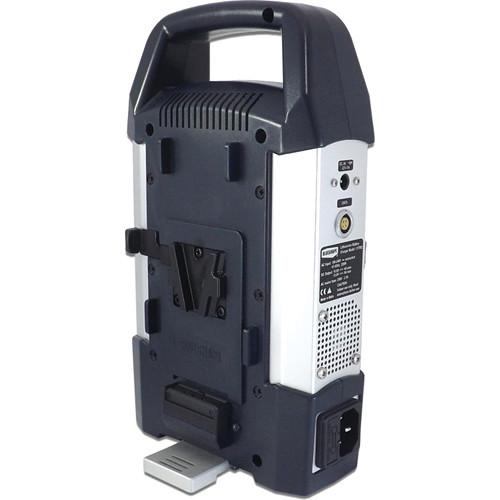

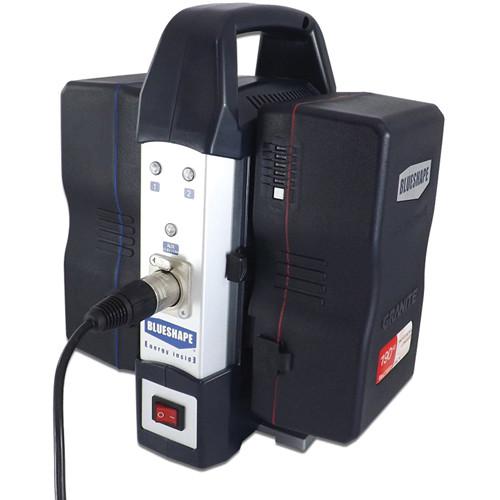

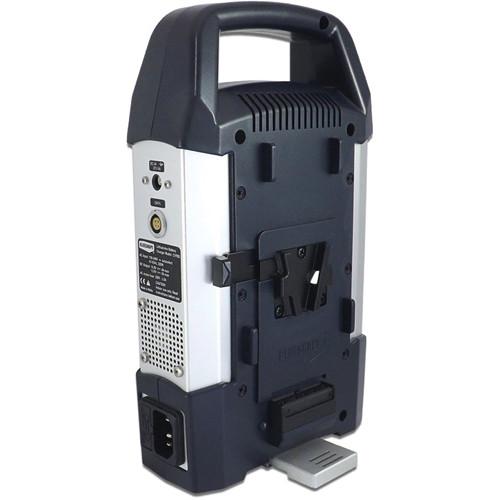

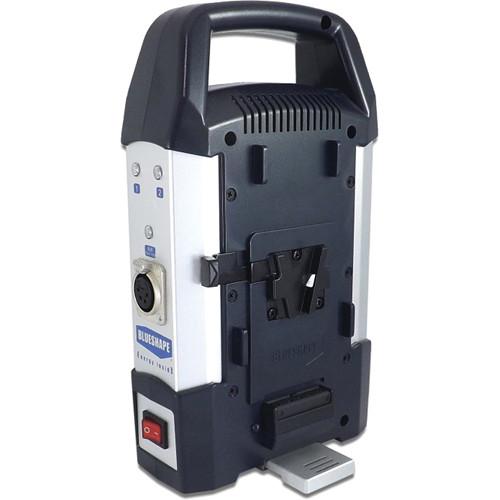

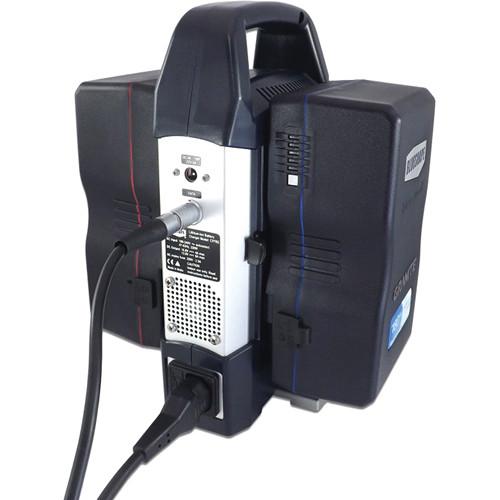

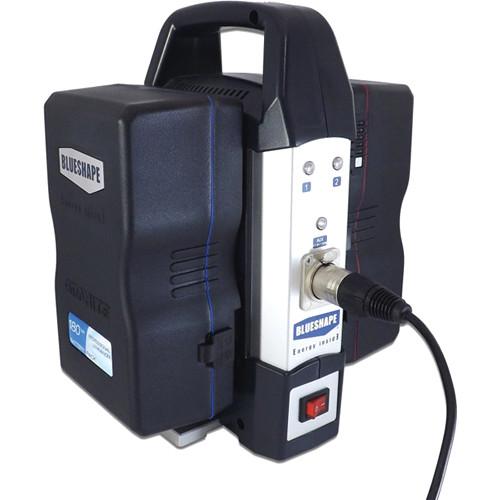

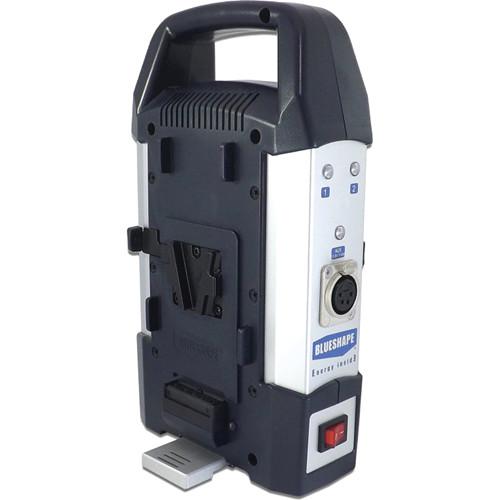

Product description The BLUESHAPE 2 Channel Sequential Portable Charger for V-Mount allows you to charge two batteries sequentially and features a 4-pin XLR power output. It's very convenient to use, featuring a carry handle and a rotating foot on the bottom for desktop use. The foot neatly tucks away underneath when not needed. The charger can be powered via an included AC adapter or optional BLUESHAPE In-Car Adapter. It has an approximately 2 hour charge time per channel for a 70Wh battery and 4.5 hours for a 210Wh battery.
A data socket allows for a USB connection to a computer in order to monitor charging activity and log battery data. The optional BLUESHAPE BSCVMON cable and maintenance utility are required for this, and up to four chargers can be monitored on a single computer.
This charger features a BLUESHAPE technology called IPCS (Intelligent Pre-Charge System) that allows it to provide charge at increased speeds to batteries with fast-charge supporting features, such as pre-charge protection and cell-balancing. IPCS does this by initially boosting very low voltage cells to a state at which charge can be applied with a medium-low current without causing damage. Then it charges with a 300mA current for a while, and when the battery reaches a reasonable voltage state, the charger speeds up the charge process by switching to full throttle. To counteract the increased heat caused by this fast-charging capability, the charger employs another BLUESHAPE technology, called CTP (Charger Thermal Protection), that allows the electronics to work out the best possible charge profiles without causing damage, even in adverse temperature conditions. - Key Features
-
- 4-pin XLR power port
- Carry handle and rotating desktop foot
- DC port supports optional BLUESHAPE in-car adapter
- Features a data socket supporting optional computer maintenance utility
- Fan vent
- IPCS/CTP fast charge and overheat features
- LED status indicators
- Illuminated ON/OFF switch
In the Box BLUESHAPE 2 Channel Sequential Portable Charger for V-Mount AC Power Cord Operating Instructions 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE 2 Channel Sequential Portable Charger for V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-CVTR2 Specs | Mount Type | 2x V-mount bays, each providing 16.8 VDC at 4.8 A | | Input | 100-240 VAC, 47-63 Hz | | Output | 1x AUX 13.8 VDC, 110 W max, on 4-pin XLR female | | Charging Current | 4 A per channel | | Power Input Connections | 3-prong AC socket for included AC power cord; DC input for optional BLUESHAPE PWCAR in-car adapter | | Data Interface | Data socket for USB connection to a computer (requires optional BLUESHAPE BSCVMON cable and maintenance utility) | | Dimensions | 9.9 x 5.5 x 3.2" (25 x 15 x 8 cm) | | Weight | 1.6 lb (0.7 kg) | | | | Package Weight | 3.53 lb | | Box Dimensions (LxWxH) | 12.8 x 7.85 x 3.7" |
