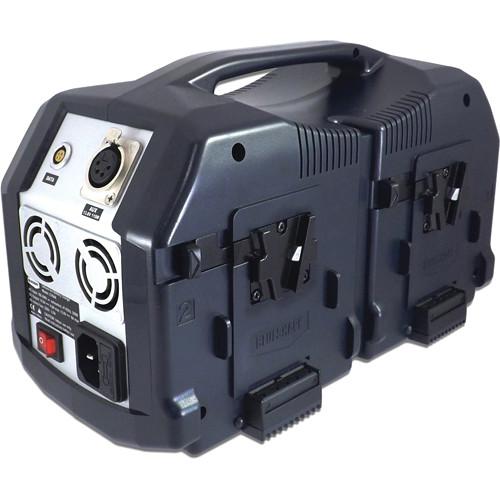

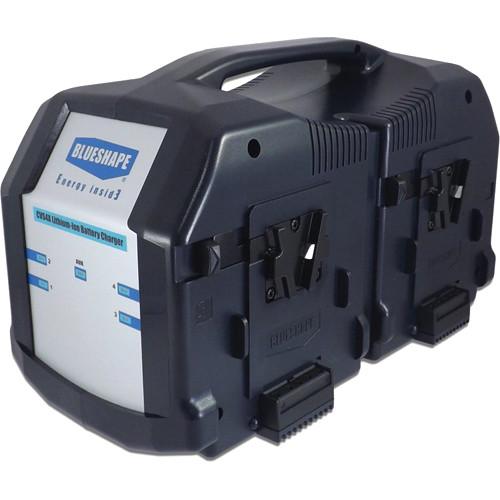

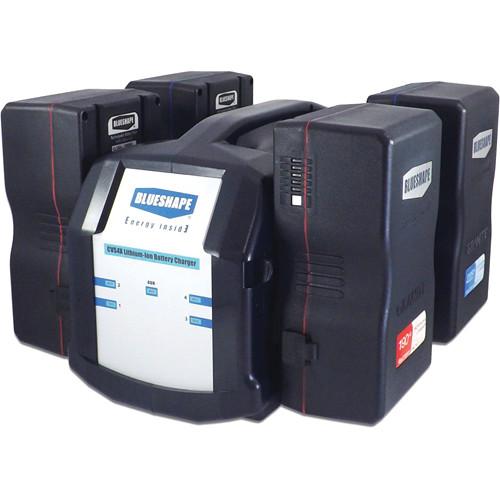

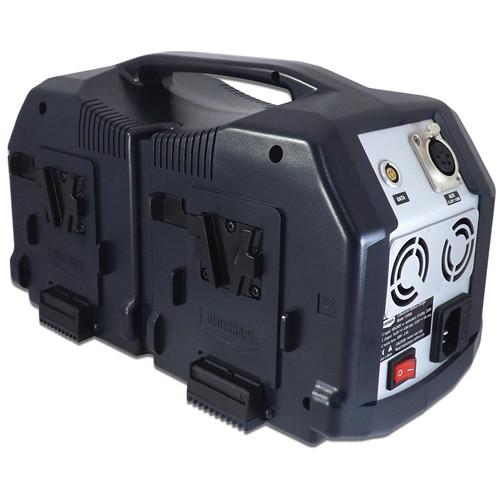

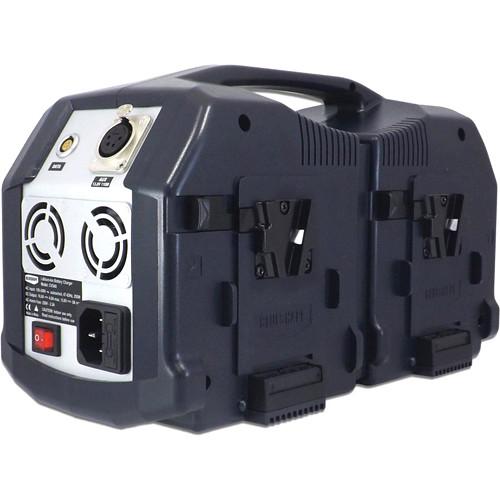

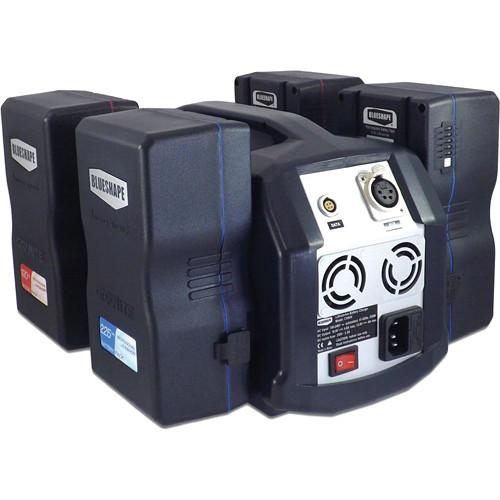

User Manual for BLUESHAPE 4-Channel Charger & Monitoring Utility for V-Mount Lithium-Ion Batteries Click to enlarge the picture
Contents of the user manual for the BLUESHAPE 4-Channel Charger & Monitoring Utility
- Product category: Chargers BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Chargers
 |
User manual for the BLUESHAPE 4-Channel Charger & Monitoring Utility contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

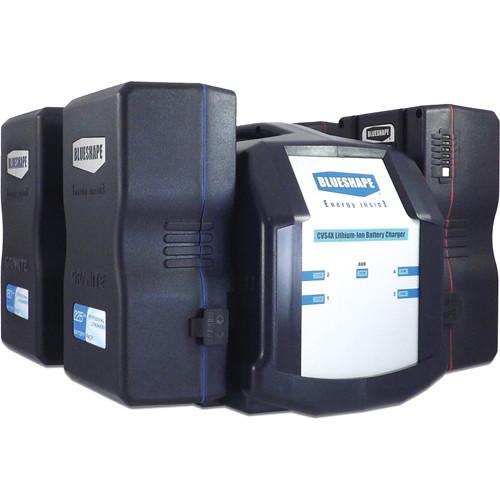

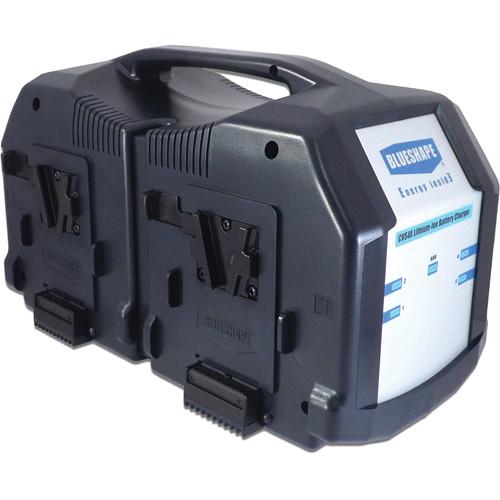

Product description This BLUESHAPE portable 4-Channel Charger allows you to charge two V-mount lithium-ion batteries simultaneously and two sequentially. It also features a 4-pin XLR power output for providing extended power to your camera. Included with the charger is a monitoring utility that lets you track charging activity and log battery fleet data for performance analysis of the batteries. Charge time is approximately 2 hours per channel for 70Wh batteries and 4.5 hours per channel for 210Wh batteries.
The monitoring utility (model BSCVMon, Windows-compatible) supports up to four chargers of different models, with up to 32 batteries simultaneously in real-time. For BLUESHAPE batteries and batteries compatible with the BLUESHAPE protocol, a host of parameters can be monitored, including state of charge, remaining charge time, battery state, cycle life, and cell temperature. Current, voltage, and approximated state of charge can be tracked for all other batteries. A real-time chart for each charger provides info for the whole pack of batteries and for each single cell. The data from each battery can be recorded automatically day after day to build a history log for your fleet and simplify the fleet's management. The software also monitors the state of the AUX port. A USB to data-socket cable is included for connecting the charger to your computer.
This charger features a BLUESHAPE technology called IPCS (Intelligent Pre-Charge System) that allows it to provide charge at increased speeds to batteries with fast-charge supporting features, such as pre-charge protection and cell-balancing. IPCS does this by initially boosting very low voltage cells to a state at which charge can be applied with a medium-low current without causing damage. Then it charges with a 300mA current for a while, and when the battery reaches a reasonable voltage state, the charger speeds up the charge process by switching to full throttle. To counteract the increased heat caused by this fast-charging activity, the charger employs another BLUESHAPE technology, called CTP (Charger Thermal Protection), that allows the electronics to work out the best possible charge profiles without causing damage, even in adverse temperature conditions. - Key Features
-
- Four battery bays supporting V-mount lithium-ion batteries
- Includes BSCVMon software utility for monitoring charging activity
- Charges two batteries simultaneously and two in sequence

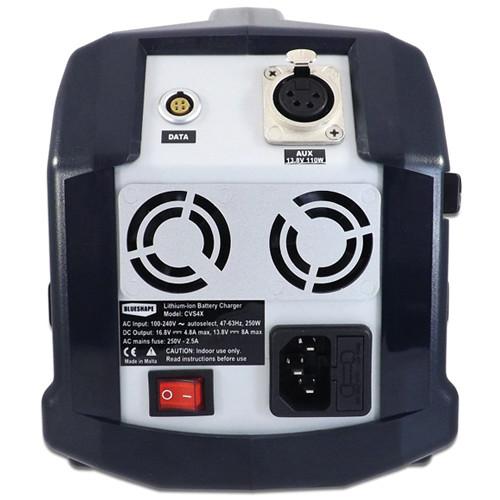

- 4-pin XLR power port
- Carry handle
- Fan vent
- IPCS/CTP fast charge and overheat features

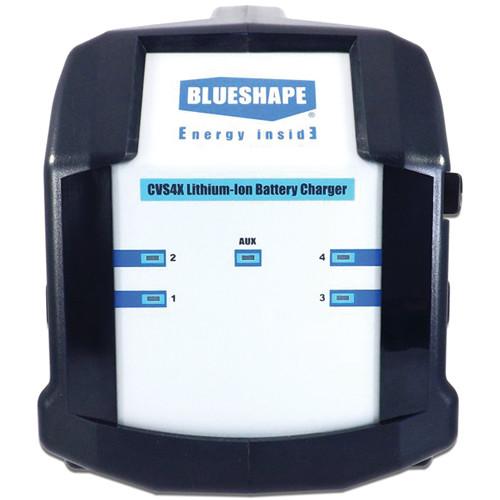

- LED status indicators
- Illuminated on/off switch
- BSCVMon Software Utility Features
- One Charger Monitor is available for each charger connected. It communicates continuously with the charger and shows info for all the channels as well as the AUX port. Regardless of whether the Charger Monitor is visible or hidden, data is always collected.
For every channel, several parameters are retrieved and shown (this information is provided for BLUESHAPE batteries and batteries compatible with the BLUESHAPE protocol; for other batteries, current, voltage, and approximated state of charge is provided):
- Charging status, including pause and errors
- Battery model
- Battery serial number
- Battery full capacity
- Actual state of charge
- Charge time to full
- Actual charging current
- Actual battery voltage
- Actual individual cell voltage
- Cell temperature
- Cycle counter (number of charge/discharge cycles already elapsed) In the Box BLUESHAPE 4-Channel Charger & Monitoring Utility for V-Mount Lithium-Ion Batteries AC Power Cord USB to Data-Socket Cable Safety Operating Instructions 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE 4-Channel Charger & Monitoring Utility for V-Mount Lithium-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-CVS4X Specs | | | Battery Bays | 4 | | Supported Battery Types | V-mount lithium-ion | | Input | 100-240 VAC, 47-63 Hz | | Output | 4x 16.8 VDC, 4.8 A | | Auxiliary Port | 1x 4-pin XLR female, 13.8 VDC, 110 W max | | Data Interface | Data socket for USB connection to a computer (using included USB to data-socket cable, part of the included BSCVMon Monitoring and Maintenance Utility) | | Charging Current | 4.8 A per channel when only one battery is charging
3.0 A per channel when more than two batteries are charging | | Dimensions | 6.4 x 5.9 x 11" (16.3 x 15 x 28 cm) | | Weight | 4.9 lb (2.2 kg) | | | | System Requirements | Windows 8, 7, Vista, XP, 2000 / 32-bit and 64-bit
30 MB disk space
USB 1.0 port or greater | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 11.969 x 8.898 x 6.457" |
