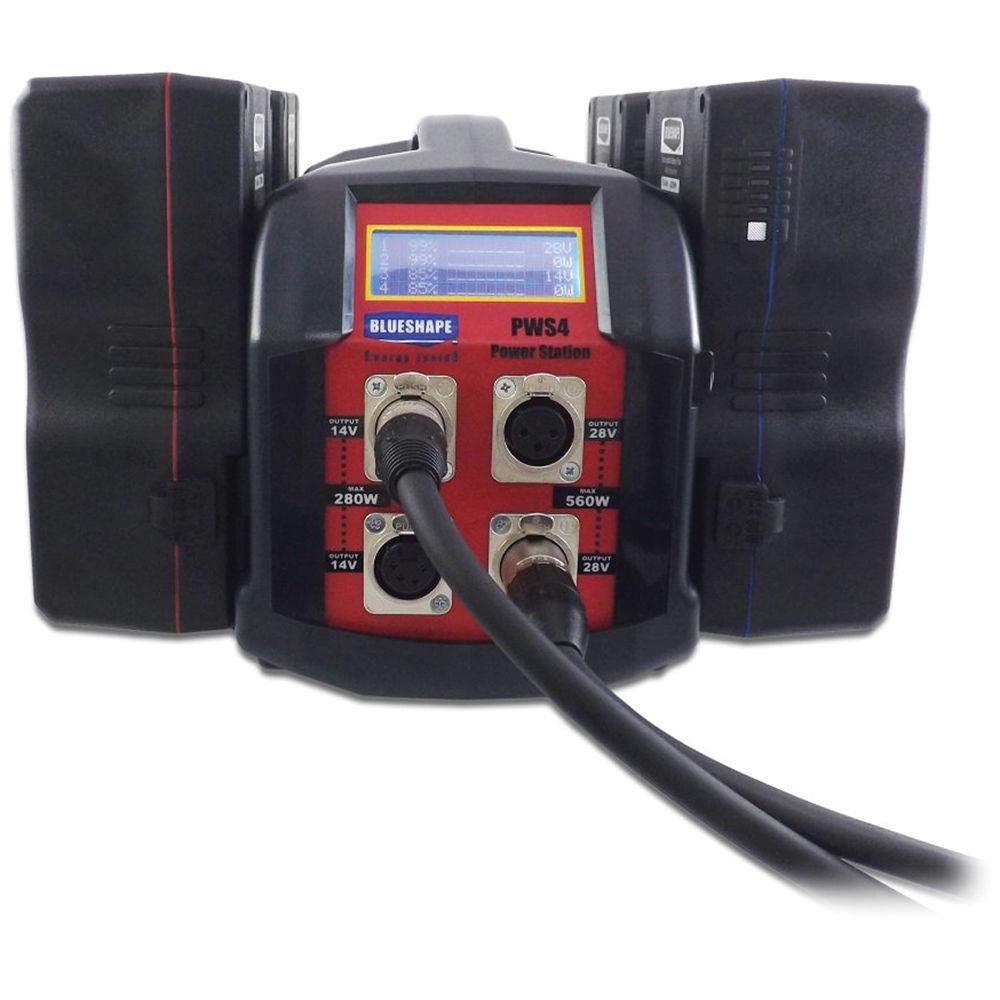

User Manual for BLUESHAPE 4 V-Mount Battery Power Station Click to enlarge the picture
Contents of the user manual for the BLUESHAPE 4 V-Mount Battery Power Station
- Product category: Batteries & Power BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Batteries & Power
 |
User manual for the BLUESHAPE 4 V-Mount Battery Power Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

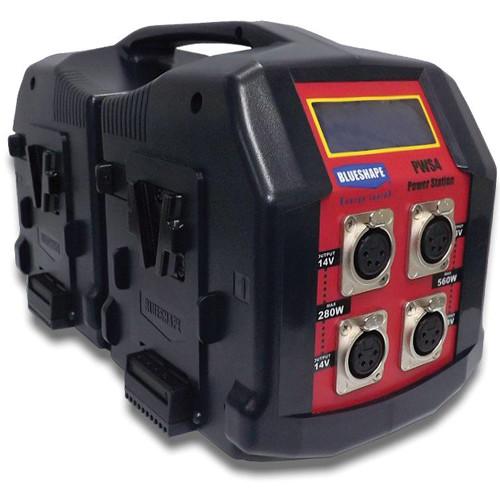

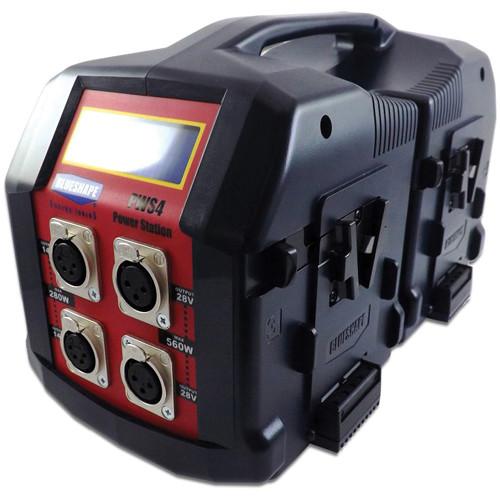

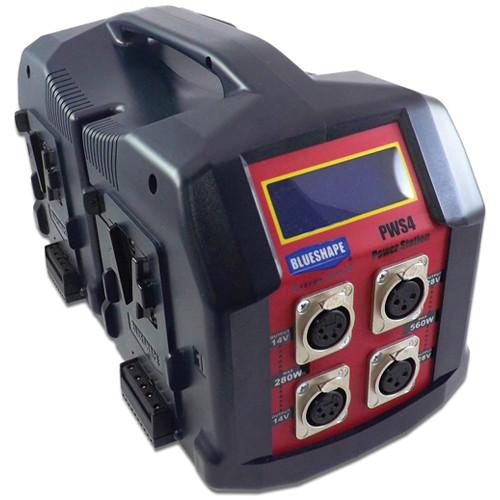

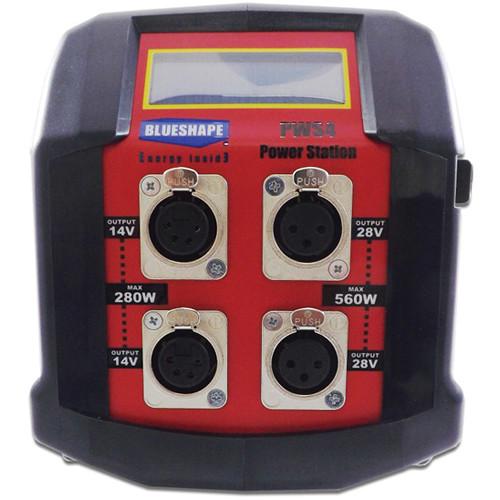

Product description The BLUESHAPE 4 V-Mount Battery Power Station supports four V-mount batteries and offers four simultaneous locking XLR power outputs, two regulated 28V 3-pin XLR outputs and two regulated 14V 4-pin outputs. The two pairs of outputs operate in parallel and share the combined battery input.
With four high drain batteries attached (9A and higher), the 3-pin XLR outputs share up to 560W between them and the 4-pin outputs share up to 280W. With two standard discharge batteries installed (less than 9A), the 3-pin outputs share up to 480W between them while the 4-pin outputs still share up to 280W. The batteries are hot-swappable to allow continuous power supply, and you can use only one battery individually if you'd like. A fan vent on the rear allows the system to remain cool even after hours of operation. A handle on top allows convenient carrying.

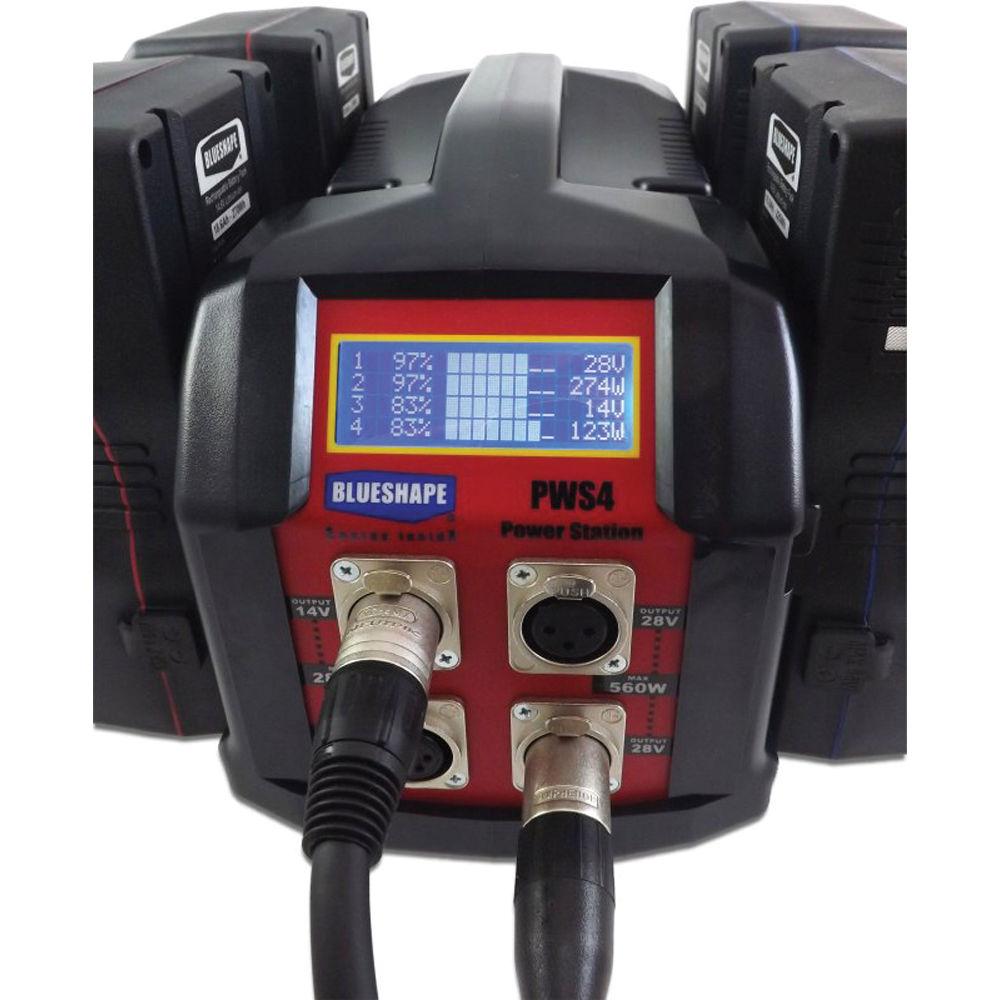

The Power Station features an LCD that displays various battery information, providing readings off the battery brain for BLUESHAPE-compatible batteries, such as RED batteries, and estimates based on voltage for all other batteries. The LCD displays each battery's state of charge (as a percentage), the actual power generated by the station, discharge current, voltage, and actual current delivered. - Features
-
- Supports four hot-swappable batteries and offers four simultaneous XLR outputs
- Two 3-pin XLR outputs each providing a regulated 28V and up to 560W between them
- Two 4-pin XLR outputs each providing a regulated 14V and up to 280W between them

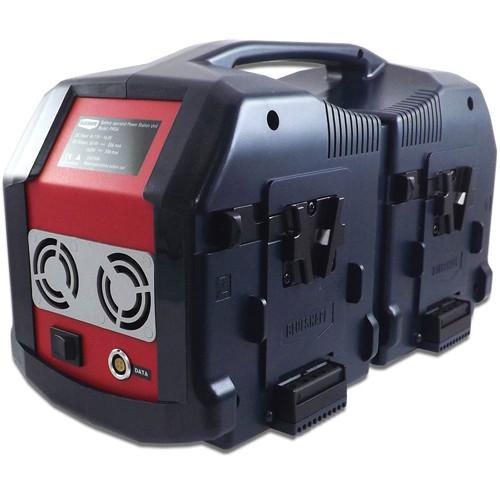

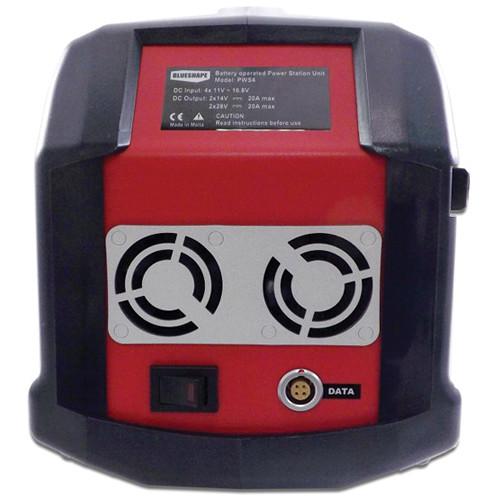

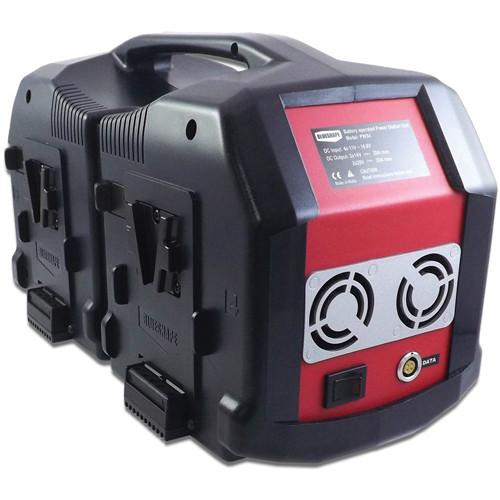

- A fan vent keeps the system cool even after hours of operation
- An LCD displays state of charge, power generated, discharge current, voltage, and current delivered
- A handle on top allows convenient carrying
- Illuminated ON/OFF power switch
- 4-pin data socket for computer testing, debugging, and calibration
In the Box BLUESHAPE 4 V-Mount Battery Power Station 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE 4 V-Mount Battery Power Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-PWS4 Specs | Battery Mount | 4x V-mount | | Power Output | 2x 3-pin XLR female, locking - regulated 28 V output, up to 560 W parallel 2x 4-pin XLR female, locking - regulated 14 V output, up to 280 W parallel | | Additional Connections | 4-pin socket for computer testing, debugging, calibration | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 12.0 x 8.6 x 6.5" |
