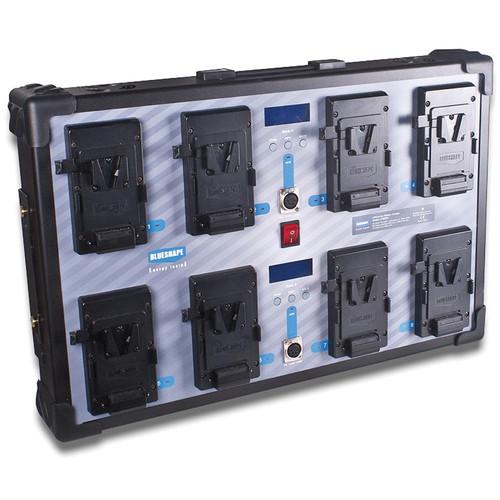

Product description The BLUESHAPE 8-Ch Wall Mount Charger & Monitoring Utility for V-Mount Lithium-Ion charges up to eight batteries simultaneously, and offers two XLR ports for powering devices, all while allowing the flexibility of being securely mounted on a wall and easily dismounted for more accessibility. Included along with it is a monitoring software that is Windows compatible that allows you to track charging activity and log data for your entire battery.
This charger is designed exclusively for V-mount lithium-ion batteries. It has an approximately 2 hour charge time per channel for 70Wh batteries and 4.5 hours for 210Wh batteries. Two LCDs, one for each group of four battery bays, display state of charge, charge time to full, status, and other information. A metal wall-mounting bracket is included that lets you easily mount the charger and just as easily dismount it.
The monitoring utility (model BSCVMon) supports up to four chargers simultaneously with up to 32 batteries in real-time. For BLUESHAPE batteries and batteries compatible with the BLUESHAPE protocol, a host of parameters can be monitored, including state of charge, remaining charge time, battery state, cycle life, and cell temperature. Current, voltage, and approximated state of charge can be tracked for all other batteries. A real-time chart for each charger provides info for the whole pack of batteries and for each single cell. The data from each battery can be recorded automatically day after day to build a history log for your fleet and simplify the fleet's management. The software also monitors the state of the AUX port. An included USB to data-socket cable connects the charger to your computer.
This charger features a BLUESHAPE technology called IPCS (Intelligent Pre-Charge System) that allows it to provide charge at increased speeds to batteries with fast-charge supporting features, such as pre-charge protection and cell-balancing. IPCS does this by initially boosting very low voltage cells to a state at which charge can be applied with a medium-low current without causing damage. Then it charges with a 300mA current for awhile, and when the battery reaches a reasonable voltage state, the charger speeds up the charge process by switching to full throttle. To counteract the increased heat caused by this fast-charging capability, the charger employs another BLUESHAPE technology, called CTP (Charger Thermal Protection), that allows the electronics to work out the best possible charge profiles without causing damage, even in adverse temperature conditions. - Key Features
-
- Charges up to eight batteries simultaneously
- Includes BSCVMon software utility for monitoring charging activity
- Two 4-pin XLR power ports
- Two LCDs display shows state of charge, charge time to full, status, and other info
- Metal wall mounting bracket included
- IPCS/CTP fast charge and overheat features
- Ventilation inlets and outlets
- LED status indicators
- On/off switch
- BSCVMon Monitoring Utility Features
- One Charger Monitor is available for each charger connected. It communicates continuously with the charger and shows info for all the channels as well as the AUX port. Regardless of whether the Charger Monitor is visible or hidden, data is always collected.
For every channel, several parameters are retrieved and shown (this information is provided for BLUESHAPE batteries and batteries compatible with the BLUESHAPE protocol; for other batteries, current, voltage, and approximated state of charge is provided):
- Charging status, including pause and errors
- Battery model
- Battery serial number
- Battery full capacity
- Actual state of charge
- Charge time to full
- Actual charging current
- Actual battery voltage
- Actual individual cell voltage
- Cell temperature
- Cycle counter (number of charge/discharge cycles already elapsed) In the Box BLUESHAPE 8-Ch Wall Mount Charger & Monitoring Utility for V-Mount Lithium-Ion USB to Data Socket Cable for Monitoring Utility Monitoring Software on Mini CD Mounting Bracket for CVS8XW Charger bzzyeauvvxvycufrvevaevszcrbutcwa AC Power Cord USB Data Cable Safety Operating Instructions 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE 8-Ch Wall Mount Charger & Monitoring Utility for V-Mount Lithium-Ion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-CVS8XW Specs | | | Battery Bays | 8 | | Supported Battery Types | V-mount lithium-ion | | Input | 100-240 V AC, 47-63 Hz | | Output | 8x 16.8 V DC, 4.8 A | | Auxiliary Port | 2x 4-pin XLR, female, DC 13.8 V, 110 W max | | Data Interface | Data socket for USB connection to a computer (using included USB to data-socket cable, part of the included BSCVMon Monitoring and Maintenance Utility) | | Charging Current | 4.8 A per channel when only four batteries are charging
3.0 A per channel when more than four batteries are charging | | Dimensions | 24.4 x 16.1 x 4.3" (62 x 41 x 11 cm) | | Weight | 21.4 lb (9.7 kg) | | | | System Requirements | Windows 8, 7, Vista, XP, 2000 / 32-bit and 64-bit
30 MB disk space
USB 1.0 port or greater | | | | Package Weight | 21.44 lb | | Box Dimensions (LxWxH) | 28.1 x 22.4 x 8.66" |
