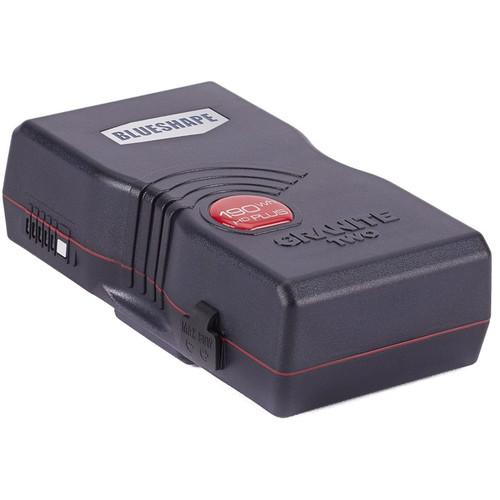

User Manual for BLUESHAPE BG190 GRANITE HDplus 193Wh Gold Mount Battery

Click to enlarge the picture
BLUESHAPE BG190 GRANITE HDplus 193Wh Gold Mount Battery Contents of the user manual for the BLUESHAPE BG190 GRANITE HDplus 193Wh Gold
  • Product category: On Camera Batteries BLUESHAPE
  • Brand: BLUESHAPE
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BLUESHAPE On Camera Batteries

User manual for the BLUESHAPE BG190 GRANITE HDplus 193Wh Gold contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BLUESHAPE product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!



Product description

BLUESHAPE's BG190 GRANITE HDplus battery is designed for the rigors of a film or video set. The textured finish is easy to grab and is resistant to blemishes from drops and impacts. Both the interior and exterior have been tested to survive multiple vertical drops from up to 6 feet onto hard surfaces. The reinforced Gold mount will accept a charge from most standard chargers, though a separately available BLUESHAPE Gold mount charger is recommended. Aside from being robust, the GRANITE HDplus batteries are also powerful. Power-hungry cameras and lights can draw up to 13.4 amps, between the main battery output and the two D-Taps on the sides. In addition to outputting 14.4 volts of power to charge external accessories, the left-side port supports independent overload protection, and the right-side D-Tap can also be used to charge the battery itself. The D-Tap ports output a combined maximum 5A of power. As an extra measure of protection, the D-Taps have rubber covers that help maintain the IP54 resistance rating against moisture and dust. While the 5-LED battery meter is useful and convenient, BLUESHAPE also offers a free iOS/Android app that can monitor and control various aspects of the battery over Wi-Fi. The app updates in real-time based on current capacity, charging speed, and power draw. On set, all batteries can be monitored on the same network, so you know when to grab a fresh battery ahead of time.

Features

    IP54 Protection
  • IP54 shockproof, moisture, and dust ingress-resistant construction for safe use, even in difficult environments.
    Lightweight
  • With a compact size and lightweight, the external dimensions of the battery have been optimized for maximum capacity in the space available.
    D-Tap Charging Ports
  • Dual D-Tap Outputs: The left-side port is overload-protected, the right-side port permits charging the battery. The D-Tap overload circuit runs independently from the main battery overload protection.
    5-Step LED
  • A 5-step LED indicator provides accurate remaining capacity monitoring. Each LED accounts for 20% of state-of-charge; when the capacity falls below 10%, the lower (first) LED blinks.
    No Memory Effect
  • The battery has no memory effect and can be recharged at any time.
    Standby Mode
  • The battery's energy is conserved during operation, stand-by, and low capacity states through an intelligent power mode management system. When the pack capacity is very low, it enters automatically into "shutdown mode" to minimize further capacity losses and prolong cell life. When the LED indicator is off, the pack can only be reactivated by charging.
    Service
  • Advanced interior design permits easy servicing and restoration by qualified BLUESHAPE service personnel.

GRANITE Link

    Wireless
  • GRANITE HDplus batteries are compatible with BLUESHAPE's GRANITE Link. A Wi-Fi communication feature allowing for remote, real-time status monitoring via an included iOS/Android mobile app. Using the GRANITE Link, you can check data such as State of Charge, Expected Time to Empty, Cell Temperature, Remaining Capacity, Full Charge Capacity, and Cycle Count. The state of charge and remaining runtime are updated in real time based on the actual load conditions.
    Practical Use Cases
  • An operator, camera assistant, or technical director can easily monitor the state of the batteries in close proximity without having to physically press the button to check on the actual battery. Multiple batteries can be monitored simultaneously from a single device. Additional features through the app allow you to Identify, Lock, Unlock, and Connect to a different network.
    Networking
  • Batteries can create their own Wi-Fi network for single battery monitoring, or can be connected to a master Wi-Fi network. A fleet of batteries can be easily monitored by multiple devices without complicated pairing procedures. Batteries can be given custom names for easy identification.

Construction

    Internal Modular Design
  • The lithium-ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic monitoring board are integrated with the cells making a single core. No otherwise vulnerable wiring is used. The metal cell-to-cell tabs have been thickened using a low-resistance alloy.
    Solid External Construction
  • Robust thick-walled housing made of special plastic resin for impact resistance. The battery can withstand several drops from altitudes of up to 6 feet without breaking or suffering internal damage.
In the Box BLUESHAPE BG190 GRANITE HDplus 193Wh Gold Mount Battery
  • Limited 18-Month Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BLUESHAPE BG190 GRANITE HDplus 193Wh Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BLUESHAPE GRANITE PLUS Specs

    Mount / Series Type Gold Mount
    Chemistry Lithium-Ion
    Capacity (Wh) 193 Wh
    Amp-Hours 13.4 Ah
    Output Voltage 14.4 VDC
    Accessory Port 2 x D-Tap
    Maximum Load (Accessory Port) 5 A ( D-Tap )
    Storage Temperature 32 to 68°F / 0 to 20°C
    Charging Temperature 32 to 113°F / 0 to 45°C
    IP Rating IP54
    Dimensions (W x H x D) 6.7 x 3.7 x 2.1" / 17.0 x 9.4 x 5.3 cm
    Weight 2.6 lb / 1.2 kg
    Package Weight 2.975 lb
    Box Dimensions (LxWxH) 8.9 x 5.5 x 2.4"
