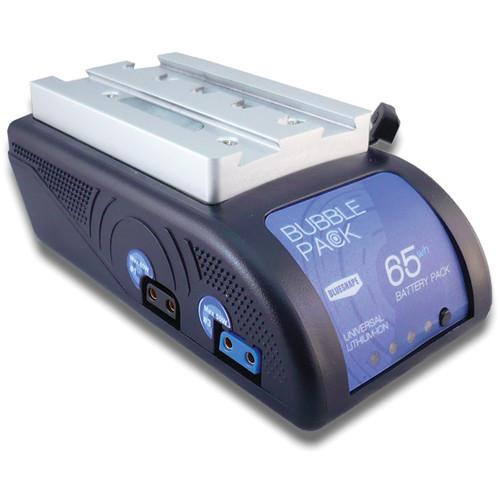

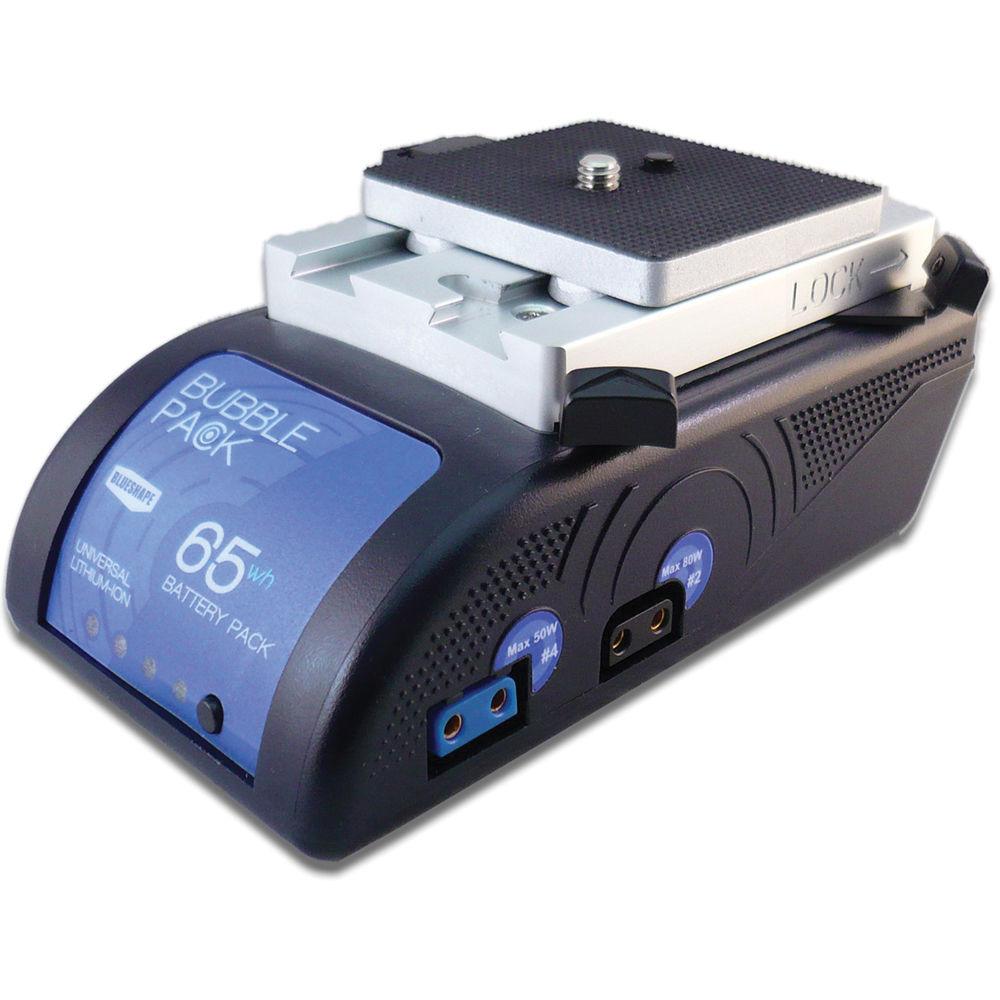

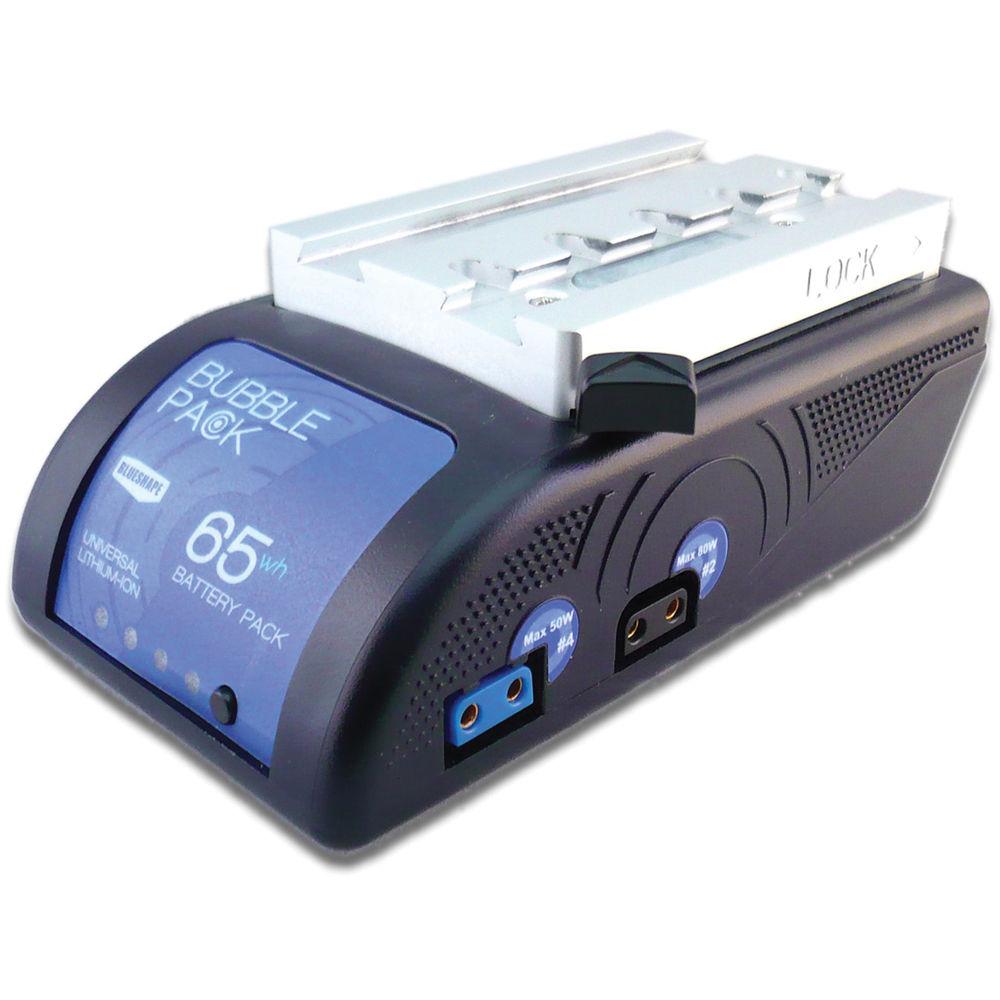

Product description The BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack provides several flexible rigging options for equipping your camera with a larger capacity power solution. It features a 65 Wh capacity and is intended for small to medium-sized productions. The rigging options revolve around a rail plate attached on top of the battery and a 1/4"-20 thread available on the bottom. A mini camera plate is included to be attached on the bottom of your camera, cage, or various rod clamps, and the BUBBLEPACK simply slides onto this plate via the rail plate. The 1/4"-20 thread on the bottom of the BUBBLEPACK allows you to mount the battery along with your camera or rig on a tripod, securely with up to 7 lb of load. A quick release handle on the side of the rail plate lets you slide the BUBBLEPACK off.
The BUBBLEPACK features two standard 14.8V nominal P-Tap outputs and two proprietary B-Tap outputs offering user selectable voltages of 8.4V and 11.1V output. Depending on your camera's voltage, you can use either the standard or proprietary connectors using an appropriate cable. One B-Tap to raw port cable is included and can be configured with the connector of your choice. The unused connectors can be used to power accessories at the same time as the camera. The BUBBLEPACK can be charged in approximately two hours using an optional P-Tap to 3-prong BLUESHAPE Charger for BUBBLEPACK. The BUBBLEPACK features a 4 LED gauge that displays remaining battery life.
An optional BLUESHAPE V-Bracket Adapter or Belt-Mount Adapter can also be used for attaching the BUBBLEPACK to a V-mount plate or wearing it around your waist. A large selection of BLUESHAPE P-Tap adapter cables is also optionally available for connecting the BUBBLEPACK to your camera. - Key Features
-
- Quick release mounting via quick release rail plate and mini camera plate
- Can be attached to cameras, rigs, rod clamps, and other accessories
- Can be securely mounted on a tripod along with a camera/rig via a 1/4"-20 thread on the bottom
- Two standard P-Tap outputs, 14.8V nominal
- Two proprietary B-Tap outputs, user selectable between 8.4 V and 11.1 V
- Connect to the camera via the output that matches the camera's voltage
- Use the remaining outputs to power accessories
- 4 LED gauge displays remaining power
- Includes a P-Tap to bare end cable
- Supports optional BLUESHAPE V-Bracket and Belt-Mount Adapters
In the Box BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack Rail Plate Mini Camera Plate Proprietary B-Tap Connector to Raw Port 11.1V for BUBBLEPACK tbvqfbbrerudzfdaezcsruabwdcyxutu Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS--BPSA Specs | Mount / Series Type | Powerbase | | Chemistry | Lithium-Ion | | Capacity (Wh) | 65 Wh | | Accessory Port | 2 x D-Tap
2 x B-Tap | | Accessory Mounting Thread | 1 x 1/4"-20 Female | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.9 x 5.6 x 2.8" |
