User Manual for BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack with Charger Click to enlarge the picture
Contents of the user manual for the BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery
- Product category: On Camera Batteries BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE On Camera Batteries
 |
User manual for the BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

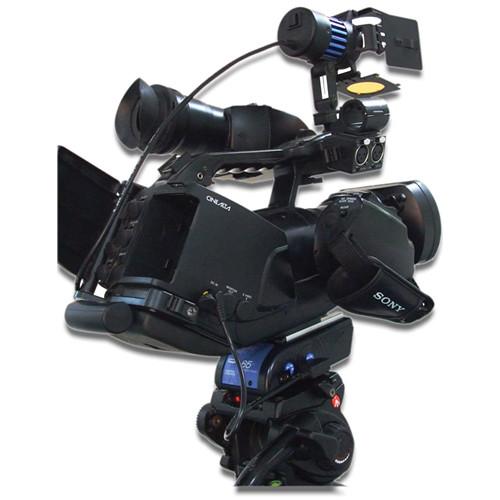

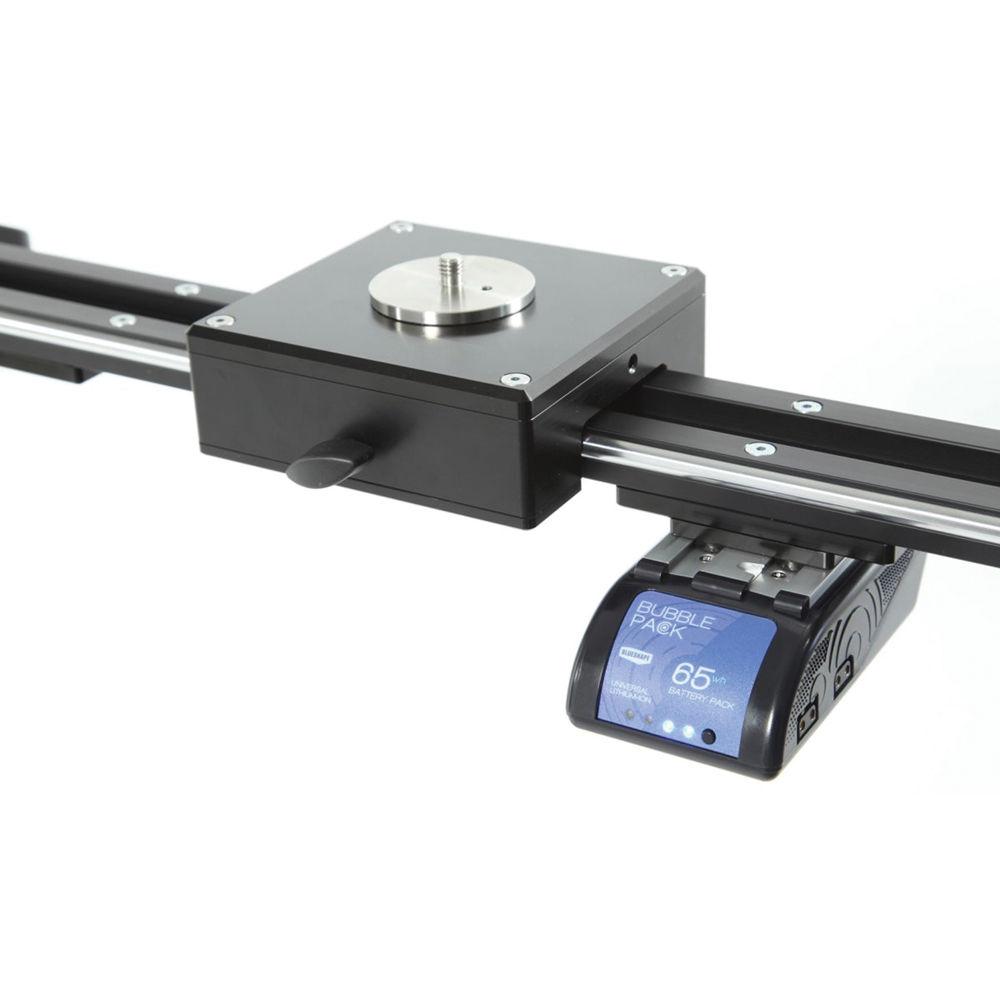

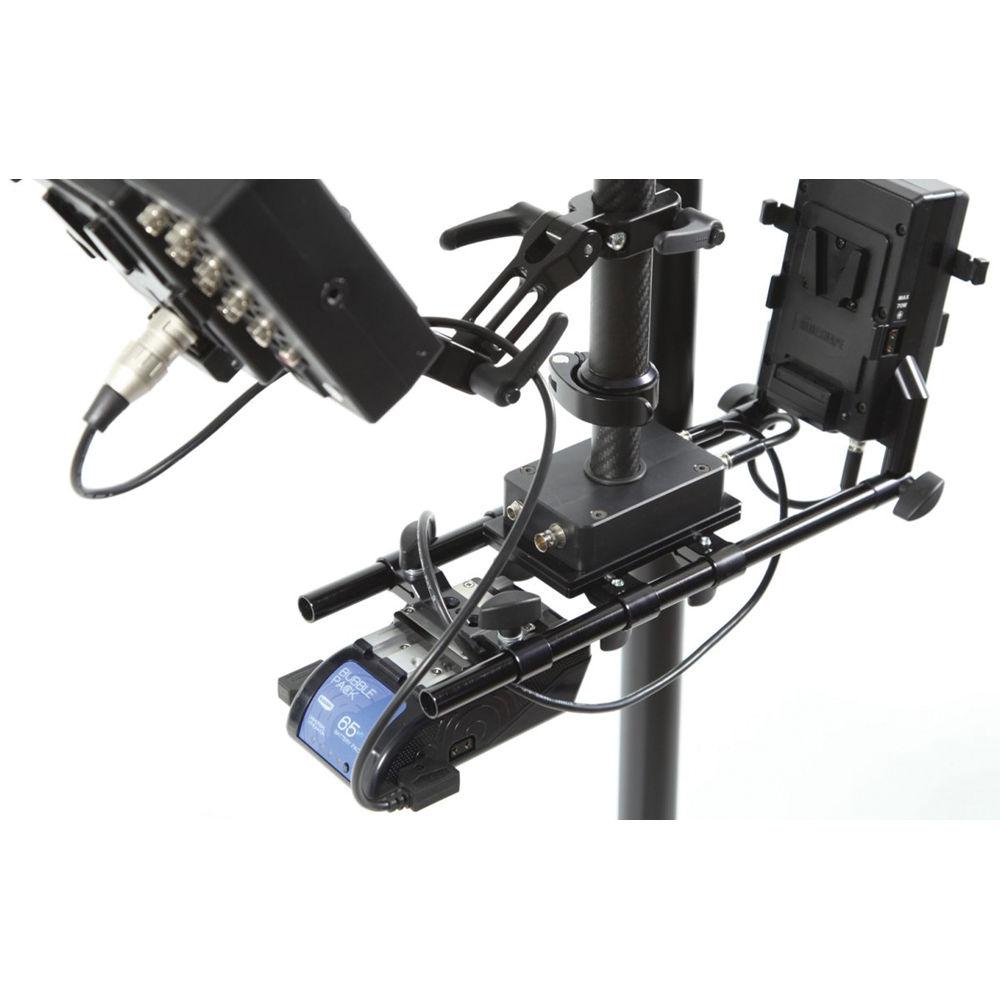

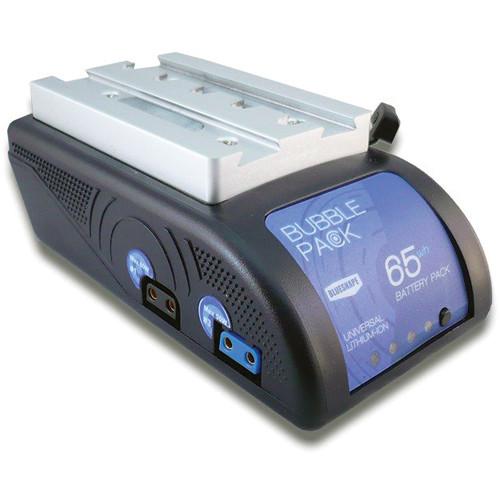

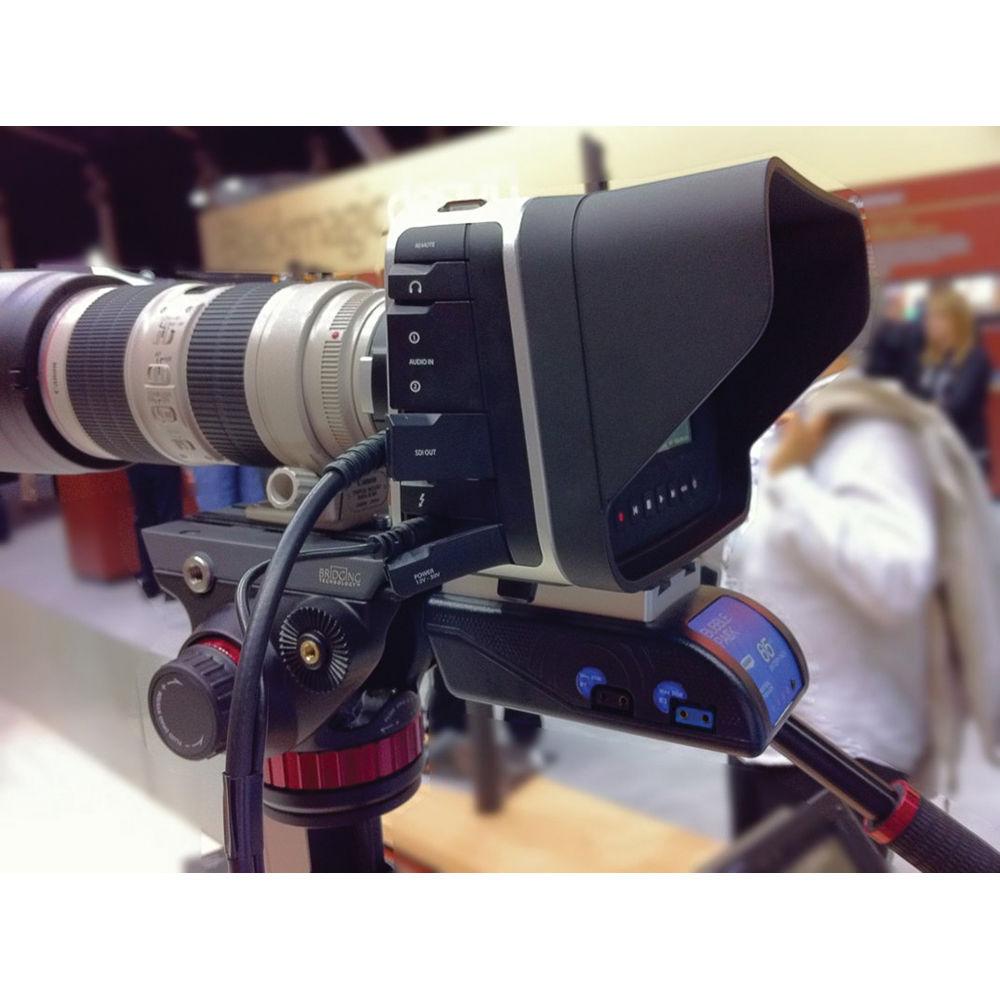

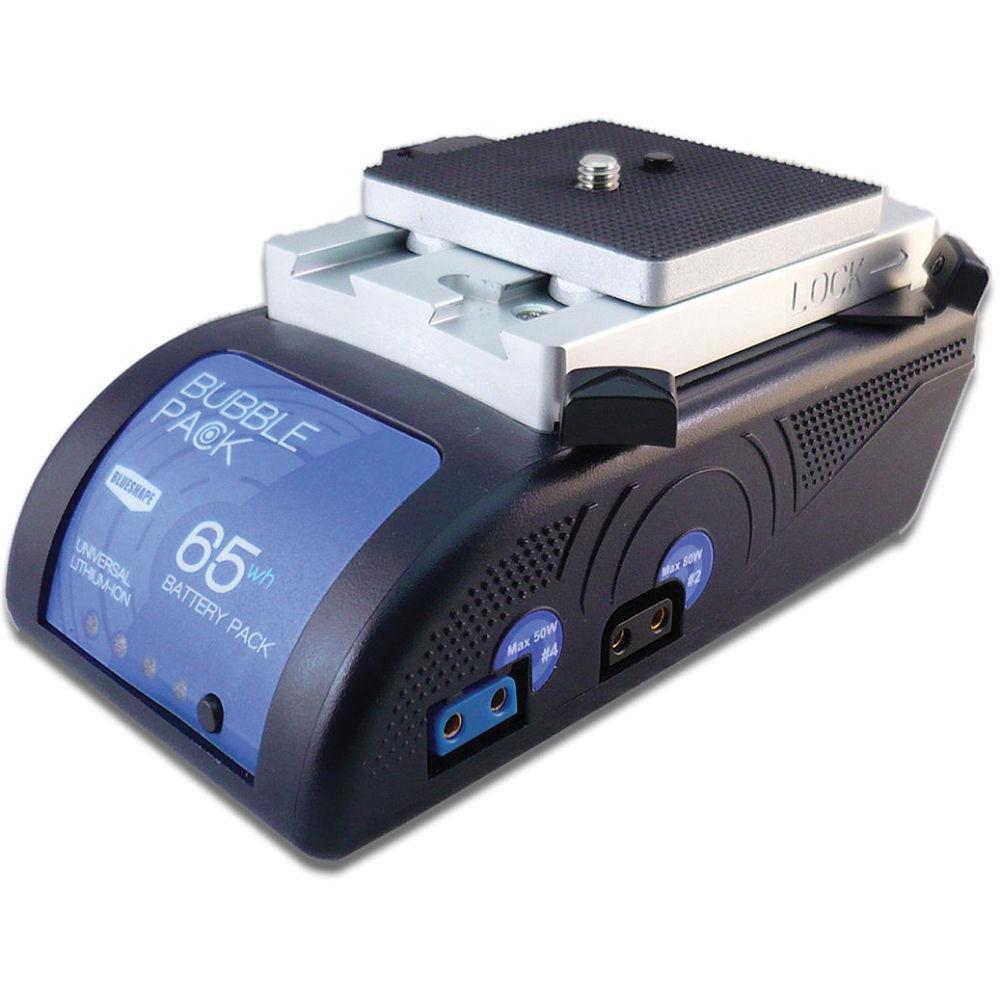

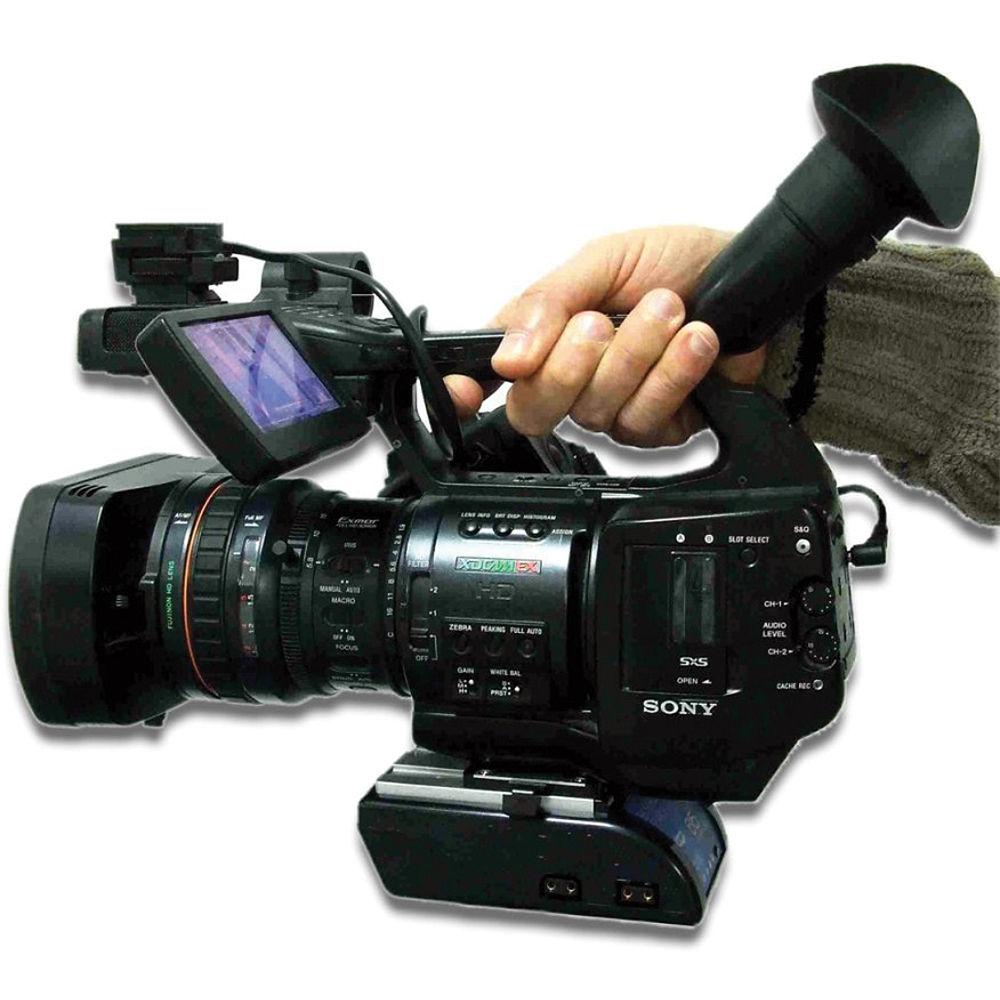

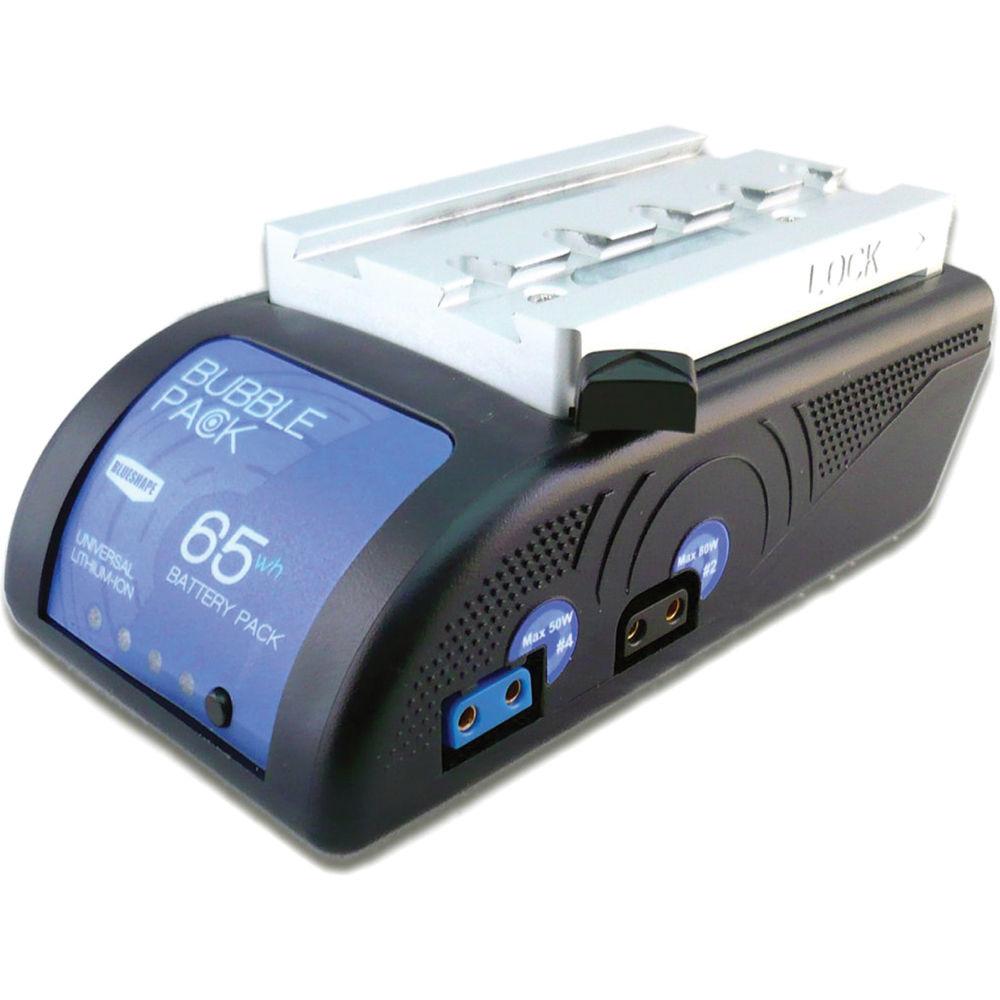

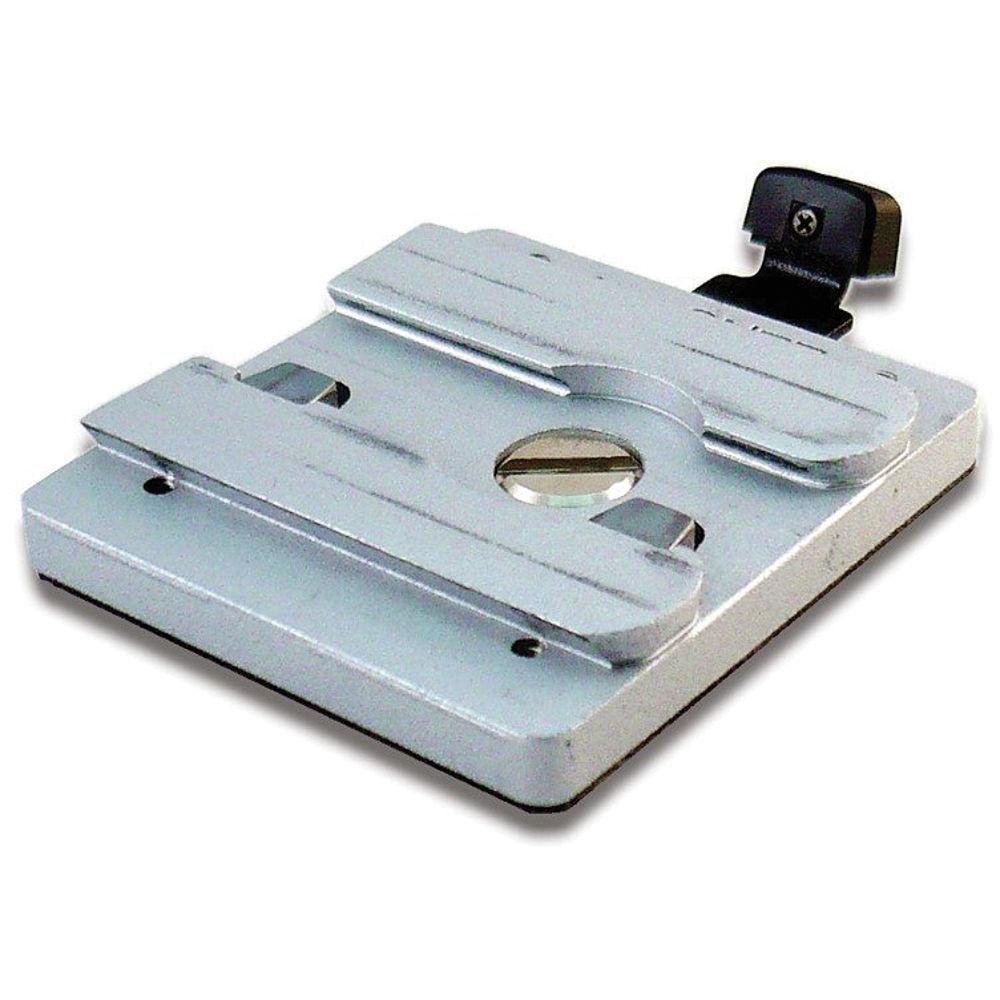

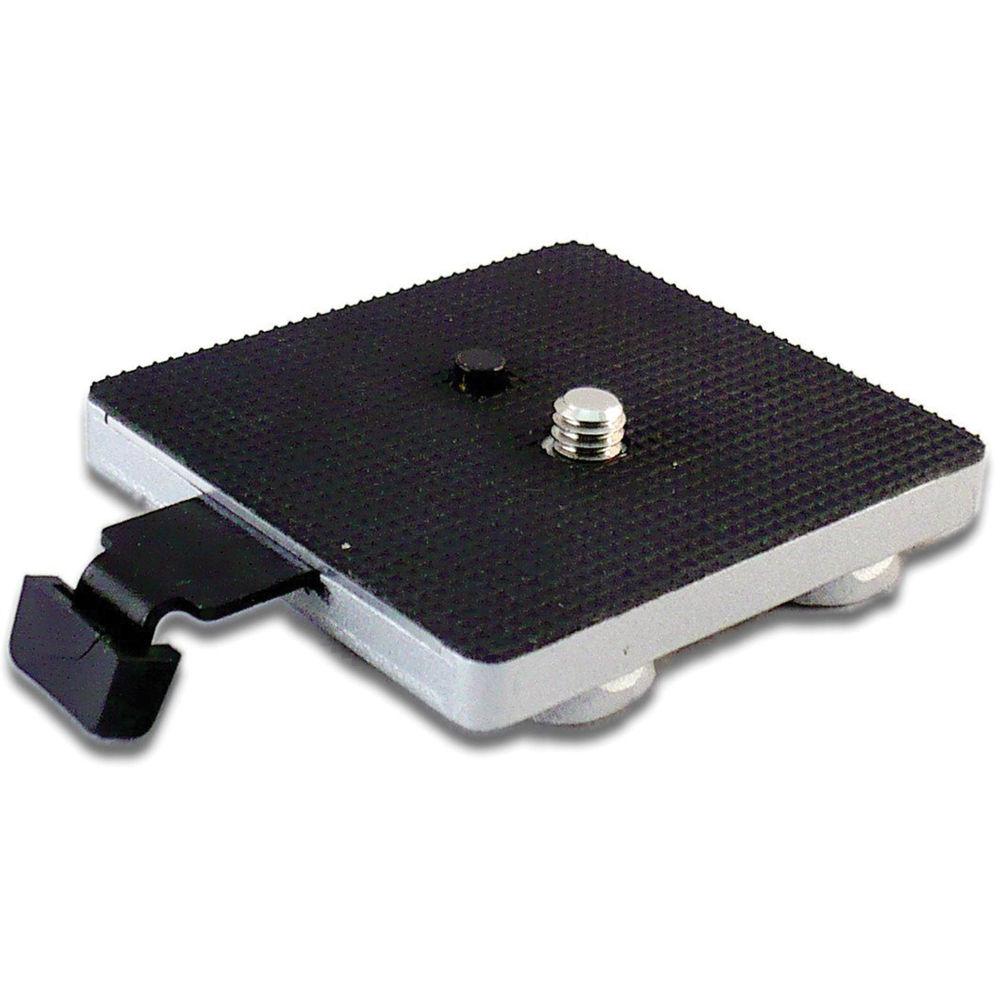

Product description The BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack with Charger provides several flexible rigging options for equipping your camera with a larger capacity power solution. It features a 65 Wh capacity and is intended for small to medium-sized productions. The rigging options revolve around a rail plate attached on top of the battery and a 1/4"-20 thread available on the bottom. A mini camera plate is included to be attached on the bottom of your camera, cage, or various rod clamps, and the BUBBLEPACK simply slides onto this plate via the rail plate. The 1/4"-20 thread on the bottom of the BUBBLEPACK allows you to mount the battery along with your camera or rig on a tripod, securely with up to 7 lb of load. A quick release handle on the side of the rail plate lets you slide the BUBBLEPACK off.
The BUBBLEPACK features two standard 14.8V nominal P-Tap outputs and two proprietary B-Tap outputs offering user selectable voltages of 8.4V and 11.1V output. Depending on your camera's voltage, you can use either the standard or proprietary connectors using an appropriate cable. One B-Tap to raw port cable is included and can be configured with the connector of your choice. The unused connectors can be used to power accessories at the same time as the camera. A compact wall charger is included and provides a full charge in approximately two hours. The BUBBLEPACK features a 4 LED gauge that displays remaining battery life.
An optional BLUESHAPE V-Bracket Adapter or Belt-Mount Adapter can also be used for attaching the BUBBLEPACK to a V-mount plate or wearing it around your waist. A large selection of BLUESHAPE P-Tap adapter cables is also optionally available for connecting the BUBBLEPACK to your camera. - BUBBLEPACK 65 Wh Lithium-Ion Battery Pack The BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack provides several flexible rigging options for equipping your camera with a larger capacity power solution. It features a 65 Wh capacity and is intended for small to medium-sized productions. The rigging options revolve around a rail plate attached on top of the battery and a 1/4"-20 thread available on the bottom. A mini camera plate is included to be attached on the bottom of your camera, cage, or various rod clamps, and the BUBBLEPACK simply slides onto this plate via the rail plate. The 1/4"-20 thread on the bottom of the BUBBLEPACK allows you to mount the battery along with your camera or rig on a tripod, securely with up to 7 lb of load. A quick release handle on the side of the rail plate lets you slide the BUBBLEPACK off.
The BUBBLEPACK features two standard 14.8V nominal P-Tap outputs and two proprietary B-Tap outputs offering user selectable voltages of 8.4V and 11.1V output. Depending on your camera's voltage, you can use either the standard or proprietary connectors using an appropriate cable. One B-Tap to raw port cable is included and can be configured with the connector of your choice. The unused connectors can be used to power accessories at the same time as the camera. The BUBBLEPACK can be charged in approximately two hours using an optional P-Tap to 3-prong BLUESHAPE Charger for BUBBLEPACK. The BUBBLEPACK features a 4 LED gauge that displays remaining battery life.
An optional BLUESHAPE V-Bracket Adapter or Belt-Mount Adapter can also be used for attaching the BUBBLEPACK to a V-mount plate or wearing it around your waist. A large selection of BLUESHAPE P-Tap adapter cables is also optionally available for connecting the BUBBLEPACK to your camera. - Key Features
-
- Quick release mounting via quick release rail plate and mini camera plate
- Can be attached to cameras, rigs, rod clamps, and other accessories
- Can be securely mounted on a tripod along with a camera/rig via a 1/4"-20 thread on the bottom
- Two standard P-Tap outputs, 14.8V nominal
- Two proprietary B-Tap outputs, user selectable between 8.4 V and 11.1 V
- Connect to the camera via the output that matches the camera's voltage
- Use the remaining outputs to power accessories
- 4 LED gauge displays remaining power
- Includes a P-Tap to bare end cable
- Supports optional BLUESHAPE V-Bracket and Belt-Mount Adapters
- Charger for BUBBLEPACK Battery Pack The BLUESHAPE Charger for the BUBBLEPACK Battery features a P-Tap connector on an integrated cable, and includes a 3-prong US wall cord that connects into the other end. It delivers a full charge in approximately two hours.
- Proprietary B-Tap Connector to Raw Port 11.1V for BUBBLEPACK Featuring a proprietary B-Tap connector, the BLUESHAPE B-Tap to Raw Port 11.1V Cable is designed to let you power different cameras with the BLUESHAPE BUBBLEPACK battery, sold separately. The bare end can be outfitted with the connector of your choice while the B-Tap end is user-selectable between 8.4V and 11.1V via a control on the BUBBLEPACK. The cable runs approximately 24". Note: The B-Tap connector is a proprietary BLUESHAPE connector that can be switched between 8.4V and 11.1V via the BLUESHAPE BUBBLEPACK. The voltage level should be set to match the camera's voltage or an overload could potentially be delivered to the camera. If the B-Tap connector is modified for use with a battery other than the BUBBLEPACK, it will deliver 14.8V and can cause an issue.
In the Box Bundle Items BUBBLEPACK 65 Wh Lithium-Ion Battery Pack rxvcrwruruxvacbbrtaybutrsswdrzxxx - Proprietary B-Tap Connector to Raw Port 11.1V for BUBBLEPACK
- Limited 18-Month Warranty
Charger for BUBBLEPACK Battery Pack - Limited 18-Month Warranty
Proprietary B-Tap Connector to Raw Port 11.1V for BUBBLEPACK - 18-Month Limited Warranty
User Manual PDF 420.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE BUBBLEPACK 65 Wh Lithium-Ion Battery Pack with Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BUBBLEPACK 65 Wh Lithium-Ion Battery Pack
| Mount / Series Type | Powerbase | | Chemistry | Lithium-Ion | | Capacity (Wh) | 65 Wh | | Accessory Port | 2 x D-Tap
2 x B-Tap | | Accessory Mounting Thread | 1 x 1/4"-20 Female | | | | Box Dimensions (LxWxH) | 8.9 x 5.6 x 2.8" | - Charger for BUBBLEPACK Battery Pack
| Connections | P-Tap male on integrated cable
3-prong US wall cord included | | Input | 100 - 240 VAC, 50/60 Hz | | Output | 16.8 VDC, 3A | | Dimensions | 5 x 2 x 1" (13 x 5 x 2.5 cm) | | | | Box Dimensions (LxWxH) | 5.2 x 3.1 x 1.2" | - Proprietary B-Tap Connector to Raw Port 11.1V for BUBBLEPACK
| Connector 1 | Proprietary B-Tap connector, user-selectable between 8.4 V and 11.1 V via a control on the BUBBLEPACK | | Connector 2 | Raw port | | Length | Approx. 24" (71 cm) |
