User Manual for BLUESHAPE BX4 UN Certified Battery Flight Case for Four V-Mount Li-Ion Batteries Click to enlarge the picture
Contents of the user manual for the BLUESHAPE BX4 UN Certified Battery Flight
- Product category: Other Battery Accessories BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Other Battery Accessories
 |
User manual for the BLUESHAPE BX4 UN Certified Battery Flight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

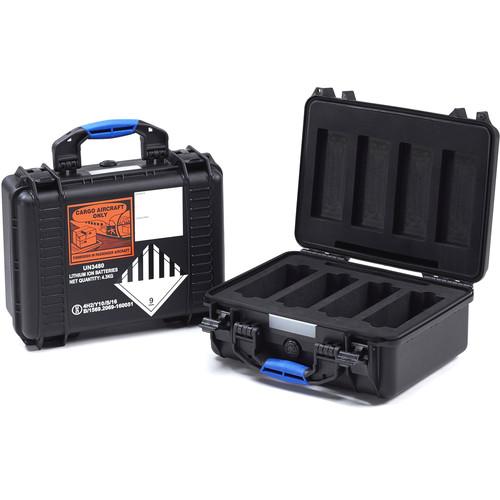

Product description The BLUESHAPE BX4 UN Certified Battery Flight Case can be used to ship up to four units of the following V-Mount battery series: BV225, BV190HD, BV270HD, BV190HD, BV190HD, BV270HD SPLASH, GRANITE, or GRANITE Two. The case walls are thinner and more elastic, making them shockproof and impact-resistant. It is also chemical-resistant (including acids), scratchproof, and is IP67-rated for use in extreme weather and temperature conditions. In addition, the case is tested to withstand temperatures ranging from -40 to 176°F.

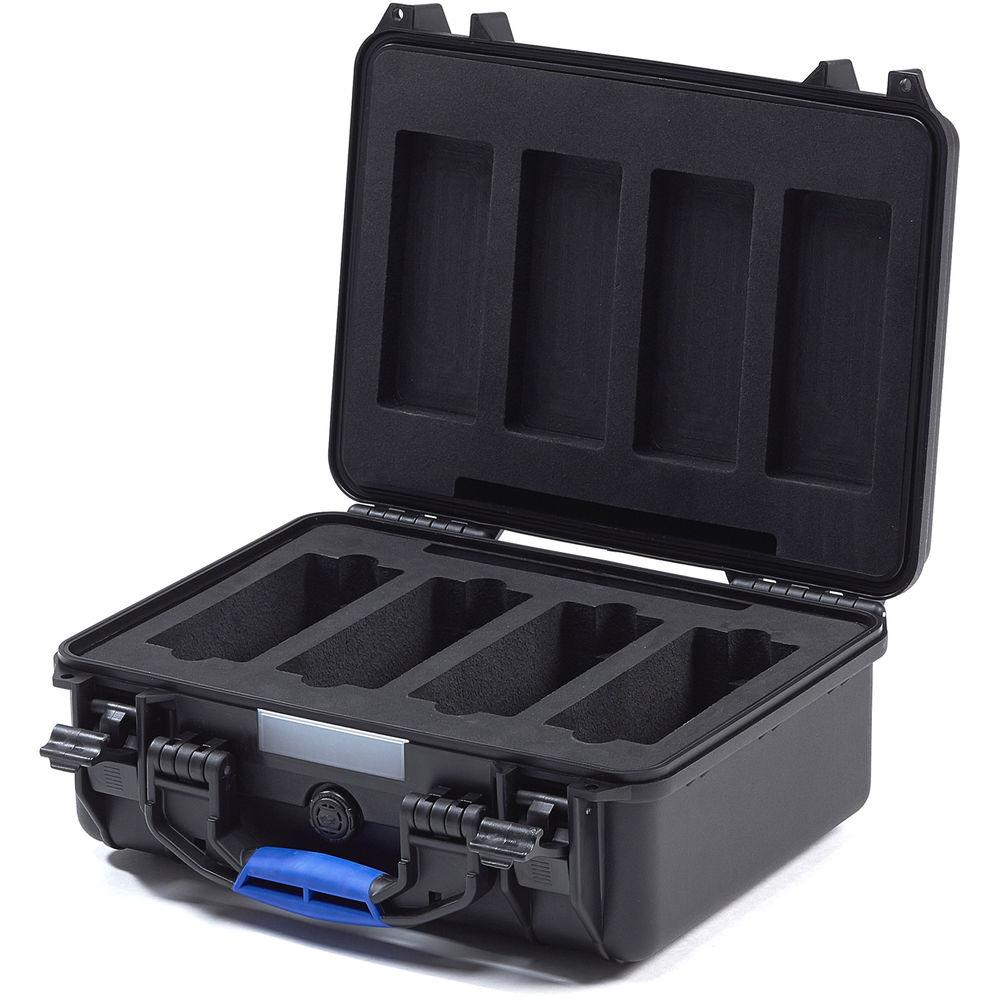

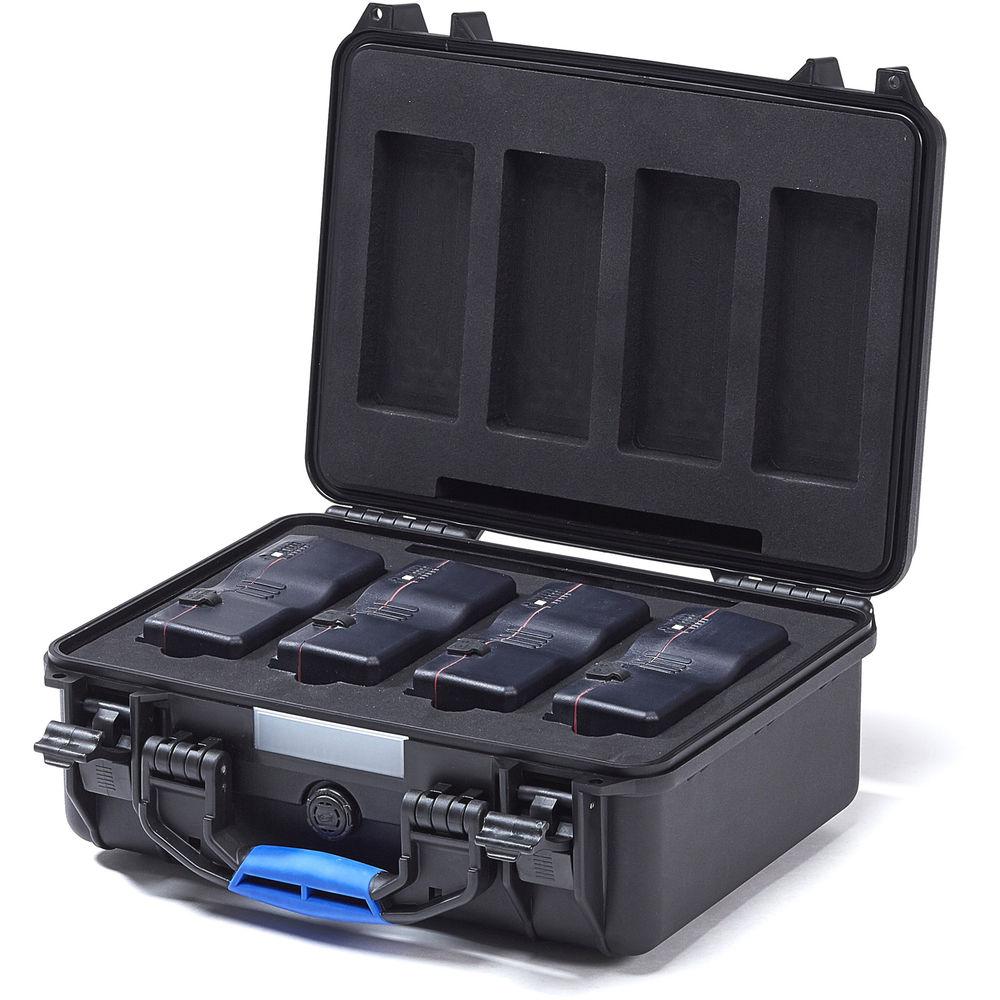

The foam used internally is made of special fire-retardant material and shaped to accommodate four batteries. The batteries fit tightly and securely inside, with sufficient soft cushioning to enable quick insertion and removal without risk of scratching the batteries. A document insert is also provided for added convenience. The case meets IATA PI965 1A packing standards for shipping UN3480 batteries over 100Wh.
The purge valve fitted in this case is an auto-press release valve located underneath the case handle that adjusts to changing temperatures automatically. Made from Hydrophobic Acrylic ePTPE, it permits optimum air exchanges while retaining the IP67 rating. Moreover, by design, the valve cannot unscrew itself and get lost.

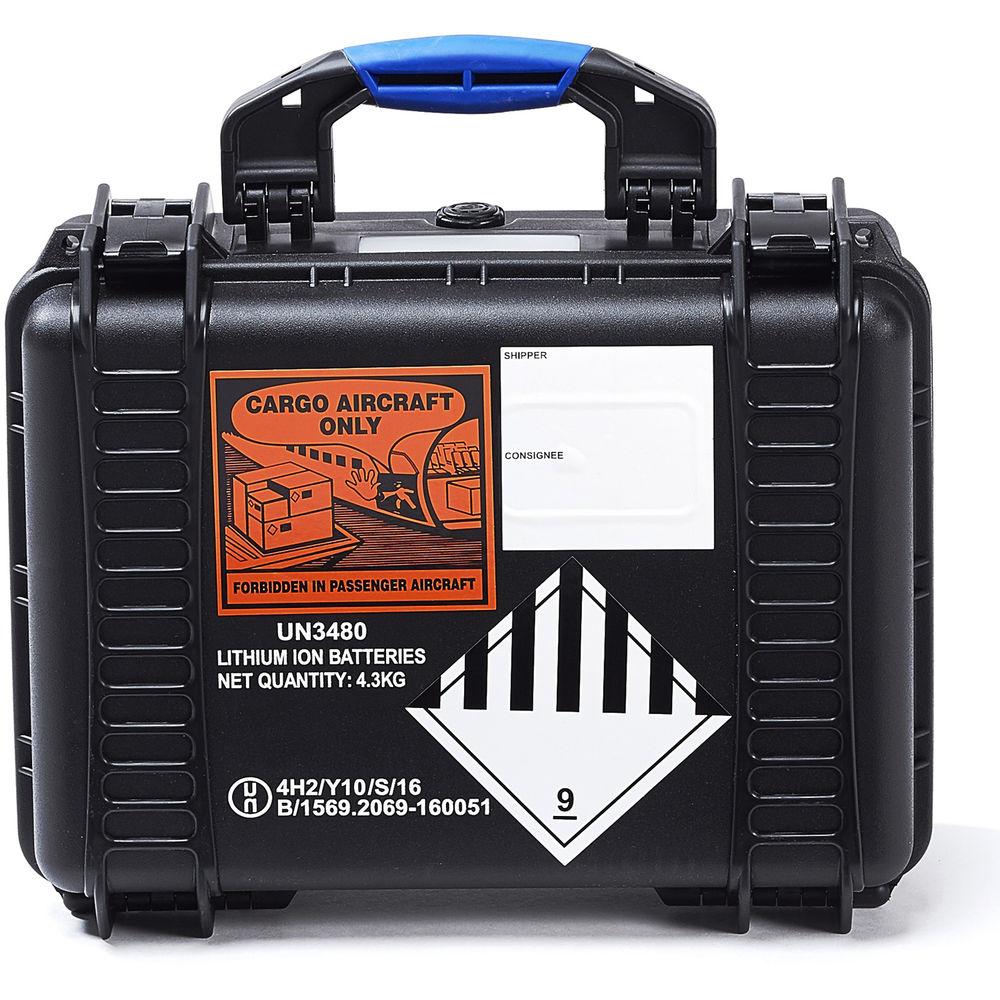

The BX4 case is equipped with a watertight two-step latch and O-ring system to protect the batteries in extreme weather conditions. Changes in atmospheric pressure during travel will create a vacuum tight seal between the lid and the body of the case. The purge valve automatically adjusts or releases pressure according to the environmental conditions. In addition, the case features two latches. In the Box BLUESHAPE BX4 UN Certified Battery Flight Case for Four V-Mount Li-Ion Batteries 5 x CAO Sticker (Cargo Aircraft Only) 5 x Class 9 Sticker 5 x Shipper/Consignee Sticker Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE BX4 UN Certified Battery Flight Case for Four V-Mount Li-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-NCABX4 Specs | Compartments | 4 | | Battery Weight | Up to 9.5 lb (4.3 kg) for each battery | | Compatibility | BLUESHAPE 'Granite' series batteries ≥180 Wh | | Foam | PE-X-40 kg/m3 | | Compliance | UN Regulations: Part 6
IMDG: Part 6
ICAO: Part 6
ADR, RID: Part 6 | | Size | Compartment Size: 6.7 x 3.7 x 2.0" (170 x 95 x 52 mm) | | Dimensions | External: 15.9 x 12.5 x 6.7" (406 x 318 x 170 mm)
Internal: 14.9 x 10.4 x 5.5" (379 x 263 x 139 mm) | | Weight | Empty: 4.8 lb (2.2 kg)
Full: 22 lb (10 kg) | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 16.3 x 13.6 x 7.1" |
