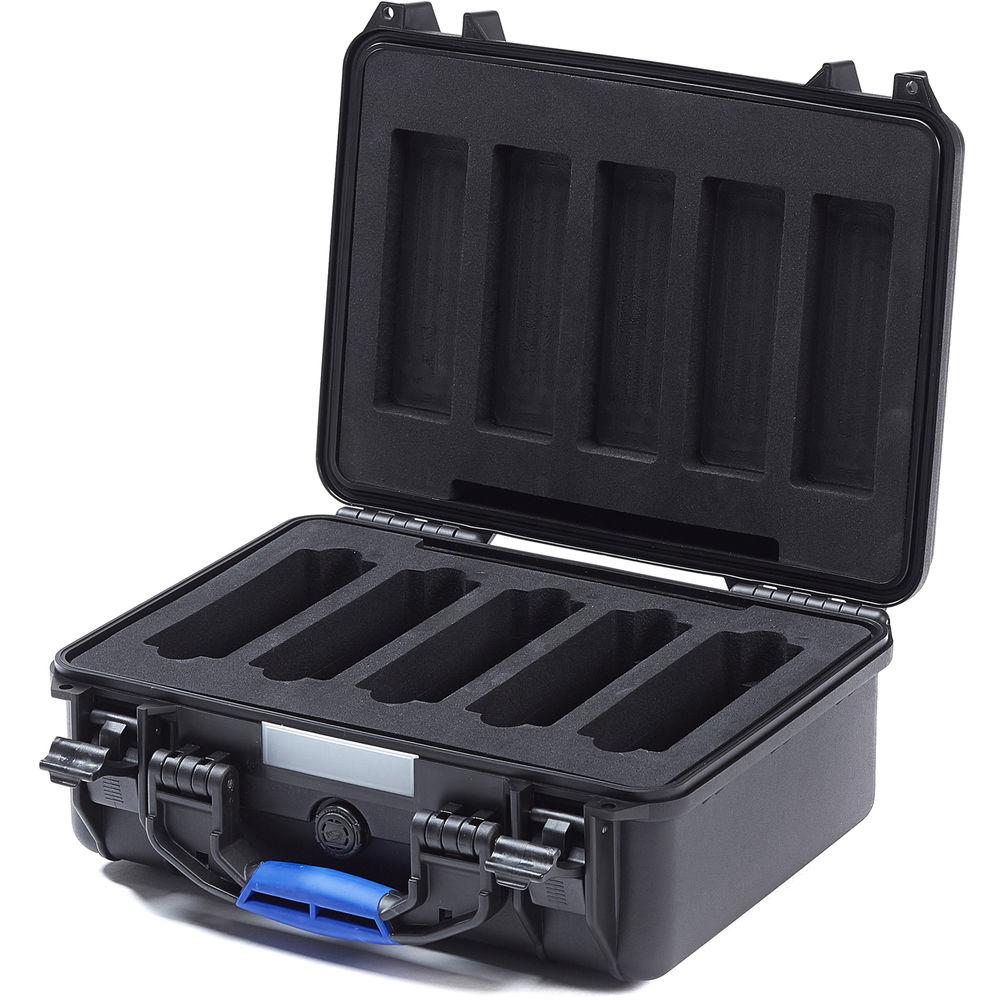

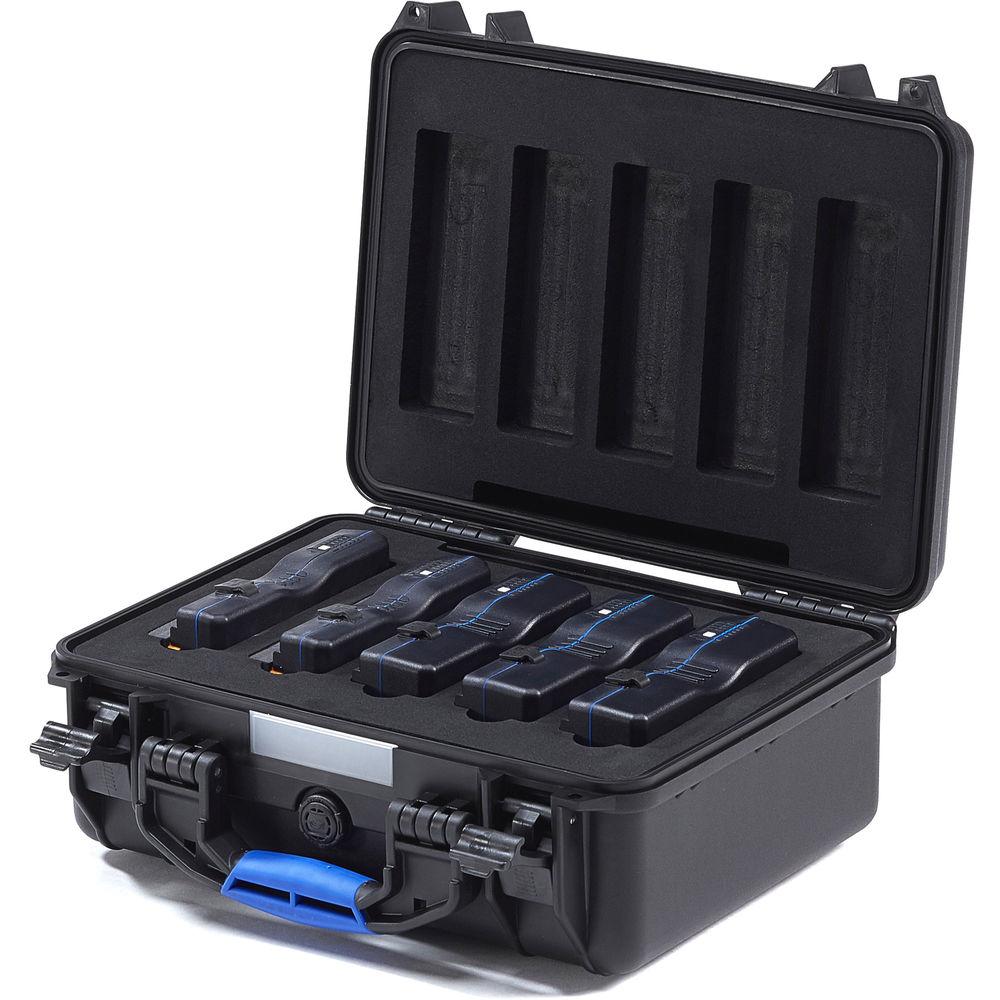

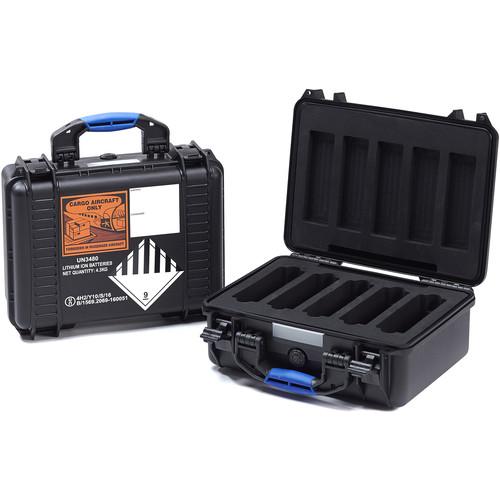

Product description The BLUESHAPE BX5 UN Certified Battery Flight Case can be used to ship up to five units of the following V-Mount battery series: BV090, BV100HD, BV100HD SPLASH, BV150, BV190HD, BV180, GRANITE, or GRANITE Two. The case walls are thinner and more elastic, making them shockproof and impact-resistant. It is also chemical-resistant (including acids), scratchproof, and is IP67-rated for use in extreme weather and temperature conditions. The case is tested to withstand temperatures ranging from -40 to 176°F, and comes with additional sheet foam for buffering when inserting the slimmer BV090 batteries.The foam used internally is made of special fire-retardant material and shaped to accommodate five batteries. The batteries fit tightly and securely inside, with sufficient soft cushioning to enable quick insertion and removal without risk of scratching the batteries. A document insert is also provided for added convenience. The case meets IATA PI965 1A packing standards for shipping UN3480 batteries over 100Wh, and PI965 1B packing standards for shipping UN3480 batteries smaller than 100Wh.
The purge valve fitted in this case is an auto-press release valve located underneath the case handle that adjusts to changing temperatures automatically. Made from Hydrophobic Acrylic ePTPE, it permits optimum air exchanges while retaining the IP67 rating. Moreover, by design, the valve cannot unscrew itself and get lost.

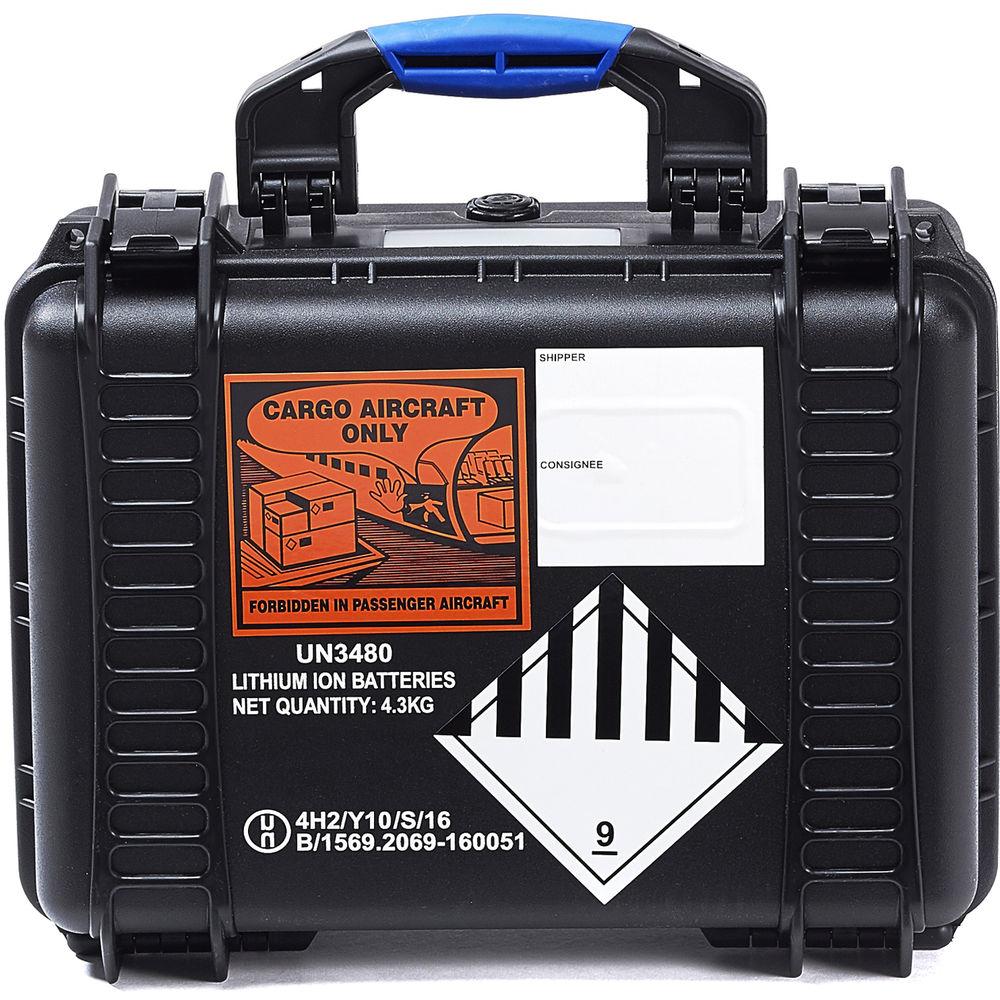

The BX5 case is equipped with a watertight two-step latch and O-ring system to protect the batteries in extreme weather conditions. Changes in atmospheric pressure during travel will create a vacuum tight seal between the lid and the body of the case. The purge valve automatically adjusts or releases pressure according to the environmental conditions. In addition, the case features two latches. In the Box BLUESHAPE BX5 UN Certified Battery Flight Case for Five V-Mount Li-Ion Batteries 5 x Additional Sheet Foam 5 x CAO Sticker (Cargo Aircraft Only) 5 x Class 9 Sticker 5 x Shipper/Consignee Sticker Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE BX5 UN Certified Battery Flight Case for Five V-Mount Li-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-NCABX5 Specs | Compartments | 5 | | Battery Weight | Up to 9.5 lb (4.3 kg) for each battery | | Compatibility | BLUESHAPE 'Granite' series batteries ≥180 Wh | | Foam | PE-X-40 kg/m3 | | Compliance | UN Regulations: Part 6
IMDG: Part 6
ICAO: Part 6
ADR, RID: Part 6 | | Size | Compartment Size: 6.7 x 3.7 x 2.0" (170 x 95 x 52 mm) | | Dimensions | External: 15.9 x 12.5 x 6.7" (40.6 x 31.8 x 17.0 cm)
Internal: 14.9 x 10.4 x 5.5" (37.9 x 26.3 x 13.9 cm) | | Weight | Empty: 4.8 lb (2.2 kg)
Full: 22 lb (10 kg) |
