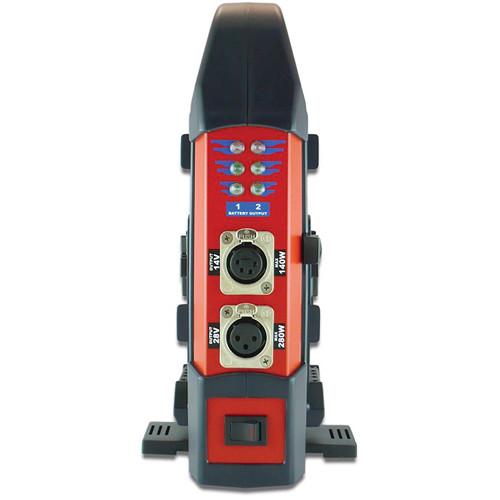

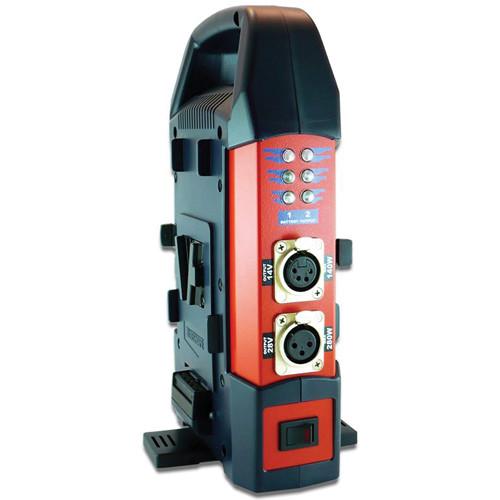

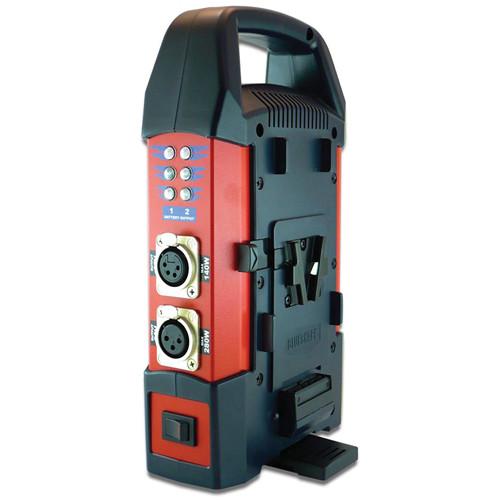

Product description The BLUESHAPE Dual V-Mount Battery Power Station allows you to power cameras, lights, and other devices in a portable solution. It's hot-swappable and offers simultaneous 3-pin and 4-pin locking XLR outputs. (It is designed to be used as a power station only and does not function as a charger.)

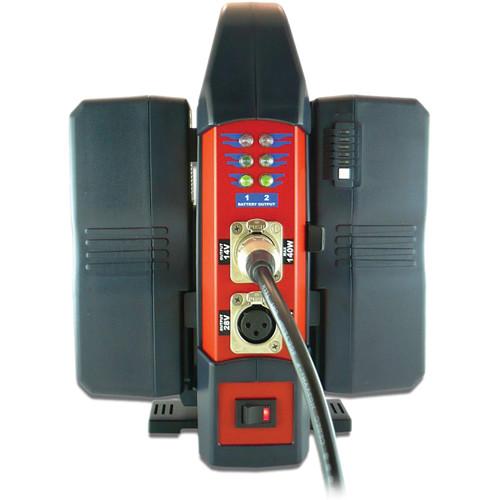

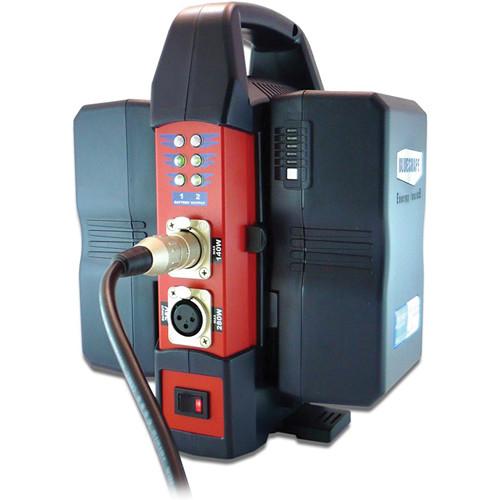

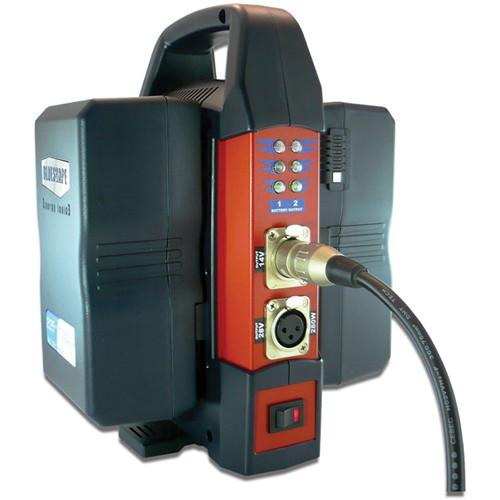

The outputs operate in parallel and share the combined battery input. With two high drain batteries installed (9A and higher), the 3-pin XLR provides a regulated 28V output at up to 280W, and the 4-pin provides regulated 14V at up to 140W. With two standard discharge batteries installed (less than 9A), the 3-pin XLR provides a regulated 28V output at up to 240W, and the 4-pin provides regulated 14V at up to 140W.

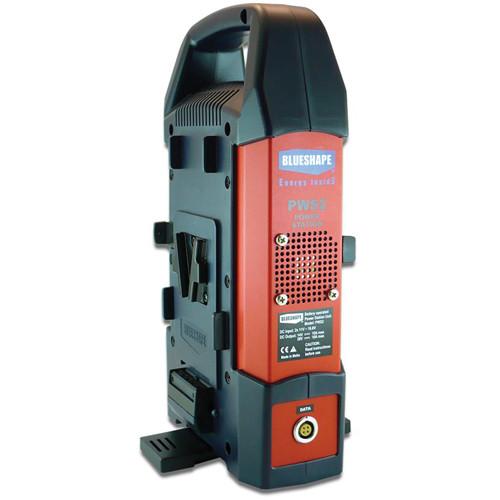

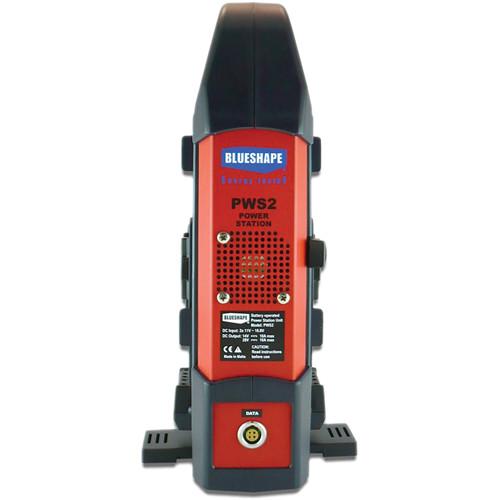

A fan vent on the side allows the system to remain cool even after hours of operation. A 3-LED gauge for each battery is positioned on the side and indicates a 0-10A scale for the battery. The power station can conveniently be carried via a handle on top, and rested on a desktop by means of a rotating foot on the bottom. The foot neatly tucks underneath when not needed. Note: This Power Station is designed to provide power to cameras, lights, and other devices and does not function as a charger. - Key Features
-
- Supports two hot-swappable batteries and offers two simultaneous XLR outputs
- 3-pin XLR output provides a regulated 28V output at up to 280W
- 4-pin XLR output provides a regulated 14V output at up to 140W
- A fan vent keeps the system cool even after hours of operation
- 3-LED gauge for each battery indicates a 0-10A scale
- A rotating foot allows stable desktop positioning and tucks away when not needed
- A handle on top allows convenient carrying
- Additional Features
-
- Illuminated ON/OFF power switch
- 4-pin data socket for computer testing, debugging, and calibration
- Lower gauge LED blinks when current up to 1.5A is being drawn and becomes steady from 1.5A - 3A
- Middle LED blinks from 3A - 4.5A and is steady from 4.5A - 6A
- Upper LED blinks from 6A - 8A and is steady from 8A - 10A
In the Box BLUESHAPE Dual V-Mount Battery Power Station 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE Dual V-Mount Battery Power Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE PWS2 Specs | Battery Mount | 2x V-Mount | | Power Output | 1x 3-pin XLR female, locking - regulated 28 V output, up to 280 W
1x 4-pin XLR female, locking - regulated 14 V output, up to 140 W | | Additional Connections | 4-pin socket for computer testing, debugging, calibration | | LED Diagnostics | 3-LED gauge for each battery | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 12.8 x 7.7 x 3.7" |
