Product description

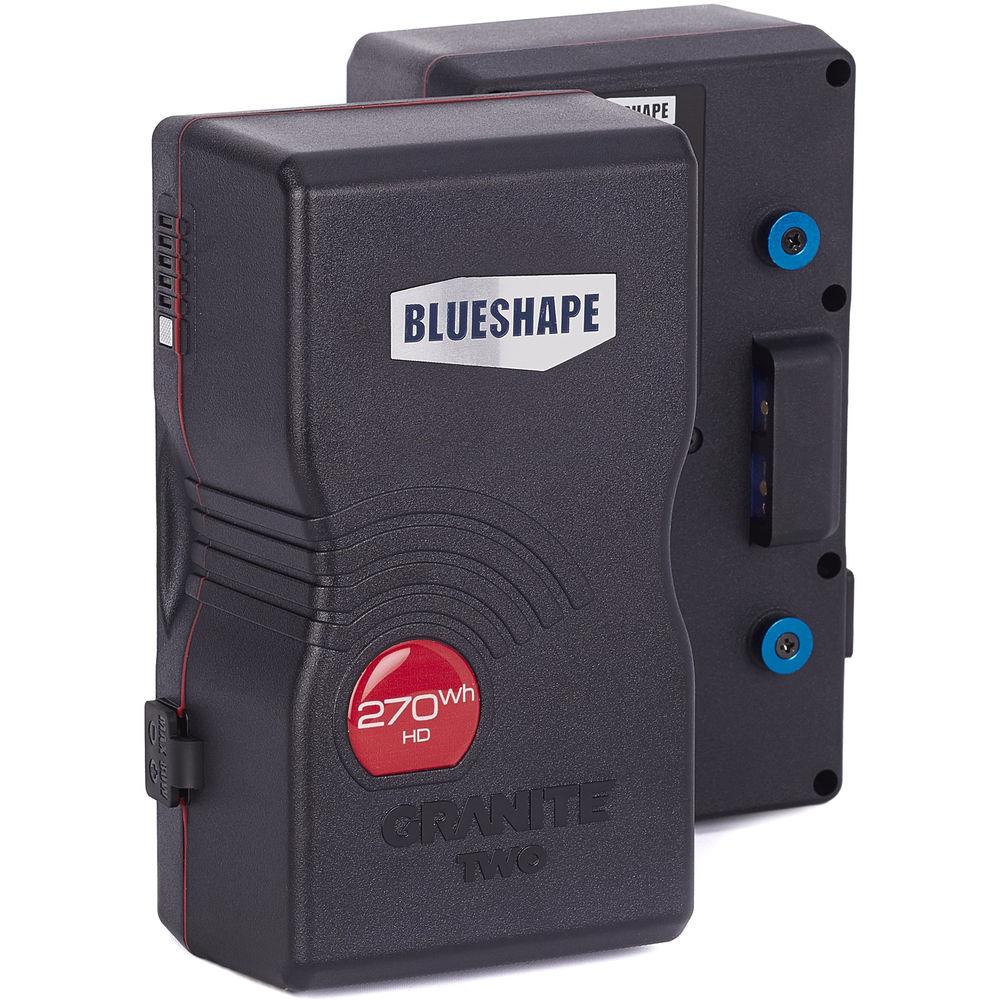

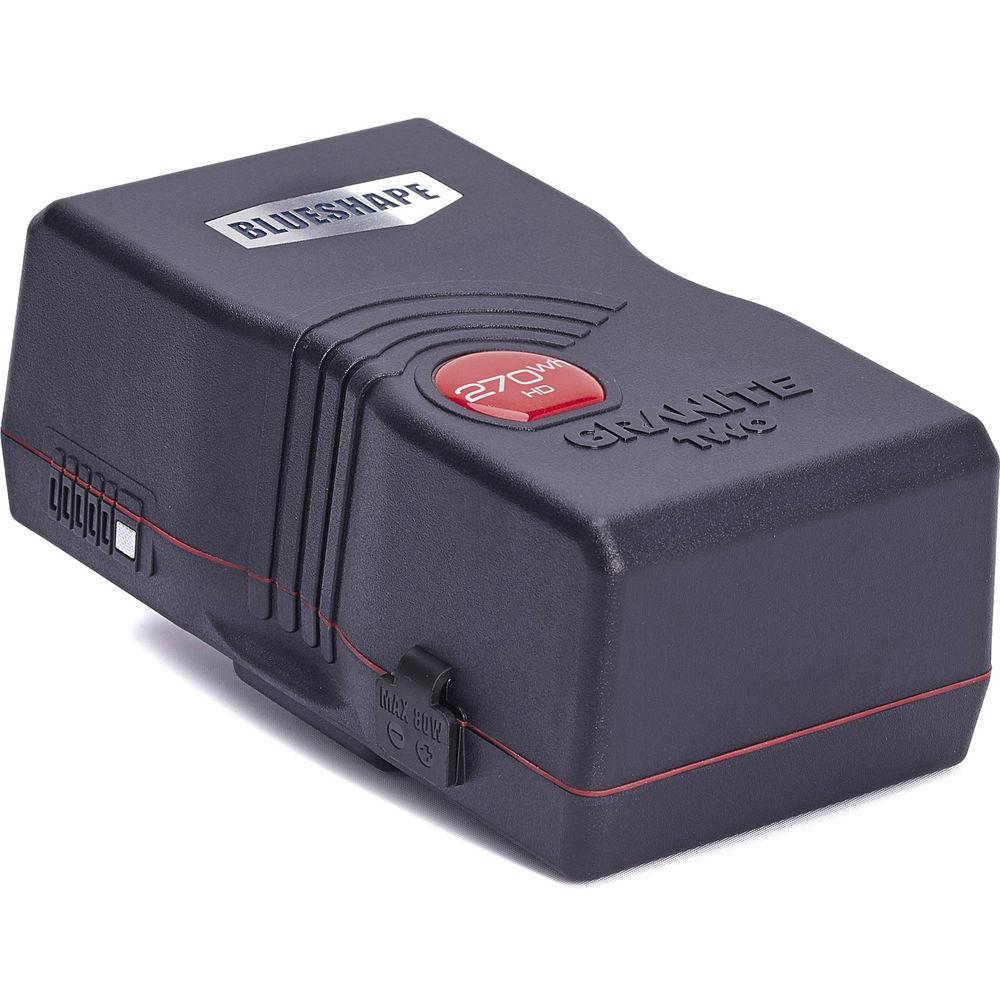

Designed to be used in professional video applications BLUESHAPE's GRANITE TWO batteries add new Wi-Fi connectivity to the feature list of the original GRANITE battery series. They also come in Gold mount in addition to V-mount options. On the outside, these batteries are designed for the rigors of a film or video set. The textured finish is easy to grab and is resistant to blemishes from drops and impacts. Both the interior and exterior have been tested to survive multiple vertical drops from up to 6 feet onto hard surfaces. The reinforced Gold mount is compatible with most Gold mount chargers. Aside from being robust, the GRANITE batteries are also powerful. Power-hungry cameras and lights can draw up to 12 amps, between the main battery output and the two D-taps on the sides. In addition to outputting 14.4 volts of power, either D-tap can serve to charge the battery with a separately available D-tap charger. As an extra measure of protection, the D-taps have rubber covers that help maintain the IP54 resistance rating against moisture and dust ingress. While the 5-LED battery meter is useful and convenient, BLUESHAPE offers a free iOS/Android app that can monitor and control various aspects of the battery, completely wirelessly, over Wi-Fi. The app updates in real-time based on current capacity, charging speed, and power draw. On set, all batteries can be monitored on the same network, so not only do you can know when to grab a fresh battery ahead of time, but which battery is ready to go without having to play a guessing game.

GRANITE Link

    Features

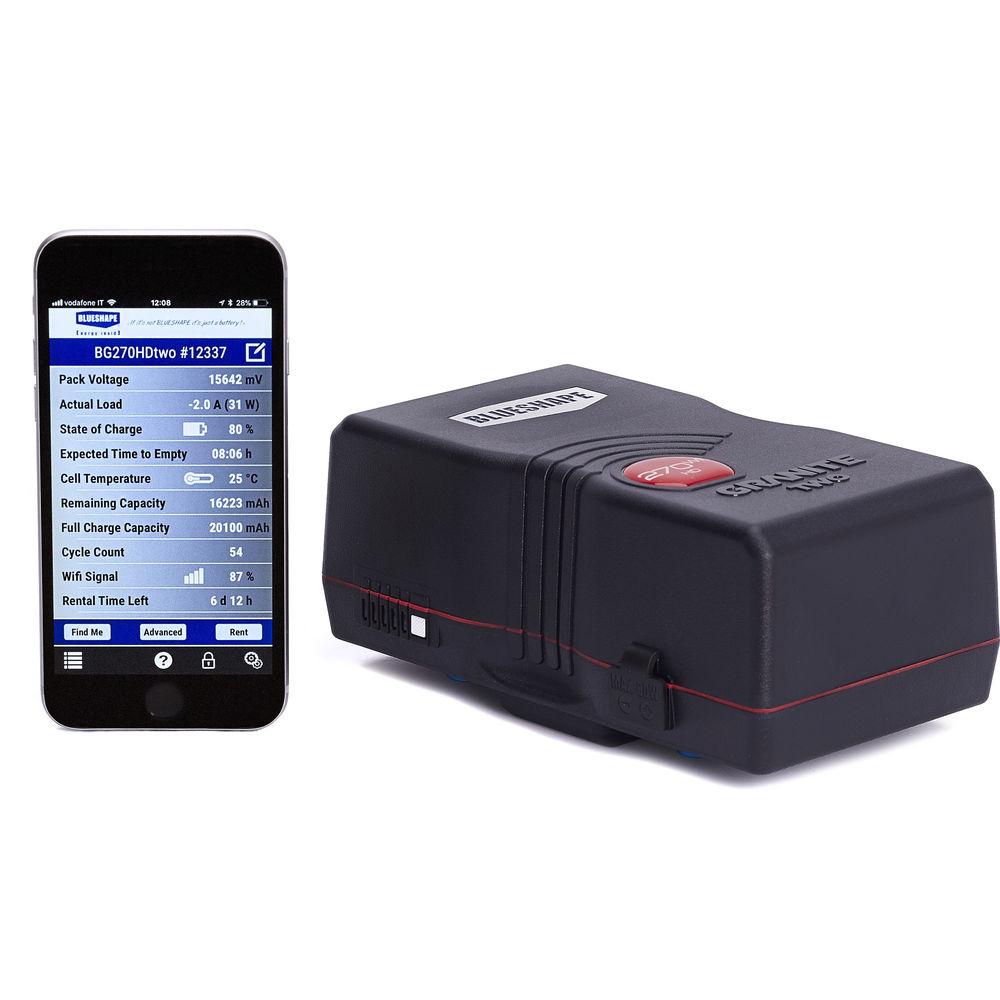

  • GRANITE TWO batteries are the first generation to introduce BLUESHAPE's GRANITE LINK, a Wi-Fi communication feature allowing for remote, real-time status monitoring via a free iOS/Android mobile app. Using GRANITE LINK you can check data such as State of Charge, Expected Time to Empty, Cell Temperature, Remaining Capacity, Full Charge Capacity, and Cycle Count. The state of charge and remaining runtime are updated in real time based on the actual load conditions.
    Practical Use-Cases
  • An operator, camera assistant, or technical director can easily monitor the state of batteries in close proximity without having to physically press the button to check on the actual battery. Multiple batteries can be monitored simultaneously from a single device. Additional features through the app allow you to Identify, Lock, Unlock, and Connect to a different network. A Rental Mode is available to limit the period of use when the battery is leased.
    Networking
  • Batteries can create their own Wi-Fi network for single battery monitoring, or can be connected to a master Wi-Fi network. A fleet of batteries can be easily monitored by multiple devices without complicated pairing procedures. Batteries can be given custom names for easy identification.

Construction

    Internal Modular Design
  • The lithium-ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic monitoring board are integrated with the cells making a single core. No otherwise vulnerable wiring is used. The metal cell-to-cell tabs have been thickened using a low-resistance alloy.
    Solid External Construction
  • The external mount bracket is screwed to the inner core by means of a reinforced metal plate at the base of the battery casing. The outer battery pack shells wrap the inner core and secure it with 8 perimeter screws. A colored rubber gasket is sandwiched in the middle of the outer shells to improve weather resistance and enhances the battery's aesthetics.
In the Box BLUESHAPE GRANITE TWO High Rate Discharge 270Wh Gold Mount Battery
  • Limited 18-Month Warranty
  • User Manual PDF 1.9mbccuwusfqfcacxdsfdzsvwtwywbayueeuvqdcbz Table of Contents




    Upload User Manual

    Have you got an user manual for the BLUESHAPE GRANITE TWO High Rate Discharge 270Wh Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BLUESHAPE GRANITE TWO Specs

    Mount / Series Type Gold Mount
    Chemistry Lithium-Ion
    Capacity (Wh) 270 Wh
    Amp-Hours 18 Ah
    Output Voltage 14.4 VDC
    Maximum Load 12 A
    Accessory Port 2 x D-Tap
    Maximum Load (Accessory Port) 5 A ( D-Tap )
    IP Rating IP54
    Dimensions (W x H x D) 3.7 x 6.7 x 2.7" / 9.5 x 17.1 x 6.9 cm
    Weight 3.6 lb / 1.6 kg
    Package Weight 4.05 lb
    Box Dimensions (LxWxH) 8.8 x 5.6 x 3.2"
