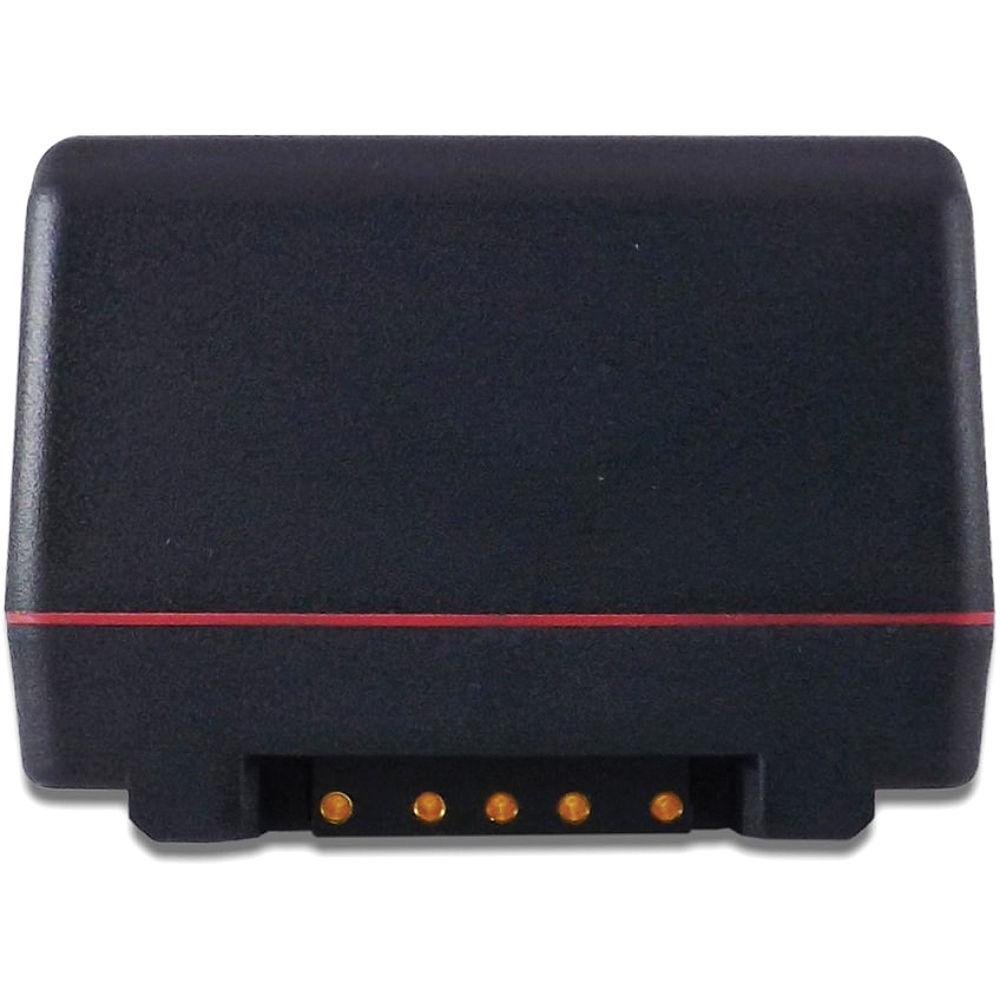

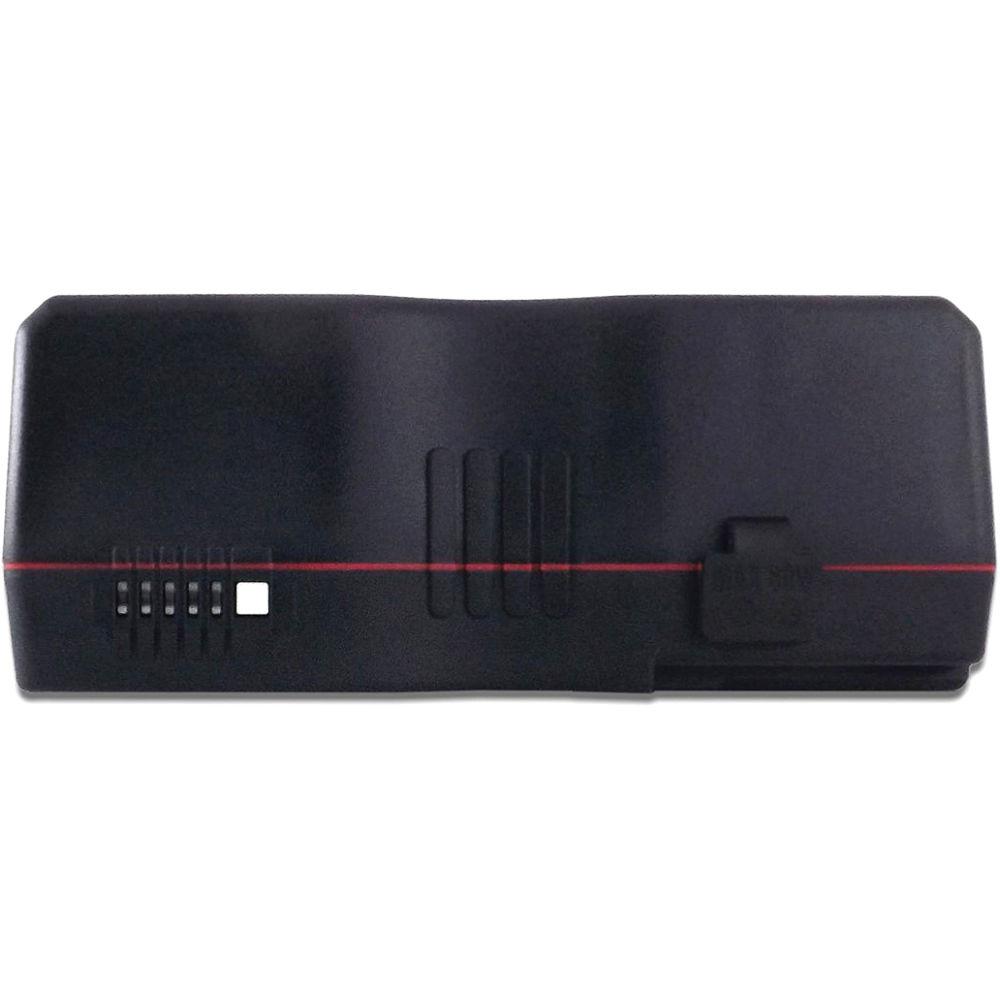

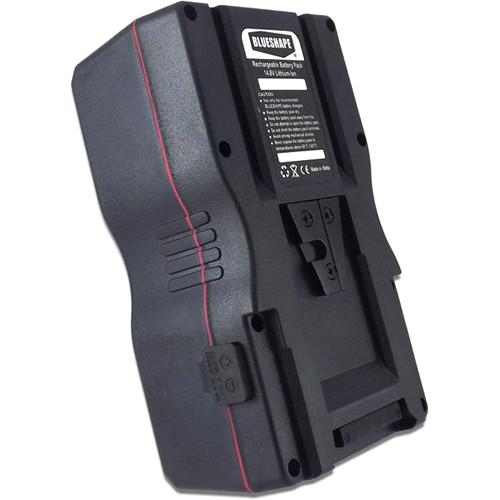

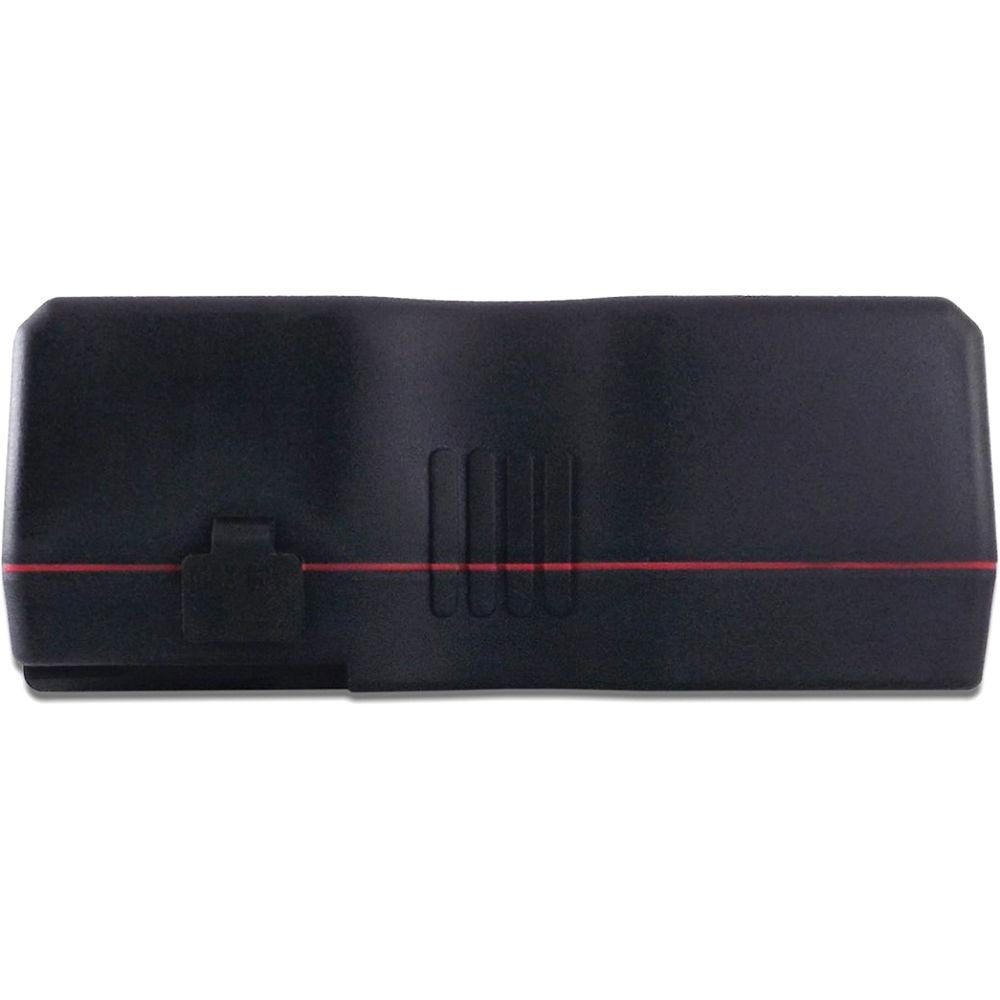

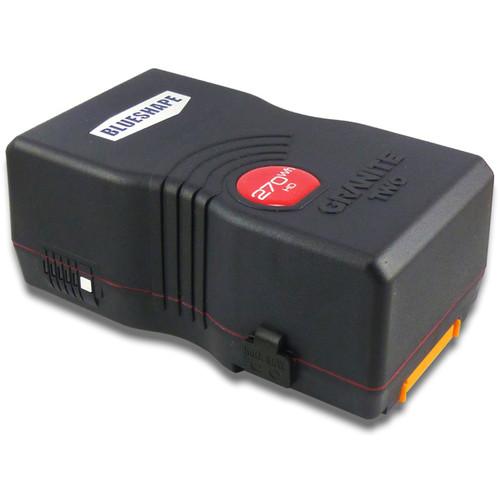

User Manual for BLUESHAPE GRANITE TWO High Rate Discharge 270Wh V-Mount Battery Click to enlarge the picture
Contents of the user manual for the BLUESHAPE GRANITE TWO High Rate Discharge
- Product category: On Camera Batteries BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE On Camera Batteries
 |
User manual for the BLUESHAPE GRANITE TWO High Rate Discharge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

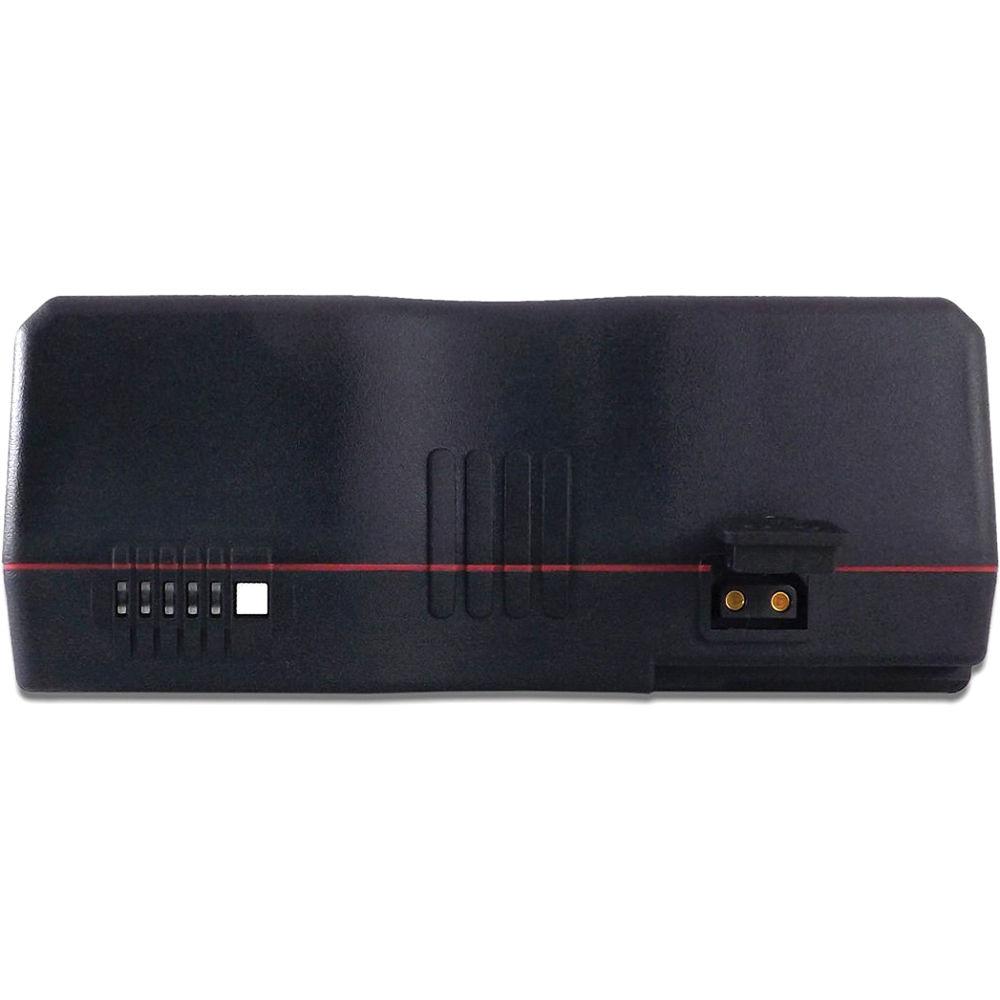

Product description Designed to be used in professional video applications BLUESHAPE's GRANITE TWO batteries add new Wi-Fi connectivity to the feature list of the original GRANITE battery series. They also come in Gold mount in addition to V-mount options. On the outside, these batteries are designed for the rigors of a film or video set. The textured finish is easy to grab and is resistant to blemishes from drops and impacts. Both the interior and exterior have been tested to survive multiple vertical drops from up to 6 feet onto hard surfaces. The reinforced Gold mount is compatible with most Gold mount chargers. Aside from being robust, the GRANITE batteries are also powerful. Power-hungry cameras and lights can draw up to 12 amps, between the main battery output and the two D-taps on the sides. In addition to outputting 14.4 volts of power, either D-tap can serve to charge the battery with a separately available D-tap charger. As an extra measure of protection, the D-taps have rubber covers that help maintain the IP54 resistance rating against moisture and dust ingress. While the 5-LED battery meter is useful and convenient, BLUESHAPE offers a free iOS/Android app that can monitor and control various aspects of the battery, completely wirelessly, over Wi-Fi. The app updates in real-time based on current capacity, charging speed, and power draw. On set, all batteries can be monitored on the same network, so not only do you can know when to grab a fresh battery ahead of time, but which battery is ready to go without having to play a guessing game. GRANITE Link - Features
- GRANITE TWO batteries are the first generation to introduce BLUESHAPE's GRANITE LINK, a Wi-Fi communication feature allowing for remote, real-time status monitoring via a free iOS/Android mobile app. Using GRANITE LINK you can check data such as State of Charge, Expected Time to Empty, Cell Temperature, Remaining Capacity, Full Charge Capacity, and Cycle Count. The state of charge and remaining runtime are updated in real time based on the actual load conditions.
- Practical Use-Cases
- An operator, camera assistant, or technical director can easily monitor the state of batteries in close proximity without having to physically press the button to check on the actual battery. Multiple batteries can be monitored simultaneously from a single device. Additional features through the app allow you to Identify, Lock, Unlock, and Connect to a different network. A Rental Mode is available to limit the period of use when the battery is leased.
- Networking
- Batteries can create their own Wi-Fi network for single battery monitoring, or can be connected to a master Wi-Fi network. A fleet of batteries can be easily monitored by multiple devices without complicated pairing procedures. Batteries can be given custom names for easy identification.
Construction - Internal Modular Design
- The lithium-ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic monitoring board are integrated with the cells making a single core. No otherwise vulnerable wiring is used. The metal cell-to-cell tabs have been thickened using a low-resistance alloy.
- Solid External Construction

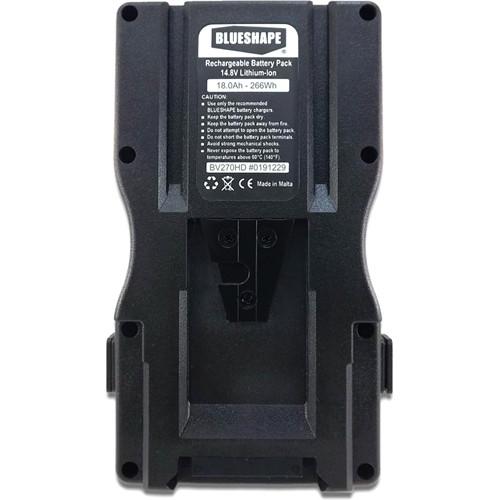

- The external mount bracket is screwed to the inner core by means of a reinforced metal plate at the base of the battery casing. The outer battery pack shells wrap the inner core and secure it with 8 perimeter screws. A colored rubber gasket is sandwiched in the middle of the outer shells to improve weather resistance and enhances the battery's aesthetics.
In the Box BLUESHAPE GRANITE TWO High Rate Discharge 270Wh V-Mount Battery Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE GRANITE TWO High Rate Discharge 270Wh V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-BV270 HD TWO Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 270 Wh | | Amp-Hours | 18 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 12 A | | Accessory Port | 2 x D-Tap | | Maximum Load (Accessory Port) | 5 A ( D-Tap ) | | IP Rating | IP54 | | Dimensions (W x H x D) | 3.7 x 6.7 x 2.7" / 9.4 x 17.1 x 6.9 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 8.7 x 5.5 x 2.7" |
