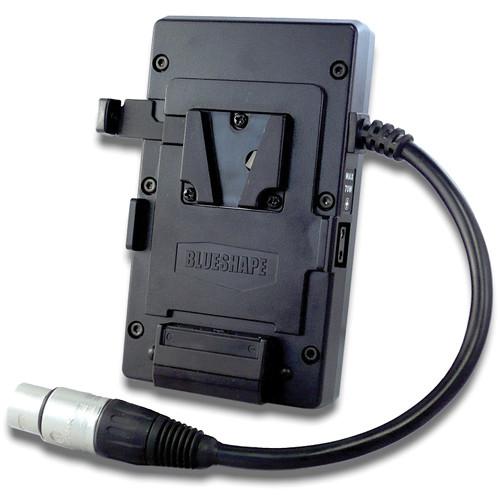

User Manual for BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with Nominal Output Click to enlarge the picture
Contents of the user manual for the BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with
- Product category: Battery Mounting Plates BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Battery Mounting Plates
|
User manual for the BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|
Product description The BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with Nominal Output features a belt-clip on the back and can be attached to any waist belt to provide a convenient on-the-go power solution. It supports V-mount batteries and has a 4-pin XLR female output connector allowing you to connect various cameras/devices. Optional BLUESHAPE MVBELT Power Adapter Cables are available for connecting this plate to specific cameras. The plate also features a P-Tap output for powering accessories.
This model is capable of outputting nominal 14.8V (11V - 16.8V at max 5A/70W) via the XLR connector and nominal 14.8V (11V - 16.8V at max 5A/70W) via the P-Tap output. If both outputs are used simultaneously, then the max power of 70W is shared between them. - Key Features
-
- Attaches to any waist belt via a belt clip on the back
- Supports V-mount batteries and provides 4-pin XLR female and P-Tap power outputs
- Supports BLUESHAPE MVBELT Power Adapter Cables specific to select cameras
- Voltage Output
-
- Nominal 14.8V via XLR connector
- Nominal 14.8V via P-Tap connector
In the Box BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with Nominal Output 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE MVBELTS Belt-Clip V-Mount Plate with Nominal Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-MVBELTS Specs | Outputs | 1x 4-pin XLR female
1x P-Tap | | Voltage Output | Nominal 14.8 V (11-16.8 V at max 5 A / 70 W) via pin 4 on XLR connector
Nominal 14.8 V (11-16.8 V at max 5 A / 70 W) via P-Tap connector | | Dimensions | 5.6 x 3.2 x 1.6" (14.2 x 8.2 x 4 cm) | | Weight | 1.2 lb (0.54 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.8 x 5.4 x 2.8" |
