User Manual for BLUESHAPE PWS2 48 Dual Bay V-Mount Power Station Click to enlarge the picture
Contents of the user manual for the BLUESHAPE PWS2 48 Dual Bay V-Mount
- Product category: Batteries & Power BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Batteries & Power
 |
User manual for the BLUESHAPE PWS2 48 Dual Bay V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

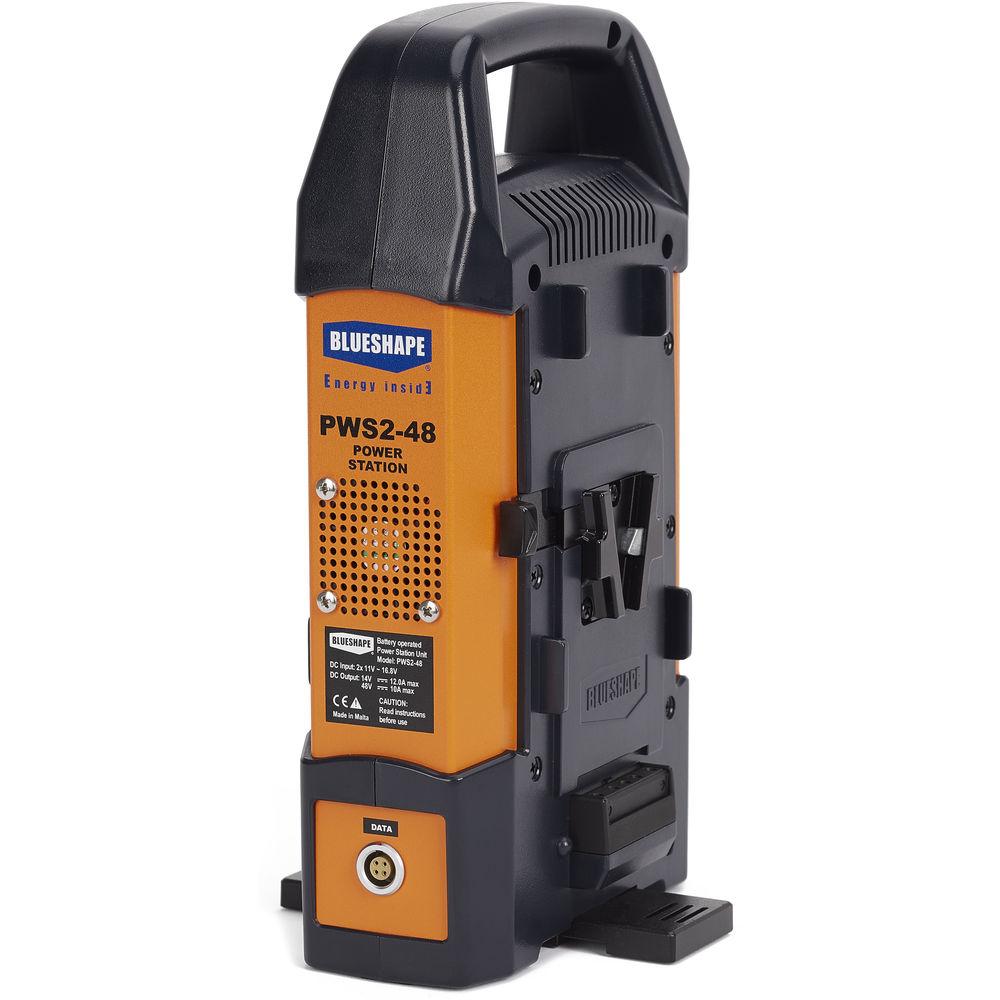

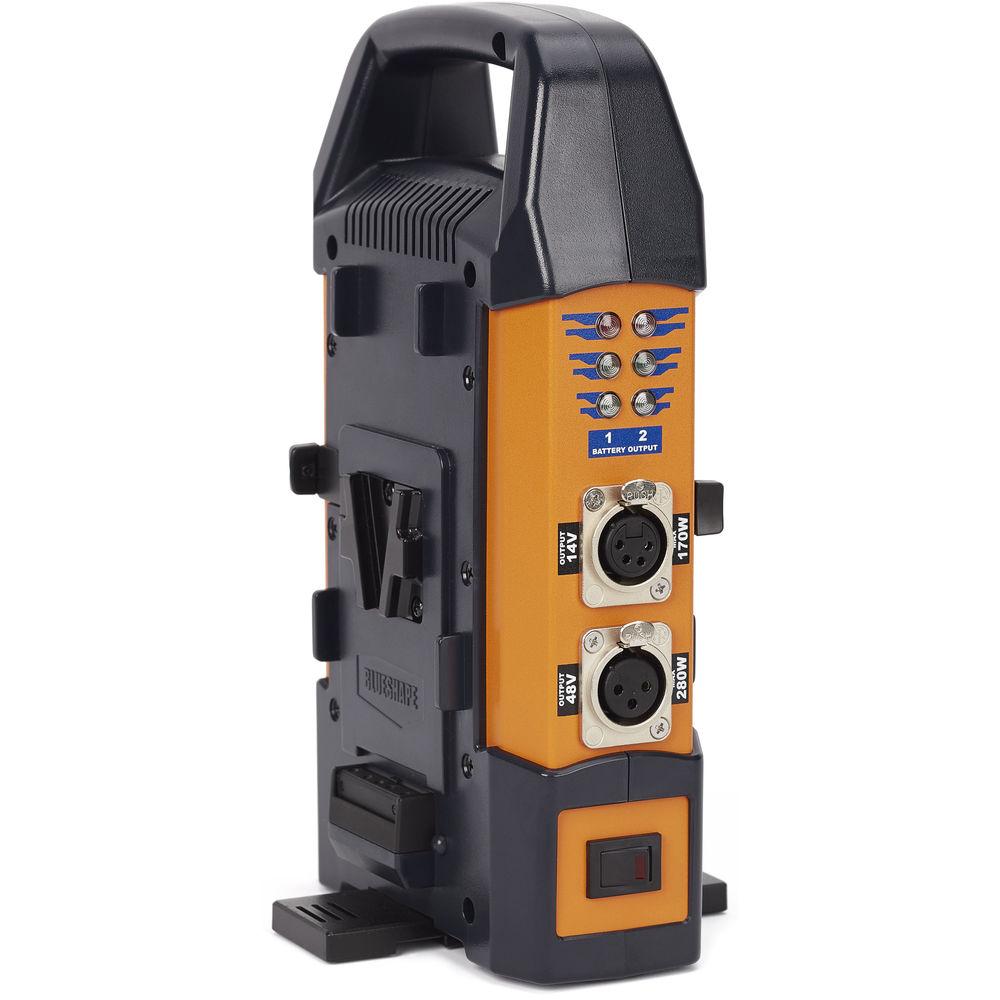

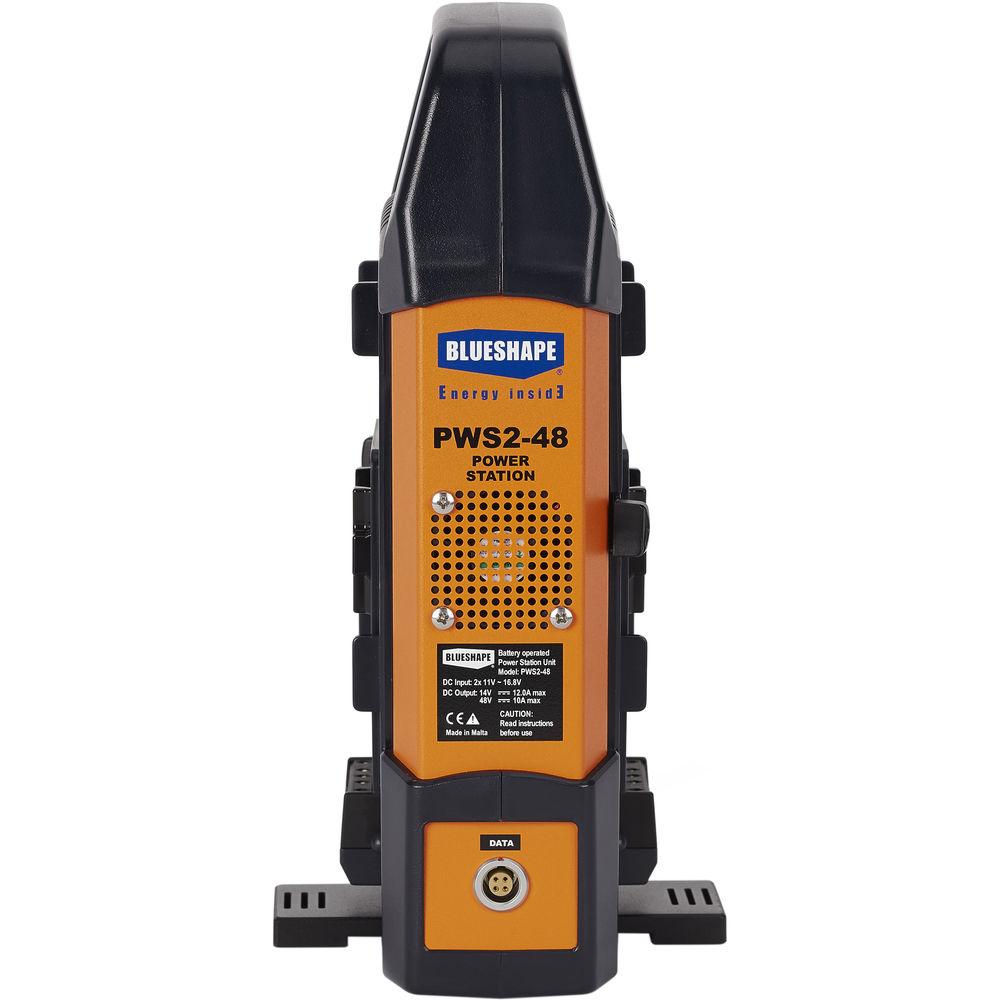

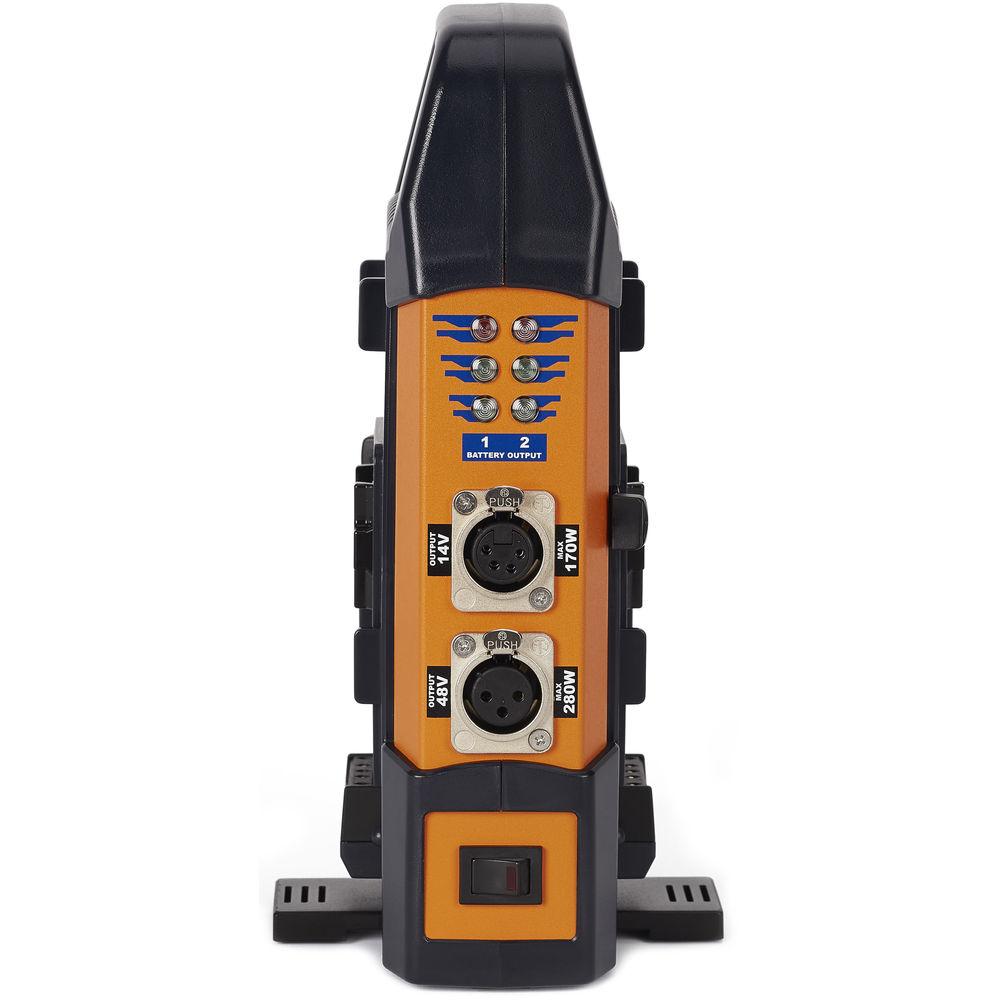

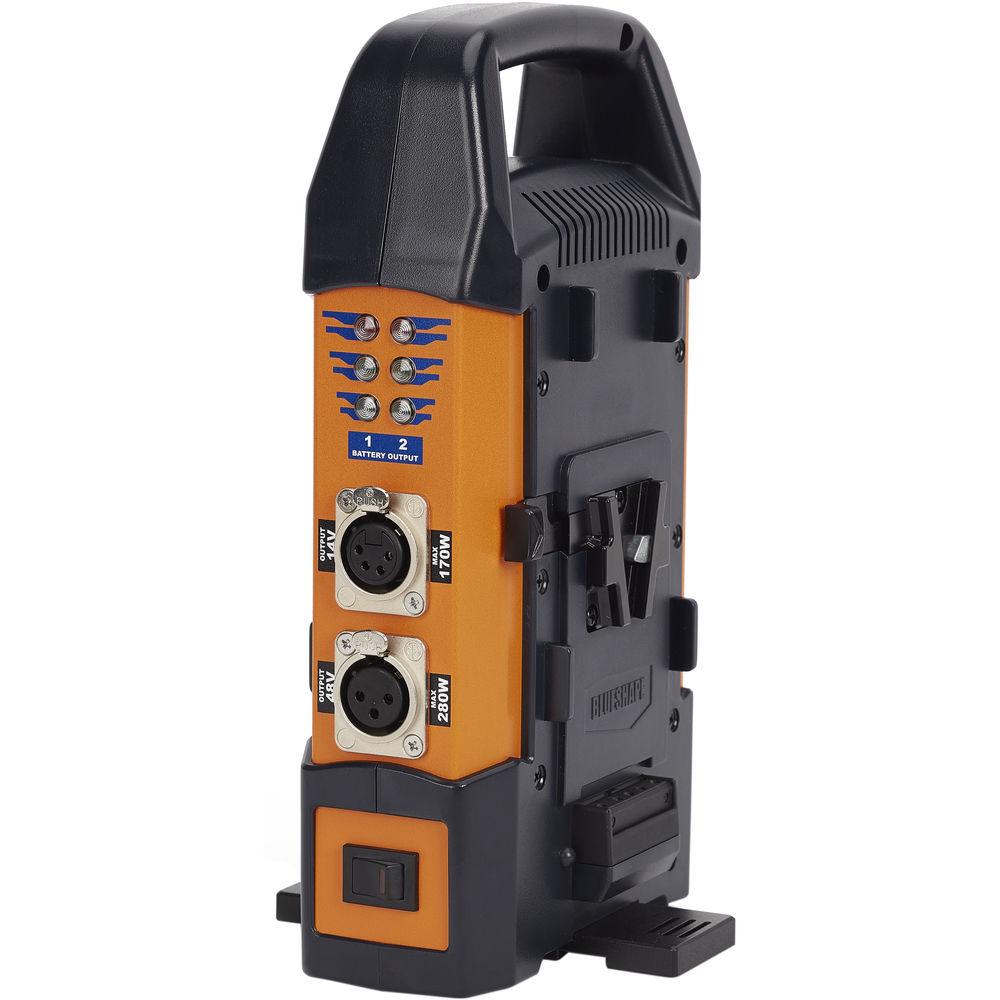

Product description The BLUESHAPE PWS2 48 Dual Bay V-Mount Power Station allows you to power cameras, lights, and other devices in a portable solution. It supports two V-mount batteries and provides a hot swappable power solution that offers simultaneous 3-pin and 4-pin locking XLR outputs. (It is designed to be used as a power station only and does not function as a charger). The outputs operate in parallel and share the combined battery input. With two high drain batteries installed (9A and higher), the 3-pin XLR provides a regulated 48V output at up to 280W, and the 4-pin provides regulated 14V at up to 170W. The batteries do not have to have matching voltage, charge state, or capacity for the power station to function.
A fan vent on the side prevents overheating. The power station can conveniently be carried via a handle on top, and rested on a desktop by means of a rotating foot on the bottom. The foot neatly tucks underneath when not needed. Note: This Power Station is designed to provide power to cameras, lights, and other devices and does not function as a charger. - Key Features
-
- Supports two hot-swappable batteries and offers two simultaneous XLR outputs
- 3-pin XLR output provides a regulated 48V output at up to 280W
- 4-pin XLR output provides a regulated 14V output at up to 140W
- A fan vent keeps the system cool even after hours of operation
- A rotating foot allows stable desktop positioning and tucks away when not needed
- A handle on top allows convenient carrying
- Auto reset circuit breaker if draw exceeds combined 10A draw
- Additional Features
-
- Illuminated ON/OFF power switch
- 4-pin data socket for computer testing, debugging, and calibration
In the Box BLUESHAPE PWS2 48 Dual Bay V-Mount Power Station Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE PWS2 48 Dual Bay V-Mount Power Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE PWS2 48 Specs | Battery Mount | 2x V-mount | | Power Output | 1x 3-pin XLR female, locking - regulated 48 V output, up to 280 W
1x 4-pin XLR female, locking - regulated 14 V output, up to 170 W | | Additional Connections | 4-pin socket for computer testing, debugging, calibration | | Dimensions | 9.84 x 5.5 x 3.15" / 250 x 145 x 80 mm | | Weight | 1.55 lb / 0.75 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 12.7 x 7.8 x 3.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
