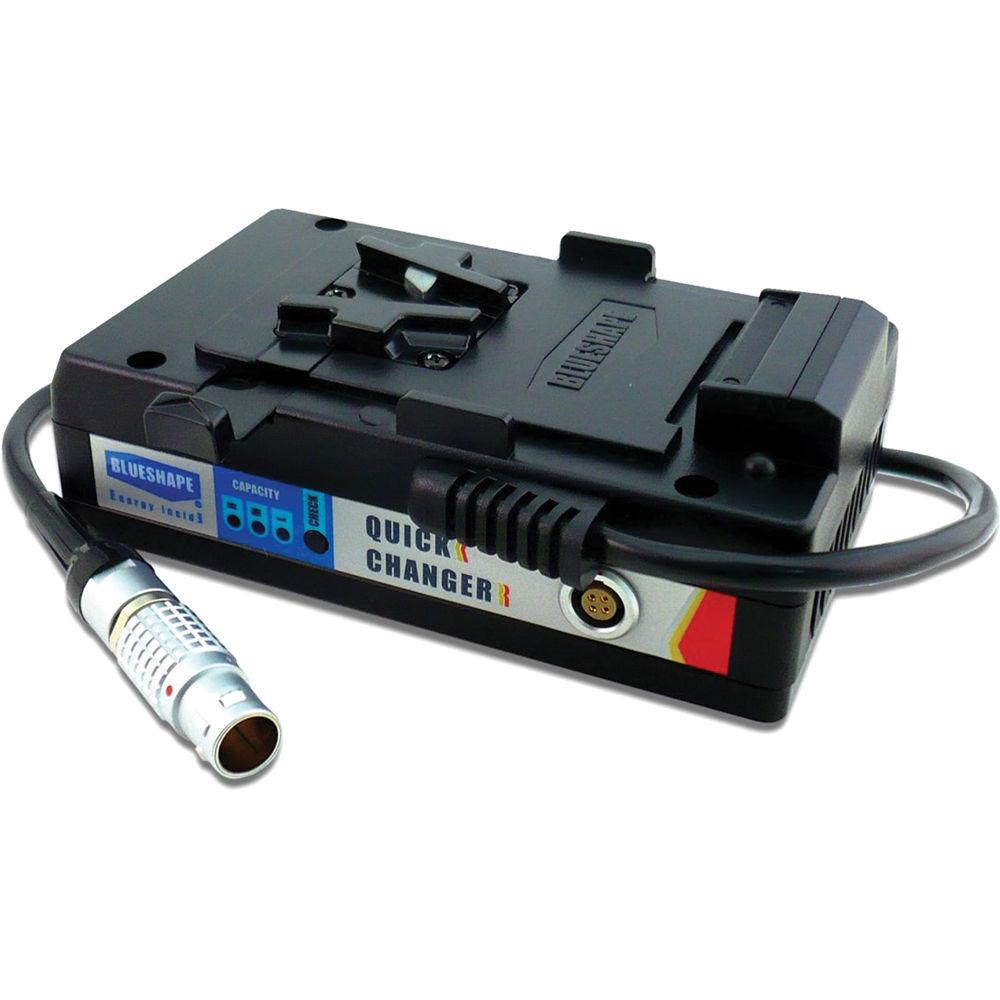

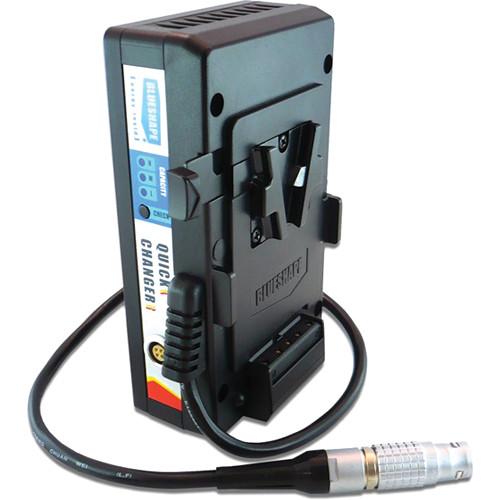

User Manual for BLUESHAPE V-Mount Battery Hot Swap Adapter for RED ONE Click to enlarge the picture
Contents of the user manual for the BLUESHAPE V-Mount Battery Hot Swap Adapter
- Product category: Battery Mounting Plates BLUESHAPE
- Brand: BLUESHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLUESHAPE Battery Mounting Plates
 |
User manual for the BLUESHAPE V-Mount Battery Hot Swap Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLUESHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLUESHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLUESHAPE product will considerably shorten its lifespan!
|

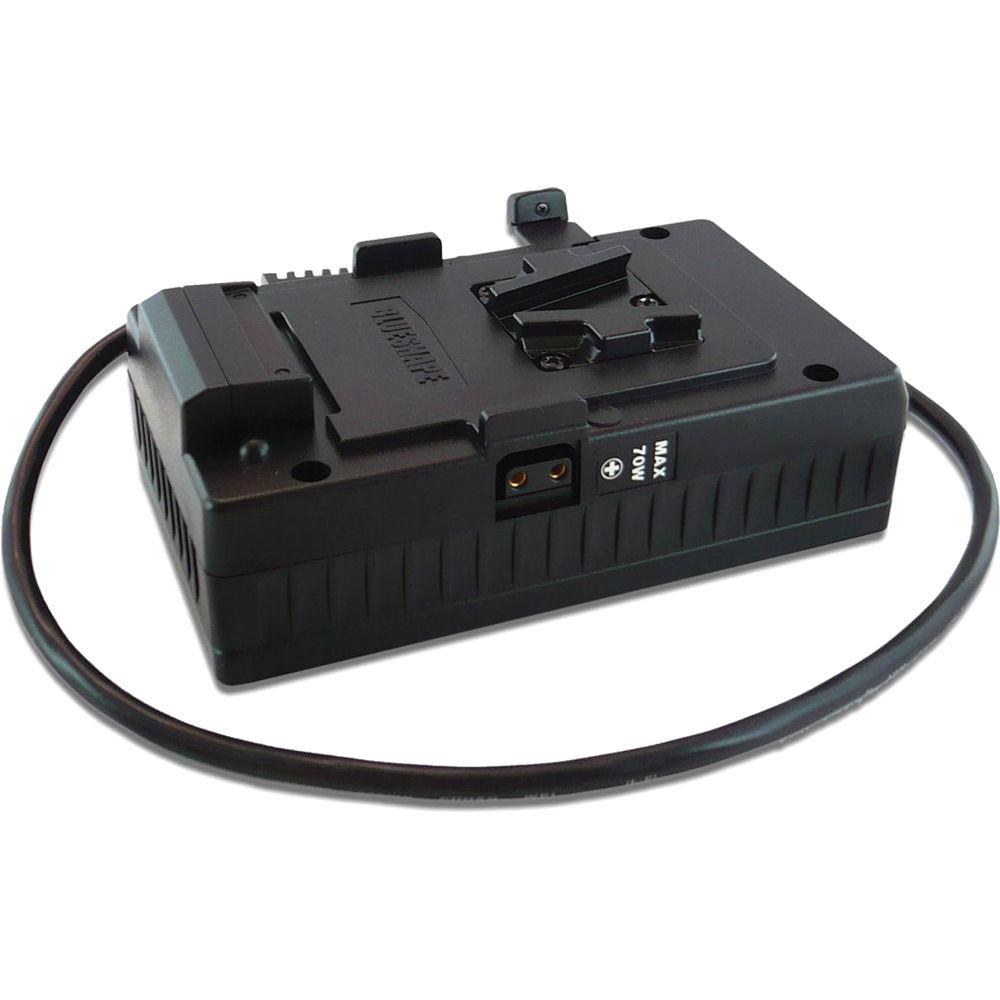

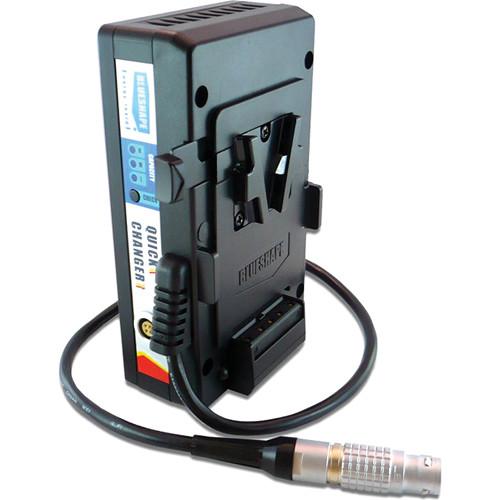

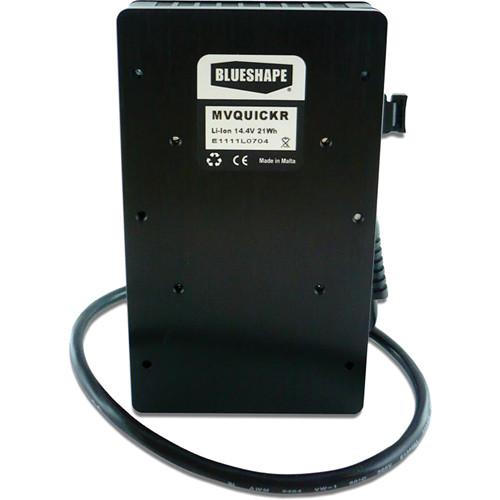

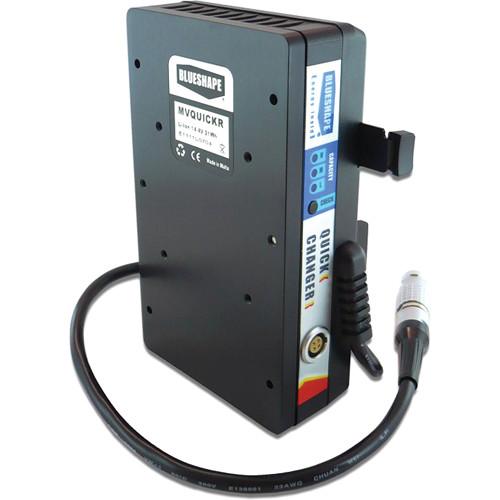

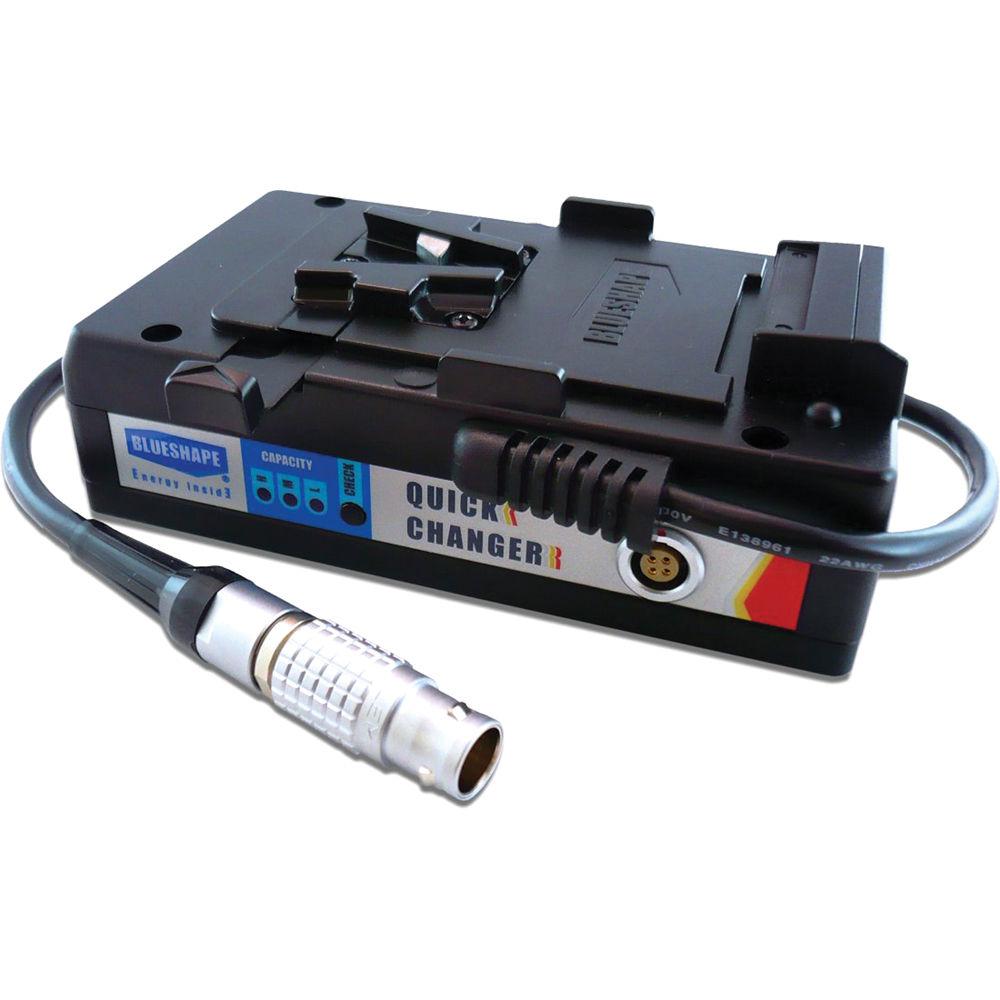

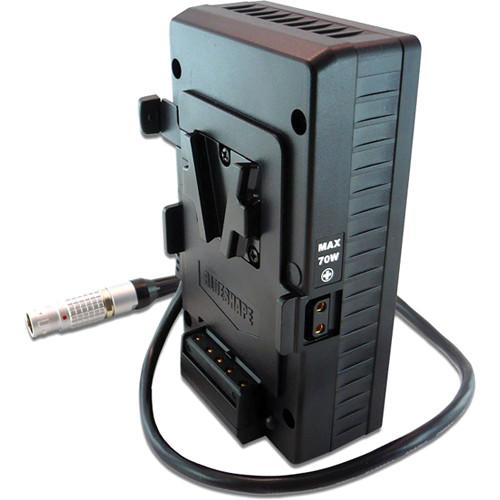

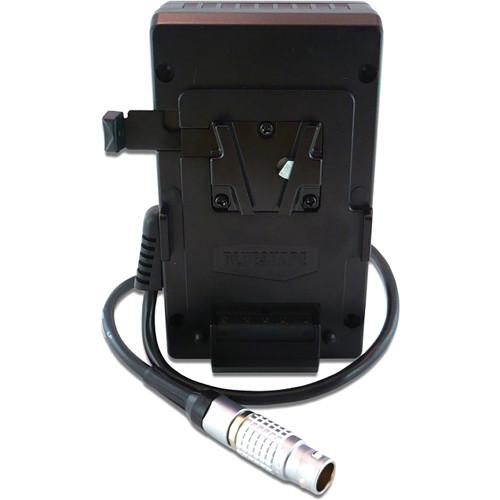

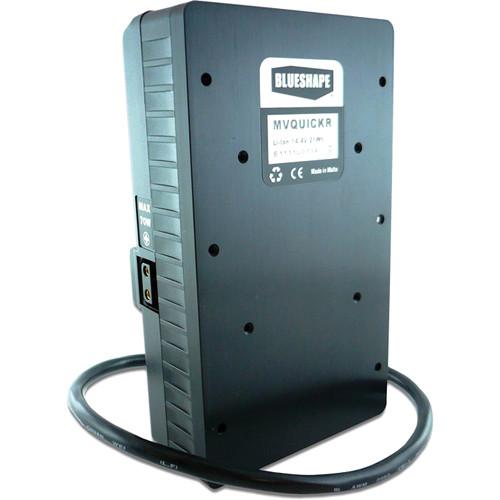

Product description The BLUESHAPE V-Mount Hot Swap Adapter for RED ONE provides 10-15 minutes of power to your RED ONE camera whenever you swap batteries. It's designed to sandwich in between the camera and a V-mount battery, and to remain attached at all times, ready to provide the necessary power whenever you need to swap batteries, and it begins recharging as soon as you swap in a new battery. Moreover, it also offers a P-Tap port for powering an accessory.
A RED QUICKPLATE (sold separately) is required in order to attach to the camera. One side of the adapter features a mounting pattern for the QUICKPLATE and the other side has a V-mount battery interface.
An AC/DC charging unit is also included for standalone charging. Data communication is supported from attached batteries to your camera for all batteries that use the BLUESHAPE protocol. Note: RED QUICKPLATE mounting plate required. - Key Features
-
- Provides 10-15 minutes of power during battery swaps
- RED QUICKPLATE mounting pattern on one side
- V-mount battery interface on the other side
- Sandwiches in between the camera and a V-mount battery
- Plugs into camera with an integrated push/pull connector
- P-Tap accessory port
- 21Wh capacity; current discharge up to 10A
- Supports data communication between attached batteries and your camera (BLUESHAPE protocol)
- For safer and easier travel, a contact cover is included that protects against short circuits of the contacts
In the Box BLUESHAPE V-Mount Battery Hot Swap Adapter for RED ONE AC/DC Charging Unit Screw Set for RED QUICKPLATE Contact Cover 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE V-Mount Battery Hot Swap Adapter for RED ONE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-MVQUICK R Specs | Mount Type | RED QUICKPLATE mounting pattern on one side; V-mount battery interface on the other | | Power Connector | RED compatible push/pull connector | | Accessory Port | 1x P-Tap, 70 W max | | Nominal Voltage | 14.8 V | | Voltage Range | 10.8 - 16.8 V | | Nominal Capacity | 1.5 Ah, 21 Wh | | Maximum Discharge Current | 10 A | | Run Time | Approx. 10-15 minutes | | LED Indicators | 3 LED indicators for charging process | | Dimensions | 5.6 x 3.3 x 2" (14 x 8 x 5 cm) | | Weight | 1.1 lb (0.50 kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 12.6 x 7.8 x 3.5" |
