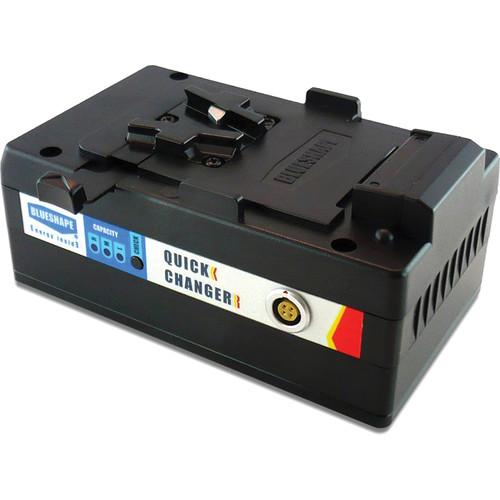

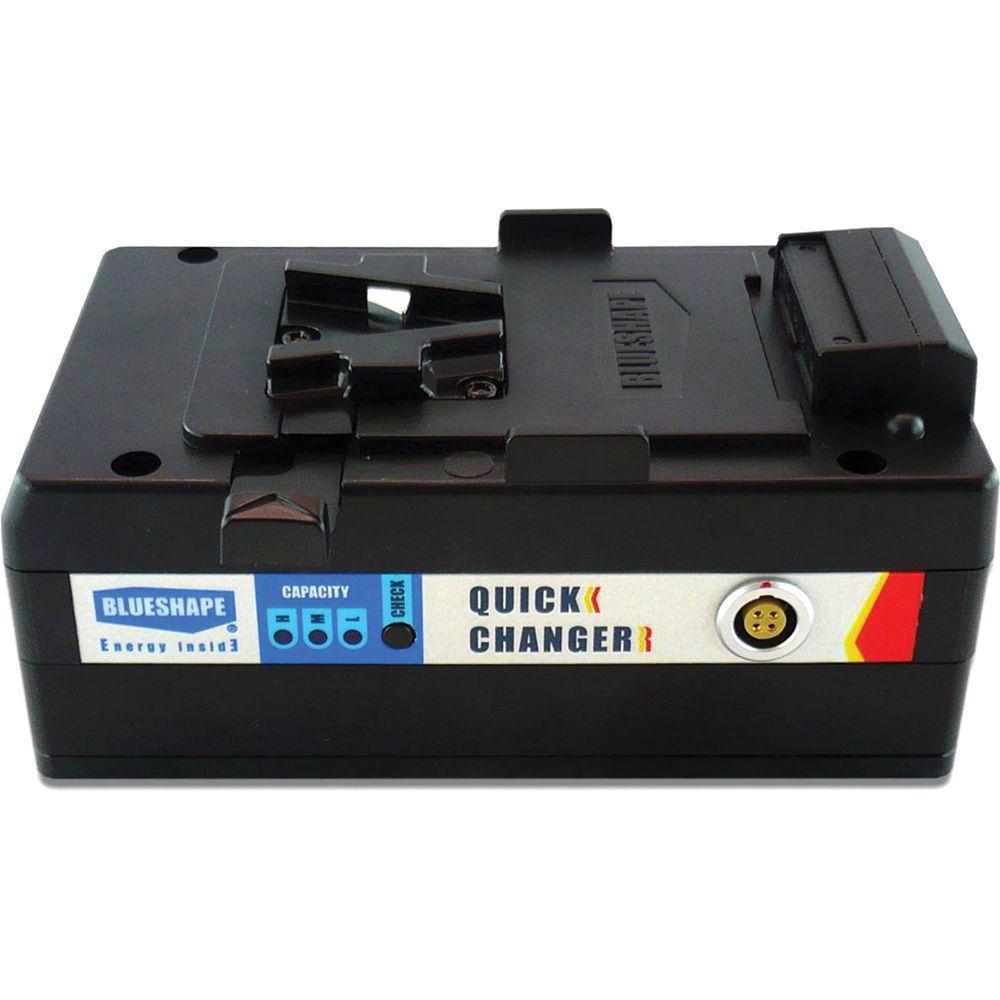

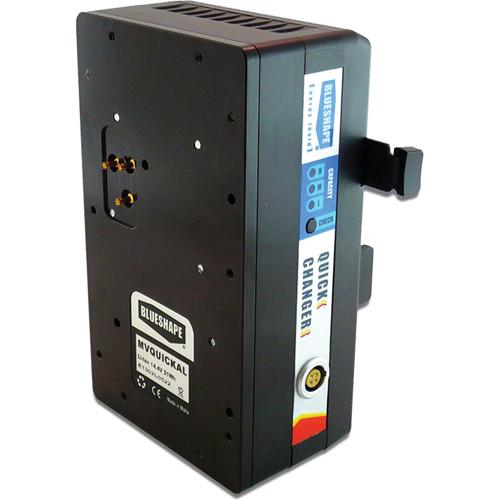

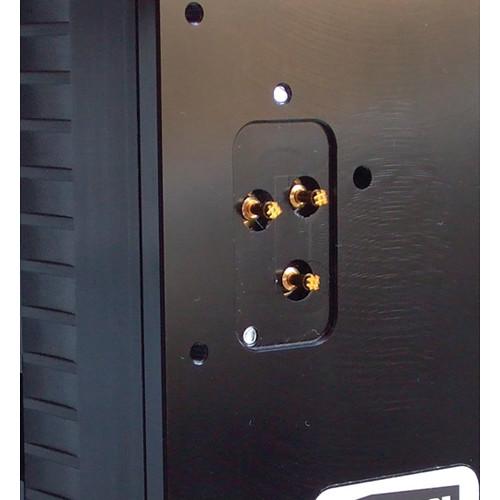

Product description BLUESHAPE's V-Mount Hot Swap Adapter for ALEXA provides 10-15 mins of power to your ARRI ALEXA camera whenever you swap batteries. Featuring a mounting pattern for installation on the back of the ALEXA on one side, and a V-mount battery interface on the other, it's designed to sandwich in between the camera and V-mount battery and stay attached at all times. A spring-loaded connector on the back side provides a power and data connection to the camera. Also featuring a P-Tap port, the adapter altogether allows for uninterrupted power to the camera and an essential accessory.
As soon as a new battery is attached, the adapter automatically recharges itself and then stays ready for your next swap. An AC/DC charging unit is also included for standalone charging.
The adapter also supports data communication from attached batteries to your camera for all batteries with the BLUESHAPE protocol. - Key Features
-
- Provides about 10-15 minutes of power during battery swaps
- ALEXA mounting pattern on one side

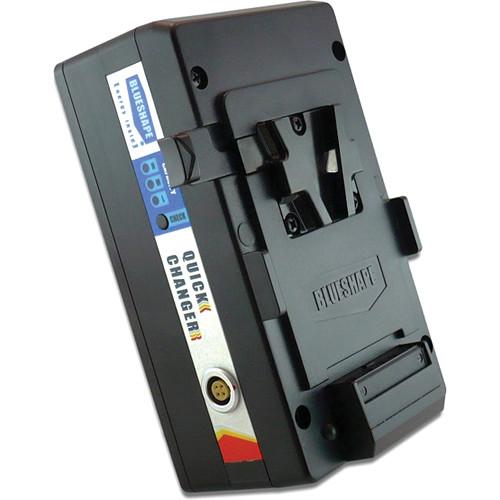

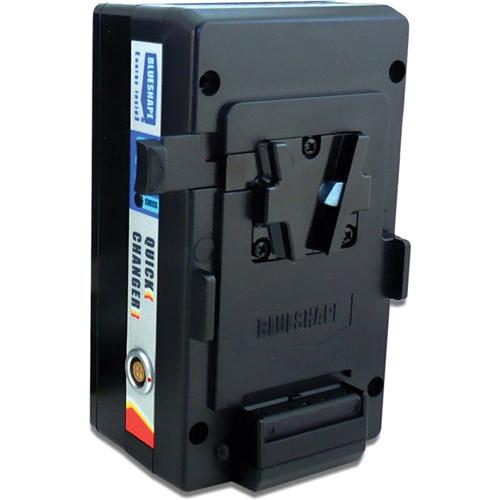

- V-mount battery interface on the other side
- Sandwiches in between the camera and a V-mount battery

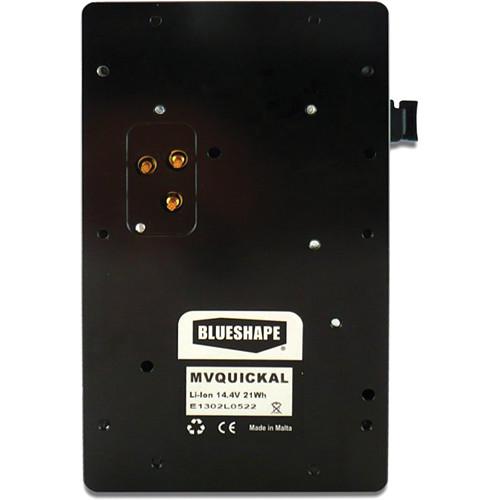

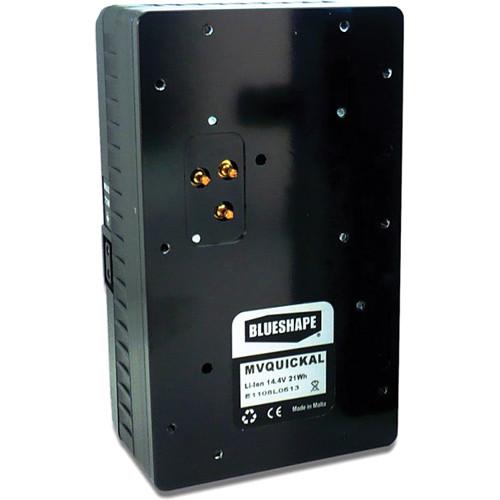

- Spring-loaded power/data connection

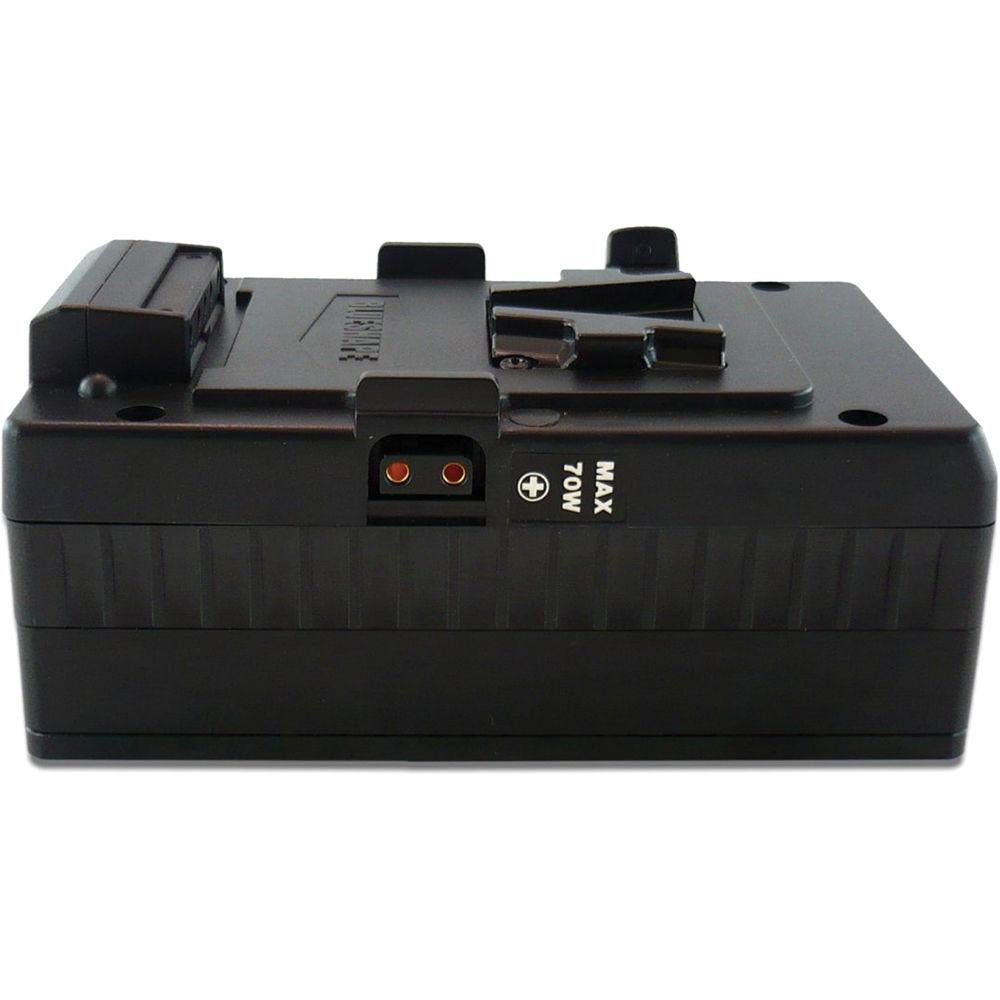

- P-Tap accessory port
- 21Wh capacity; current discharge up to 10A
- Supports data communication between attached batteries and your camera (BLUESHAPE protocol)
- For safer and easier travel, a contact cover is included that protects against short circuits of the contacts
In the Box BLUESHAPE V-Mount Hot Swap Adapter for ALEXA AC/DC Charging Unit Screw Set for Back of ALEXA Contact Cover 18-Month Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BLUESHAPE V-Mount Hot Swap Adapter for ALEXA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLUESHAPE BLS-MVQUICK AL Specs | Mount Type | ARRI ALEXA mounting pattern on one side; V-mount battery interface on the other | | Power Connector | Spring-loaded power/data connector on back side | | Accessory Port | 1x P-Tap, 70 W max | | Nominal Voltage | 14.8 V | | Voltage Range | 10.8 - 16.8 V | | Nominal Capacity | 1.5 Ah, 21 Wh | | Maximum Discharge Current | 10 A | | Run Time | Approx. 10-15 minutes | | LED Indicators | 3 LED indicators for charging process | | Dimensions | 5.6 x 3.3 x 2.2" (14 x 8 x 5.6 cm) | | Weight | 1.2 lb (0.54 kg) | | | | Package Weight | 3.02 lb | | Box Dimensions (LxWxH) | 12.5 x 7.75 x 3.5" |
