User Manual for Bodelin Technologies ProScope HR2 CSI Science Level I Kit Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies ProScope HR2 CSI Science
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
 |
User manual for the Bodelin Technologies ProScope HR2 CSI Science contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|
Product description Enhance your professional activities or hobbies with Bodelin's ProScope HR2 CSI Science Level I Kit. The kit includes a compact and ergonomic wired handheld digital microscope, a 0x-10x lens, a 50x lens, a hard-padded carrying case, and an imaging software CD. With a high-resolution color CMOS sensor and high-quality optics, this device is suited well for many professional settings and applications such as science, engineering, and medicine. The 2.0MP, 1/3" imager delivers clear, high-contrast images and videos with frame rates up to 30 fps. The versatile hand unit can be used as a standalone device (with the included lenses) or with stationary compound microscopes and borescopes, by means of optional mounts and adapters.
As a standalone, handheld device operators can achieve a maximum magnification of 400x with optional Bodelin lenses attached. The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure and complete stillness of a camera, the two 1/4"-20 tripod sockets will provide a secure and stable connection to most standard tripods. Using the included free ProScope software, your microscope can be connected to your Windows or Mac computer. Chrome and Android devices are supported via select third party apps. - Imaging Sensor, Video Performance, Illumination
-
- 2.0MP, 1/3" CMOS Aptina image sensor
- Captures high-resolution still images and videos with up to 30 fps
- Each compatible lens has a built-in LED illuminator
- Powered by an attached USB 2.0 cable
- Optical Performance and Compatibility
-
- 0x-10x and 50x lens modules included
- Up to 400x magnification with other optional lenses
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-

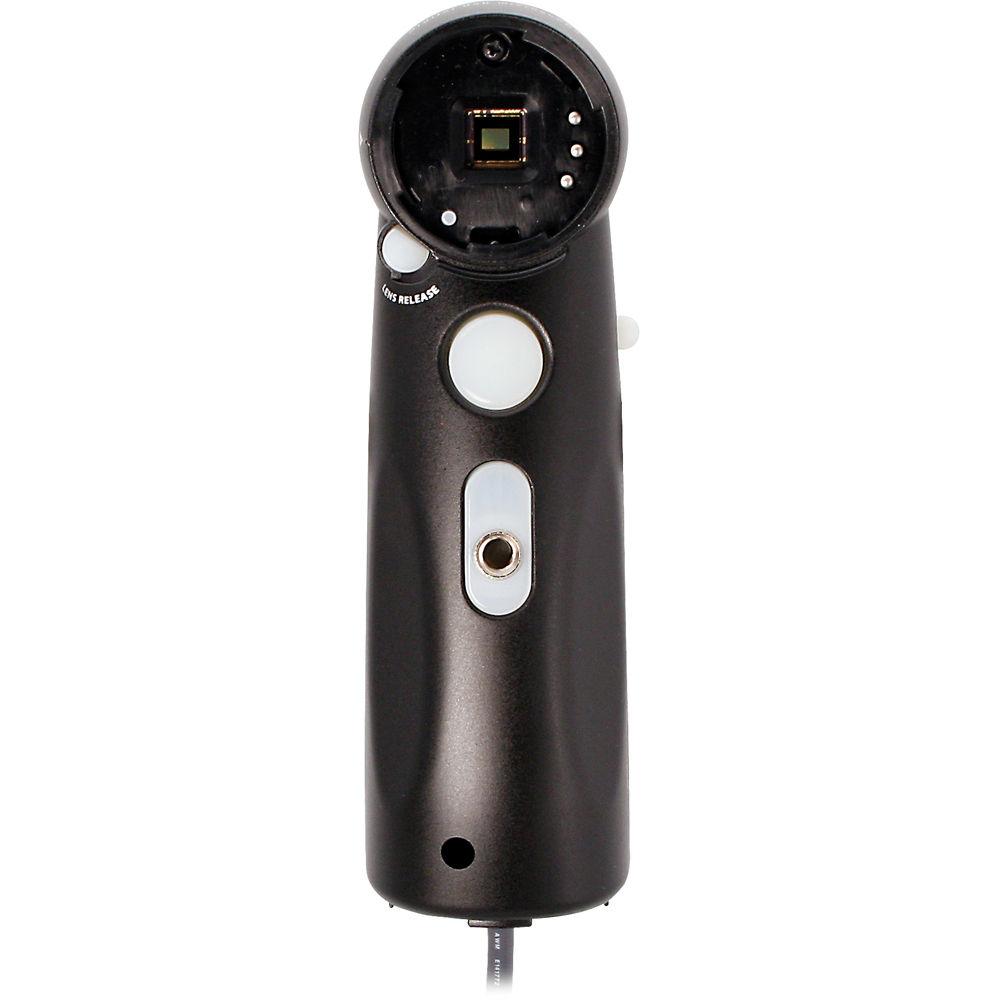

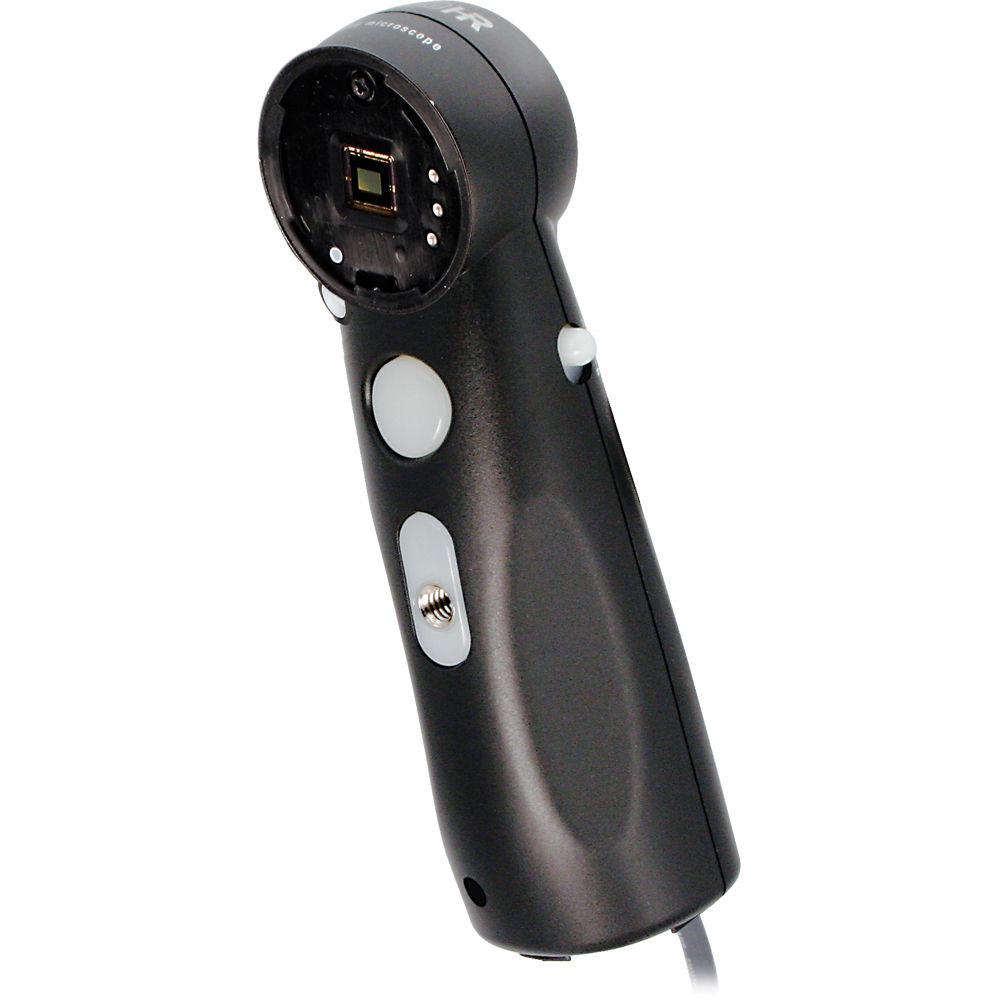

- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
- Two built-in 1/4"-20 tripod sockets
- Device Compatibility
-
- Compatible with Windows and Mac OS
- Compatible with Chrome and Android via third party apps
- USB 2.0 connectivity to supported devices

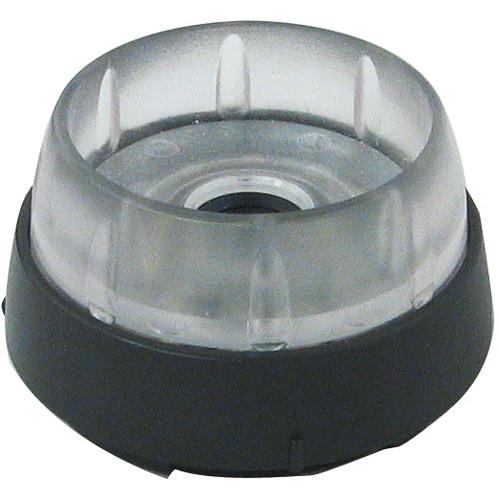

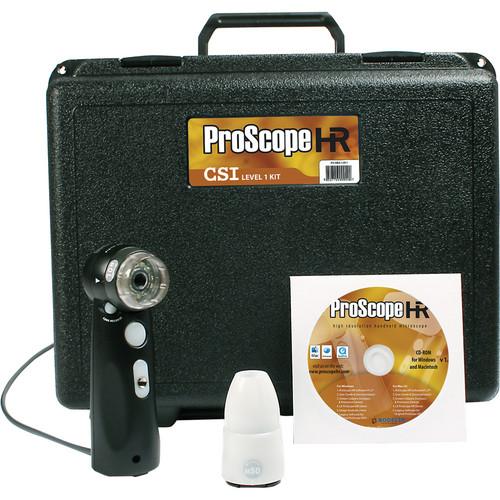

UPC: 856776000542 In the Box Bodelin Technologies ProScope HR2 CSI Science Level I Kit (Black) - ProScope 0-10x Lens

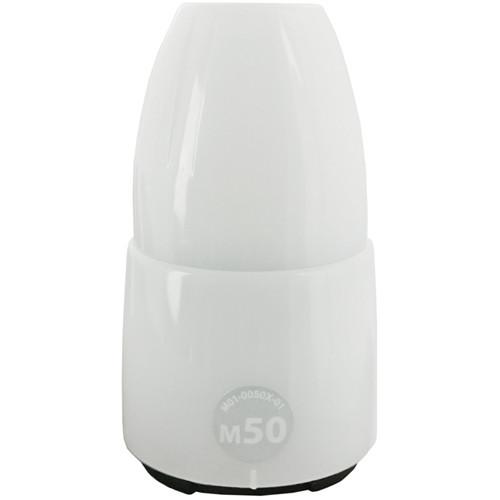

- 50x Lens for ProScope HR/HR2/Mobile (Black)

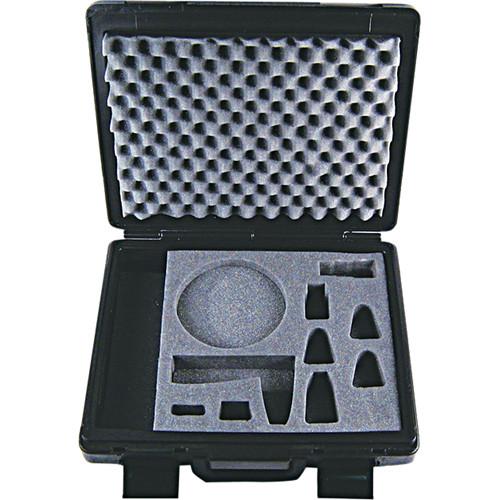

- ProScope Deluxe Case (Black) ywacvsezyyaerabzx
- ProScope HR Software CD
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope HR2 CSI Science Level I Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-HR2-LVL1 Specs | Imager | 2.0 MP, 1/3" CMOS Aptina sensor | | Magnification | 0x - 10x, 50x
Up to 400x with optional lenses | | Resolution | Image: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240
Videos: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240 | | Format | Image: JPEG, PNG, TIFF
Video: AVI, MOV | | Frame Rate | 30 fps maximum | | PC Interface | USB 2.0 | | Illumination | LED ring on each lens | | Compatibility | Windows XP, 7, 8, 10
Mac OS 10.4.8, or later
Chrome, Android with third party apps | | Power | USB 2.0 | | Compliance | FCC, CE, and RoHS | | Operating Temperature | 41 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Dimensions | ProScope: 6.0 x 1.8" / 15.2 x 4.6 cm
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope: 5.3 oz / 150.0 g
Kit: 2.25 lb / 1.02 kg | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 14.0 x 13.0 x 4.0" |
