Product description Enhance your professional activities or hobbies with Bodelin's ProScope HR2 CSI Science Level II Kit. The kit includes a compact and ergonomic wired handheld digital microscope, a 0x-10x lens, a 50x lens, a 200x lens, a hard-padded carrying case, an adjustable stand, and an imaging software CD. With a high-resolution color CMOS sensor and high-quality optics, this device is suited well for many professional settings and applications such as science, engineering, and medicine. The 2.0MP, 1/3" imager delivers clear, high-contrast images and videos with resolutions up to 1600 x 1200 pixels and frame rates up to 30 fps. The versatile hand unit can be used as a standalone device (with the included lenses) or with stationary compound microscopes and borescopes, by means of optional mounts and adapters.
As a standalone, handheld device operators can achieve a maximum magnification of 400x with optional Bodelin lenses attached. The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure and complete stillness of a camera, the included stand has a flexible arm for pointing in any direction and provides a stable support for your microscope. Additionally, two 1/4"-20 tripod sockets will provide a secure and stable connection to most standard tripods. Using the included free ProScope software, your microscope can be connected to your Windows or Mac computer. Chrome and Android devices are supported via select third party apps. - Imaging Sensor, Video Performance, Illumination
-
- 2.0MP, 1/3" CMOS Aptina image sensor
- Captures high-resolution still images and videos with up to 30 fps
- Each compatible lens has a built-in LED illuminator
- Powered by an attached USB 2.0 cable
- Optical Performance and Compatibility
-
- 0x-10x, 50x, and 200x magnifications with three included lenses
- Up to 400x magnification with other optional lenses
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
- Adjustable stand allows a stable support for hands-free operation
- Two built-in 1/4"-20 tripod sockets
- Device Compatibility
-
- Compatible with Windows and Mac OS
- Compatible with Chrome and Android via third party apps
- USB 2.0 connectivity to supported devices
UPC: 856776000559 In the Box Bodelin Technologies ProScope HR2 CSI Science Level II Kit (Black) - ProScope HR Base

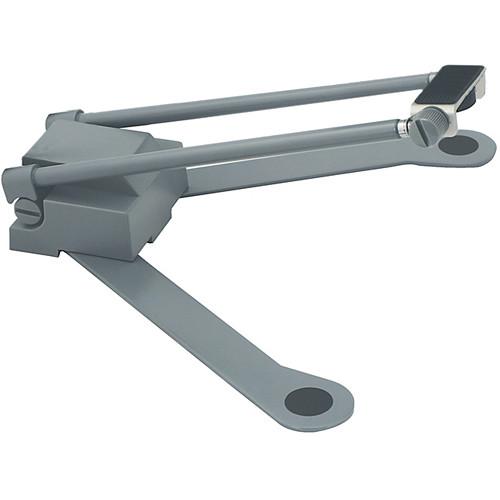

- Adjustable Stand
- ProScope 0-10x Lens fwrdevad
- 50x Lens for ProScope HR/HR2/Mobile (Black)

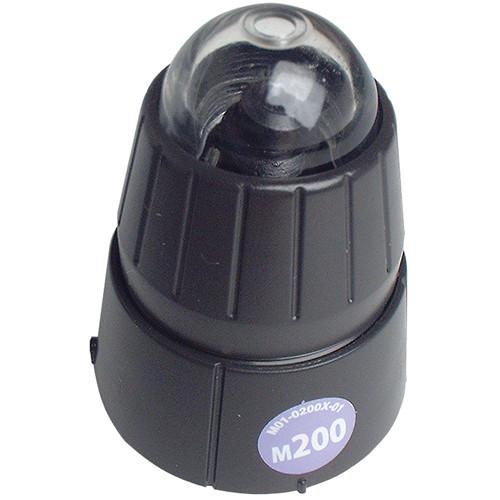

- 200x Lens for ProScope HR/HR2/Mobile (Black)

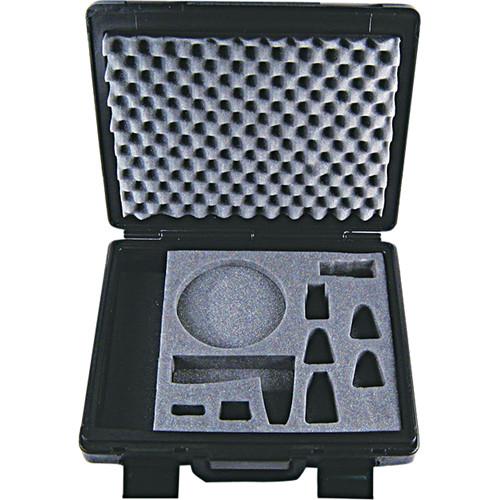

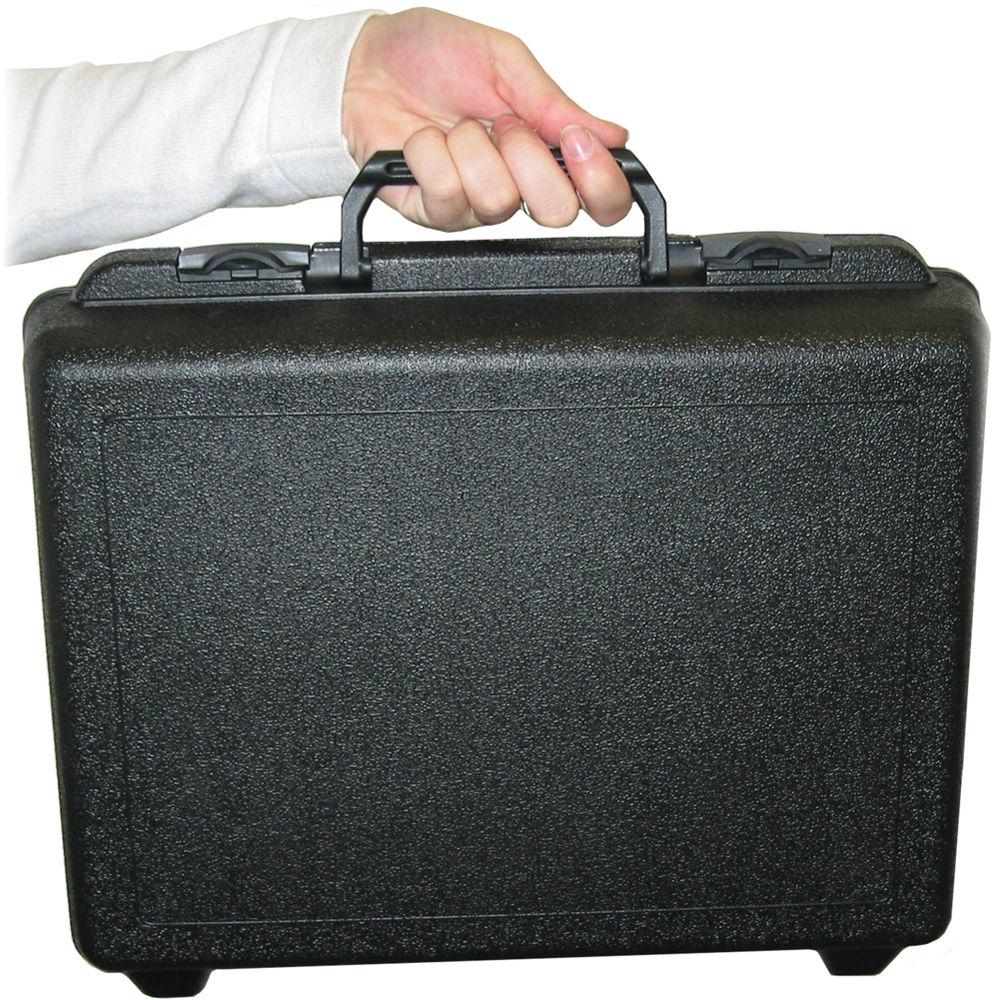

- ProScope Deluxe Case (Black)
- Software CD
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope HR2 CSI Science Level II Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-HR2-LVL2 Specs | Imager | 2.0 MP, 1/3" CMOS Aptina sensor | | Magnification | 0x - 10x, 50x, 200x
Up to 400x with optional lenses | | Resolution | Image: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240
Videos: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240 | | Format | Image: JPEG, PNG, TIFF
Video: AVI, MOV | | Frame Rate | 30 fps maximum | | PC Interface | USB 2.0 | | Illumination | LED ring on each lens | | Compatibility | Windows XP, 7, 8, 10
Mac OS 10.4.8, or later
Chrome, Android with third party apps | | Power | Attached USB 2.0 cable (6' / 1.8 m) | | Compliance | FCC, CE, and RoHS | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Dimensions | ProScope: 6.0 x 1.8" / 15.2 x 4.6 cm
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope: 5.3 oz / 150.0 g
Kit: 3.15 lb / 1.43 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 5.0" |
