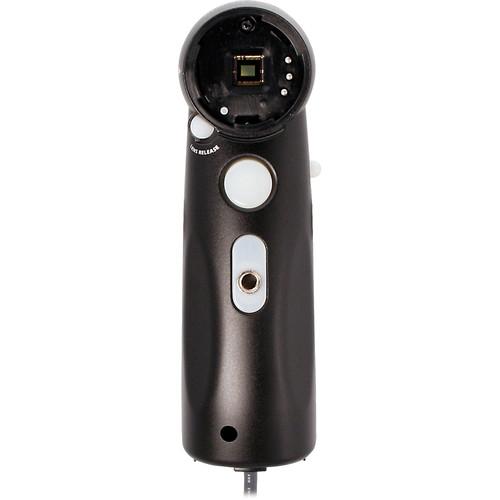

User Manual for Bodelin Technologies ProScope HR2 Handheld Microscope Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies ProScope HR2 Handheld Microscope
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
|
User manual for the Bodelin Technologies ProScope HR2 Handheld Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|
Product description Capture your discoveries with Bodelin's ProScope HR2 Handheld Microscope. The compact and ergonomic hand unit can be used with optional Bodelin lenses to achieve magnifications up to 400x and features a high-quality Aptina CMOS imaging sensor for delivering superior image quality that is suitable for professional settings and applications in science, medicine, industry, or forensics. The 2.0MP, 1/3" imager has larger than average pixels to deliver clear, high-contrast images and videos with up to 30 fps frame rates. Using optional c-mounts or other adapters, it can also be attached to select microscopes and borescopes. The base's design offers a receptacle that allows interchanging optional lenses quickly and easily with an instant snap-on action. To deliver bright and clear high-contrast images, each Bodelin lens has its own built-in LED illumination ring, and to protect the glass optics and LEDs from dust, dirt, and damage it has a clear white nozzle at the tip.
The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. For PC connectivity, the handle is outfitted with a metal ¼"-20 tripod socket and a long (6') USB 2.0 cable that ensures an easy reach.
The included software makes integration with compatible Windows and Macintosh computers an easy plug-and-play experience. It also allows a multitude of parameter settings and customization to provide a truly professional touch for your data. - Aptina Sensor, Video Performance, Illumination
-
- 2.0MP, 1/3" Aptina color image sensor
- Large pixels produce bright and clear high-resolution images
- Captures still images and videos with up to 30 fps
- Each compatible lens has a built-in LED illuminator
- ProScope HR software can create a time-lapse
- Each compatible lens has an integrated LED illuminator
- Optical Performance and Compatibility
-
- Up to 400x magnification with optional lenses
- Can be used with stationary compound microscopes using optional c-mount
- Can be used with borescopes via optional adapters
- Construction
-
- Compact cobalt-black polymer handle
- Ergonomic L-shaped lens-handle configuration
- Lens receptacle allows instant lens attachment
- Clear polymer closed nozzle protects lens and LEDs
- Control buttons located near your thumb and index finger
- Built-in metal 1/4"-20 tripod sockets
- Attached 6' (1.8m) USB 2.0 cable
- Software & PC Integration
-
- Included ProScope HR software provides comprehensive level of control
- Brightness, contrast, saturation, sharpness, manual/auto exposure, flip/mirror image orientation
- Manual/auto white balance with presets and RGB white balance components
- Light source/white-balance presets: ProScope HR2 LED, incandescent, fluorescent, daylight, and automatic
- Plug-and-play operation supported
- Can work with programs like SKYPE and Apple iChat
UPC: 856776000528 In the Box Bodelin Technologies ProScope HR2 Handheld Microscope (Body Only, Black) - ProScope HR Software
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope HR2 Handheld Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-HR2-BASE Specs Imager | 2.0 MP, 1/3" CMOS Aptina sensor | Resolution | Imaging: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240 Video: 1600 x 1200 (2.5 fps), 1280 x 1024 (3.75 fps) 640 x 480 (15 fps), 320 x 240 (30 fps) | Frame Rate | 30 fps maximum | PC Interface | USB 2.0 | Compatibility | Windows XP (SP2), 7, 8 Mac OS 10.4.8, or later Chrome, Android with third party apps
Quicktime 7.0 or later DirectX 9 or later | Power | USB 2.0 | Compliance | RoHS | Operating Temperature | 41 to 104°F / 5 to 40°C | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | Dimensions | ProScope: 6.0 x 1.8" / 15.2 x 4.6 cm USB Cord Length: 6.0' / 1.8 m | Weight | ProScope: 5.3 oz / 150.0 g without lens | | Package Weight | 1.35 lb | Box Dimensions (LxWxH) | 9.9 x 6.6 x 3.1" |
