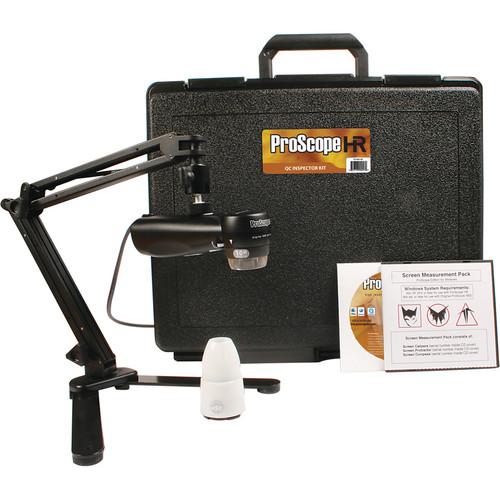

Product description Enhance your professional or scientific research with the Bodelin ProScope HR2 QC Inspector Kit. Optimized especially for Quality Control (QC) inspections, this kit includes all the necessary components for the task, including a handheld digital camera, two lenses, and an adjustable stand that will help you reach your professional or research goals. The central component of this kit is a compact and ergonomic imaging device, featuring an Aptina color CMOS sensor with 2.0MP resolution and 1/3" format. With the two included interchangeable lens modules (0-10x and 50x), it gives you options for a variety of samples that require a low level of magnification. An LED illumination ring is integrated into each lens, helping the imaging sensor deliver clear, high-contrast images and videos at frame rates up to 30 fps. To provide versatility and options that best suit your lab setup, the hand unit can be used as a handheld device, mounted on the included adjustable stand, or be coupled to other microscopes and borescopes, by means of included or optional mounts and adapters.

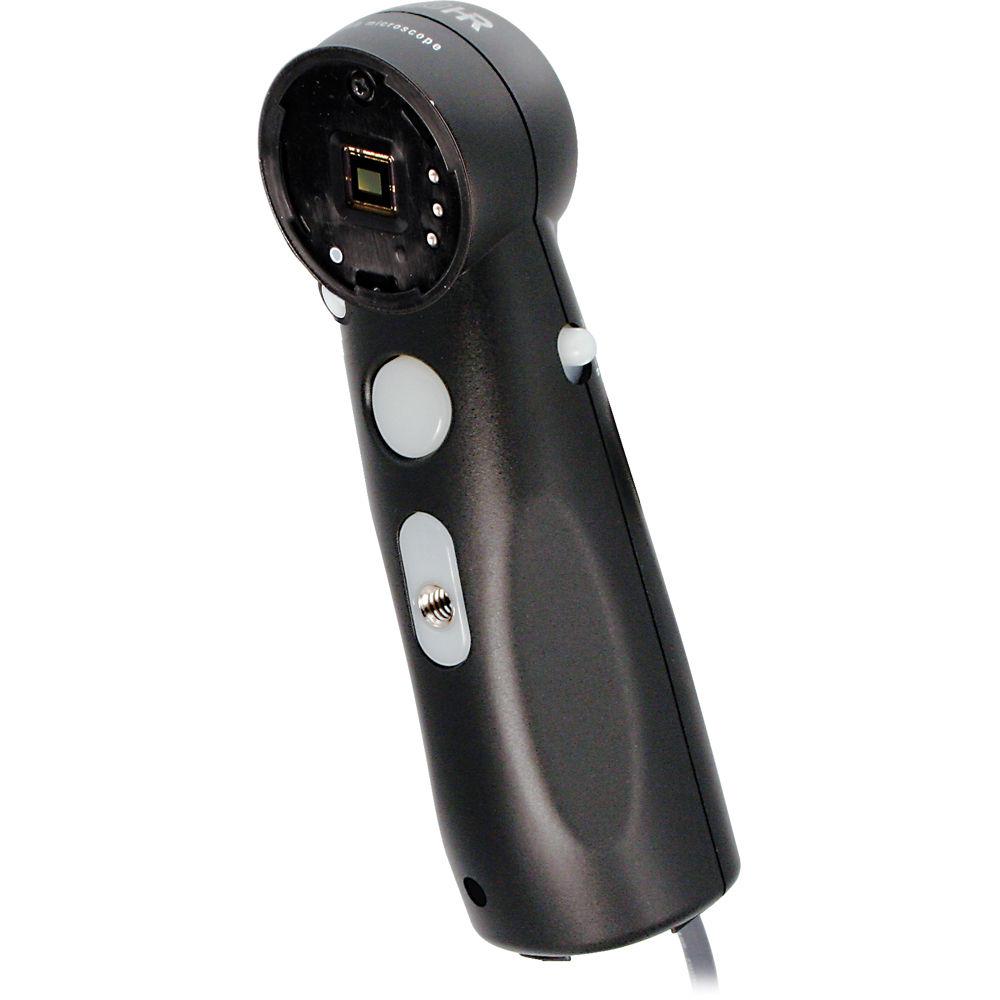

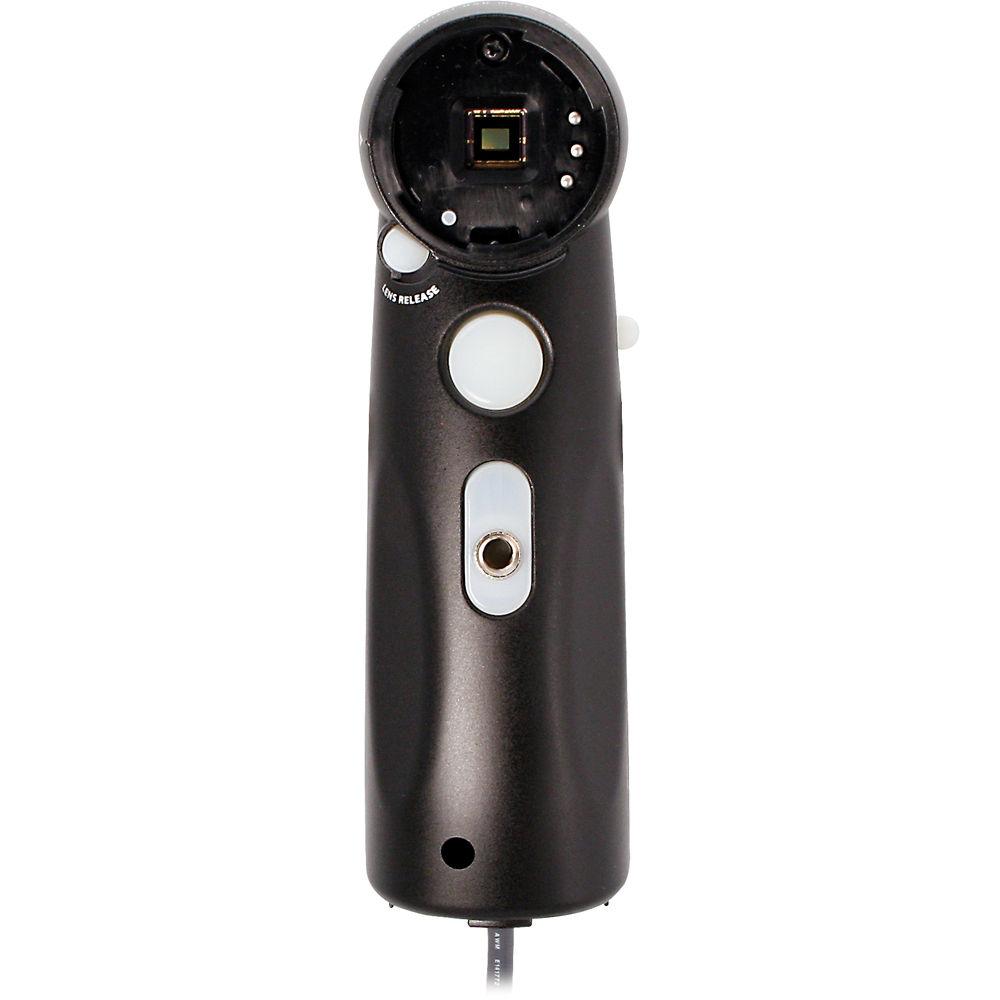

The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure, complete stillness of a camera, or hands-free operation, you can use the included adjustable stand to hold the imager in any required position. For additional mounting options, there are two 1/4"-20 tripod sockets on the handle that will provide a secure and stable connection to most standard tripods. Using the included ProScope software, your microscope can be connected to your Windows or Mac computer. - Imaging Sensor, Video Performance, and Illumination
-
- 2.0MP, 1/3" CMOS Aptina image sensor
- Captures still images and videos at up to 30 fps
- Each compatible lens has a built-in LED illuminator
- Powered by an attached USB 2.0 cable
- Optical Performance and Compatibility
-
- 0-10x and 50x lenses included
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
- Two built-in 1/4"-20 tripod sockets
- Device Compatibility
-
- Compatible with Windows and Mac OS
- Compatible with Chrome and Android via third party apps
- USB 2.0 connectivity to supported devices

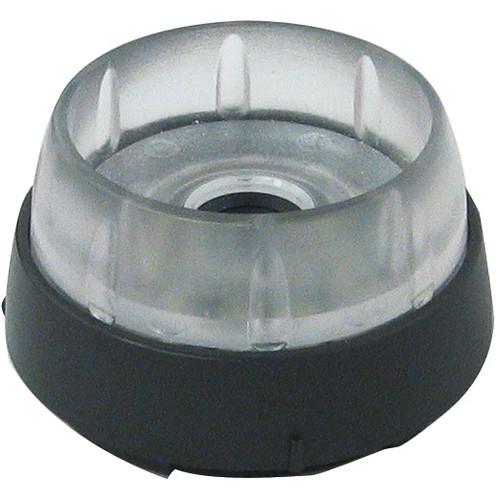

UPC: 856776000580 In the Box Bodelin Technologies ProScope HR2 QC Inspector Kit (Black) - 0-10x Lens for ProScope HR/HR2/Mobile (Black)

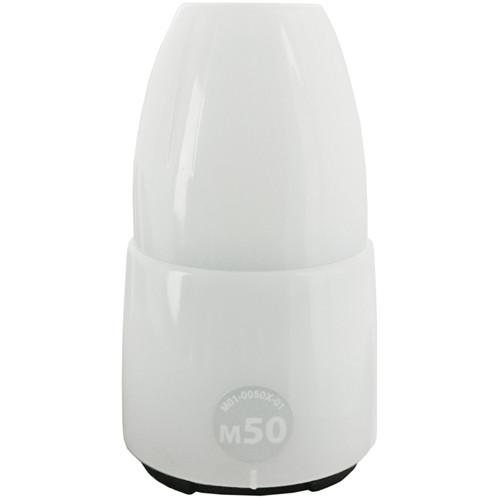

- 50x Lens for ProScope HR/HR2/Mobile (Black)

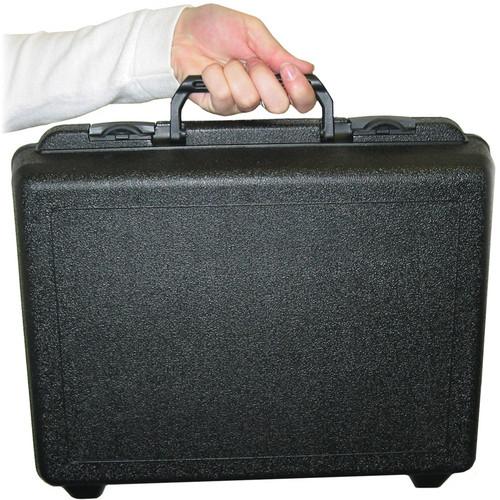

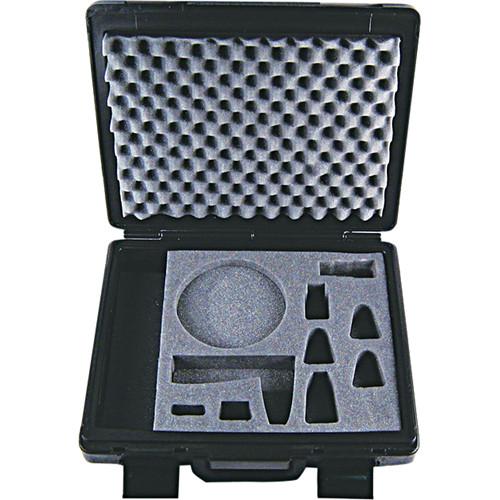

- ProScope HR/HR2 Deluxe Carrying Case
- ProScope Flexible Stand (Black)
- Screen Measurement Software
- ProScope HR Software
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope HR2 QC Inspector Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-HR2-QC Specs | Imager | 2.0 MP, 1/3" CMOS Aptina sensor | | Lenses | 0 - 10x, 50x | | Resolution | Image: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240
Video: 1600 x 1200 (2.5 fps), 1280 x 1024 (3.75 fps), 640 x 480 (15 fps), 320 x 240 (30 fps) | | PC Interface | USB 2.0 | | Illumination | LED | | Compatibility | Windows XP, 7, 8, 10
Mac OS 10.4.8, or later | | Power | USB 2.0 | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Dimensions | ProScope: 6.0 x 1.8" / 15.2 x 4.6 cm
USB Cord Length: 6.0' / 1.8 m
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope: 5.3 oz / 150.0 g
Kit: Not provided by manufacture | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 15.4 x 13.2 x 4.1" |
