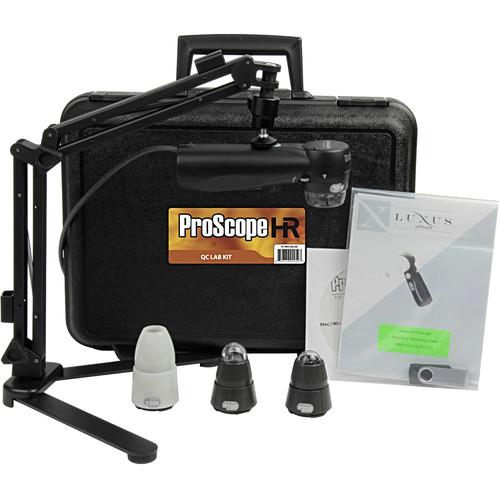

User Manual for Bodelin Technologies ProScope HR2 QC Lab Kit Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies ProScope HR2 QC Lab
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
|
User manual for the Bodelin Technologies ProScope HR2 QC Lab contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|
Product description Enhance your professional or scientific research with the Bodelin ProScope HR2 QC Lab Kit. Optimized especially for quality control (QC) in a laboratory setting, this kit includes all the necessary components, including a handheld digital camera and four lenses, that will help you reach your professional or research goals. The central component of this kit is a compact and ergonomic imaging device, featuring an Aptina color CMOS sensor with 2.0MP resolution and 1/3" format. With the four included interchangeable lens modules (0-10x, 30Nx, 100x, and 200x), it enables you to work with a wide variety of samples that require different level of magnification. An LED illumination ring is integrated into each lens, helping the imaging sensor deliver clear, high-contrast images and videos at frame rates up to 30 fps. To provide versatility and options that best suit your lab setup, the hand unit can be used as a handheld device, mounted on the included adjustable stand, or be coupled to other microscopes and borescopes, by means of included or optional mounts and adapters.
The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure, complete stillness of a camera, or hands-free operation, you can use the included adjustable stand to hold the imager in any required position. For additional mounting options, there are two built-in 1/4"-20 tripod sockets on the handle that will provide a secure and stable connection to most standard tripods. For connections Windows or Mac computers, the kit also includes ProScope software. - Imaging Sensor, Video Performance, Illumination
-
- 2.0MP, 1/3"" CMOS Aptina image sensor
- Captures still images and videos at up to 30 fps
- Each compatible lens has a built-in LED illuminator
- Powered by an attached USB 2.0 cable
- Optical Performance and Compatibility
-
- 0-10x, 30Nx, 100x, 200x lenses included
- 30Nx lens provides polarized LED illumination for low-glare imaging
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
- Two built-in 1/4"-20 tripod sockets
- Device Compatibility
-
- Compatible with Windows and Mac OS
- Compatible with Chrome and Android via third party apps
- USB 2.0 connectivity to supported devices
UPC: 856776000597 In the Box Bodelin Technologies ProScope HR2 QC Lab Kit (Black) - 0-10x Lens for ProScope HR/HR2/Mobile (Black) awwfxfwacferwayweezrefurvdsxrfxxzq
- 30Nx Lens for ProScope HR/HR2/Mobile (Gray)
- 100x Lens for ProScope HR/HR2/Mobile (Black)
- 200x Lens for ProScope HR/HR2/Mobile (Black)
- LX-PROSCOPE HR Software
- ProScope HR/HR2 Deluxe Carrying Case
- ProScope Flexible Stand (Black)
- ProScope HR Software
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope HR2 QC Lab Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-HR2-QCLAB Specs | Imager | 2.0 MP, 1/3" CMOS Aptina sensor | | Lenses | 0 - 10x, 30Nx, 100x, 200x | | Resolution | Image: 1600 x 1200, 1280 x 1024, 640 x 480, 320 x 240
Video: 1600 x 1200 (at 2.5 fps), 1280 x 1024 (at 3.75 fps), 640 x 480 (at 15 fps), 320 x 240 (at 30 fps) | | Format | Image: JPEG, PNG, TIFF
Video: AVI, MOV | | Frame Rate | 30 fps maximum | | PC Interface | USB 2.0 | | Illumination | LED ring on each lens | | Compatibility | Windows XP, 7, 8, 10
Mac OS 10.4.8, or later
Chrome, Android with third party apps | | Power | Attached USB 2.0 cable (6' / 1.8 m) | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Dimensions | ProScope: 6.0 x 1.8" / 15.2 x 4.6 cm
USB Cord Length: 6.0' / 1.8 m
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope: 5.3 oz / 150.0 g
Kit: Not provided by manufacturer | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 3.6" |
