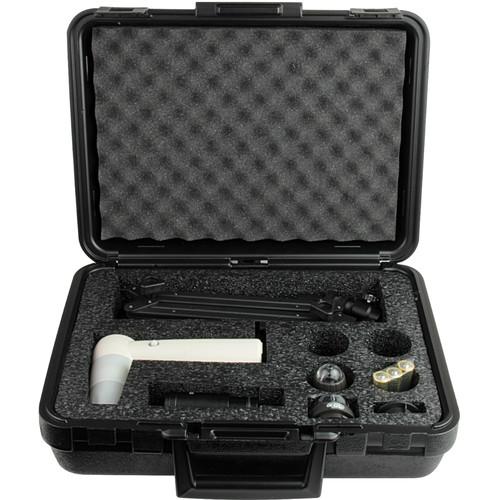

User Manual for Bodelin Technologies ProScope Mobile CSI Lab Kit Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies ProScope Mobile CSI Lab
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
|
User manual for the Bodelin Technologies ProScope Mobile CSI Lab contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|
Product description Enhance your professional activities or hobbies with the wireless Bodelin ProScope Mobile CSI Lab Kit for iOS devices such as iPhone, iPad, and iPod touch. The kit includes a handheld Wi-Fi digital microscope, three lenses (0-10x, 50x, and 200x), a hard-padded carrying case, an adjustable stand, and two mounting adapters. With a high-resolution color CMOS sensor and high-quality optics, this device is suited well for many professional settings and applications such as science, engineering, and medicine. The 5.0MP, 1/4" imager delivers clear, high-contrast images and videos to your device via its 2.4 GHz radio and with up to 15 fps. For establishing a proper connection with your iOS device, you need to install the AirMicro app for iOS. The Proscope Mobile can be used as a standalone, handheld device and you can achieve a magnification of up to 400x with an optional Bodelin lens attached. Other uses include mounting the ProScope Mobile to other compound microscopes and borescopes, by means of optional mounts and adapters.
The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. - Imaging Sensor, Video Performance, Illumination
-
- 5.0MP, 1/4" CMOS image sensor
- Captures still images and videos with up to 15 fps
- Each compatible lens has a built-in LED illuminator
- Wi-Fi & Device Compatibility
-
- Compatible with iOS devices only, including iPhone, iPad, and iPod touch
- 2.4 GHz Wi-Fi connection to one device
- Connection requires the downloadable AirMicro app for iOS
- Optical Performance and Compatibility
-
- 0-10x, 50x, and 200x magnifications with three included lenses
- Up to 400x magnification with other optional lens
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
UPC: 810487017169 In the Box Bodelin Technologies ProScope Mobile CSI Lab Kit (Gray) - 0-10x Lens for ProScope HR/HR2/Mobile (Black) urvytrrbuqryxruddbbzaqxfzuawvttbsc
- 50x Lens for ProScope HR/HR2/Mobile (Black)
- 200x Lens for ProScope HR/HR2/Mobile (Black)
- ProScope Mobile for iPad, iPhone, & iPod Touch (Body Only)
- C-Mount Adapter with IR Cut Filter Kit
- ProScope Lens Tube Adapter
- ProScope HR/HR2 Deluxe Carrying Case
- ProScope Flexible Stand (Black)
- 3 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope Mobile CSI Lab Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies ProScope Specs | Imager | 5.0 MP, 1/4" CMOS sensor | | White Balance | Manual | | Gain | Automatic | | Magnification | 0 - 10x, 50x, 200x
Up to 400x with optional lens | | Resolution | 640 x 480, 320 x 240 | | Frame Rate | 15 fps | | Illumination | LED ring on each lens | | Compatibility | iOS Devices: iPhone, iPad, and iPod touch
iOS 5.0 or later | | Battery / Runtime | 3 x AA batteries / 3 hours | | Wi-Fi | IEEE 802.11b
Static IP connection to 1 device
Bandwidth: 2.4 GHz
Range: 30.0' / 9.14 m | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Compliance | FCC, CE, RoHS | | Dimensions | ProScope Mobile: 6.0 x 1.75" / 15.2 x 4.4 cm
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope Mobile: 5.3 oz / 150.0 g
Kit: 4.0 lb / 1.81 kg |
