Product description Enhance your professional activities or hobbies with the wireless Bodelin ProScope Mobile CSI Science Level 1 Kit for iOS devices such as iPhone, iPad, and iPod touch. The kit includes a handheld Wi-Fi digital microscope, a 0-10x lens, a 50x lens, and a hard-padded carrying case. With a high-resolution color CMOS sensor and high-quality optics, this device is suited well for many professional settings and applications such as science, engineering, and medicine. The 5.0MP, 1/4" imager delivers clear, high-contrast images and videos to your device via its 2.4 GHz radio and with up to 15 fps. For establishing a proper connection with your iOS device, you need to download the AirMicro app for iOS. The ProScope Mobile can be used as a standalone, handheld device and you can achieve magnifications of up to 400x with optional Bodelin lenses attached. Other uses include mounting the ProScope Mobile to other compound microscopes and borescopes, by means of optional mounts and adapters.
The construction of this compact scope does not lack in ergonomics and utility. The polymer handle offers a contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. - Imaging Sensor, Video Performance, Illumination
-
- 5.0MP, 1/4" CMOS image sensor
- Captures still images and videos with up to 15 fps
- Each compatible lens has a built-in LED illuminator
- Requires three AA batteries for operation
- Wi-Fi & Device Compatibility
-
- Compatible with iOS devices only, including iPhone, iPad, and iPod touch
- 2.4 GHz Wi-Fi connection to one device
- Connects to your device via downloadable AirMicro app for iOS
- Optical Performance and Compatibility
-
- 0-10x and 50x magnifications with two included lenses
- Up to 400x magnification with other optional lenses
- Can be used with compound microscopes and borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration
- Specialized lens receptacle allows snapping in new lenses instantly
- Clear polymer closed bezel protects lens and LEDs
- Control buttons located near your thumb and index finger
- 1/4"-20 tripod socket

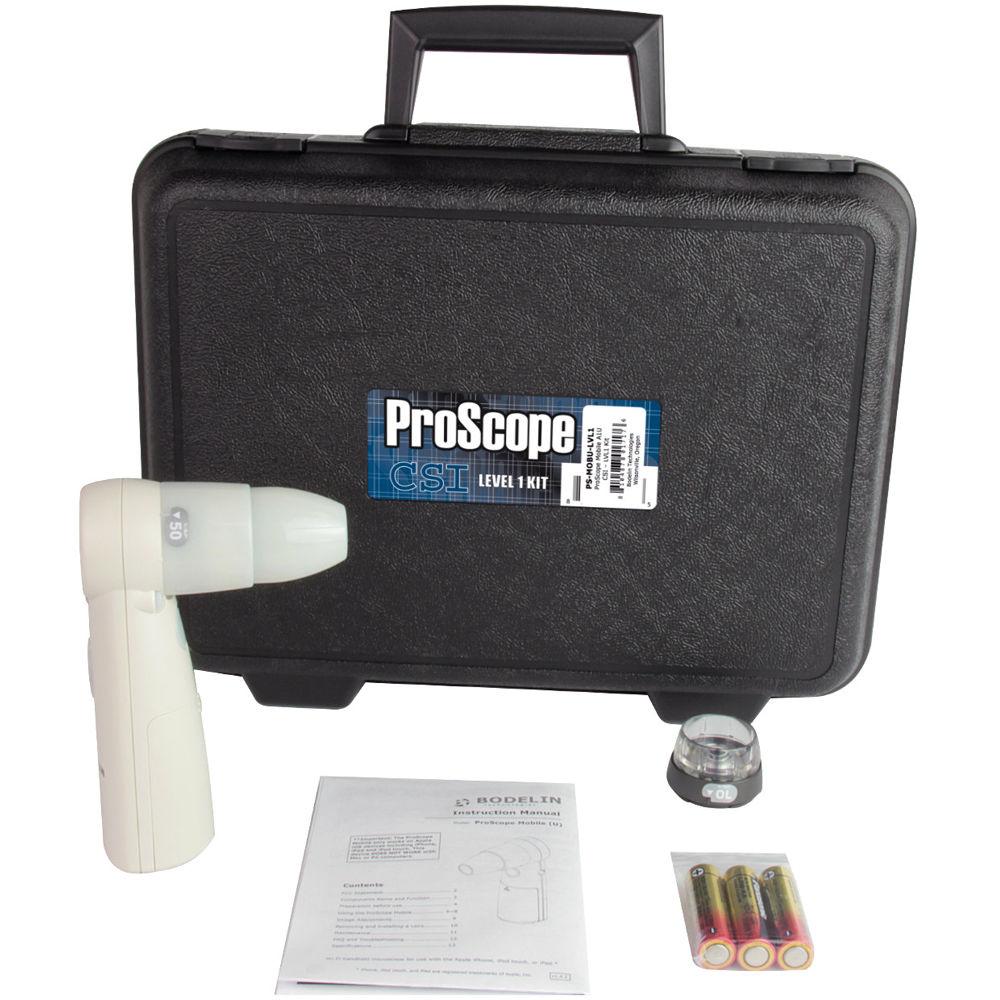

UPC: 810487017176 In the Box Bodelin Technologies ProScope Mobile CSI Science Level 1 Kit (Gray) - 0-10x Lens for ProScope HR/HR2/Mobile (Black) dwuyfvctvaytsfcyztsruwxfztr
- 50x Lens for ProScope HR/HR2/Mobile (Black)
- ProScope Mobile for iPad, iPhone, & iPod Touch (Body Only)
- ProScope HR/HR2 Deluxe Carrying Case
- 3 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope Mobile CSI Science Level 1 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies ProScope Specs | Imager | 5.0 MP, 1/4" CMOS sensor | | White Balance | Manual | | Gain | Automatic | | Magnification | 0 - 10x, 50x
Up to 400x with optional lenses | | Resolution | 640 x 480, 320 x 240 | | Frame Rate | 15 fps | | Illumination | LED ring on each lens | | Compatibility | iOS Devices: iPhone, iPad, and iPod touch
iOS 5.0 or later | | Battery / Runtime | 3 x AA batteries / 3 hours | | Wi-Fi | IEEE 802.11b
Static IP connection to up to one device
Bandwidth: 2.4 GHz
Range: 30' / 91.4 m | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | 14 to 140°F / -10 to 60°C (in low humidity) | | Compliance | FCC, CE, RoHS | | Dimensions | ProScope Mobile: 6.0 x 1.75" / 15.2 x 4.4 cm
Kit: 13.5 x 10.25 x 3.75" / 34.3 x 26.0 x 9.5 cm | | Weight | ProScope Mobile: 5.3 oz / 150.0 g
Kit: 4.0 lb / 1.81 kg |
