Product description

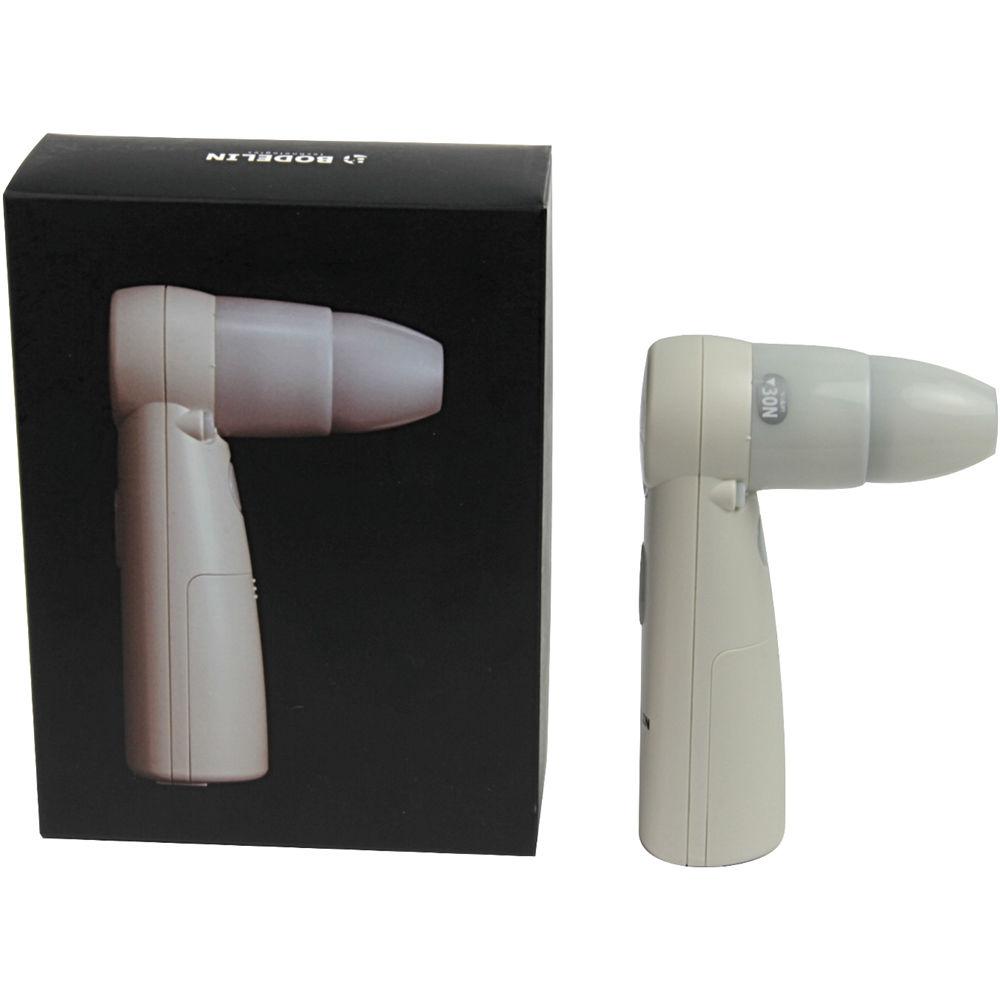

Bodelin's ProScope Mobile for iPad, iPhone, & iPod Touch is a compact and ergonomic wireless handheld microscope featuring a 5.0MP CMOS sensor for delivering superior image quality. It is suitable for professional settings and applications in medicine, science, or engineering. The 5.0MP, 1/4" imager delivers clear, high-contrast images with resolutions up to 640 x 480 pixels. Powered by three user-supplied AA batteries, the microscope provides freedom of movement in laboratory, classroom, or conference room settings. The versatile hand unit can be used as a standalone device using the included 30N lens or with stationary compound microscopes and borescopes, using optional c-mounts or other adapters. The lens provides 30x magnification and features polarized LED illumination that reduces image glint, unwanted reflections, and speckles, delivering more clarity, contrast, and resolution. This quality makes it ideal for dermatology, dentistry, and jewelry.

As a standalone, handheld device, operators can achieve a maximum magnification of 400x with optional Bodelin lenses attached. The construction of this compact scope does not lack in ergonomics and utility. The cobalt black polymer handle offers contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure and complete stillness of camera, a built-in metal ¼"-20 tripod socket, located on the back of the handle, will provide a secure and stable connection to most standard tripods.

Using the free AirMicro App (for iPhone/iPod) or AirMicroPad App (for iPad), downloadable through a PC synced with iTunes, your microscope can connect wirelessly with your iPad, iPhone, and iPod touch. You can establish a secure static IP one-to-one Wi-Fi network to your Apple iOS device.
    Compatibility
    • Compatible with iPhones, iPods, and iPads
    • 2.4 GHz Wi-Fi connectivity to supported devices
    • Requires free AirMicro App for iPhones and iPods connectivity
    • Requires free AirMicroPad App for connection to iPads
    • Can establish a secure static IP Wi-Fi network to one Apple iOS device
      Imaging Sensor & Illumination
      • 5.0MP, 1/4" CMOS image sensor
      • Takes still images with 640x480 or 320x240 resolutions
      • Each compatible lens has integrated LED illuminator
      • Powered by 3 user-supplied AA batteries
        Optical Performance and Compatibility
        • 30N Lens provides 30x magnification with polarized illumination
        • Polarized illumination reduces glint ands peckle
        • Up to 400x magnification with other optional lenses
        • Can be used with stationary compound microscopes using optional c-mount
        • Can be used with borescopes via optional adapters
          Construction
          • Compact polymer handle
          • Ergonomic L-shaped lens-handle configuration

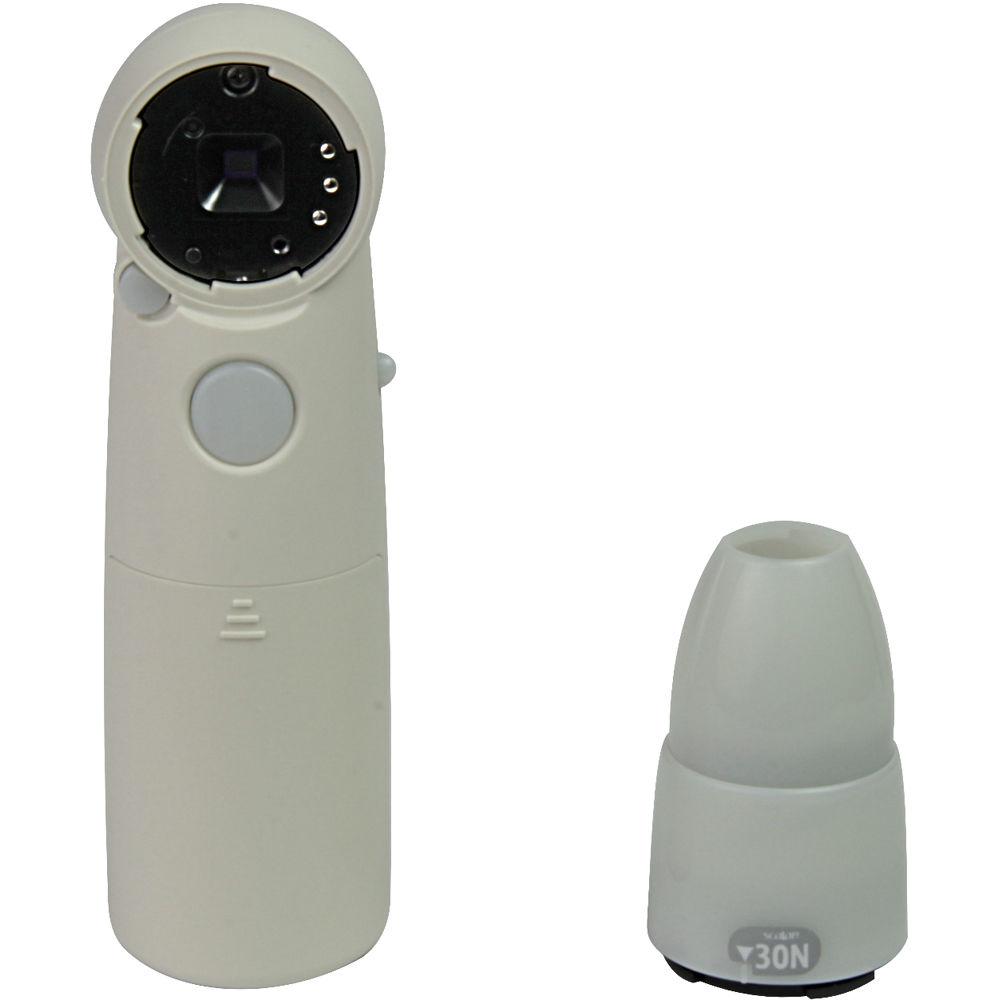

          • Lens receptacle allows snapping in new lenses instantly
          • Clear polymer closed nozzle protects lens and LEDs
          • Control buttons located near your thumb and index finger
          • Built-in metal 1/4"-20 tripod socket

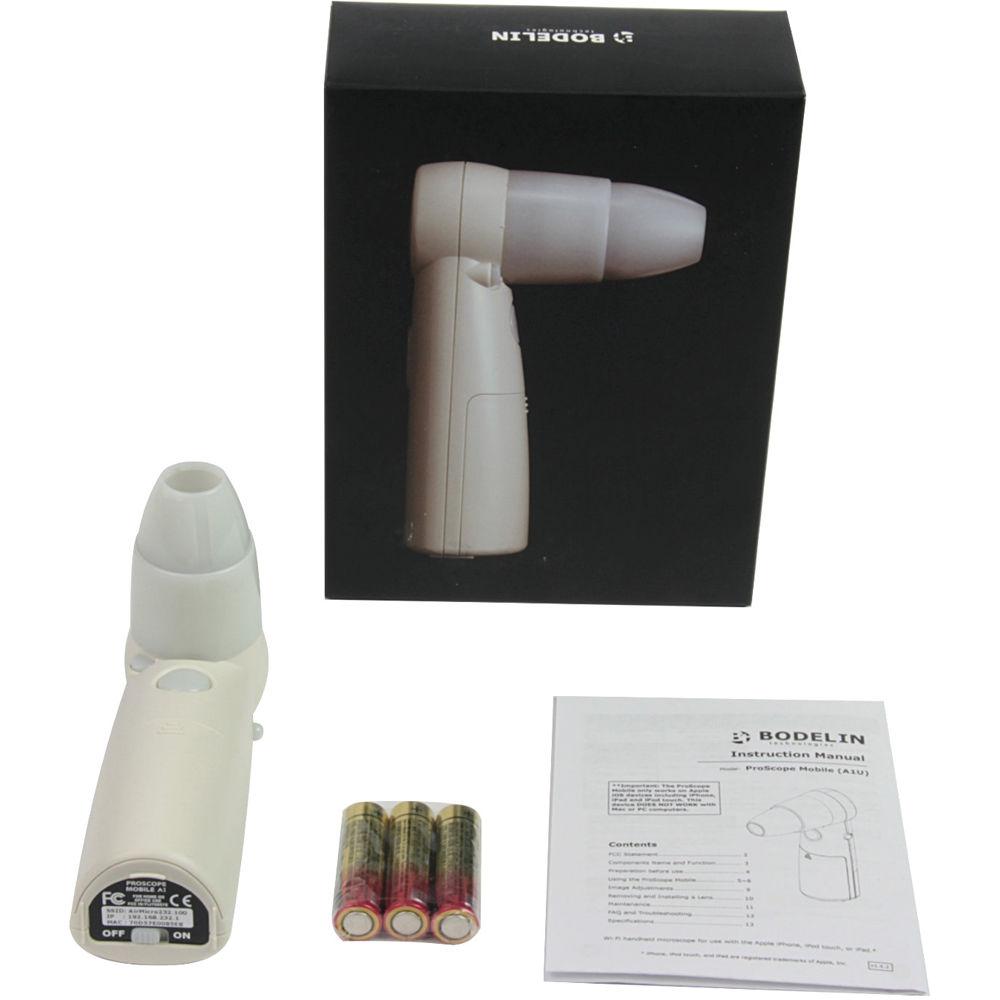

          UPC: 810487017145 In the Box Bodelin Technologies ProScope Mobile for iPad, iPhone, & iPod Touch (30N Lens)
        • 30Nx Lens for ProScope HR/HR2/Mobile (Gray)
        • Limited 2-Year Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Bodelin Technologies ProScope Mobile for iPad, iPhone, & iPod Touch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Bodelin Technologies ProScope Specs

Imager 5.0 MP, 1/4" CMOS sensor
White Balance Automatic white balance
Gain Automatic gain control
Magnification 30x
Resolution Still Images:
320 x 240
640 x 480
PC Interface Wi-Fi
Frequency: 2.4 GHz
Internal multi-layer antenna
Range: 33' / 10 m
Lens Mount Standard ProScope mount
A & B power: 5 V, 120 mA
Battery / Runtime 3 x AA alkaline batteries / 2 h
3 x AA Ni-MH batteries / 3 h
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Overall Dimensions 6.3 x 1.8 x 1.6" / 153 x 46 x 43 mm
Weight 4.6 oz / 130 g
Package Weight 0.95 lb
Box Dimensions (LxWxH) 7.9 x 5.9 x 2.4"
