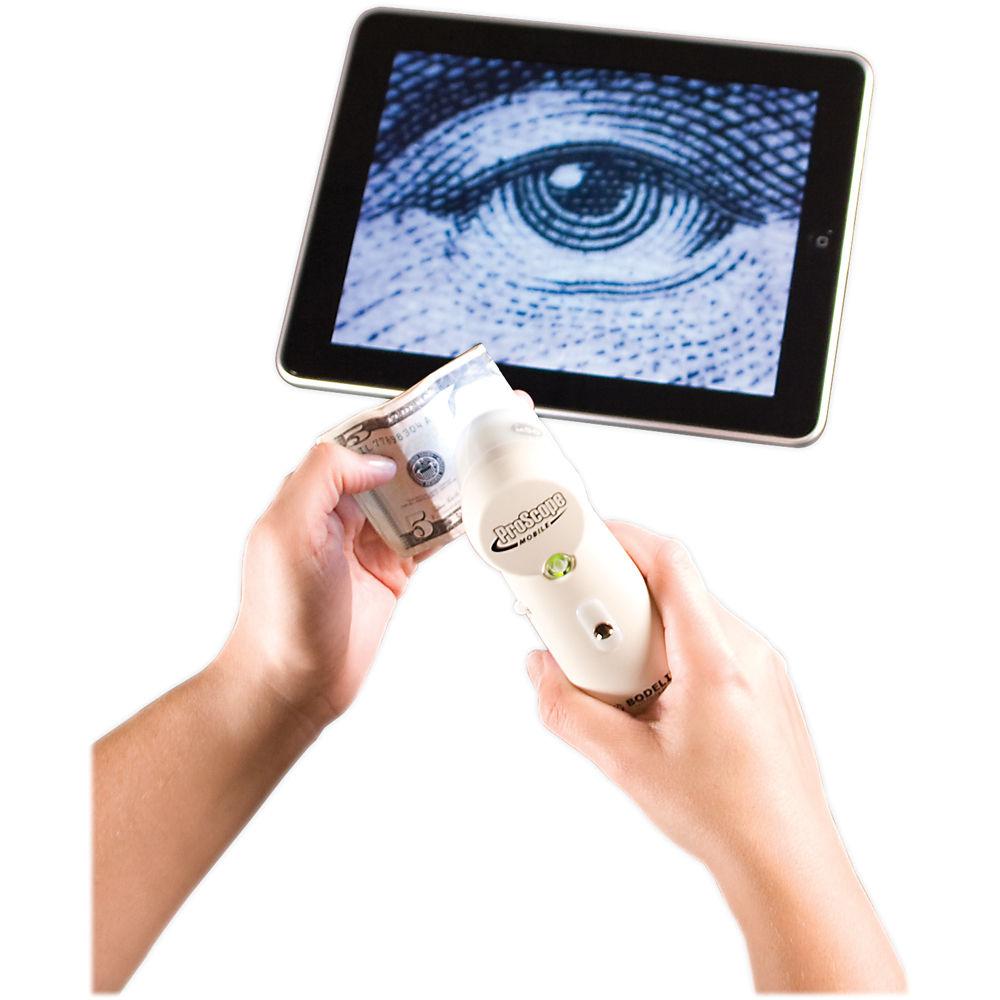

User Manual for Bodelin Technologies ProScope Mobile for iPad, iPhone, & iPod Touch Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies ProScope Mobile for iPad,
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
 |
User manual for the Bodelin Technologies ProScope Mobile for iPad, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|
Product description Bodelin's ProScope Mobile for iPad, iPhone, & iPod Touch is a compact and ergonomic wireless handheld microscope featuring a 5.0MP CMOS sensor for delivering superior image quality. It is suitable for professional settings and applications in medicine, science, or engineering. The 5.0MP, 1/4" imager delivers clear, high-contrast images with resolutions up to 640 x 480 pixels. Powered by three user-supplied AA batteries, the microscope provides freedom of movement in laboratory, classroom, or conference room settings. The versatile hand unit can be used with stationary compound microscopes and borescopes, using optional c-mounts or other adapters.

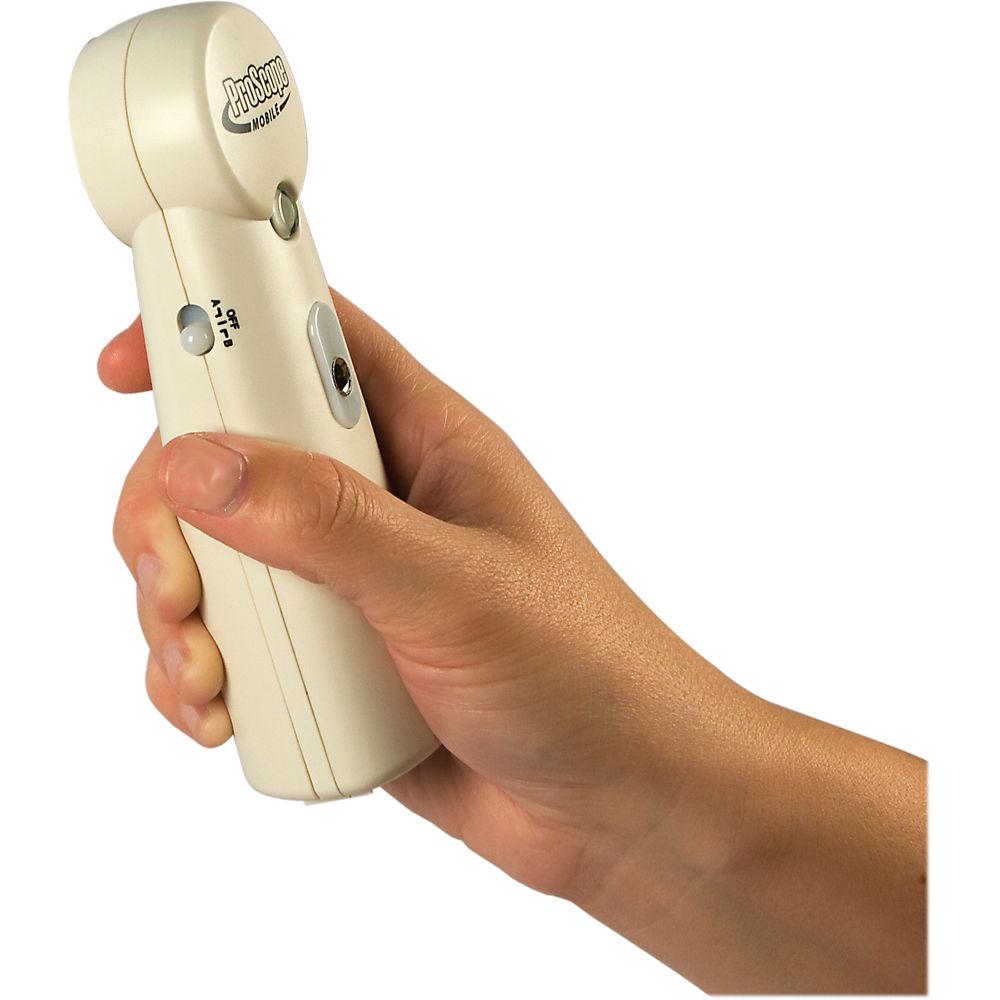

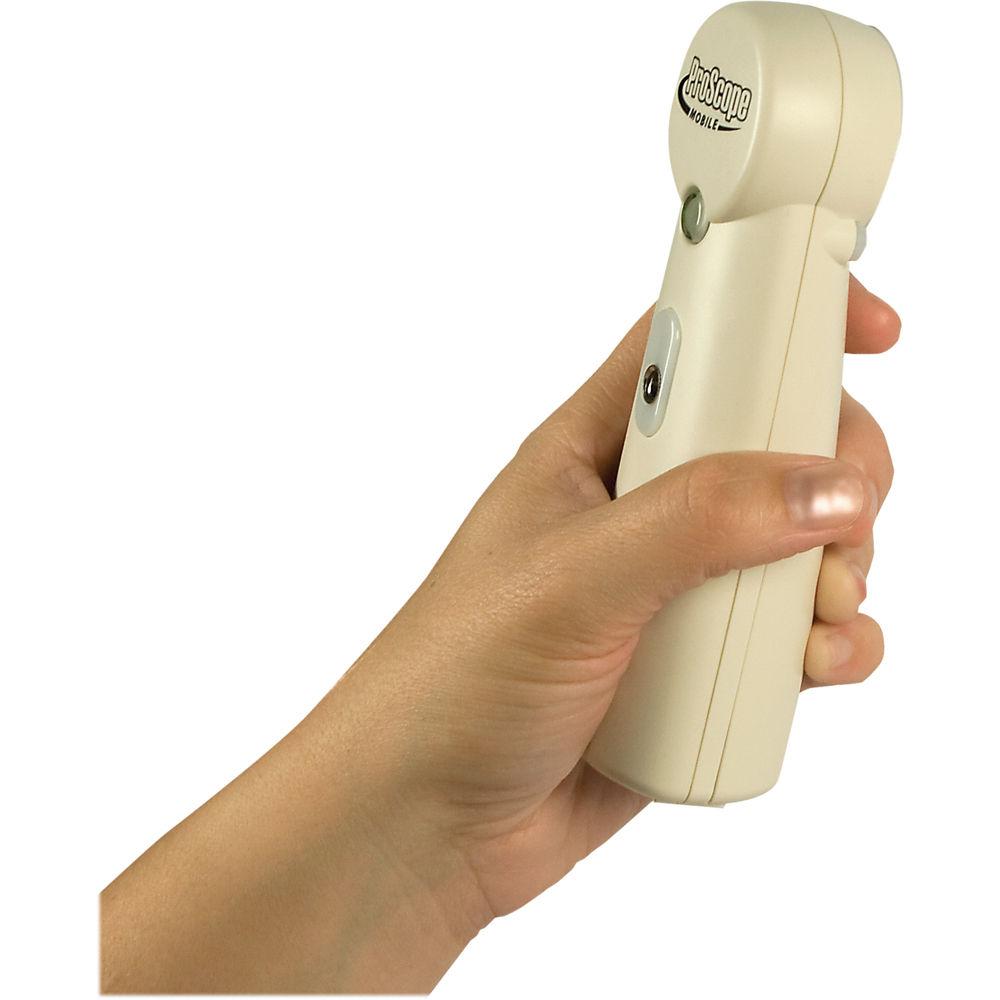

As a standalone, handheld device, operators can achieve a maximum magnification of 400x with optional Bodelin lenses attached. The construction of this compact scope does not lack in ergonomics and utility. The cobalt black polymer handle offers contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger, and a forward-looking camera directed at a 90° angle relative to the handle. If your application requires long exposure and complete stillness of camera, a built-in metal ¼"-20 tripod socket, located on the back of the handle, will provide a secure and stable connection to most standard tripods.

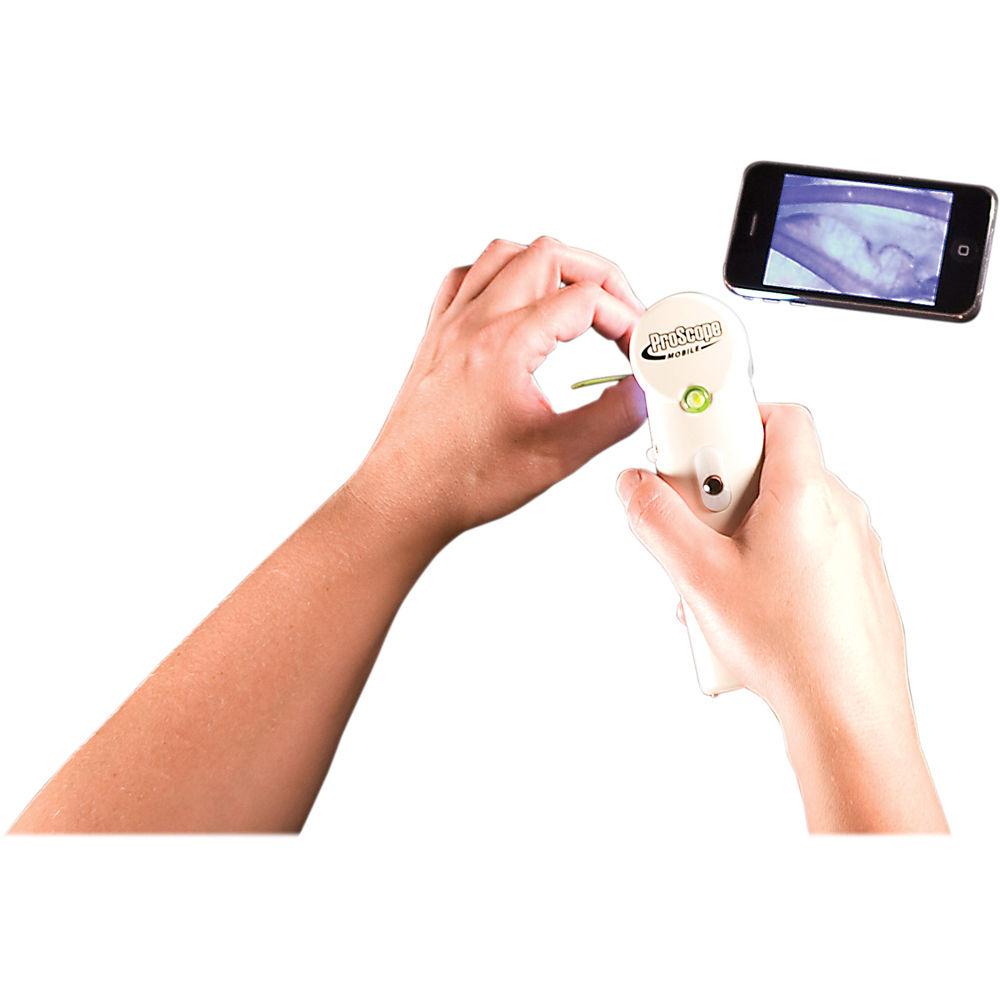

Using the free AirMicro App (for iPhone/iPod) or AirMicroPad App (for iPad), downloadable through a PC synced with iTunes, your microscope can connect wirelessly with your iPad, iPhone, and iPod touch. You can establish a secure static IP one-to-one Wi-Fi network to your Apple iOS device. - Compatibility
-
- Compatible with iPhones, iPods, and iPads
- 2.4 GHz Wi-Fi connectivity to supported devices
- Requires free AirMicro App for iPhones and iPods connectivity
- Requires free AirMicroPad App for connection to iPads
- Can establish a secure static IP Wi-Fi network to one Apple iOS device
- Imaging Sensor & Illumination
-
- 5.0MP, 1/4" CMOS image sensor
- Takes still images with 640x480 or 320x240 resolutions
- Each compatible lens has integrated LED illuminator

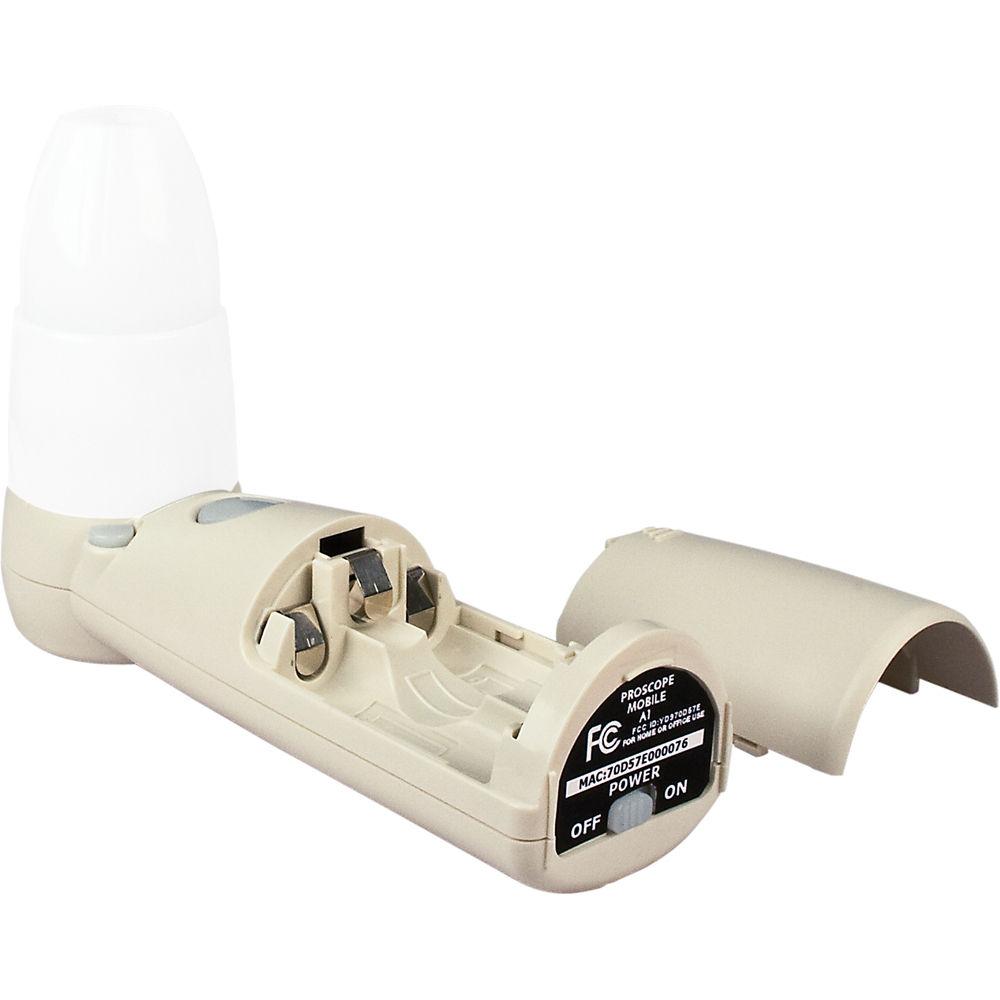

- Powered by 3 user-supplied AA batteries
- Optical Performance and Compatibility
-
- No objective lens included: body only
- Up to 400x magnification with other optional lenses
- Can be used with stationary compound microscopes using optional c-mount
- Can be used with borescopes via optional adapters
- Construction
-
- Compact polymer handle
- Ergonomic L-shaped lens-handle configuration

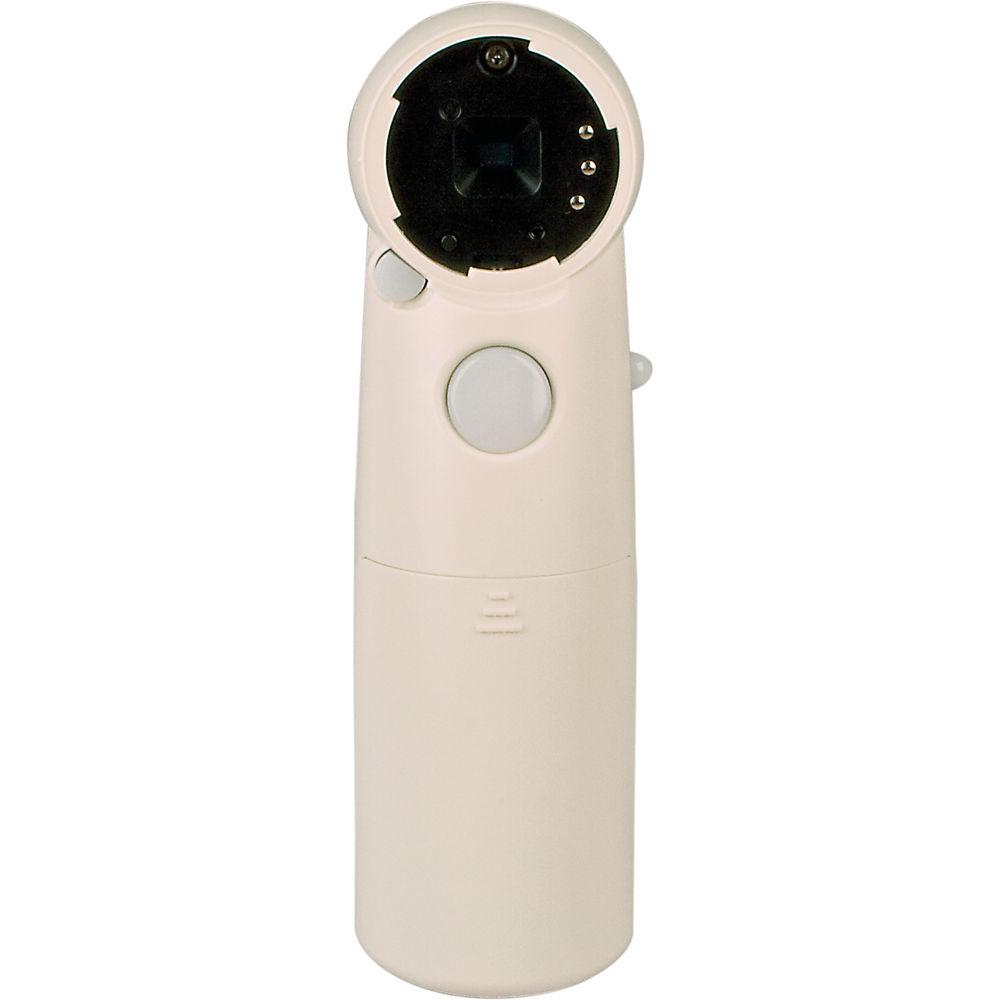

- Lens receptacle allows snapping in new lenses instantly
- Clear polymer closed nozzle protects lens and LEDs
- Control buttons located near your thumb and index finger

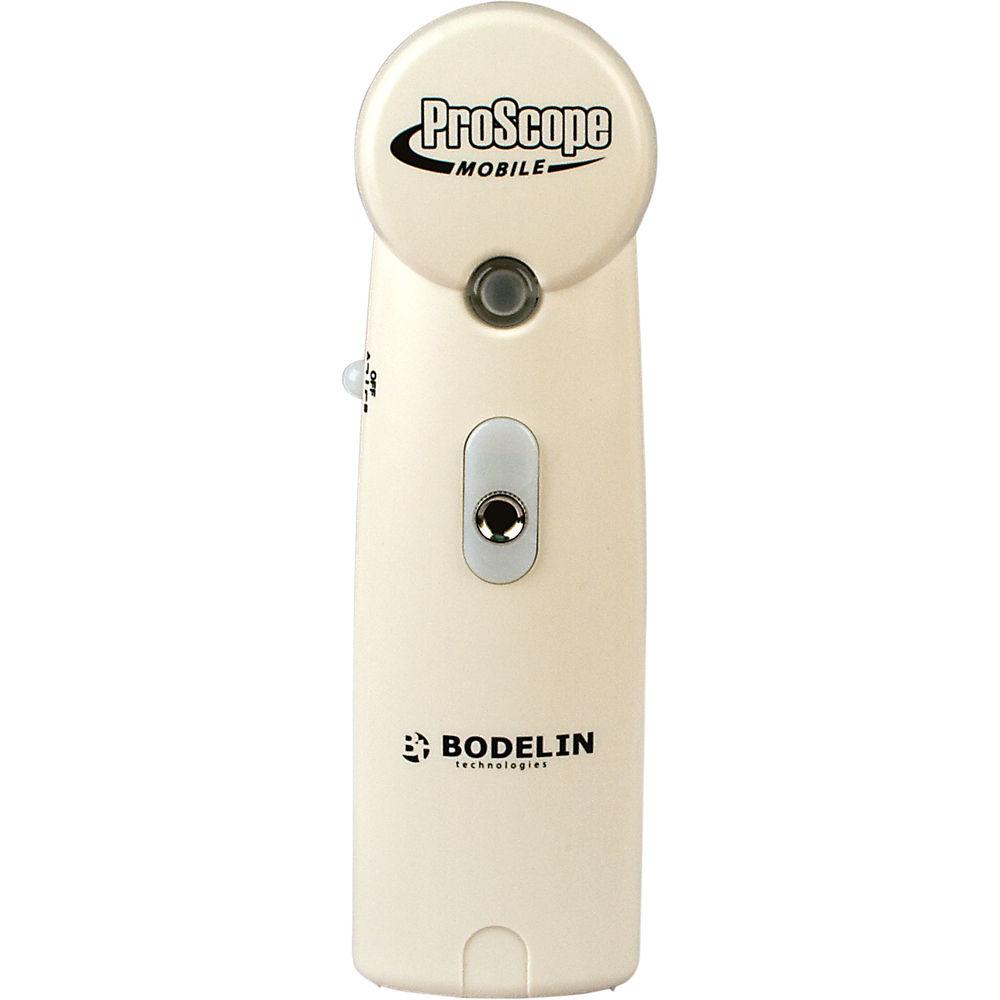

- Built-in metal 1/4"-20 tripod socket
UPC: 856776000313 In the Box Bodelin Technologies ProScope Mobile for iPad, iPhone, & iPod Touch (Body Only) - Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies ProScope Mobile for iPad, iPhone, & iPod Touch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies PS-MOBU-BASE Specs | Imager | 5.0 MP, 1/4" CMOS sensor | | White Balance | Automatic white balance | | Gain | Automatic gain control | | Resolution | Still Images:
320 x 240
640 x 480 | | PC Interface | Wi-Fi
Frequency: 2.4 GHz
Internal multi-layer antenna
Range: 33' / 10 m | | Lens Mount | Standard ProScope mount
A & B power: 5 V, 120 mA | | Battery / Runtime | 3 x AA alkaline batteries / 2 h
3 x AA Ni-MH batteries / 3 h | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Overall Dimensions | 6.3 x 1.8 x 1.6" / 153 x 46 x 43 mm | | Weight | 4.6 oz / 130 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.9 x 5.7 x 2.3" |
