User Manual for Bodelin Technologies PS-EDU-HDMI ProScope EDU HDMI Digital Handheld Microscope Click to enlarge the picture
Contents of the user manual for the Bodelin Technologies PS-EDU-HDMI ProScope EDU HDMI
- Product category: Digital Microscopes Bodelin Technologies
- Brand: Bodelin Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bodelin Technologies Digital Microscopes
 |
User manual for the Bodelin Technologies PS-EDU-HDMI ProScope EDU HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bodelin Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bodelin Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bodelin Technologies product will considerably shorten its lifespan!
|

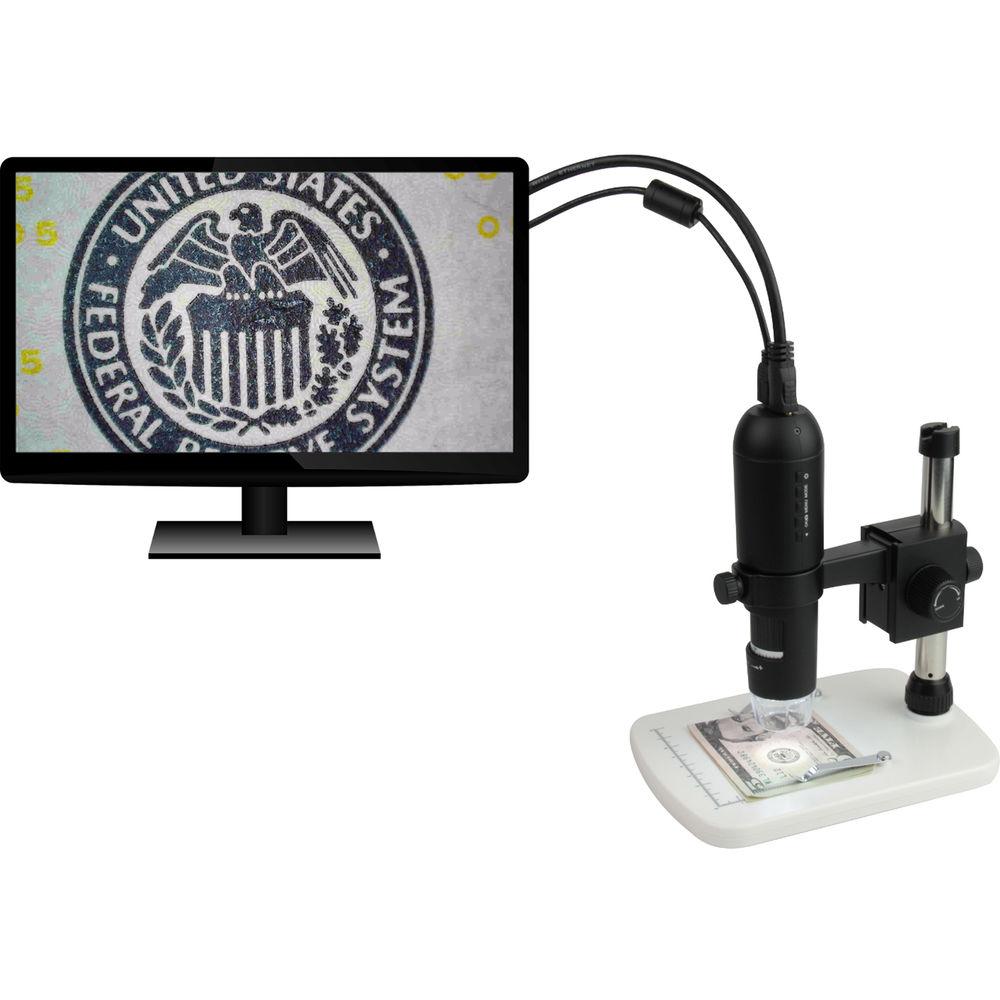

Product description Stream 1080p 30 fps video of your discoveries to a TV monitor using the Bodelin PS-EDU-HDMI ProScope EDU HDMI Digital Handheld Microscope. The microscope has a dedicated HDMI output port for this purpose and includes a 4' HDMI cable. It can be used as handheld device or can be mounted on the included pillar-type stand. The imaging system offers a 3.0MP CMOS imager, 10-220x zoom, and six built-in white LEDs to provide proper illumination for your slides. For making the most of its high-resolution imaging sensor, there is a manual focusing wheel located on the side of the body. The captured videos and images can also be saved to a microSD memory card (8GB included, 32GB maximum) or transferred to your PC via a USB port. This product is compatible with Windows, Mac, and Chrome OS, and comes with an imaging software CD. - Optics and Illumination
-
- 10 - 220x magnification
- Six white LEDs provide illumination with adjustable brightness
- Imager
-
- 3.0MP CMOS color sensor
- Up to 14.0MP maximum image resolution with interpolation
- JPEG image format
- 1080p video output
- 30 fps maximum frame rate
- Use and Handling
-
- Includes a USB 2.0 power cable
- Includes an HDMI video output cable
- Includes imaging software for Mac and Windows
- Compatibility
-
- Works with Chromebook
- Compatible with select versions of Windows and Mac OS
- Construction Details
-
- Ergonomic body is designed for handheld operation
- Pillar offers adjustable height rotation in horizontal plane
- Wide base with two metal specimen clips

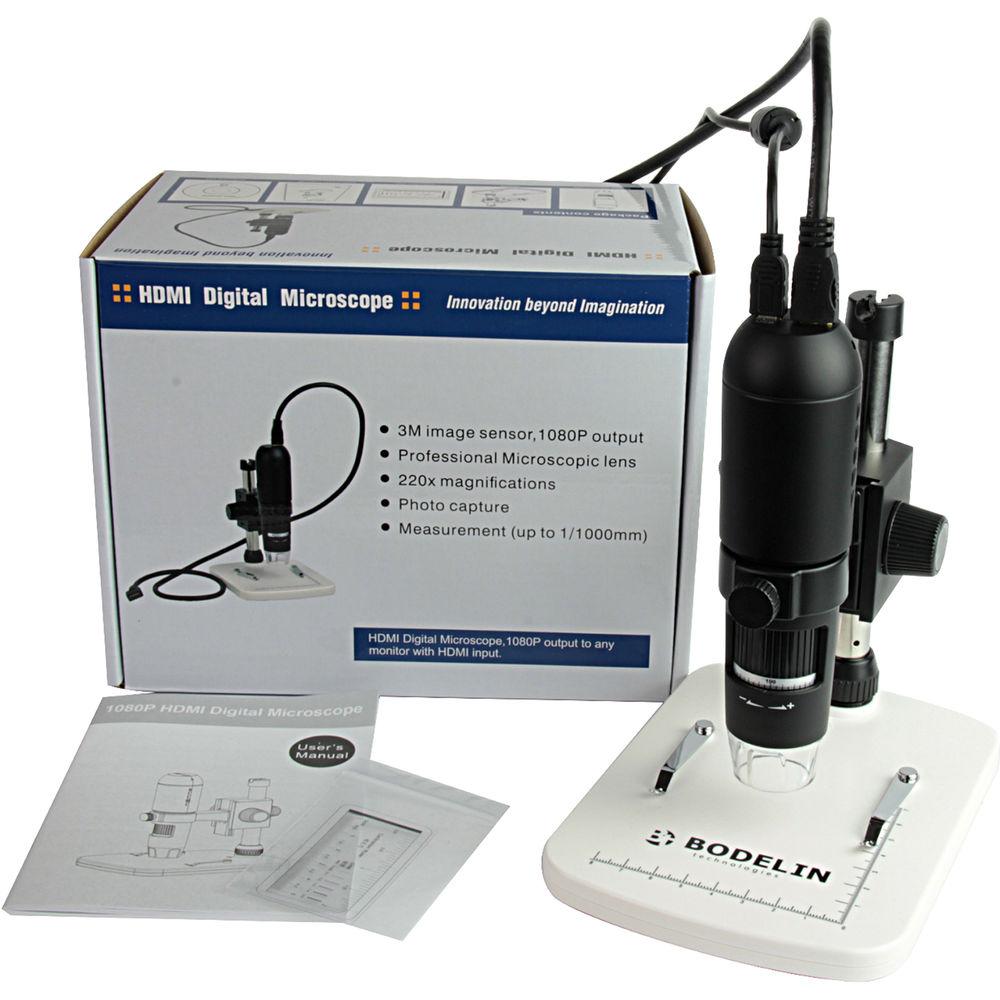

UPC: 810487017206 In the Box Bodelin Technologies PS-EDU-HDMI ProScope EDU HDMI Digital Handheld Microscope (Black) - Adjustable Stand
- 4' HDMI Cable
- 4' USB Cable
- Power Adapter
- Calibration Ruler
- Software CD
- 8GB microSD Memory Card
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies PS-EDU-HDMI ProScope EDU HDMI Digital Handheld Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies ProScope EDU Specs | Imaging Sensor | 3.0 MP | | Magnification | 10 - 220x | | Video Output | 1080p | | Video Output Format | HDMI Port: H.264
USB Port: MJPEG | | Frame Rate | 30 fps maximum | | Image Format | JPEG | | Image Resolution | 3.0 MP, 2.0 MP, WVGA
With Interpolation: 14.0 MP, 8.0 MP, 5.0 MP | | Focus | Manual
Range: 0 - 19.7" / 0 - 500 mm | | Video Output Ports | HDMI, USB | | Storage | microSD Slot: 32 GB maximum | | Illumination | 6 x LEDs | | Power Source | USB Port: 5.0 V | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Dimensions | 7.3 x 1.3" / 185.0 x 33.0 mm | | Weight | Not provided by manufacturer |
