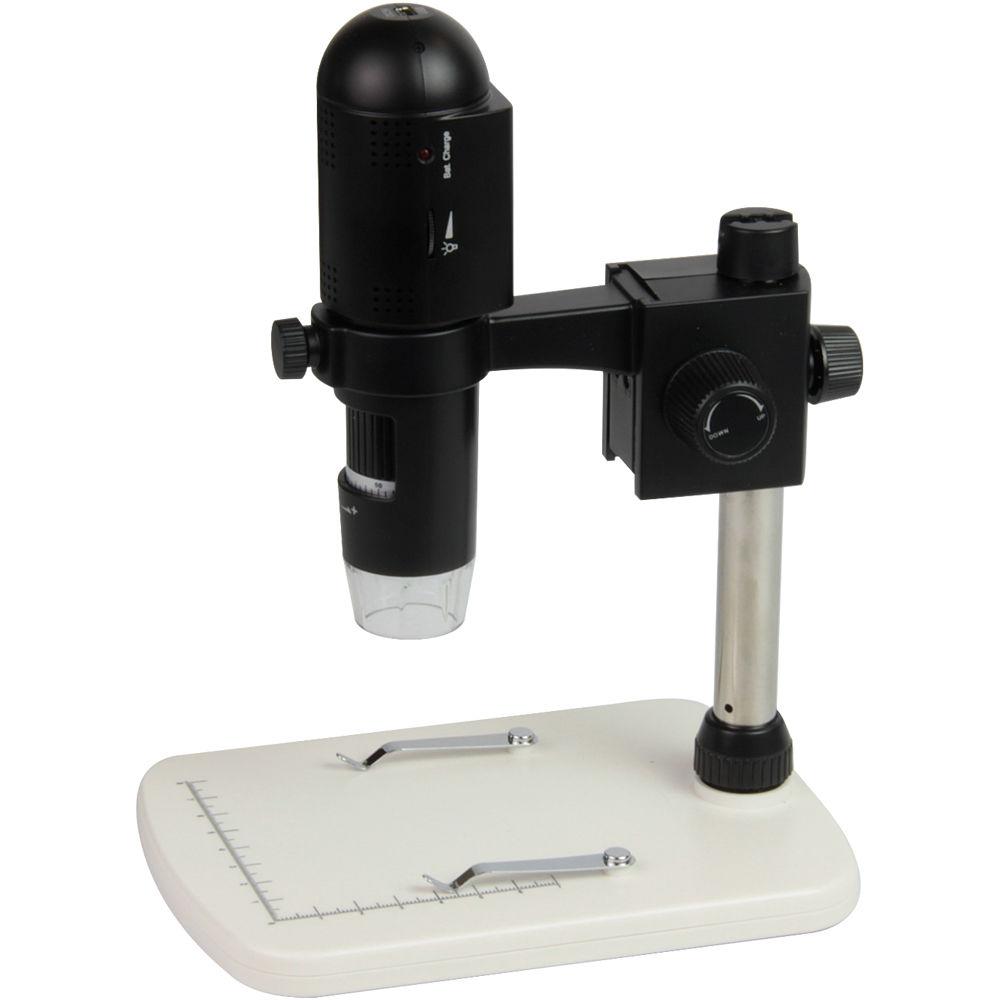

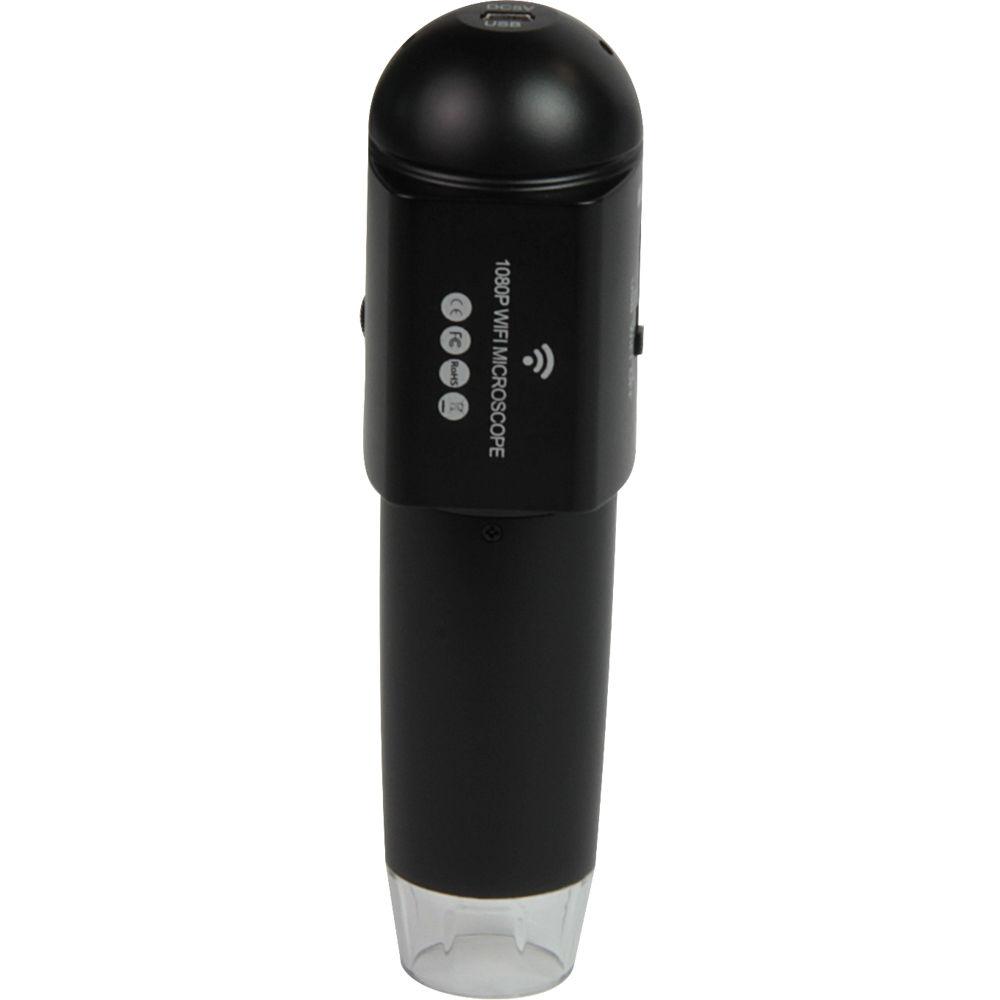

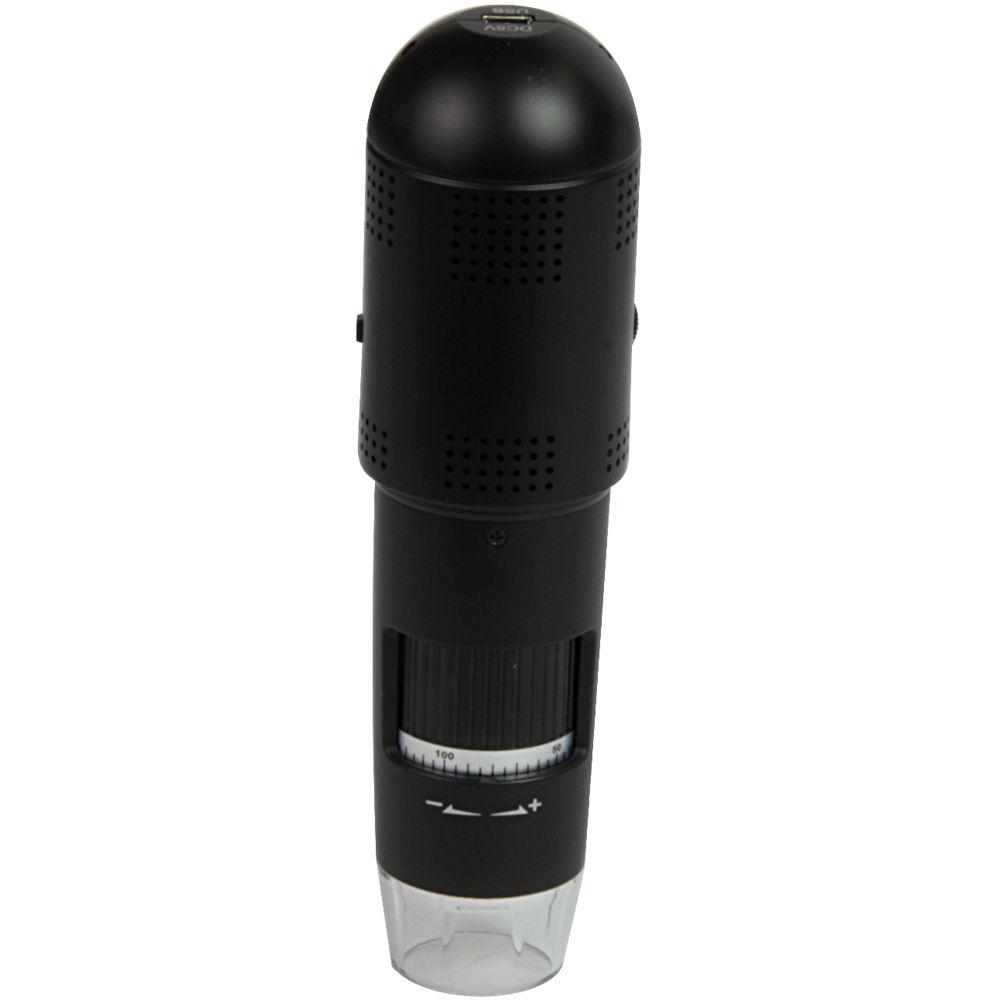

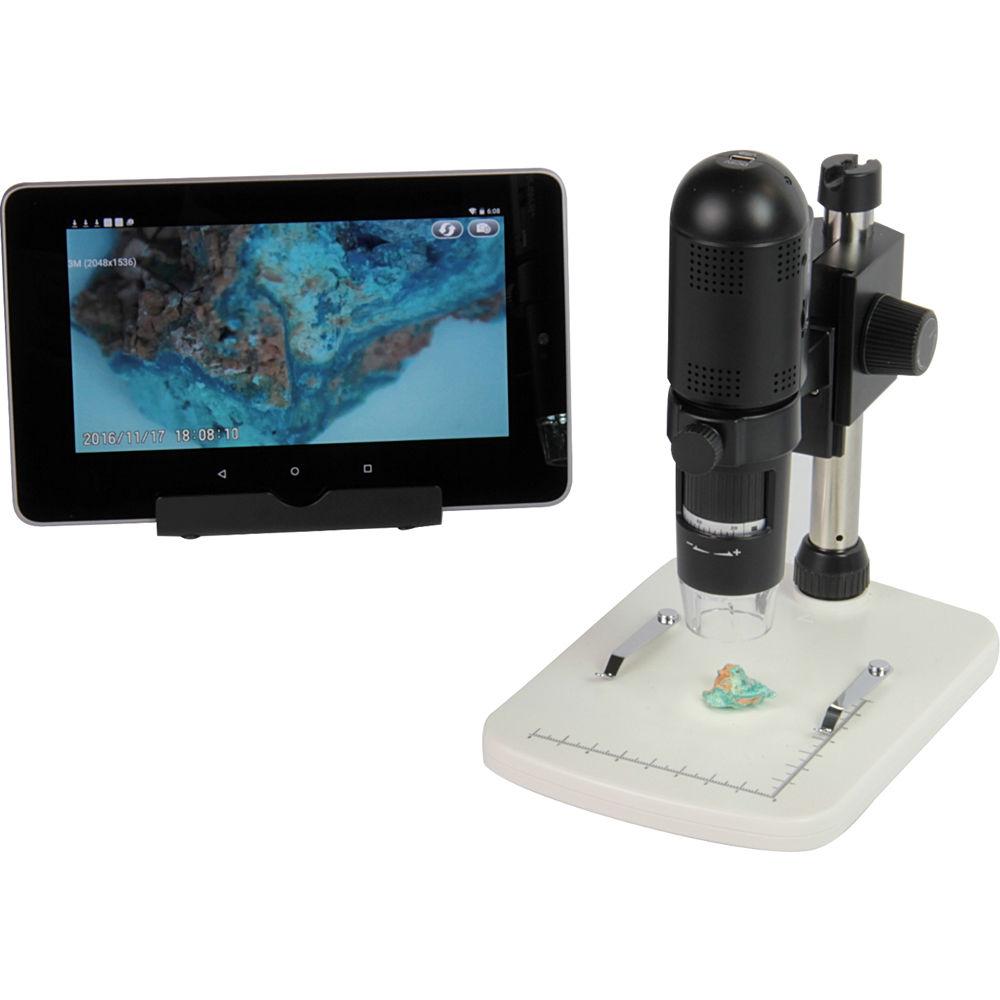

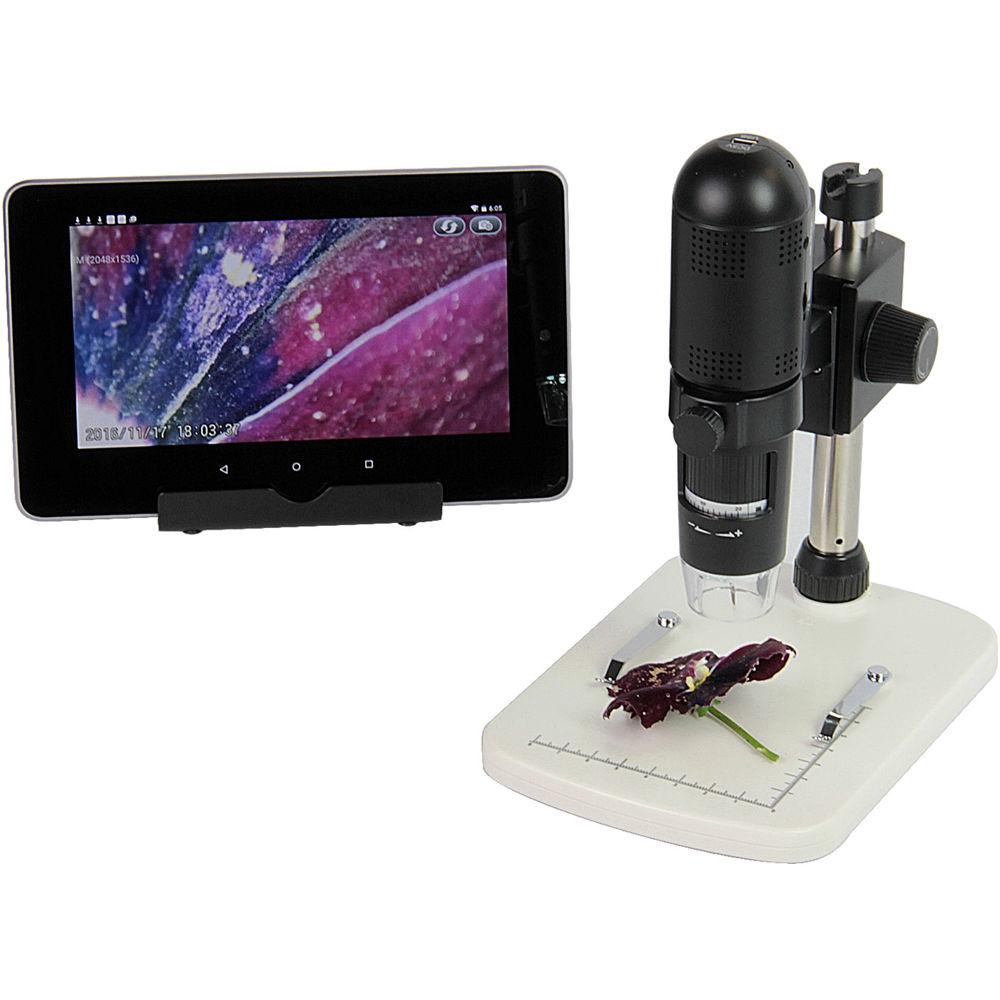

Product description Stream 1080p videos of your discoveries to your mobile device over Wi-Fi using the Bodelin PS-EDU-WIFI ProScope EDU Wi-Fi Digital Handheld Microscope. The microscope features a built-in Wi-Fi transmitter for connecting to your iOS or Android device wirelessly, and can be used as a handheld device or can be mounted on the included pillar stand. Thanks to a built-in battery, you can use it as a cordless scope for up to 1.7 hours. Its imaging system offers a 3.0MP CMOS imager, a 10-230x zoom, and six built-in white LEDs to provide proper illumination for your slides. For making the most of its high-resolution imaging sensor, the scope offers a manual focusing wheel located on the side of the body, and vertical and horizontal position adjustments via the included stand. Captured videos and images can also be saved to an external microSD memory card (8GB included, 32GB maximum) or transferred to your Windows computer, Mac, or Chromebook via a USB port. - Optics and Illumination
-
- 10 - 230x magnification
- Six white LEDs provide illumination with adjustable brightness
- Imager
-
- 3.0MP CMOS color sensor
- Up to 12.0MP maximum image resolution with interpolation
- Available video resolutions: 1080p, 720p, and VGA
- JPG image output format
- H.264 video output format
- Use and Handling
-
- Built-in Wi-Fi transmitter with 66' open sight range
- 150 Mbps transmission rate
- Includes a USB 2.0 power cable
- Connects to mobile devices via a free downloadable app, MicroCapture for Android and iOS
- Includes imaging software for Mac and Windows
- Compatibility
-
- Works with Chromebook
- Compatible with select versions of Windows and Mac OS
- Construction Details
-
- Ergonomic body is designed for handheld operation
- Metal pillar type stand
- Pillar offers adjustable height rotation in horizontal plane
- Wide base with two metal specimen clips
UPC: 810487017107 In the Box Bodelin Technologies PS-EDU-WIFI ProScope EDU Wi-Fi Digital Handheld Microscope (Black) - Adjustable Stand
- 4' USB Cable
- Power Adapter
- Software CD
- Calibration Ruler
- 8GB microSD Memory Card
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bodelin Technologies PS-EDU-WIFI ProScope EDU Wi-Fi Digital Handheld Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBodelin Technologies ProScope EDU Specs | Imaging Sensor | 3.0 MP | | Magnification | 10 - 230x | | Video Resolutions | 1080p (1920x1080), 720p (1280x720), and VGA (640x480) | | Video Output Format | H.264 | | Image Format | JPG | | Image Resolution | 3.0 MP
With Interpolation: 12.0 MP, 8.0 MP, 5.0 MP | | Focus | Manual
Range: 0 - 19.7" / 0 - 500 mm | | Ports | USB | | Wi-Fi | Yes
Open Site Range: 66' / 20 m
Transmission Rate: 150 Mbps | | Storage | microSD Slot: 32 GB maximum | | Illumination | 6 x LEDs | | Battery / Runtime | 1 x internal rechargeable lithium battery / 100 minutes | | Battery Charging Time | 1.5 hours | | Operating System Requirements | Windows: XP (SP2), 7, 8, 10
Mac OS: 10.7 or later
iOS: 5.1 or later
Android | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Package Weight | 2.28 lb | | Box Dimensions (LxWxH) | 8.7 x 6.7 x 5.4" |
